Filter

The advanced filter component allows users to filter data with multiple criteria combined. It consists of a floating bar and filters therein. The floating bar can be expanded to reveal the filters, which come in a multi-line collapsible or multi-line list style. For added convenience, you can append an additional quick filter.

NOTE

This component is supported since API version 10. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { Filter } from '@kit.ArkUI'

Child Components

Not supported

Attributes

The universal attributes are not supported.

Filter

Filter({ multiFilters: Array<FilterParams>, additionFilters?: FilterParams, filterType?: FilterType, onFilterChanged: (Array<FilterResult>) => void, container: ()=> void })

Decorator: @Component

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Decorator	Description
multiFilters	Array<FilterParams>	Yes	@Prop	List of filter criteria.
additionFilters	FilterParams	No	@Prop	Additional quick filter.
filterType	FilterType	No	@Prop	Filter type.
onFilterChanged	(filterResults: Array<FilterResult>) => void	Yes	-	Callback invoked when the filter criteria is changed. The input parameter is the list of selected filter criteria.
container	()=>void	Yes	@BuilderParam	Custom content of the filtering result display area, which is passed in a trailing closure.

FilterParams

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
name	ResourceStr	Yes	Name of the filter criterion. The default value is an empty string. NOTE If the text is longer than the column width, it will be truncated.
options	Array<ResourceStr>	Yes	Options of the filter criterion. The default value is an empty string. NOTE The text is truncated with an ellipsis (...) if it is too long.

FilterType

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Value	Description
MULTI_LINE_FILTER	0	Multi-line collapsible.
LIST_FILTER	1	Multi-line list.

FilterResult

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Mandatory	Description
name	ResourceStr	Yes	Name of the filter criterion. The default value is an empty string. NOTE If the text is longer than the column width, it will be truncated.
index	number	Yes	Index of the selected option of the filter criterion. Value range: an integer no less than -1 The default value is -1, indicating that there is no selected option. Values less than -1 are treated as no selected option.
value	ResourceStr	Yes	Value of the selected option of the filter criterion. The default value is an empty string. NOTE If the text is longer than the column width, it will be truncated.

Events

The universal events are not supported.

Example

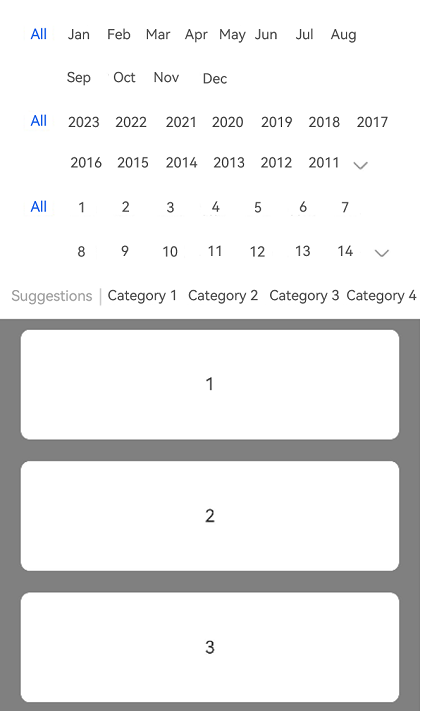

This example shows how to implement a multi-line collapsible filter by setting FilterType to MULTI_LINE_FILTER.

import { Filter, FilterParams, FilterResult, FilterType } from '@kit.ArkUI';

@Entry
@Component
struct Index {
  private filterParam: Array<FilterParams> = [{
    name: 'Month',
    options: ['All', 'Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec'],
  },
    {
      name: 'Year',
      options: ['All', '2023', '2022', '2021', '2020', '2019', '2018', '2017', '2016', '2015', '2014', '2013', '2012',
        '2011', '2010', '2009', '2008'],
    },
    {
      name: 'Day',
      options: ['All', '1', '2', '3', '4', '5',' 6', '7','8', '9','10', '11', '12',
        '13','14', '15', '16', '17', '18','19','20','21','22', '23'],
    }];
  // Addition filter parameter. The name of the filter dimension must be specified. Otherwise, the entire filter dimension is not displayed.
  private additionParam: FilterParams =
    { name: 'Suggestions', options: ['Category 1', 'Category 2', 'Category 3', 'Category 4', 'Category 5', 'Category 6'] };
  private arr: number[] = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10];

  build() {
    Column() {
      Filter({
        multiFilters: this.filterParam,
        additionFilters: this.additionParam,
        filterType: FilterType.MULTI_LINE_FILTER,
        onFilterChanged: (select: Array<FilterResult>) => {
          console.log('rec filter change');
          for (let filter of select) {
            console.log('name:' + filter.name + ',index:' + filter.index + ',value:' + filter.value);
          }
        }
      }) {
        List({ initialIndex: 0 }) {
          ForEach(this.arr, (item: string, index: number) => {
            ListItem() {
              Text(item.toString())
                .width('100%')
                .height(100)
                .fontSize(16)
                .textAlign(TextAlign.Center)
                .borderRadius(10)
                .backgroundColor(Color.White)
                .margin({ top: 10, bottom: 10 })
            }
          })
        }.backgroundColor(Color.Gray)
        .padding({ left: 20, right: 20 })
      }
    }
    .height('100%')
    .width('100%')
  }
}

en-us_image_0000001665809293
