ArkTS Widget Related Modules

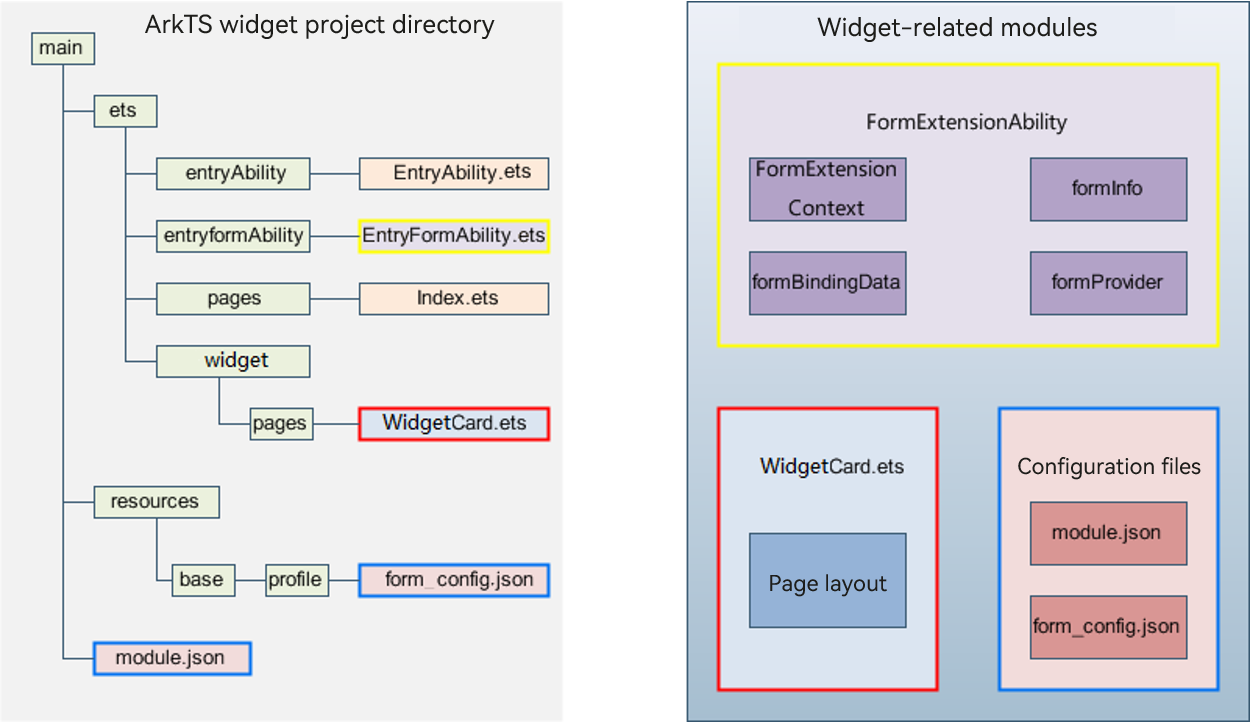

Figure 1 ArkTS widget related modules

WidgetModules

FormExtensionAbility: provides lifecycle callbacks invoked when a widget is created, destroyed, or updated.
FormExtensionContext: provides context for FormExtensionAbilities. You can use the APIs of this module to start FormExtensionAbilities.
formProvider: provides APIs related to the widget provider. You can use the APIs to update a widget, set the next update time for a widget, obtain widget information, and request a widget release.
formInfo: provides types and enums related to the widget information and state.
formBindingData: provides APIs for widget data binding. You can use the APIs to create a FormBindingData object and obtain related information.
Page layout (WidgetCard.ets): provides APIs for the declarative UI paradigm.
- Capabilities exclusive to ArkTS widgets: include the postCardAction API used for interaction between the widget internal and the provider application and can be called only in the widget.
- ArkTS widget capability list: contain the APIs, components, events, attributes, and lifecycle callbacks that can be used in ArkTS widgets.
Widget configuration: includes FormExtensionAbility configuration and widget configuration.
- Configure the FormExtensionAbility information under extensionAbilities in the module.json5 file.
- Configure the widget configuration information (WidgetCard.ets) in the form_config.json file in resources/base/profile.
