Setting Up Environments for Standard System

System Requirements

Windows: Windows 10 (64-bit)
Ubuntu: Ubuntu 18.04 to 21.10; recommended memory: 16 GB or larger.
User name: cannot contain Chinese characters
DevEco Device Tool: 3.0 Release

Installing Necessary Libraries and Tools

To install the necessary libraries and tools, perform the following steps.

On Ubuntu:

Run the following apt-get command:

   sudo apt-get update && sudo apt-get install binutils binutils-dev git git-lfs gnupg flex bison gperf build-essential zip curl zlib1g-dev gcc-multilib g++-multilib gcc-arm-linux-gnueabi libc6-dev-i386 libc6-dev-amd64 lib32ncurses5-dev x11proto-core-dev libx11-dev lib32z1-dev ccache libgl1-mesa-dev libxml2-utils xsltproc unzip m4 bc gnutls-bin python3.8 python3-pip ruby genext2fs device-tree-compiler make libffi-dev e2fsprogs pkg-config perl openssl libssl-dev libelf-dev libdwarf-dev u-boot-tools mtd-utils cpio doxygen liblz4-tool openjdk-8-jre gcc g++ texinfo dosfstools mtools default-jre default-jdk libncurses5 apt-utils wget scons python3.8-distutils tar rsync git-core libxml2-dev lib32z-dev grsync xxd libglib2.0-dev libpixman-1-dev kmod jfsutils reiserfsprogs xfsprogs squashfs-tools pcmciautils quota ppp libtinfo-dev libtinfo5 libncurses5-dev libncursesw5 libstdc++6 gcc-arm-none-eabi vim ssh locales libxinerama-dev libxcursor-dev libxrandr-dev libxi-dev

NOTE

The preceding command is applicable to Ubuntu 18.04. For other Ubuntu versions, modify the preceding installation command based on the installation package name. Where:

Python 3.8 or a later version is required. This section uses Python 3.8 as an example.

Java 8 or later is required. This section uses Java 8 as an example.

Set Python 3.8 as the default Python version.

Check the location of Python 3.8:

   which python3.8

Change python and python3 to python3.8.

   sudo update-alternatives --install /usr/bin/python python {python3.8 path} 1    #{Python3.8 path} is the location of Python 3.8 obtained in the previous step.
   sudo update-alternatives --install /usr/bin/python3 python3 {python3.8 path} 1   #{Python3.8 path} is the location of Python 3.8 obtained in the previous step.

Installing DevEco Device Tool

To remotely access the Ubuntu environment through Windows to perform operations such as burning, you need to install DevEco Device Tool on both Windows and Ubuntu.

NOTE

DevEco Device Tool is a one-stop integrated development environment (IDE) provided for developers of OpenHarmony-powered smart devices. It allows code editing, compiling, burning, and debugging. This document describes how to use DevEco Device Tool to remotely connect to the Ubuntu environment for burning and running.

Installing DevEco Device Tool for Windows

Download the DevEco Device Tool 3.0 Release Windows edition.
Decompress the DevEco Device Tool package, double-click the installer, and then click Next.
Set the installation path of DevEco Device Tool to a path that does not contain any Chinese characters, and then click Next. You are advised to install DevEco Device Tool in a non-system drive.

NOTE

If you have installed DevEco Device Tool 3.0 Beta2 or earlier, the earlier version will be uninstalled before you install a new version. If the following error message is displayed during the uninstallation, click Ignore to continue the installation. This error does not affect the installation of the new version.

en-us_image_0000001270076961

When prompted, select the tools to be automatically installed.
1. On the VSCode installation confirm page, select Install VScode 1.62.2 automatically and click Next.
NOTE

If Visual Studio Code 1.62 or later has been installed, this step will be skipped.
1. On the displayed Python select page, select Download from Huawei mirror and click Next.
NOTE

If Python 3.8 or 3.9 has been installed, select Use one of compatible on your PC.
In the dialog box shown below, click Next.

en-us_image_0000001259180828

Read the user agreement and privacy statement carefully, select I accept the licenses, and click Next.

en-us_image_0000001307019009

Wait for the DevEco Device Tool setup wizard to automatically install DevEco Device Tool. After the installation is complete, click Finish to close the setup wizard.

en-us_image_0000001239650137

From Visual Studio Code, access the DevEco Device Tool page. Now you can conduct your development in DevEco Device Tool.

en-us_image_0000001225760456

Installing DevEco Device Tool for Ubuntu

NOTE

If the Ubuntu system has not been set up yet, set it up on a virtual machine running Windows. For details, see Ubuntu Installation Guide. Then, configure the Ubuntu basic environment.

Make sure the Ubuntu shell environment is bash.
1. Run the following command and check whether the command output is bash. If the command output is not bash, go to step 2.
```
   ls -l /bin/sh
```
1. Start the command-line tool, run the following command, enter your password, and select No to set Ubuntu shell to bash.
```
   sudo dpkg-reconfigure dash
```
Download the DevEco Device Tool 3.0 Release Linux edition.
Decompress the DevEco Device Tool software package and assign permission on the folder obtained from the decompression.
1. Go to the directory where the DevEco Device Tool software package is stored and run the following command to decompress the software package. In the command, change devicetool-linux-tool-3.0.0.401.zip to the actual software package name.
```
   unzip devicetool-linux-tool-3.0.0.401.zip
```
1. Open the folder of the decompressed software package and run the following command to grant the execute permission on the installation file. In the command, change devicetool-linux-tool-3.0.0.401.sh to the actual installation file name.
```
   chmod u+x devicetool-linux-tool-3.0.0.401.sh
```
Run the following command to install DevEco Device Tool, where devicetool-linux-tool-3.0.0.401.sh indicates the installation file name.

   sudo ./devicetool-linux-tool-3.0.0.401.sh

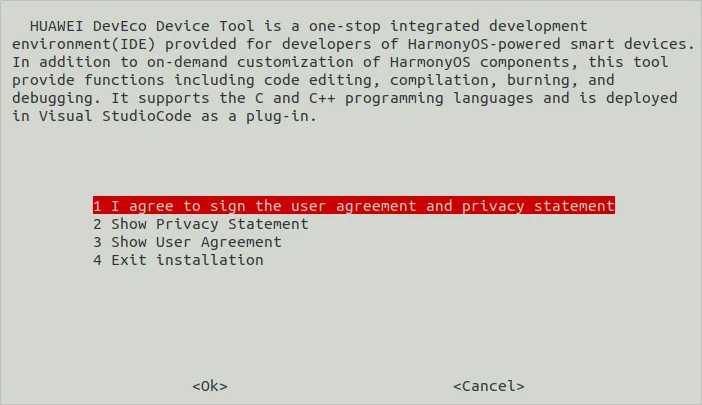

On the page for agreeing to the user agreement and privacy statement, read and agree to the user agreement and privacy statement.

en-us_image_0000001322167645

Wait until the “DevEco Device Tool successfully installed.” message is displayed.

en-us_image_0000001198722374

Configuring Windows to Remotely Access the Ubuntu Build Environment

Installing the SSH Service and Obtaining the IP Address for Remote Access

In Ubuntu, open the Terminal tool and run the following command to install the SSH service:

NOTE

If the command fails to be executed and the system displays a message indicating that the openssh-server and openssh-client depend on different versions, install the openssh-client of the required version (for example, sudo apt-get install openssh-client=1:8.2p1-4) as prompted on the command-line interface (CLI) and run the command again to install the openssh-server.

   sudo apt-get install openssh-server

Run the following command to start the SSH service:

   sudo systemctl start ssh

Run the following command to obtain the IP address of the current user for remote access to the Ubuntu environment from Windows:

   ifconfig

en-us_image_0000001215737140

Installing Remote SSH

Open Visual Studio Code in Windows, click , and search for remote-ssh in the Extension Marketplace.

en-us_image_0000001193920448

Click Install to install Remote-SSH. After the installation is successful, Remote-SSH is displayed on the INSTALLED list.

en-us_image_0000001238880335

Remotely Connecting to the Ubuntu Environment

Open Visual Studio Code in Windows, click , and click + on the REMOTE EXOPLORER page.

en-us_image_0000001215878922

In the Enter SSH Connection Command text box, enter ssh username\@*ip_address*, where ip_address indicates the IP address of the remote computer to be connected and username indicates the account name used for logging in to the remote computer.

en-us_image_0000001215879750

In the displayed dialog box, select the default first option as the SSH configuration file.

en-us_image_0000001260519729

Under SSH TARGETS, find the remote computer and click to start it.

en-us_image_0000001215720398

In the displayed dialog box, select Linux, select Continue, and enter the password for logging in to the remote computer.

NOTE

To eliminate the need for frequently entering the password for logging in to the remote computer, set an SSH public key.

en-us_image_0000001215897530

After the connection is successful, the plug-in is automatically installed in the .vscode-server folder on the remote computer. After the installation is complete, reload Visual Studio Code in Windows as prompted. Then you can develop, compile, and burn source code in DevEco Device Tool on Windows.

Obtaining Source Code

In the Ubuntu environment, perform the following steps to obtain the OpenHarmony source code:

Preparations

Register your account with Gitee.
Register an SSH public key for access to Gitee.
Install the git client and git-lfs. (Skip this step if these tools have been installed in Installing Required Libraries and Tools. )

Update the software source:

   sudo apt-get update

Run the following command to install the tools:

   sudo apt-get install git git-lfs

Configure user information.

   git config --global user.name "yourname"
   git config --global user.email "your-email-address"
   git config --global credential.helper store

Run the following commands to install the repo tool:

In this example, ~/bin is used as an example installation directory. You can change the directory as needed.

   mkdir ~/bin
   curl https://gitee.com/oschina/repo/raw/fork_flow/repo-py3 -o ~/bin/repo
   chmod a+x ~/bin/repo
   pip3 install -i https://repo.huaweicloud.com/repository/pypi/simple requests

Add the path of the repo tool to environment variables.

   vim ~/.bashrc               # Edit environment variables.
   export PATH=~/bin:$PATH     # Add the path of the **repo** tool to the end of environment variables.
   source ~/.bashrc            # Apply environment variables.

How to Obtain

NOTE

Download the master code if you want to get quick access to the latest features for your development. Download the release code, which is more stable, if you want to develop commercial functionalities.

Obtaining OpenHarmony master code

Method 1 (recommended): Use the repo tool to download the source code over SSH. (You must have registered an SSH public key for access to Gitee.)

  repo init -u git@gitee.com:openharmony/manifest.git -b master --no-repo-verify
  repo sync -c
  repo forall -c 'git lfs pull'

Method 2: Use the repo tool to download the source code over HTTPS.

  repo init -u https://gitee.com/openharmony/manifest.git -b master --no-repo-verify
  repo sync -c
  repo forall -c 'git lfs pull'

Obtaining OpenHarmony release code

For details about how to obtain the source code of an OpenHarmony release, see the Release-Notes.

Running prebuilts

Go to the root directory of the source code and run the following script to install the compiler and binary tool:

bash build/prebuilts_download.sh

Installing the Compilation Tools

hb is a compilation tool of OpenHarmony. To install hb in Ubuntu, perform the following steps. For details about the functions of the OpenHarmony compilation and building module, see Compilation and Building Guide.

NOTE

To install a proxy, see Configuring the Proxy.

Run the following command to install hb and update it to the latest version:

   pip3 install --user build/lite

Set the environment variable.

   vim ~/.bashrc

Copy the following command to the last line of the .bashrc file, save the file, and exit.

   export PATH=~/.local/bin:$PATH

Update the environment variable.

   source ~/.bashrc

Run the hb -h command in the source code directory. If the following information is displayed, the installation is successful:

   usage: hb

   OHOS build system

   positional arguments:
     {build,set,env,clean}
       build               Build source code
       set                 OHOS build settings
       env                 Show OHOS build env
       clean               Clean output

   optional arguments:
     -h, --help            show this help message and exit

NOTICE
- Run the following command to uninstall hb:
  ```
  pip3 uninstall ohos-build
  ```
If any issue occurs during the hb installation, see FAQs to troubleshoot.
