Building

  1. Click Project Settings on the menu bar to access the Hi3516D V300 project configuration page.

en-us_image_0000001265492885

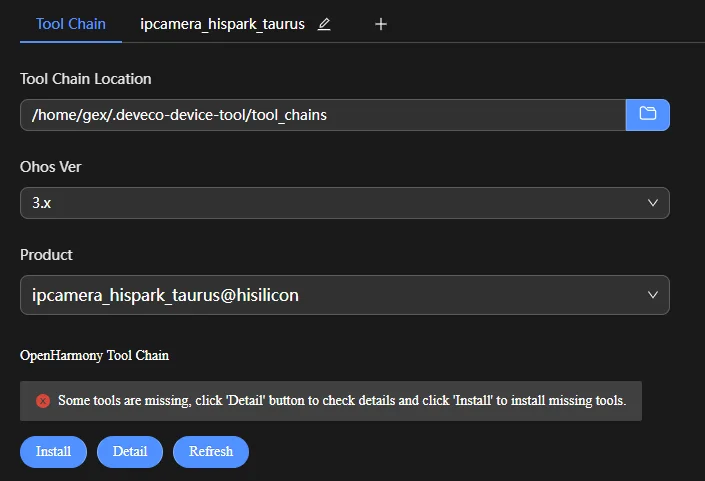

  1. On the Tool Chain tab page, DevEco Device Tool automatically checks whether the dependent compilation toolchain is complete. If a message is displayed indicating that some tools are missing, click Install to automatically install the required tools.

en-us_image_0000001265652869

  1. Install the toolchain related to Hi3516D V300. Certain tools may require the root access to install. In this case, enter the user password in the TERMINAL window.

icon-note.gif NOTE If the pip component fails to be installed, change the Python source and try again.

en-us_image_0000001220852753

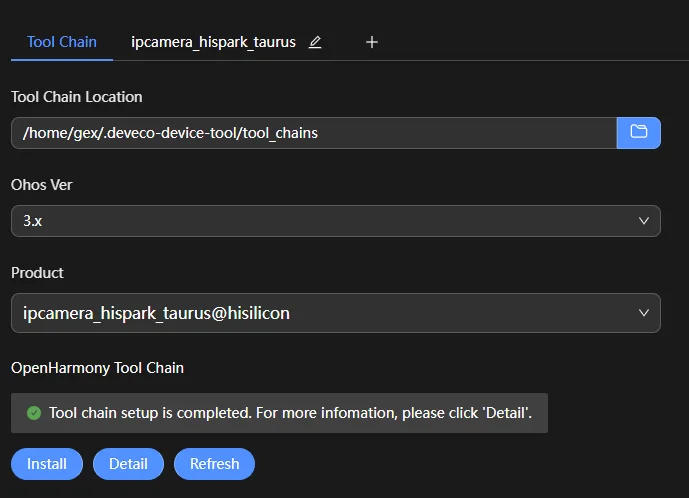

After the toolchain is automatically installed, the figure below is displayed.

en-us_image_0000001220852754

  1. On the hi3516dv300 tab page, set build_type. The default value is debug. Click Save to save the settings.

en-us_image_0000001221172711

  1. Choose PROJECT TASKS > hi3516dv300 > Build to start building.

en-us_image_0000001265772913

  1. Wait until SUCCESS is displayed in the TERMINAL window, indicating that the compilation is complete.

en-us_image_0000001221012766

After the building is complete, go to the out directory of the project to view the generated files, which are needed in burning.
