Render Fit

The renderFit attribute sets how the final state of a component’s content is rendered during its width and height animation process.

NOTE

The APIs of this module are supported since API version 10. Updates will be marked with a superscript to indicate their earliest API version.

Attributes

Name Type Mandatory Description
renderFit RenderFit Yes How the final state of the component’s content is rendered during its width and height animation process.
If renderFit is not set, the default value RenderFit.TOP_LEFT is used.

RenderFit

Name Description Diagram
CENTER The component’s content stays at the final size and always aligned with the center of the component. renderfit_center
TOP The component’s content stays at the final size and always aligned with the top center of the component. renderfit_top
BOTTOM The component’s content stays at the final size and always aligned with the bottom center of the component. renderfit_bottom
LEFT The component’s content stays at the final size and always aligned with the left of the component. renderfit_left
RIGHT The component’s content stays at the final size and always aligned with the right of the component. renderfit_right
TOP_LEFT The component’s content stays at the final size and always aligned with the upper left corner of the component. renderfit_top_left
TOP_RIGHT The component’s content stays at the final size and always aligned with the upper right corner of the component. renderfit_top_right
BOTTOM_LEFT The component’s content stays at the final size and always aligned with the lower left corner of the component. renderfit_bottom_left
BOTTOM_RIGHT The component’s content stays at the final size and always aligned with the lower right corner of the component. renderfit_bottom_right
RESIZE_FILL The component’s content is always resized to fill the component’s content box, without considering its aspect ratio in the final state. renderfit_resize_fill
RESIZE_CONTAIN While maintaining its aspect ratio in the final state, the component’s content is scaled to fit within the component’s content box. It is always aligned with the center of the component. renderfit_resize_contain
RESIZE_CONTAIN_TOP_LEFT While maintaining its aspect ratio in the final state, the component’s content is scaled to fit within the component’s content box. When there is remaining space in the width direction of the component, the content is left-aligned with the component. When there is remaining space in the height direction of the component, the content is top-aligned with the component. renderfit_resize_contain_top_left
RESIZE_CONTAIN_BOTTOM_RIGHT While maintaining its aspect ratio in the final state, the component’s content is scaled to fit within the component’s content box. When there is remaining space in the width direction of the component, the content is right-aligned with the component. When there is remaining space in the height direction of the component, the content is bottom-aligned with the component. renderfit_resize_contain_bottom_right

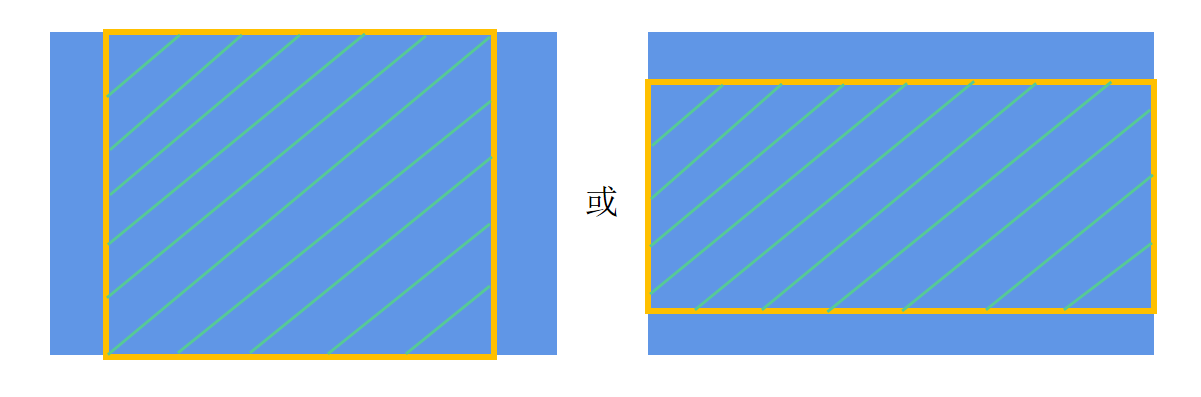

RESIZE_COVER While maintaining its aspect ratio in the final state, the component’s content is scaled to cover the component’s entire content box. It is always aligned with the center of the component, so that its middle part is displayed. renderfit_resize_cover

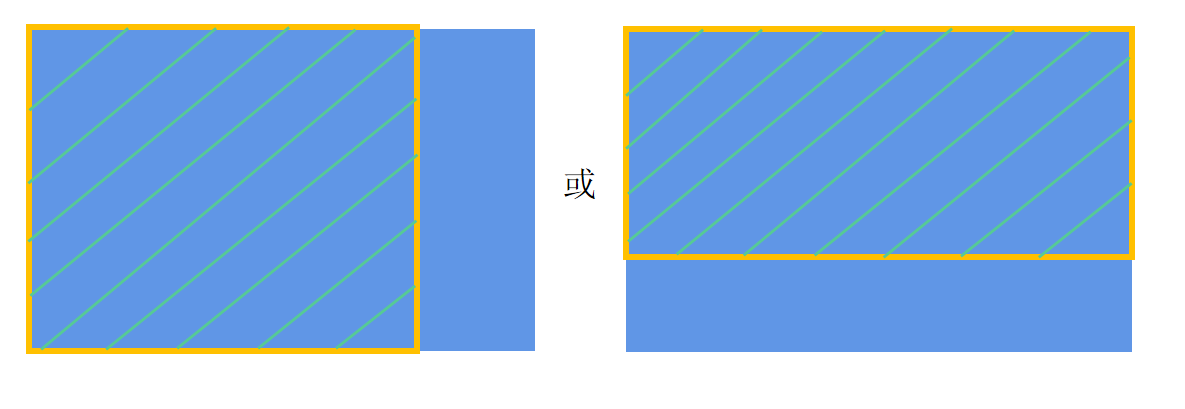

RESIZE_COVER_TOP_LEFT While maintaining its aspect ratio in the final state, the component’s content is scaled to cover the component’s entire content box. When there is remaining space in the width direction, the content is left-aligned with the component, so that its left part is displayed. When there is remaining space in the height direction, the content is top-aligned with the component, so that its top part is displayed. renderfit_resize_cover_top_left
RESIZE_COVER_BOTTOM_RIGHT While maintaining its aspect ratio in the final state, the component’s content is scaled to cover the component’s entire content box. When there is remaining space in the width direction, the content is right-aligned with the component, so that its right part is displayed. When there is remaining space in the height direction, the content is bottom-aligned with the component, so that its bottom part is displayed. renderfit_resize_cover_bottom_right

NOTE

  • In the illustrative diagrams, the blue area indicates the content, and the orange area indicates the component content box.
  • Different render fit modes create different effects during the width and height animation process. Choose the one that best fits your need.

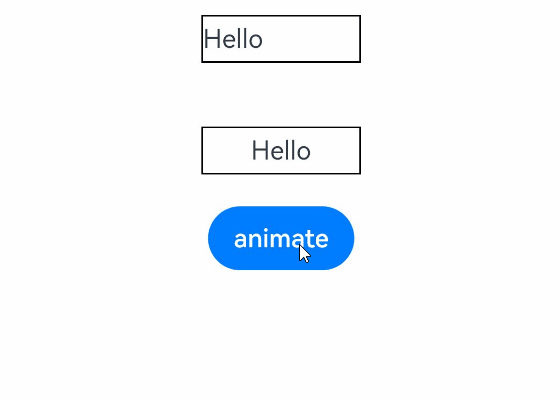

Example

// xxx.ets
@Entry
@Component
struct RenderFitExample {
  @State width1: number = 100;
  @State height1: number = 30;
  flag: boolean = true;
  build() {
    Column() {
      Text("Hello")
        .width(this.width1)
        .height(this.height1)
        .borderWidth(1)
        .textAlign(TextAlign.Start)
        .renderFit(RenderFit.LEFT) // The component's content stays at the final size and always aligned with the left of the component.
        .margin(20)

      Text("Hello")
        .width(this.width1)
        .height(this.height1)
        .textAlign(TextAlign.Center)
        .borderWidth(1)
        .renderFit(RenderFit.CENTER) // The component's content stays at the final size and always aligned with the center of the component.
        .margin(20)

      Button("animate")
        .onClick(() => {
          animateTo({ curve: Curve.Ease }, () => {
            if (this.flag) {
              this.width1 = 150;
              this.height1 = 50;
            } else {
              this.width1 = 100;
              this.height1 = 30;
            }
            this.flag = !this.flag;
          })
        })
    }.width("100%").height("100%").alignItems(HorizontalAlign.Center)
  }
}

renderfit
