Row

The component lays out child components horizontally.

NOTE

This component is supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.

Child Components

Supported

APIs

Row(value?:{space?: number|string })

Since API version 9, this API is supported in ArkTS widgets.

Parameters

Name	Type	Mandatory	Description
space	string \|number	No	Horizontal spacing between two adjacent child components. Since API version 9, this parameter does not take effect when it is set to a negative number or when justifyContent is set to FlexAlign.SpaceBetween, FlexAlign.SpaceAround or FlexAlign.SpaceEvenly. Default value: 0, in vp NOTE The value can be a number greater than or equal to 0 or a string that can be converted to a number.

Attributes

In addition to the universal attributes, the following attributes are supported.

Name	Type	Description
alignItems	VerticalAlign	Alignment mode of child components in the vertical direction. Default value: VerticalAlign.Center Since API version 9, this API is supported in ArkTS widgets.
justifyContent⁸⁺	FlexAlign	Alignment mode of the child components in the horizontal direction. Default value: FlexAlign.Start Since API version 9, this API is supported in ArkTS widgets.

NOTE

During row layout, child components do not shrink if flexShrink is not set for them. In this case, the total size of the child components on the main axis can exceed the size of the container on the main axis.

Events

The universal events are supported.

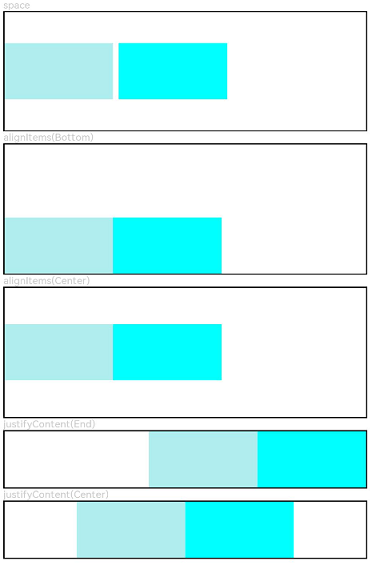

Example

// xxx.ets
@Entry
@Component
struct RowExample {
  build() {
    Column({ space: 5 }) {
      // Set the horizontal spacing between two adjacent child components to 5.
      Text('space').width('90%')
      Row({ space: 5 }) {
        Row().width('30%').height(50).backgroundColor(0xAFEEEE)
        Row().width('30%').height(50).backgroundColor(0x00FFFF)
      }.width('90%').height(107).border({ width: 1 })

      // Set the alignment mode of the child components in the vertical direction.
      Text('alignItems(Bottom)').width('90%')
      Row() {
        Row().width('30%').height(50).backgroundColor(0xAFEEEE)
        Row().width('30%').height(50).backgroundColor(0x00FFFF)
      }.width('90%').alignItems(VerticalAlign.Bottom).height('15%').border({ width: 1 })

      Text('alignItems(Center)').width('90%')
      Row() {
        Row().width('30%').height(50).backgroundColor(0xAFEEEE)
        Row().width('30%').height(50).backgroundColor(0x00FFFF)
      }.width('90%').alignItems(VerticalAlign.Center).height('15%').border({ width: 1 })

      // Set the alignment mode of the child components in the horizontal direction.
      Text('justifyContent(End)').width('90%')
      Row() {
        Row().width('30%').height(50).backgroundColor(0xAFEEEE)
        Row().width('30%').height(50).backgroundColor(0x00FFFF)
      }.width('90%').border({ width: 1 }).justifyContent(FlexAlign.End)

      Text('justifyContent(Center)').width('90%')
      Row() {
        Row().width('30%').height(50).backgroundColor(0xAFEEEE)
        Row().width('30%').height(50).backgroundColor(0x00FFFF)
      }.width('90%').border({ width: 1 }).justifyContent(FlexAlign.Center)
    }.width('100%')
  }
}

row
