TreeView

The TreeView component represents a tree view used to display a hierarchical list of items. Each item can contain subitems, which may be expanded or collapsed.

This component is applicable in productivity applications, such as side navigation bars in notepad, email, and Gallery applications.

NOTE

This component is supported since API version 10. Updates will be marked with a superscript to indicate their earliest API version.

Modules to Import

import { TreeView } from "@kit.ArkUI"

Child Components

Not supported

Attributes

The universal attributes are not supported.

TreeView

TreeView({ treeController: TreeController })

Decorator: @Component

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameTypeMandatoryDescription
treeControllerTreeControllerYesNode information of the tree view.

TreeController

Implements a TreeController object, which can be bound to a tree view component to control the node information of the component. One TreeController object can be bound to only one tree view component.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

addNode

addNode(nodeParam?: NodeParam): TreeController

Adds a child node to the selected node.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameTypeMandatoryDescription
nodeParamNodeParamNoNode information.

Return value

TypeDescription
TreeControllerController of the TreeView component.

removeNode

removeNode(): void

Removes the selected node.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

modifyNode

modifyNode(): void

Modifies the selected node.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

buildDone

buildDone(): void

Builds a tree view. After a node is added, this API must be called to save the tree information.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

refreshNode

refreshNode(parentId: number, parentSubTitle: ResourceStr, currentSubtitle: ResourceStr): void

Refreshes the tree view. You can call this API to update the information about the current node.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameTypeMandatoryDescription
parentIdnumberYesID of the parent node.
parentSubTitleResourceStrYesSecondary text of the parent node.
currentSubtitleResourceStrYesSecondary text of the current node.

NodeParam

System capability: SystemCapability.ArkUI.ArkUI.Full

NameTypeMandatoryDescription
parentNodeIdnumberNoParent node.
The value must be greater than or equal to -1.
Default value: -1. The root node ID is -1. If the value is less than -1, the setting does not take effect.
Atomic service API: This API can be used in atomic services since API version 11.
currentNodeIdnumberNoCurrent child node.
The value must be greater than or equal to -1.
The value cannot be the root node ID, cannot be null, and cannot be duplicated.
Default value: -1
Atomic service API: This API can be used in atomic services since API version 11.
isFolderbooleanNoWhether the node is a directory.
Default value: false.
true: The node is a directory.
false: The node is not a directory.
Atomic service API: This API can be used in atomic services since API version 11.
iconResourceStrNoIcon.
The default value is an empty string.
Atomic service API: This API can be used in atomic services since API version 11.
symbolIconStyle18+SymbolGlyphModifierNoSymbol icon, which has higher priority than icon.
Default value: undefined
Atomic service API: This API can be used in atomic services since API version 18.
selectedIconResourceStrNoIcon of the selected node.
The default value is an empty string.
Atomic service API: This API can be used in atomic services since API version 11.
symbolSelectedIconStyle18+SymbolGlyphModifierNoSymbol icon of the selected node., which has higher priority than selectedIcon.
Default value: undefined
Atomic service API: This API can be used in atomic services since API version 18.
editIconResourceStrNoEdit icon.
The default value is an empty string.
Atomic service API: This API can be used in atomic services since API version 11.
symbolEditIconStyle18+SymbolGlyphModifierNoSymbol edit icon, which has a higher priority than editIcon.
Default value: undefined
Atomic service API: This API can be used in atomic services since API version 18.
primaryTitleResourceStrNoPrimary title.
The default value is an empty string.
Atomic service API: This API can be used in atomic services since API version 11.
secondaryTitleResourceStrNoSecondary title.
The default value is an empty string.
Atomic service API: This API can be used in atomic services since API version 11.
container() => voidNoRight-click child component bound to the node. The child component is decorated with @Builder.
Default value: () => void
Atomic service API: This API can be used in atomic services since API version 11.

TreeListenerManager

Implements a TreeListenerManager object, which can be bound to a tree view component to listen for changes of tree nodes. One TreeListenerManager object can be bound to only one tree view component.

getInstance

static getInstance(): TreeListenerManager

Obtains a TreeListenerManager singleton object.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

TypeDescription
TreeListenerManagerTreeListenerManager singleton object.

getTreeListener

getTreeListener(): TreeListener

Obtains a listener.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

Return value

TypeDescription
TreeListenerObtained listener.

TreeListener

Listener of the tree view component. You can bind it to the TreeView component and use it to listen for changes of tree nodes. A listener can be bound to only one TreeView component.

on

on(type: TreeListenType, callback: (callbackParam: CallbackParam) => void): void;

Register a listener.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameTypeMandatoryDescription
typeTreeListenTypeYesListening type.
callback(callbackParam: CallbackParam) => voidYesNode information.

once

once(type: TreeListenType, callback: (callbackParam: CallbackParam) => void): void;

Registers a one-off listener.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameTypeMandatoryDescription
typeTreeListenTypeYesListening type.
callback(callbackParam: CallbackParam) => voidYesNode information.

off

off(type: TreeListenType, callback?: (callbackParam: CallbackParam) => void): void;

Unregisters a listener.

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameTypeMandatoryDescription
typeTreeListenTypeYesListening type.
callback(callbackParam: CallbackParam) => voidNoNode information.

TreeListenType

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameValueDescription
NODE_CLICK"NodeClick"Listens for click events of nodes.
NODE_ADD"NodeAdd"Listens for add events of nodes.
NODE_DELETE"NodeDelete"Listens for delete events of nodes.
NODE_MODIFY"NodeModify"Listens for modify events of nodes.
NODE_MOVE"NodeMove"Listens for move events of nodes.

CallbackParam

Atomic service API: This API can be used in atomic services since API version 11.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameTypeMandatoryDescription
currentNodeIdnumberYesID of the current child node.
The value must be greater than or equal to 0.
parentNodeIdnumberNoID of the current parent node.
The value must be greater than or equal to -1.
Default value: -1
childIndexnumberNoChild index.
The value must be greater than or equal to -1.
Default value: -1

Events

The universal events are not supported.

Example

Example 1: Configuring a Simple Tree View

This example showcases how to use TreeController to perform operations on tree nodes, such as adding, deleting, and renaming. It also demonstrates the effects of adding nodes with different parameters.

import { TreeController, TreeListener, TreeListenerManager, TreeListenType, NodeParam, TreeView, CallbackParam } from '@kit.ArkUI'

@Entry
@Component
struct TreeViewDemo {
  private treeController: TreeController = new TreeController();
  private treeListener: TreeListener = TreeListenerManager.getInstance().getTreeListener();
  @State clickId: number = 0;

  aboutToDisappear(): void {
    this.treeListener.off(TreeListenType.NODE_CLICK, undefined);
    this.treeListener.off(TreeListenType.NODE_ADD, undefined);
    this.treeListener.off(TreeListenType.NODE_DELETE, undefined);
    this.treeListener.off(TreeListenType.NODE_MOVE, undefined);
  }

  @Builder menuBuilder1() {
    Flex({ direction: FlexDirection.Column, justifyContent: FlexAlign.Center, alignItems: ItemAlign.Center }) {
      Text('Add').fontSize(16).width(100).height(30).textAlign(TextAlign.Center)
        .onClick((event: ClickEvent) => {
          this.treeController.addNode();
        })
      Divider()
      Text('Delete').fontSize(16).width(100).height(30).textAlign(TextAlign.Center)
        .onClick((event: ClickEvent) => {
          this.treeController.removeNode();
        })
      Divider()
      Text('Rename').fontSize(16).width(100).height(30).textAlign(TextAlign.Center)
        .onClick((event: ClickEvent) => {
          this.treeController.modifyNode();
        })
    }.width(100).border({width: 1, color: 0x80808a, radius: '16dp'})
  }

  aboutToAppear(): void {
    this.treeListener.on(TreeListenType.NODE_CLICK, (callbackParam: CallbackParam) => {
      this.clickId = callbackParam.currentNodeId;
    })
    this.treeListener.on(TreeListenType.NODE_ADD, (callbackParam: CallbackParam) => {
      this.clickId = callbackParam.currentNodeId;
    })
    this.treeListener.on(TreeListenType.NODE_DELETE, (callbackParam: CallbackParam) => {
      this.clickId = callbackParam.currentNodeId;
    })
    this.treeListener.once(TreeListenType.NODE_MOVE, (callbackParam: CallbackParam) => {
      this.clickId = callbackParam.currentNodeId;
    })

    let normalResource: Resource = $r('sys.media.ohos_ic_normal_white_grid_folder');
    let selectedResource: Resource = $r('sys.media.ohos_ic_public_select_all');
    let editResource: Resource = $r('sys.media.ohos_ic_public_edit');
    let nodeParam: NodeParam = { parentNodeId:-1, currentNodeId: 1, isFolder: true, icon: normalResource, selectedIcon: selectedResource,
      editIcon: editResource, primaryTitle: "Directory 1 to verify the adaptive effect",
      secondaryTitle: "6" };
    this.treeController
      .addNode(nodeParam)
      .addNode({parentNodeId:1, currentNodeId: 2, isFolder: false, primaryTitle: "Project 1_1" })
      .addNode({ parentNodeId:-1, currentNodeId: 7, isFolder: true, primaryTitle: "Directory 2" })
      .addNode({ parentNodeId:-1, currentNodeId: 23, isFolder: true, icon: normalResource, selectedIcon: selectedResource,
        editIcon: editResource, primaryTitle: "Directory 3" })
      .addNode({ parentNodeId:-1, currentNodeId: 24, isFolder: false, primaryTitle: "Project 4" })
      .addNode({ parentNodeId:-1, currentNodeId: 31, isFolder: true, icon: normalResource, selectedIcon: selectedResource,
        editIcon: editResource, primaryTitle: "Directory 5", secondaryTitle: "0" })
      .addNode({ parentNodeId:-1, currentNodeId: 32, isFolder: true, icon: normalResource, selectedIcon: selectedResource,
        editIcon: editResource, primaryTitle: "Directory 6", secondaryTitle: "0" })
      .addNode({ parentNodeId:32, currentNodeId: 35, isFolder: true, icon: normalResource, selectedIcon: selectedResource,
        editIcon: editResource, primaryTitle: "Directory 6-1", secondaryTitle: "0" })
      .addNode({ parentNodeId:-1, currentNodeId: 33, isFolder: true, icon: normalResource, selectedIcon: selectedResource,
        editIcon: editResource, primaryTitle: "Directory 7", secondaryTitle: "0" })
      .addNode({ parentNodeId:33, currentNodeId: 34, isFolder: false, primaryTitle: "Project 8" })
      .addNode({ parentNodeId:-1, currentNodeId: 36, isFolder: false, primaryTitle: "Project 9" })
      .buildDone();
    this.treeController.refreshNode (-1, "Parent", "Child");
  }

  build() {
    Column(){
      SideBarContainer(SideBarContainerType.Embed)
      {
        TreeView({ treeController: this.treeController })
        Row() {
          Divider().vertical(true).strokeWidth(2).color(0x000000).lineCap(LineCapStyle.Round)
          Column({ space: 30 }) {
            Text('ClickId=' + this.clickId).fontSize('16fp')
            Button('Add', { type: ButtonType.Normal, stateEffect: true })
              .borderRadius(8).backgroundColor(0x317aff).width(90)
              .onClick((event: ClickEvent) => {
                this.treeController.addNode();
              })
            Button('Modify', { type: ButtonType.Normal, stateEffect: true })
              .borderRadius(8).backgroundColor(0x317aff).width(90)
              .onClick((event: ClickEvent) => {
                this.treeController.modifyNode();
              })
            Button('Remove', { type: ButtonType.Normal, stateEffect: true })
              .borderRadius(8).backgroundColor(0x317aff).width(120)
              .onClick((event: ClickEvent) => {
                this.treeController.removeNode();
              })
          }.height('100%').width('70%').alignItems(HorizontalAlign.Start).margin(10)
        }
      }
      .focusable(true)
      .showControlButton(false)
      .showSideBar(true)
    }
  }}

en-us_image_0000001664822257

Example 2: Setting the Symbol Icon

This example demonstrates how to use symbolIconStyle, symbolEditIconStyle, and symbolSelectedIconStyle in NodeParam to set custom symbol icons.

import { TreeController, TreeListener, TreeListenerManager, TreeListenType, NodeParam, TreeView, CallbackParam,
  SymbolGlyphModifier } from '@kit.ArkUI'

@Entry
@Component
struct TreeViewDemo {
  private treeController: TreeController = new TreeController();
  private treeListener: TreeListener = TreeListenerManager.getInstance().getTreeListener();
  @State clickNodeId: number = 0;

  aboutToDisappear(): void {
    this.treeListener.off(TreeListenType.NODE_CLICK, undefined);
    this.treeListener.off(TreeListenType.NODE_ADD, undefined);
    this.treeListener.off(TreeListenType.NODE_DELETE, undefined);
    this.treeListener.off(TreeListenType.NODE_MOVE, undefined);
  }

  @Builder menuBuilder1() {
    Flex({ direction: FlexDirection.Column, justifyContent: FlexAlign.Center, alignItems: ItemAlign.Center }) {
      Text('Add').fontSize(16).width(100).height(30).textAlign(TextAlign.Center)
        .onClick((event: ClickEvent) => {
          this.treeController.addNode();
        })
      Divider()
      Text('Delete').fontSize(16).width(100).height(30).textAlign(TextAlign.Center)
        .onClick((event: ClickEvent) => {
          this.treeController.removeNode();
        })
      Divider()
      Text('Rename').fontSize(16).width(100).height(30).textAlign(TextAlign.Center)
        .onClick((event: ClickEvent) => {
          this.treeController.modifyNode();
        })
    }.width(100).border({width: 1, color: 0x80808a, radius: '16dp'})
  }

  aboutToAppear(): void {
    this.treeListener.on(TreeListenType.NODE_CLICK, (callbackParam: CallbackParam) => {
      this.clickNodeId = callbackParam.currentNodeId;
    })
    this.treeListener.on(TreeListenType.NODE_ADD, (callbackParam: CallbackParam) => {
      this.clickNodeId = callbackParam.currentNodeId;
    })
    this.treeListener.on(TreeListenType.NODE_DELETE, (callbackParam: CallbackParam) => {
      this.clickNodeId = callbackParam.currentNodeId;
    })
    this.treeListener.once(TreeListenType.NODE_MOVE, (callbackParam: CallbackParam) => {
      this.clickNodeId = callbackParam.currentNodeId;
    })

    let normalResource: Resource = $r('sys.symbol.house');
    let selectedResource: Resource = $r('sys.symbol.car');
    let editResource: Resource = $r('sys.symbol.calendar');
    let normalSymbolResource: SymbolGlyphModifier = new SymbolGlyphModifier($r('sys.symbol.bell')).fontColor([Color.Red]);
    let selectedSymbolResource: SymbolGlyphModifier = new SymbolGlyphModifier($r('sys.symbol.heart')).fontColor([Color.Blue]);
    let editSymbolResource: SymbolGlyphModifier = new SymbolGlyphModifier($r('sys.symbol.cake')).fontColor([Color.Pink]);
    let nodeParam: NodeParam = { parentNodeId:-1, currentNodeId: 1, isFolder: true, icon: normalResource, selectedIcon: selectedResource,
      editIcon: editResource, primaryTitle: "Directory 1",
      secondaryTitle: "6" };
    this.treeController
      .addNode(nodeParam)
      .addNode({parentNodeId:1, currentNodeId: 2, isFolder: false, primaryTitle: "Project 1_1" })
      .addNode({ parentNodeId:-1, currentNodeId: 7, isFolder: true, primaryTitle: "Directory 2" })
      .addNode({ parentNodeId:-1, currentNodeId: 23, isFolder: true, icon: normalResource, symbolIconStyle: normalSymbolResource,
        selectedIcon: selectedResource, symbolSelectedIconStyle: selectedSymbolResource, editIcon: editResource,
        symbolEditIconStyle: editSymbolResource, primaryTitle: "Directory 3" })
      .addNode({ parentNodeId:-1, currentNodeId: 24, isFolder: false, primaryTitle: "Project 4" })
      .addNode({ parentNodeId:-1, currentNodeId: 31, isFolder: true, icon: normalResource, symbolIconStyle: normalSymbolResource,
        selectedIcon: selectedResource, symbolSelectedIconStyle: selectedSymbolResource, editIcon: editResource,
        symbolEditIconStyle: editSymbolResource, primaryTitle: "Directory 5", secondaryTitle: "0" })
      .addNode({ parentNodeId:-1, currentNodeId: 32, isFolder: true, icon: normalResource, symbolIconStyle: normalSymbolResource,
        selectedIcon: selectedResource, symbolSelectedIconStyle: selectedSymbolResource, editIcon: editResource,
        symbolEditIconStyle: editSymbolResource, primaryTitle: "Directory 6", secondaryTitle: "0" })
      .addNode({ parentNodeId:32, currentNodeId: 35, isFolder: true, icon: normalResource, symbolIconStyle: normalSymbolResource,
        selectedIcon: selectedResource, symbolSelectedIconStyle: selectedSymbolResource, editIcon: editResource,
        symbolEditIconStyle: editSymbolResource, primaryTitle: "Directory 6-1", secondaryTitle: "0" })
      .addNode({ parentNodeId:-1, currentNodeId: 33, isFolder: true, icon: normalResource, symbolIconStyle: normalSymbolResource,
        selectedIcon: selectedResource, symbolSelectedIconStyle: selectedSymbolResource, editIcon: editResource,
        symbolEditIconStyle: editSymbolResource, primaryTitle: "Directory 7", secondaryTitle: "0" })
      .addNode({ parentNodeId:33, currentNodeId: 34, isFolder: false, primaryTitle: "Project 8" })
      .addNode({ parentNodeId:-1, currentNodeId: 36, isFolder: false, primaryTitle: "Project 9" })
      .buildDone();
    this.treeController.refreshNode (-1, "Parent", "Child");
  }

  build() {
    Column(){
      SideBarContainer(SideBarContainerType.Embed)
      {
        TreeView({ treeController: this.treeController })
        Row() {
          Divider().vertical(true).strokeWidth(2).color(0x000000).lineCap(LineCapStyle.Round)
          Column({ space: 30 }) {
            Text('ClickNodeId=' + this.clickNodeId).fontSize('16fp')
            Button('Add', { type: ButtonType.Normal, stateEffect: true })
              .borderRadius(8).backgroundColor(0x317aff).width(90)
              .onClick((event: ClickEvent) => {
                this.treeController.addNode();
              })
            Button('Modify', { type: ButtonType.Normal, stateEffect: true })
              .borderRadius(8).backgroundColor(0x317aff).width(90)
              .onClick((event: ClickEvent) => {
                this.treeController.modifyNode();
              })
            Button('Remove', { type: ButtonType.Normal, stateEffect: true })
              .borderRadius(8).backgroundColor(0x317aff).width(120)
              .onClick((event: ClickEvent) => {
                this.treeController.removeNode();
              })
          }.height('100%').width('80%').alignItems(HorizontalAlign.Start).margin(10)
        }
      }
      .focusable(true)
      .showControlButton(false)
      .showSideBar(true)
    }
  }}

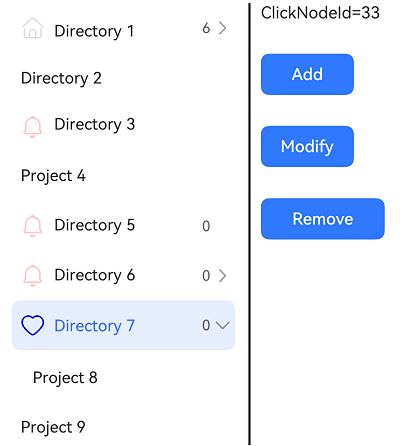

Example 2-Setting the Symbol Icon

你可能感兴趣的鸿蒙文章

harmony 鸿蒙ArcButton

harmony 鸿蒙ArcSlider

harmony 鸿蒙Chip

harmony 鸿蒙ChipGroup

harmony 鸿蒙ComposeListItem

harmony 鸿蒙ComposeTitleBar

harmony 鸿蒙advanced.Counter

harmony 鸿蒙Dialog Box (Dialog)

harmony 鸿蒙DialogV2

harmony 鸿蒙DownloadFileButton

  • 所属分类： 后端技术
  • 本文标签： 软件 鸿蒙
  • 版权声明： 本文链接 https://seaxiang.com/blog/mh6G5V
