div

NOTE

This component is supported since API version 4. Updates will be marked with a superscript to indicate their earliest API version.

The <div> component is a basic container that is used as the root node of the page structure or is used to group the content.

Required Permissions

None

Child Components

Supported

Attributes

The universal attributes are supported.

Styles

In addition to the universal styles, the following styles are supported.

Events

In addition to the universal events, the following events are supported.

Methods

In addition to the universal methods, the following methods are supported.

Table 1 ScrollOffset⁶⁺

Table 2 ScrollParam⁶⁺

Example

1. Flex style html <!-- xxx.hml --> <div class="container"> <div class="flex-box"> <div class="flex-item color-primary"></div> <div class="flex-item color-warning"></div> <div class="flex-item color-success"></div> </div> </div>

   /* xxx.css */
   .container {
     flex-direction: column;
     justify-content: center;
     align-items: center;
     width: 454px;
     height: 454px;
   }
   .flex-box {
     justify-content: space-around;
     align-items: center;
     width: 400px;
     height: 140px;
     background-color: #ffffff;
   }
   .flex-item {
     width: 120px;
     height: 120px;
     border-radius: 16px;
   }
   .color-primary {
     background-color: #007dff;
   }
   .color-warning {
     background-color: #ff7500;
   }
   .color-success {
     background-color: #41ba41;
   }

1. Flex wrap style html <!-- xxx.hml --> <div class="container"> <div class="flex-box"> <div class="flex-item color-primary"></div> <div class="flex-item color-warning"></div> <div class="flex-item color-success"></div> </div> </div>

   /* xxx.css */
   .container {
     flex-direction: column;
     justify-content: center;
     align-items: center;
     width: 454px;
     height: 454px;
   }
   .flex-box {
     justify-content: space-around;
     align-items: center;
     flex-wrap: wrap;
     width: 300px;
     height: 250px;
     background-color: #ffffff;
   }
   .flex-item {
     width: 120px;
     height: 120px;
     border-radius: 16px;
   }
   .color-primary {
     background-color: #007dff;
   }
   .color-warning {
     background-color: #ff7500;
   }
   .color-success {
     background-color: #41ba41;
   }

1. Grid style

   <!-- xxx.hml -->
   <div class="common grid-parent">
     <div class="grid-child grid-left-top"></div>
     <div class="grid-child grid-left-bottom"></div>
     <div class="grid-child grid-right-top"></div>
     <div class="grid-child grid-right-bottom"></div>
   </div>

   /* xxx.css */
   .common {
     width: 400px;
     height: 400px;
     background-color: #ffffff;
     align-items: center;
     justify-content: center;
     margin: 24px;
   }
   .grid-parent {
     display: grid;
     grid-template-columns: 35% 35%;
     grid-columns-gap: 24px;
     grid-rows-gap: 24px;
     grid-template-rows: 35% 35%;
   }
   .grid-child {
     width: 100%;
     height: 100%;
     border-radius: 8px;
   }
   .grid-left-top {
     grid-row-start: 0;
     grid-column-start: 0;
     grid-row-end: 0;
     grid-column-end: 0;
     background-color: #3f56ea;
   }
   .grid-left-bottom {
     grid-row-start: 1;
     grid-column-start: 0;
     grid-row-end: 1;
     grid-column-end: 0;
     background-color: #00aaee;
   }
   .grid-right-top {
     grid-row-start: 0;
     grid-column-start: 1;
     grid-row-end: 0;
     grid-column-end: 1;
     background-color: #00bfc9;
   }
   .grid-right-bottom {
     grid-row-start: 1;
     grid-column-start: 1;
     grid-row-end: 1;
     grid-column-end: 1;
     background-color: #47cc47;
   }

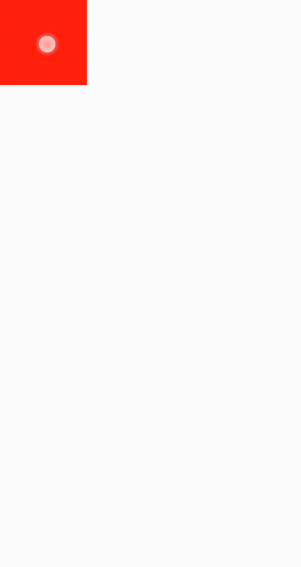

1. Dragging⁷⁺ html <!-- xxx.hml --> <div class="container"> <div class="content" ondragstart="dragstart" ondrag="drag" ondragend="dragend" style="position: absolute;left: {{left}};top: {{top}};"> </div> </div>

    /* xxx.css */
    .container {
    flex-direction: column;
    width: 100%;
    height: 100%;
    }
    .content {
    width: 200px;
    height: 200px;
    background-color: red;
    }

   // xxx.js
   import promptAction from '@ohos.promptAction';
   export default {
     data:{
       left:0,
       top:0,
     },
     dragstart(e){
       prompt.showToast({
         message: 'Start to be dragged'
       })
     },
     drag(e){
       this.left = e.globalX;
       this.top = e.globalY;
     },
     dragend(e){
       promptAction.showToast({
         message: 'End Drag'
       })
     }
   }

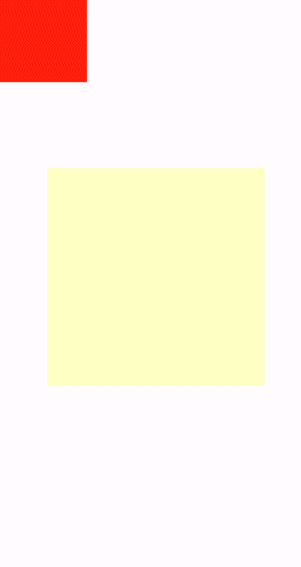

   <!-- xxx.hml -->
   <div class="container">
     <div class="content" ondrag="drag" style="position: absolute;left: {{left}};top: {{top}};"></div>
     <div style="width: 500px; height: 500px; background-color: yellow; position: fixed; left: 15%; top: 30%; opacity:0.3"
       ondragenter="dragenter" ondragover="dragover" ondragleave="dragleave" ondrop="drop">
     </div>
   </div>

   /* xxx.css */
   .container {
     flex-direction: column;
     width: 100%;
     position: relative;
     max-width: 100%;
   }
   .content{
     width: 200px;
     height: 200px;
     background-color: red;
     position: absolute;
   }

   // xxx.js
   import promptAction from '@ohos.promptAction';
   export default {
     data:{
       left:0,
       top:0,
     },
     drag(e){
       this.left = e.globalX;
       this.top = e.globalY;
     },
     dragenter(e){
       promptAction.showToast({
         message: 'enter'
       })
     },
     dragover(e){
       promptAction.showToast({
         message: 'over'
       })
     },
     dragleave(e){
       promptAction.showToast({
         message: 'leave'
       })
     },
     drop(e){
       promptAction.showToast({
         message: 'drop'
       })
     }
   }

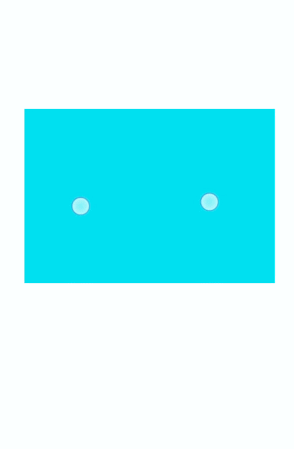

1. Pinching⁷⁺ html <!-- xxx.hml --> <div class="container"> <div class="content" onpinchstart="pinchstart" onpinchend="pinchend" onpinchupdate="pinchupdate" onpinchcancel="pinchcancel"> </div> </div>

   /* xxx.css */
   .container {
     flex-direction: column;
     justify-content: center;
     align-items: center;
     width: 454px;
     height: 454px;
   }
   .content {
     width: 400px;
     height: 400px;
     background-color: aqua;
     margin: 30px;
   }

   // xxx.js
   import promptAction from '@ohos.promptAction';
   export default {
     pinchstart(e){
       promptAction.showToast({
         message: 'pinchstart!!!'
       })
     },
     pinchupdate(e){
       promptAction.showToast({
         message: 'Two-finger pinch update'
       })
     },
     pinchend(e){
       promptAction.showToast({
         message: 'Finished with two fingers pinching'
       })
     },
     pinchcancel(e){
       promptAction.showToast({
         message: 'Finger pinching is interrupted'
       })
     }
   }
