picker-view

NOTE This component is supported since API version 4. Updates will be marked with a superscript to indicate their earliest API version.

The <picker-view> component provides the view that shows an embedded scrollable selector on the screen.

Child Components

Not supported

Attributes

In addition to the universal attributes, the following attributes are supported.

Name Type Default Value Mandatory Description
type string text No Type of the scrollable selector, which cannot be changed dynamically. Available values are as follows:
- text: text selector.
- time: time selector.
- date: date selector.
- datetime: date and time selector.
- multi-text: multi-column text selector.

Text Selector

Name Type Default Value Mandatory Description
range Array - No Value range of the text selector.
Use the data binding mode, for example, range = {{data}}. Declare the corresponding variable data: ["15", "20", "25"] in JavaScript.
selected string 0 No Default value of the text selector. The value is the index of range.
indicatorprefix string - No Prefix field added when a value is specified for the text selector.
indicatorsuffix string - No Suffix field added when a value is specified for the text selector.

Time Selector

Name Type Default Value Mandatory Description
containsecond boolean false No Whether seconds are contained.
selected string Current time No Default value of the time selector, in the format of HH:mm.
If seconds are contained, the format is HH:mm:ss.
hours number 241-4
-5+
No Time format used by the time selector. Available values are as follows:
- 12: displayed in 12-hour format and distinguished by a.m. and p.m.
- 24: displayed in 24-hour format.
Since API version 5, the default value is the most commonly-used hour format in the current locale.

Date Selector

Name Type Default Value Mandatory Description
start &lt;time&gt; 1970-1-1 No Start date of the date selector, in the format of YYYY-MM-DD.
end &lt;time&gt; 2100-12-31 No End date of the date selector, in the format of YYYY-MM-DD.
selected string Current date No Default value of the date selector, in the format of YYYY-MM-DD.
lunar5+ boolean false No Whether the pop-up window displays the lunar calendar.
lunarswitch boolean false No Whether to display the lunar calendar switch in the date selector. When this switch is displayed, the user can switch between the lunar calendar and Gregorian calendar. Turn on the switch to display the lunar calendar, and turn off the switch to hide the lunar calendar.

Date and Time Selector

Name Type Default Value Mandatory Description
selected string Current date and time No Default value of the date and time selector. The value can be in the format of MM-DD-HH-mm or YYYY-MM-DD-HH-mm. If the year is not set, the current year is used by default. The value you set is the date selected by default in the pop-up window.
hours number 241-4
-5+
No Time format used by the date and time selector. Available values are as follows:
- 12: displayed in 12-hour format and distinguished by a.m. and p.m.
- 24: displayed in 24-hour format.
Since API version 5, the default value is the most commonly-used hour format in the current locale.
lunar5+ boolean false No Whether the pop-up window displays the lunar calendar.
lunarswitch boolean false No Whether to display the lunar calendar switch in the date and time selector. When this switch is displayed, the user can switch between the lunar calendar and Gregorian calendar. Turn on the switch to display the lunar calendar, and turn off the switch to hide the lunar calendar.

Multi-Column Text Selector

Name Type Default Value Mandatory Description
columns number - Yes Number of columns in the multi-column text selector.
range Two-dimensional array - No Items of the multi-column text selector. The value is a two-dimensional array that indicates the number of columns. Each item in the array indicates the data of each column, for example, [[“a”, “b”], [“c”, “d”]].
Use the data binding mode, for example, range = {{data}}. Declare the corresponding variable data: ["15", "20", "25"] in JavaScript.
selected Array [0,0,0,…] No Default value of the multi-column text selector, which is an array consisting of the indexes of the selected items in each column.

Styles

In addition to the universal styles, the following styles are supported.

Name Type Default Value Mandatory Description
color &lt;color&gt; #ffffff No Font color of a candidate item.
font-size &lt;length&gt; 16px No Font size of a candidate item. The value is of the length type, in pixels.
selected-color &lt;color&gt; #ff0a69f7 No Font color of the selected item.
selected-font-size &lt;length&gt; 20px No Font size of the selected item. The value is of the length type, in pixels.
disappear-color5+ &lt;color&gt; #ffffff No Font color of the items that gradually disappear. Disappearing items are the top option and bottom option of a column containing five options in total.
disappear-font-size5+ &lt;length&gt; 14px No Font size of the items that gradually disappear. Disappearing items are the top option and bottom option of a column containing five options in total.
font-family string sans-serif No Font family of the selector, in which fonts are separated by commas (,). Each font is set using a font name or font family name. The first font in the family or the specified custom font is used for the text.

Events

The following events are supported.

Text Selector

Name Parameter Description
change { newValue: newValue, newSelected: newSelected } Triggered when a value is specified for the text selector.

Time Selector

Name Parameter Description
change { hour: hour, minute: minute, [second:second]} Triggered when a value is specified for the time selector.
If seconds are contained, the value contains hour, minute, and second.

Date Selector

Name Parameter Description
change { year:year, month:month, day:day } Triggered when a value is specified for the date selector.

Date and Time Selector

Name Parameter Description
change { year:year, month:month, day:day, hour:hour, minute:minute } Triggered when a value is specified for the date and time selector.

Multi-Column Text Selector

Name Parameter Description
columnchange { column:column, newValue:newValue, newSelected:newSelected } Triggered when the value of a column in the multi-column selector changes.
column: column whose value has changed.
newValue: selected value.
newSelected: index of the selected value.

Methods

Not supported

Example

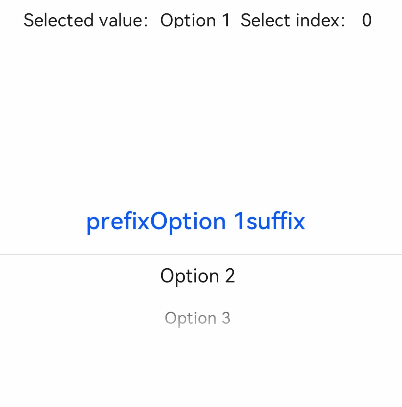

Text Selector

<!-- xxx.hml -->
<div class="container">
    <text class="title">
        Selected value: {{value}} Selected index: {{index}}
    </text>
    <picker-view class="text-picker" type="text" range="{{options}}" selected="0" indicatorprefix="prefix" indicatorsuffix="suffix" @change="handleChange"></picker-view>
</div>
/* xxx.css */
.container {
    flex-direction: column;
    justify-content: center;
    align-items: center;
    width: 100%;
    height: 50%;
}
.title {
    font-size: 30px;
    text-align: center;
    margin-top: 50%;
}
/* xxx.js */
export default {
    data: {
        options: ['Option 1','Option 2','Option 3'],
        value: "Option 1",
        index: 0
    },
    handleChange(data) {
        this.value = data.newValue;
        this.index = data.newSelected;
    },
}

picker-view0

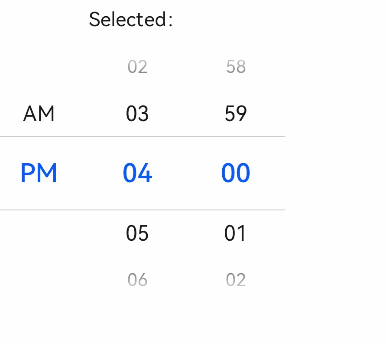

Time Selector

<!-- xxx.hml -->
<div class="container">
  <text class="title">
    Selected: {{time}}
  </text>
  <picker-view class="time-picker" type="time" selected="{{defaultTime}}" @change="handleChange"></picker-view>
</div>
/* xxx.css */
.container {
    flex-direction: column;
    justify-content: center;
    align-items: center;
    width: 100%;
    height: 50%;
}
.title {
    font-size: 31px;
    text-align: center;
    margin-top: 50%;
}
/* xxx.js */
export default {
  data: {
    defaultTime: "",
    time: "",
  },
  onInit() {
    this.defaultTime = this.now();
  },
  handleChange(data) {
    this.time = this.concat(data.hour, data.minute);
  },
  now() {
    const date = new Date();
    const hours = date.getHours();
    const minutes = date.getMinutes();
    return this.concat(hours, minutes);
  },
  fill(value) {
    return (value > 9 ? "" : "0") + value;
  },
  concat(hours, minutes) {
    return `${this.fill(hours)}:${this.fill(minutes)}`;
  },
}

picker-view1

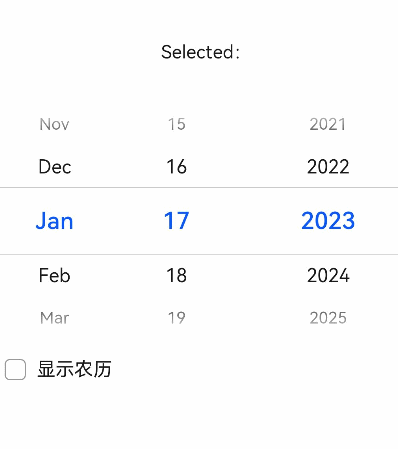

Date Selector

<!-- xxx.hml -->
<div class="container">
    <text class="title">
        Selected: {{date}}
    </text>
    <picker-view class="time-picker" type="date" selected="{{defaultTime}}" @change="handleChange" lunarswitch="true"></picker-view>
</div>
/* xxx.css */
.container {
    flex-direction: column;
    justify-content: center;
    align-items: center;
    width: 100%;
    height: 50%;
}
.title {
    font-size: 31px;
    text-align: center;
    margin-top: 50%;
}
/* xxx.js */
export default {
    data: {
        date: "",
    },
    handleChange(data) {
        this.date = data.year + "/" + data.month + "/" + data.day + "";
    },
}

picker-view2

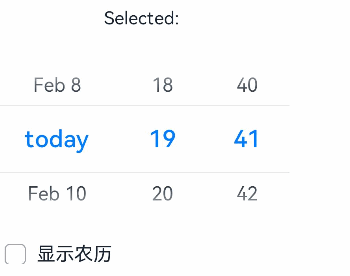

Date and Time Selector

<!-- xxx.hml -->
<div class="container">
    <text class="title">
        Selected: {{datetime}}
    </text>
    <picker-view class="date-picker" type="datetime"  hours="24" lunarswitch="true" @change="handleChange"></picker-view>
</div>
/* xxx.css */
.container {
    flex-direction: column;
    justify-content: center;
    align-items: center;
    width: 100%;
    height: 50%;
}
.title {
    font-size: 31px;
    text-align: center;
    margin-top: 50%;
}
/* xxx.js */
export default {
    data: {
        datetime: "",
    },
    handleChange(data) {
        this.datetime = data.year + "/" + data.month + "/" + data.day + "" + data.hour + ":" + data.minute + "";
    },
}

picker-view3

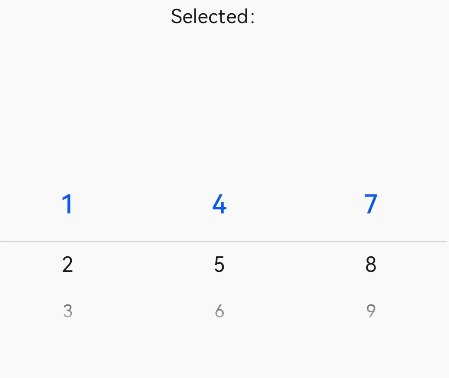

Multi-Column Text Selector

<!-- xxx.hml -->
<div class="container">
    <text class="title">
        Selected: {{ value }}
    </text>
    <picker-view class="multitype-picker" type="multi-text" columns="3" range="{{ multitext }}" @columnchange="handleChange"></picker-view>
</div>
/* xxx.css */
.container {
    flex-direction: column;
    justify-content: center;
    align-items: center;
    width: 100%;
    height: 50%;
}
.title {
    font-size: 31px;
    text-align: center;
    margin-top: 50%;
}
/* xxx.js */
export default {
    data: {
        multitext: [
            [1, 2, 3],
            [4, 5, 6],
            [7, 8, 9],
        ],
        value: ""
    },
    handleChange(data) {
        this.value = "Column: " + data.column + "," + "Value: " + data.newValue + ", Index:" + data.newSelected;
    },
}

picker-view4
