Power-off Charging Animation Customization

Overview

Introduction

By default, the OpenHarmony provides the animation that displays information such as the battery level during power-off charging. However, some vendors may expect to use custom power-off charging animations for their products. To address this requirement, OpenHarmony provides the function of customizing power-off charging animations.

Constraints

The configuration path for battery level customization is subject to the configuration policy. In this development guide, /vendor is used as an example of the configuration path. During actual development, you need to modify the customization path based on the product configuration policy.

How to Develop

Setting Up the Environment

Hardware requirements:

Development board running the standard system, for example, the DAYU200 or Hi3516D V300 open source suite.

Environment requirements:

For details about the requirements on the Linux environment, see Quick Start.

Getting Started with Development

The following uses DAYU200 as an example to illustrate charging type customization.

  1. Create the animation folder in the product directory /vendor/hihope/rk3568.

  2. Create a target folder by referring to the default folder of power-off charging animation configuration, and install it in //vendor/hihope/rk3568/animation. The content is as follows:

    profile
    ├── BUILD.gn
    ├── animation.json

  3. Create the resources folder by referring to default folder of power-off charging animation image resources to store the images that form the animation, and install the folder in //vendor/hihope/rk3568/animation. The content is as follows:

    animation
    ├── resources
    ├── profile

  4. Write the BUILD.gn file by referring to the BUILD.gn in the default folder of power-off charging animation configuration, and put it to the //vendor/hihope/rk3568/animation/resource directory. The configuration is as follows: “`shell import(”//build/ohos.gni”)

    ohos_prebuilt_etc(“resources_config0”) { source = “loop00000.png” # Image resource relative_install_dir = “poweroff_charger_animation/resources” install_images = [ chipset_base_dir ] # Required configuration for installing the resources folder in the vendor directory. part_name = “product_rk3568” }

  5. Write the custom animation.json file by referring to the animation.json file in the default folder of power-off charging animation image resources. For example:

    {
        "id": "Charger",
        "screenWidth": 720,
        "screenHeight": 1280,
        "dir": "/vendor/etc/charger/resources",
        "bgColor": "#000000ff",
        "subpages": [
            {
                "id": "Animation",
                "coms": [
                    "Charging_Animation_Image",
                    "Charging_Percent_Label"
                ],
                "bgColor": "#000000ff"
            },
            {
                "id": "Lackpower_Charging_Prompt",
                "coms": [
                    "LackPower_Charging_Label"
                ],
                "bgColor": "#000000ff"
            },
            {
                "id": "Lackpower_Not_Charging_Prompt",
                "coms": [
                    "LackPower_Not_Charging_Label"
                ],
                "bgColor": "#000000ff"
            }
        ],
        "default": {
            "Common": {
                "visible": false
            },
            "UILabel": {
                "bgColor": "#00000000",
                "fontColor": "#ffffffe6",
                "align": "center"
            },
            "UIImageView": {
                "imgCnt": 1,
                "updInterval": 0,
                "filePrefix": ""
            }
        },
        "coms": [
            {
                "type": "UIImageView",
                "id": "Charging_Animation_Image",
                "x": 180,
                "y": 410,
                "w": 400,
                "h": 400,
                "resPath": "/vendor/etc/charger/resources/",
                "imgCnt": 62,
                "updInterval": 60,
                "filePrefix": "loop"
            },
            {
                "type": "UILabel",
                "id": "Charging_Percent_Label",
                "text": "",
                "x": 365,
                "y": 580,
                "w": 65,
                "h": 43,
                "fontSize": 32
            },
            {
                "type": "UILabel",
                "id": "LackPower_Charging_Label",
                "text": "Low battery level",
                "x": 229,
                "y": 1037,
                "w": 250,
                "h": 45,
                "fontSize": 42,
                "fontColor": "#ff0000ff"
            },
            {
                "type": "UILabel",
                "id": "LackPower_Not_Charging_Label",
                "text": "Low battery level. Please connect the power supply.",
                "x": 110,
                "y": 1037,
                "w": 500,
                "h": 45,
                "fontSize": 42,
                "fontColor": "#ff0000ff"
            }
        ]
    }


    Table 1 Description of the power-off charging animation configuration |Item|Description| |——–|——–| |id|Unique ID of the charging screen.| |screenWidth|Width of the charging screen, in pixels.| |screenHeight|Height of the charging screen, in pixels.| |dir|Resource path.| |bgColor|Background color of the charging screen.| |subpages|Subpage of the charging screen.| |coms|All components on the charging screen.| |visible|Whether elements are visible.| |text|Text content of a component.| |x|X coordinate of the component.| |y|Y coordinate of the component.| |w|Component width, in pixels.| |h|Component height, in pixels.| |fontSize|Font size of the component.| |fontColor|Font color of the text.| |align|Text alignment mode.| |imgCnt|Number of images.| |updInterval|Image updating interval, in ms.| |filePrefix|Prefix of an image file name.| |type|Component type.| |resPath|Resource file path of the component.|

  6. Write the BUILD.gn file by referring to the BUILD.gn in the default folder of power-off charging animation configuration to pack the animation_config.json file to the //vendor/etc/charger directory. The configuration is as follows:

    import("//build/ohos.gni")


    ohos_prebuilt_etc("animation_config") {
        source = "animation.json"             # Reference build/ohos.gni.
        relative_install_dir = "animation/resources"
        install_images = [ chipset_base_dir ] # Required configuration for installing the battery_config.json file in the vendor directory.
        part_name = "product_rk3568"          # Set part_name to product_rk3568 for subsequent build.
    }

  7. Add the build target to module_list in ohos.build in the /vendor/hihope/rk3568 directory. For example:

    {
    "parts": {
        "product_rk3568": {
        "module_list": [
            "//vendor/hihope/rk3568/default_app_config:default_app_config",
            "//vendor/hihope/rk3568/image_conf:custom_image_conf",
            "//vendor/hihope/rk3568/preinstall-config:preinstall-config",
            "//vendor/hihope/rk3568/resourceschedule:resourceschedule",
            "//vendor/hihope/rk3568/etc:product_etc_conf",
            "//vendor/hihope/rk3568/battery/profile:battery_config",
            "//vendor/hihope/rk3568/animation/profile:animation_config"   # Add the configuration for building of animation_config.
            "//vendor/hihope/rk3568/animation/resource/resources_config0" # Add the configuration for building of image resources.
        ]
        }
    },
    "subsystem": "product_hihope"
    }


    In the preceding code, //vendor/hihope/rk3568/animation/ is the folder path, profile is the folder name, and animation_config is the build target.

  8. Build the customized version by referring to Quick Start.

    ./build.sh --product-name rk3568 --ccache

  9. Burn the customized version to the DAYU200 development board.

Debugging and Verification

  1. Modify the code configuration.

    Code path: base/startup/init/services/init/init_config.c

    Function: ReadConfig

    After modification:
    void ReadConfig(void)
    {
        // parse cfg
        char buffer[32] = {0}; // 32 reason max leb
        uint32_t len = sizeof(buffer);
        SystemReadParam("ohos.boot.reboot_reason", buffer, &len);
        INIT_LOGV("ohos.boot.reboot_reason %s", buffer);
        ParseInitCfg(INIT_CONFIGURATION_FILE, NULL);                   // New code
        ReadFileInDir(OTHER_CHARGE_PATH, ".cfg", ParseInitCfg, NULL);  // New code
        if (strcmp(buffer, "poweroff_charge") == 0) {
            ParseInitCfg(INIT_CONFIGURATION_FILE, NULL);
            ReadFileInDir(OTHER_CHARGE_PATH, ".cfg", ParseInitCfg, NULL);
        } else if (InUpdaterMode() == 0) {
            ParseInitCfg(INIT_CONFIGURATION_FILE, NULL);
            ParseInitCfgByPriority();
        } else {
            ReadFileInDir("/etc", ".cfg", ParseInitCfg, NULL);
        }
    }

  2. Use the hdc tool to run the following commands to force the development board to enter the power-off charging state.

    hdc shell
    reboot charger

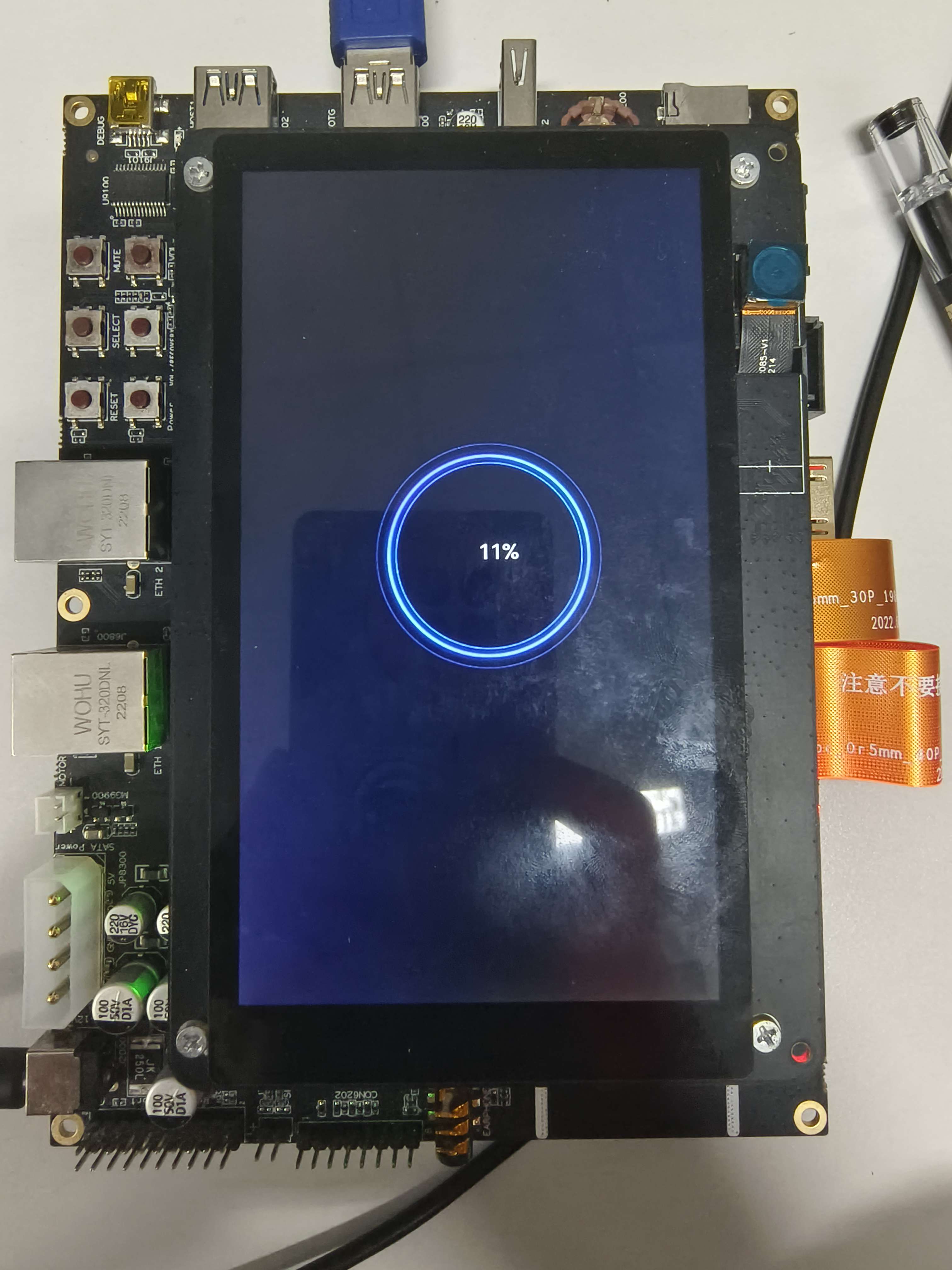

    animation_initial_power

  3. Go to the custom battery level configuration directory. The path of DAYU200 is used as an example.

    cd /data/service/el0/battery/battery

  4. Change the battery power, and observe the number change on the charging animation.

    cat capacity


    Change the current battery power to 3.

    echo 3 > capacity

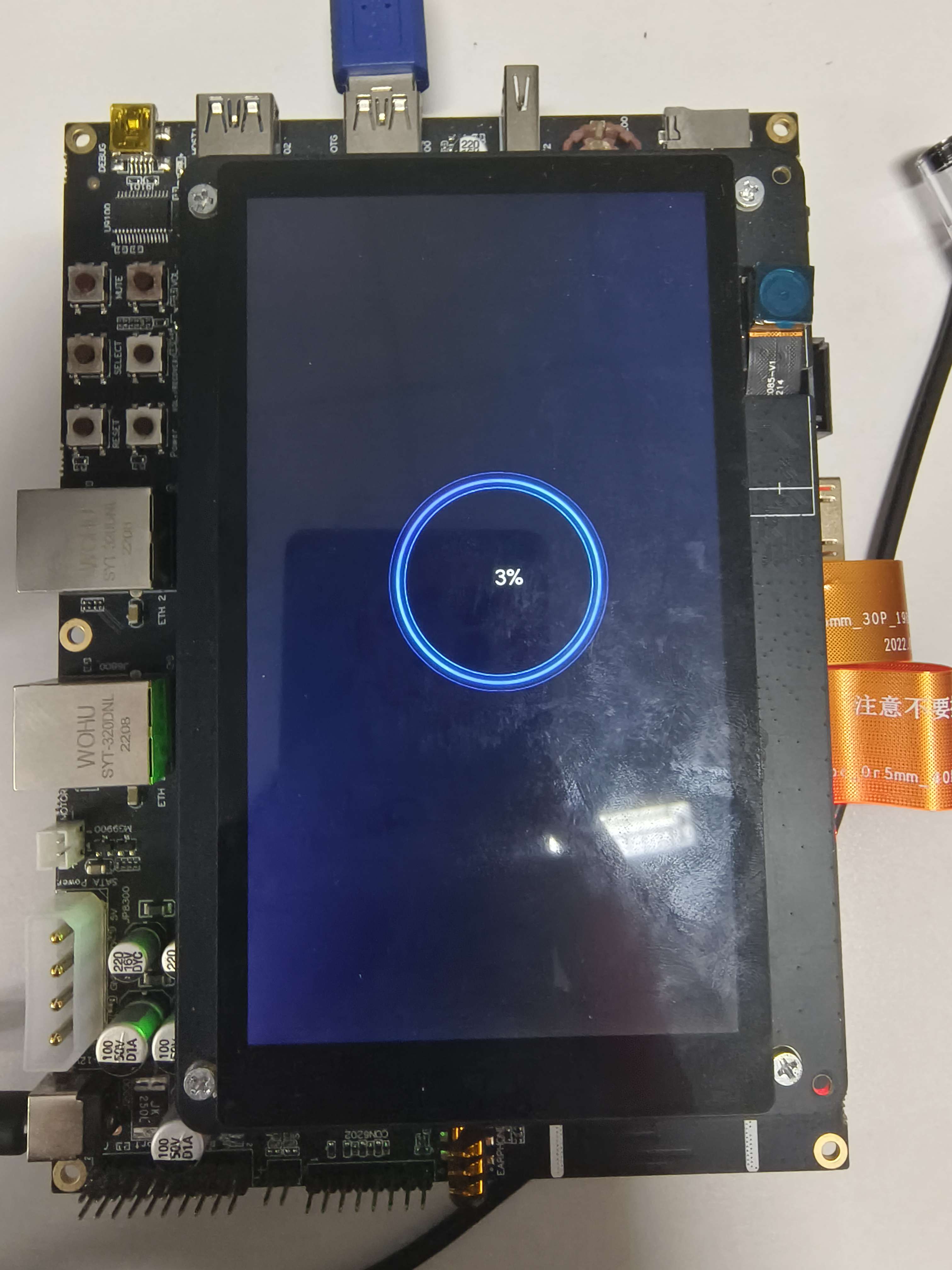

    animation_charing_power

  5. Change the charging status when the battery level is extremely low (1% by default). This can trigger the mapping animation or device shutdown.

    1. Go to the custom battery level configuration directory. cd /data/service/el0/battery/battery cat capacity
    2. Change the current battery power to 1. echo 1 > capacity
    3. Check the charging status. cat status The current status is Charging.

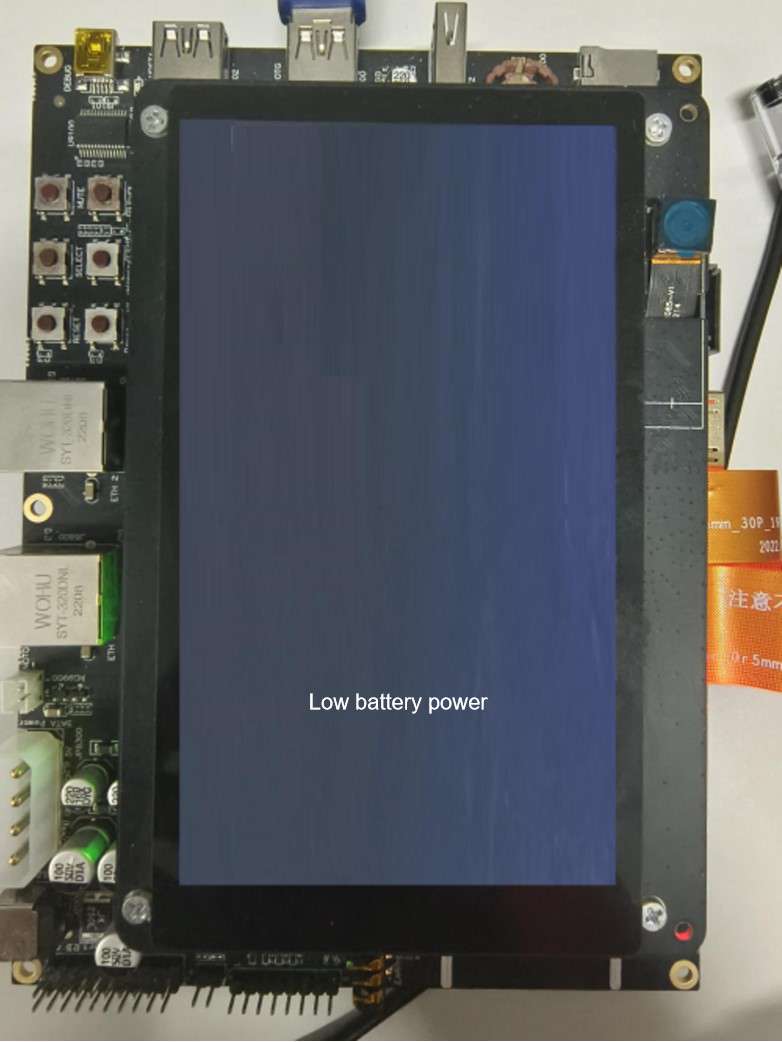

    animation_low_power

    1. Change to the Not charging state.

      echo Not charging > status

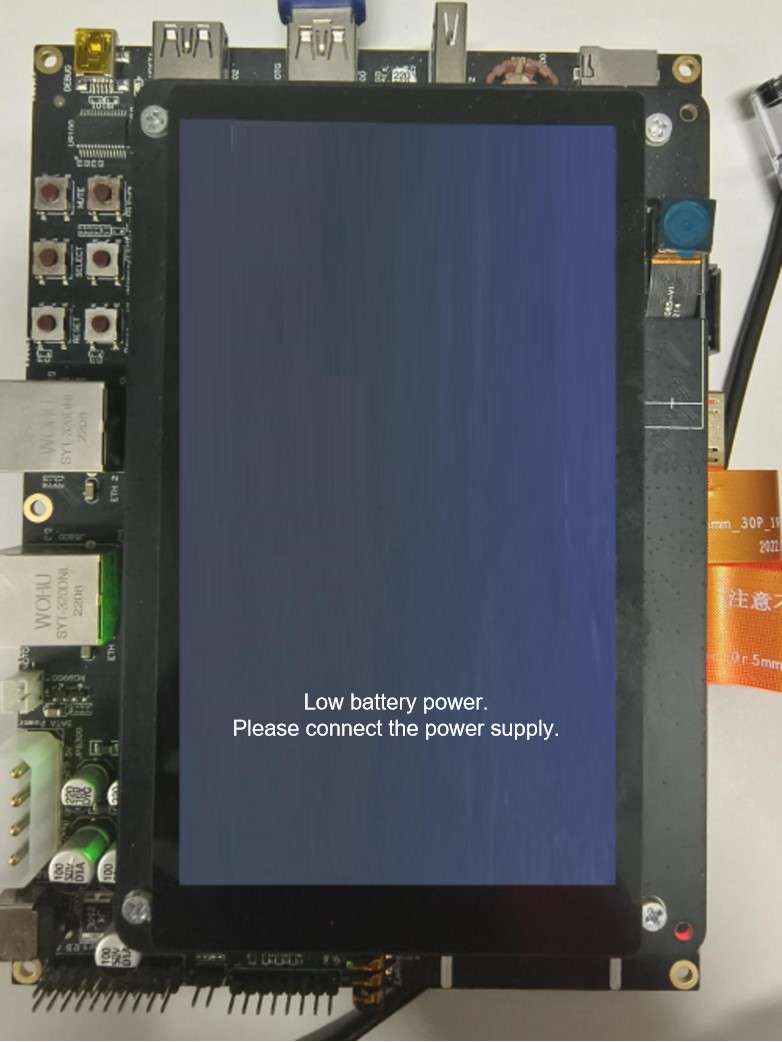

      animation_low_power2

    2. Change to the Discharging state. The system enters the power-off state.

      echo Discharging > status

  6. Test the power-off animation customization function by changing related images. The procedure is the same as that described above.

    1. Initial state

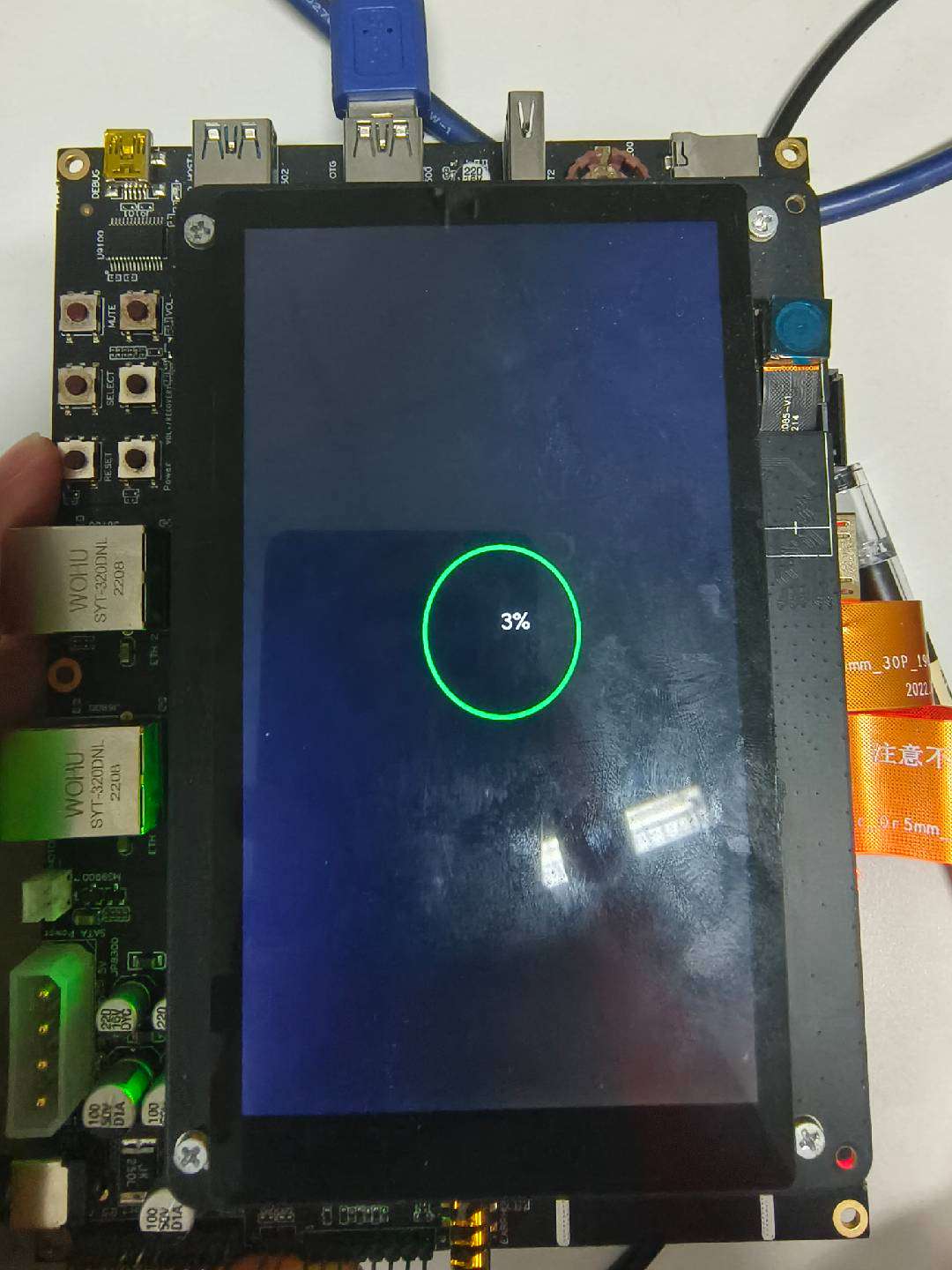

    animation_charging_power2

    1. %3 battery power

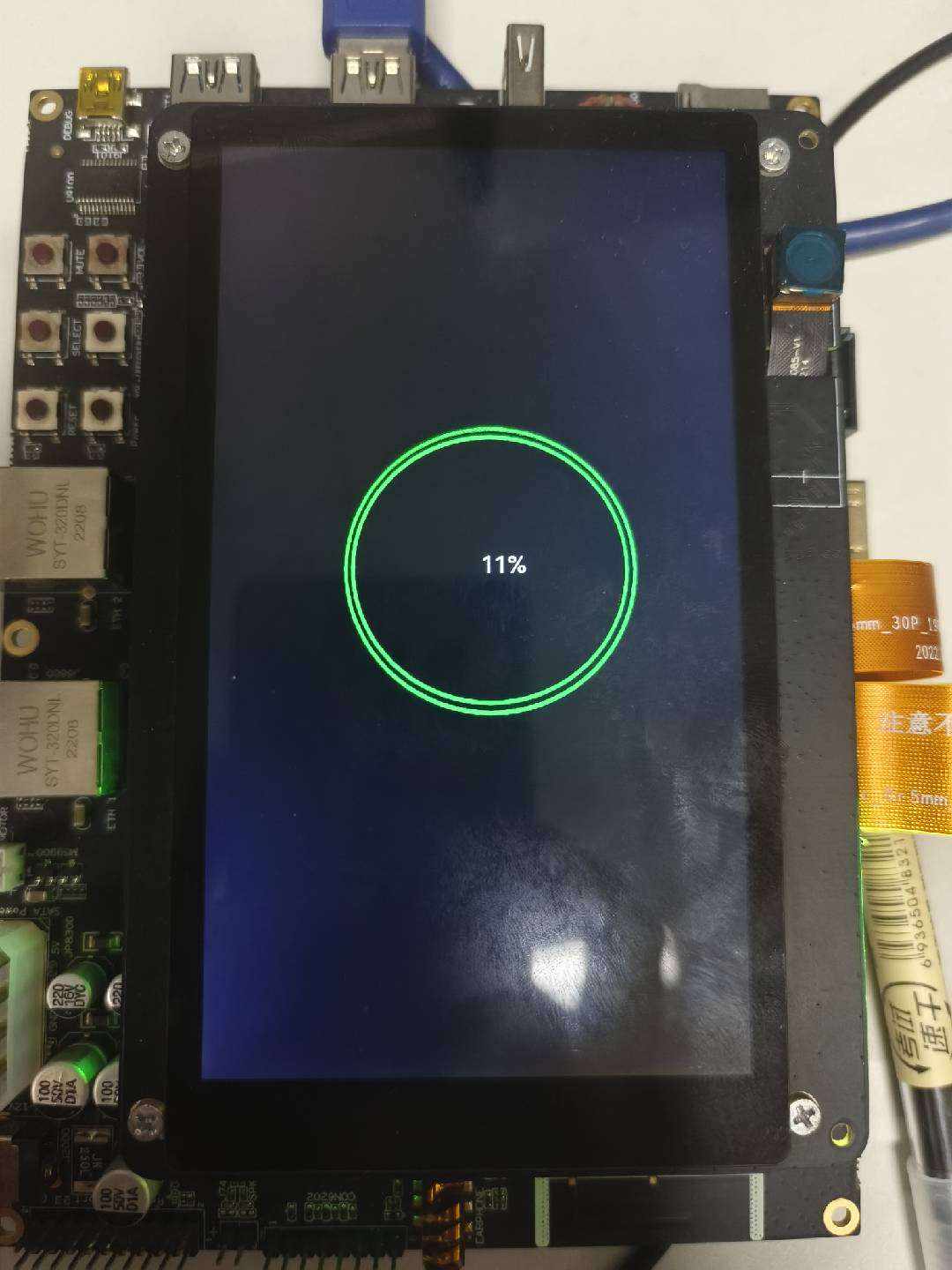

    animation_initial_power2

    1. 1% battery power, Charging state

    animation_low_power

    1. 1% battery power, Not charging state

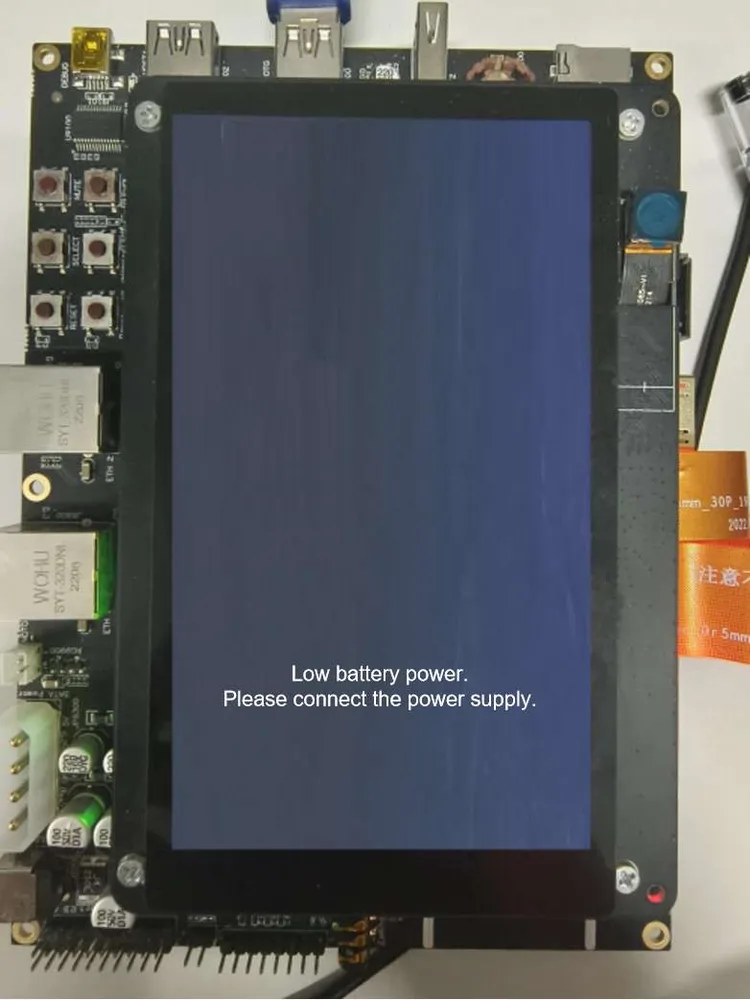

    animation_low_power2

    1. 1% battery power, Discharging state

    The device is powered off.

Reference

During development, you can refer to the default power-off animation configuration, as shown below:

    {
        "id": "Charger",
        "screenWidth": 720,
        "screenHeight": 1280,
        "dir": "/vendor/etc/charger/resources",
        "bgColor": "#000000ff",
        "subpages": [
            {
                "id": "Animation",
                "coms": [
                    "Charging_Animation_Image",
                    "Charging_Percent_Label"
                ],
                "bgColor": "#000000ff"
            },
            {
                "id": "Lackpower_Charging_Prompt",
                "coms": [
                    "LackPower_Charging_Label"
                ],
                "bgColor": "#000000ff"
            },
            {
                "id": "Lackpower_Not_Charging_Prompt",
                "coms": [
                    "LackPower_Not_Charging_Label"
                ],
                "bgColor": "#000000ff"
            }
        ],
        "default": {
            "Common": {
                "visible": false
            },
            "UILabel": {
                "bgColor": "#00000000",
                "fontColor": "#ffffffe6",
                "align": "center"
            },
            "UIImageView": {
                "imgCnt": 1,
                "updInterval": 0,
                "filePrefix": ""
            }
        },
        "coms": [
            {
                "type": "UIImageView",
                "id": "Charging_Animation_Image",
                "x": 180,
                "y": 410,
                "w": 400,
                "h": 400,
                "resPath": "/vendor/etc/charger/resources/",
                "imgCnt": 62,
                "updInterval": 60,
                "filePrefix": "loop"
            },
            {
                "type": "UILabel",
                "id": "Charging_Percent_Label",
                "text": "",
                "x": 365,
                "y": 580,
                "w": 65,
                "h": 43,
                "fontSize": 32
            },
            {
                "type": "UILabel",
                "id": "LackPower_Charging_Label",
                "text": "Low battery level",
                "x": 229,
                "y": 1037,
                "w": 250,
                "h": 45,
                "fontSize": 42,
                "fontColor": "#ff0000ff"
            },
            {
                "type": "UILabel",
                "id": "LackPower_Not_Charging_Label",
                "text": "Low battery level. Please connect the power supply.",
                "x": 110,
                "y": 1037,
                "w": 500,
                "h": 45,
                "fontSize": 42,
                "fontColor": "#ff0000ff"
            }
        ]
    }

Packing path: /system/etc/charger/resource
