NNRt Access Adaptation

Overview

Function Introduction

Neural Network Runtime (NNRt) functions as a bridge to connect the upper-layer AI inference framework and underlying acceleration chips, implementing cross-chip inference computing of AI models.

NNRt opens HDIs for chip vendors to connect dedicated acceleration chips to NNRt to interconnect with the OpenHarmony ecosystem.

Basic Concepts

Before you get started, it would be helpful for you to have a basic understanding of the following concepts:

  • Hardware Device Interface (HDI): defines APIs for cross-process communication between services in OpenHarmony.
  • Interface Description Language (IDL): defines the HDI language format.

Constraints

  • System version: OpenHarmony trunk version.
  • Development environment: Ubuntu 18.04 or later.
  • Access device: a chip with AI computing capabilities.

Working Principles

NNRt connects to device chips through HDIs, which implement cross-process communication between services.

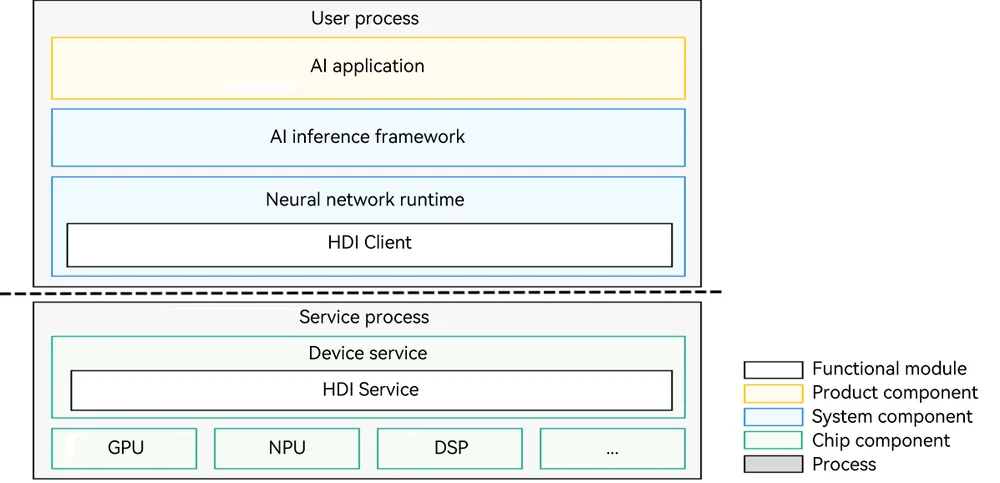

Figure 1 NNRt architecture

NNRt architecture

The NNRt architecture consists of three layers: AI applications at the application layer, AI inference framework and NNRt at the system layer, and device services at the chip layer. To use a dedicated acceleration chip model for inference, an AI application needs to call the underlying dedicated AI acceleration chip through the AI inference framework and NNRt. NNRt is responsible for adapting to various underlying dedicated acceleration chips. It opens standard and unified HDIs for various AI acceleration chips to access the OpenHarmony ecosystem. In addition, NNRt opens standard and unified APIs to connect to various upper-layer AI inference frameworks.

During program running, the AI application, AI inference framework, and NNRt reside in the user process, and the underlying AI chip device services reside in the HDI service process. NNRt implements the HDI client and the service side implements HDI Service to fulfill cross-process communication through the Hardware Driver Foundation (HDF) subsystem.

How to Develop

Application Scenario

Suppose you are connecting an AI acceleration chip, for example, RK3568, to NNRt. The following exemplifies how to connect the RK3568 chip to NNRt through HDI V2.0 to implement AI model inference. The process is similar for HDI V1.0. > NOTE
In this tutorial, the purpose of connecting the RK3568 chip to NNRt is to utilize the runtime and CPU operators of MindSpore Lite, instead of implementing the CPU driver. Therefore, the RK3568 chip depends on the dynamic libraries and header files of MindSpore Lite. In practice, the RK3568 chip does not depend on any library or header file of MindSpore Lite.

Development Flowchart

The following figure shows the process of connecting a dedicated AI acceleration chip to NNRt.

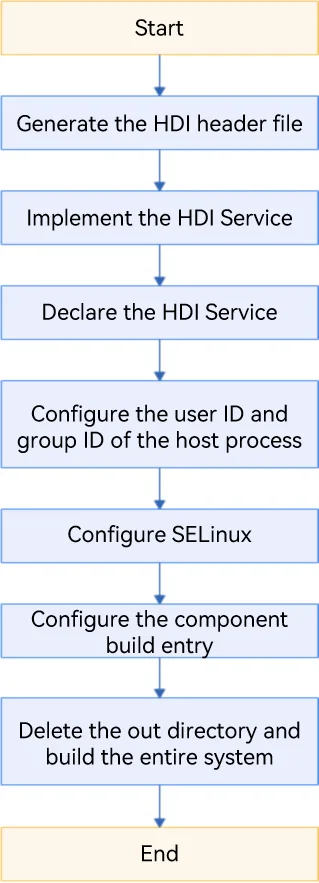

Figure 2 Process of connecting a dedicated AI acceleration chip to NNRt

Process of connecting a dedicated AI acceleration chip to NNRt

Development Procedure

The following uses the RK3568 chip as an example to describe the development procedure.

Generating the HDI Header File

Download the OpenHarmony source code from the open source community, build the drivers_interface component, and generate the HDI header file.

  1. Download the source code.

  2. Go to the root directory of OpenHarmony source code, and compile the IDL API file of NNRt.

    ./build.sh --product-name rk3568 –ccache --build-target drivers_interface_nnrt


    After the compilation is complete, an HDI header file of the C++ language is generated in the out/rk3568/gen/drivers/interface/nnrt/v2_0 directory. To generate a header file of the C language, run the following command to set the language field in the drivers/interface/nnrt/v2_0/BUILD.gn file before starting compilation:

    language = "c"


    The directory of the generated header file is as follows:

    out/rk3568/gen/drivers/interface/nnrt
    └── v2_0
        ├── drivers_interface_nnrt__libnnrt_proxy_2.0_external_deps_temp.json
        ├── drivers_interface_nnrt__libnnrt_stub_2.0_external_deps_temp.json
        ├── innrt_device.h                        # Header file of the HDI
        ├── iprepared_model.h                     # Header file of the AI model
        ├── libnnrt_proxy_2.0__notice.d
        ├── libnnrt_stub_2.0__notice.d
        ├── model_types.cpp                       # Implementation file for AI model structure definition
        ├── model_types.h                         # Header file for AI model structure definition
        ├── nnrt_device_driver.cpp                # Device driver implementation example
        ├── nnrt_device_proxy.cpp
        ├── nnrt_device_proxy.h
        ├── nnrt_device_service.cpp               # Implementation file for device services
        ├── nnrt_device_service.h                 # Header file for device services
        ├── nnrt_device_stub.cpp
        ├── nnrt_device_stub.h
        ├── nnrt_types.cpp                        # Implementation file for data type definition
        ├── nnrt_types.h                          # Header file for data type definitions
        ├── node_attr_types.cpp                   # Implementation file for AI model operator attribute definition
        ├── node_attr_types.h                     # Header file for AI model operator attribute definition
        ├── prepared_model_proxy.cpp
        ├── prepared_model_proxy.h
        ├── prepared_model_service.cpp            # Implementation file for AI model services
        ├── prepared_model_service.h              # Header file for AI model services
        ├── prepared_model_stub.cpp
        └── prepared_model_stub.h


Implementing the HDI Service

  1. Go to the root directory of OpenHarmony source code, and create the nnrt folder in the drivers/peripheral directory for HDI service development. The directory structure is as follows:

    drivers/peripheral/nnrt
    ├── bundle.json
    ├── v2_0
        ├── BUILD.gn                                  # Code build script
        └── hdi_cpu_service                           # Customized directory
            ├── BUILD.gn                              # Code build script
            ├── include
            │   ├── nnrt_device_service.h             # Header file for device services
            │   ├── node_functions.h                  # Optional, depending on the actual implementation
            │   ├── node_registry.h                   # Optional, depending on the actual implementation
            │   └── prepared_model_service.h          # Header file for AI model services
            └── src
                ├── nnrt_device_driver.cpp            # Implementation file for the device driver
                ├── nnrt_device_service.cpp           # Implementation file for device services
                ├── nnrt_device_stub.cpp              # Optional, depending on the actual implementation
                ├── node_attr_types.cpp               # Optional, depending on the actual implementation
                ├── node_functions.cpp                # Optional, depending on the actual implementation
                ├── node_registry.cpp                 # Optional, depending on the actual implementation
                └── prepared_model_service.cpp        # Implementation file for AI model services

  2. Implement the device driver. Unless otherwise required, you can directly use the nnrt_device_driver.cpp file generated through IDL file compilation.

  3. Implement service APIs by referring to the nnrt_device_service.cpp and prepared_model_service.cpp files. For details about the API definitions, see NNRt HDI Definitions.

  4. Compile the implementation files for device drivers and services as shared libraries.

    Create the BUILD.gn file with the following content in the drivers/peripheral/nnrt/v2_0/hdi_cpu_service/ directory. For details about how to set related parameters, see Compilation and Building.

    import("//build/ohos.gni")
    import("//drivers/hdf_core/adapter/uhdf2/uhdf.gni")


    ohos_shared_library("libnnrt_service_2.0") {
      include_dirs = []
      sources = [
        "src/nnrt_device_service.cpp",
        "src/node_functions.cpp",
        "src/node_registry.cpp",
        "src/prepared_model_service.cpp",
        "src/shared_buffer_parser.cpp",
        "src/validation.cpp",
      ]


      external_deps = [
        "c_utils:utils",
        "drivers_interface_nnrt:libnnrt_stub_2.0",
        "hdf_core:libhdf_utils",
        "hilog_native:libhilog",
        "ipc:ipc_core",
      ]


      install_images = [ chipset_base_dir ]
      subsystem_name = "hdf"
      part_name = "drivers_peripheral_nnrt"
    }


    ohos_shared_library("libnnrt_driver") {
      include_dirs = []
      sources = [ "src/nnr_device_driver.cpp" ]
      deps = [ ":libnnrt_service_2.0" ]


      external_deps = [
        "c_utils:utils",
        "drivers_interface_nnrt:libnnrt_stub_2.0",
        "hdf_core:libhdf_host",
        "hdf_core:libhdf_ipc_adapter",
        "hdf_core:libhdf_utils",
        "hdf_core:libhdi",
        "hilog_native:libhilog",
        "ipc:ipc_core",
      ]


      install_images = [ chipset_base_dir ]
      subsystem_name = "hdf"
      part_name = "drivers_peripheral_nnrt"
    }


    group("hdf_nnrt_service") {
      deps = [
        ":libnnrt_driver",
        ":libnnrt_service_2.0",
      ]
    }


    Add group("hdf_nnrt_service") to the drivers/peripheral/nnrt/v2_0/BUILD.gn file so that it can be referenced at a higher directory level.

    if (defined(ohos_lite)) {
      group("nnrt_entry") {
        deps = []
      }
    } else {
      group("nnrt_entry") {
        deps = [ "./hdi_cpu_service:hdf_nnrt_service" ]
      }
    }


    Create the drivers/peripheral/nnrt/bundle.json file to define the new drivers_peripheral_nnrt component.

    {
      "name": "drivers_peripheral_nnrt",
      "description": "Neural network runtime device driver",
      "version": "4.0",
      "license": "Apache License 2.0",
      "component": {
        "name": "drivers_peripheral_nnrt",
        "subsystem": "hdf",
        "syscap": [""],
        "adapter_system_type": ["standard"],
        "rom": "1024KB",
        "ram": "2048KB",
        "deps": {
          "components": [
            "c_utils",
            "hdf_core",
            "hilog_native",
            "ipc"
          ],
          "third_part": [
            "bounds_checking_function"
          ]
        },
        "build": {
          "sub_component": [
            "//drivers/peripheral/nnrt/v2_0:nnrt_entry"
          ],
          "test": [
          ],
          "inner_kits": [
          ]
        }
      }
    }


Declaring the HDI Service

In the uhdf directory, declare the user-mode driver and services in the .hcs file of the corresponding product. For example, for the RK3568 chip, add the following configuration to the vendor/hihope/rk3568/hdf_config/uhdf/device_info.hcs file:

  nnrt :: host {
      hostName = "nnrt_host";
      priority = 50;
      uid = "";
      gid = "";
      caps = ["DAC_OVERRIDE", "DAC_READ_SEARCH"];
      nnrt_device :: device {
          device0 :: deviceNode {
              policy = 2;
              priority = 100;
              moduleName = "libnnrt_driver.z.so";
              serviceName = "nnrt_device_service";
          }
      }
  }

NOTE
After modifying the .hcs file, you need to delete the out folder and compile the file again for the modification to take effect.

Configuring the User ID and Group ID of the Host Process

In the scenario of creating an nnrt_host process, you need to configure the user ID and group ID of the corresponding process. The user ID is configured in the base/startup/init/services/etc/passwd file, and the group ID is configured in the base/startup/init/services/etc/group file.

  # Add the user ID in base/startup/init/services/etc/passwd.
  nnrt_host:x:3311:3311:::/bin/false

  # Add the group ID in base/startup/init/services/etc/group.
  nnrt_host:x:3311:

Configuring SELinux

The SELinux feature has been enabled for the OpenHarmony. You need to configure SELinux rules for the new processes and services so that they can run the host process to access certain resources, release HDI services, etc.

  1. Add the following configuration to the base/security/selinux/sepolicy/ohos_policy/drivers/adapter/public/hdf_service_contexts file:

    # Add the security context configuration.
    nnrt_device_service        u:object_r:hdf_nnrt_device_service:s0


    NOTE
    nnrt_host indicates the process name configured in Declaring the HDI Service.

  2. Add the following configuration to the base/security/selinux/sepolicy/ohos_policy/drivers/adapter/public/hdf_service.te file:

    # Add the security context configuration.
    type hdf_nnrt_device_service, hdf_service_attr;

  3. Add the following configuration to the base/security/selinux/sepolicy/ohos_policy/drivers/adapter/public/hdfdomain.te file:

    # Add the security context configuration.
    neverallow { domain -hdfdomain -sadomain } { hdfdomain -nnrt_host -allocator_host -hdf_public_domain }:binder call;

  4. Add the following configuration to the base/security/selinux/sepolicy/ohos_policy/drivers/adapter/public/type.te file:

    # Add the security context configuration.
    type nnrt_host, hdfdomain, domain;

  5. Add the following configuration to the base/security/selinux/sepolicy/ohos_policy/drivers/adapter/vendor/hdf_devmgr.te file:

    # Add the security context configuration.
    allow hdf_devmgr nnrt_host:binder { call transfer };
    allow hdf_devmgr nnrt_host:dir { search };
    allow hdf_devmgr nnrt_host:file { open read write };
    allow hdf_devmgr nnrt_host:process { getattr };

  6. Add the following configuration to the base/security/selinux/sepolicy/ohos_policy/drivers/adapter/vendor/init.te file:

    # Add the security context configuration.
    allow init nnrt_host:process { rlimitinh siginh transition };

  7. Modify the configuration in the base/security/selinux/sepolicy/ohos_policy/startup/init/public/chipset_init.te file.

    Find the line containing chipset_init.

    allow chipset_init { light_host input_user_host wifi_host camera_host power_host audio_host }:process { rlimitinh siginh transition };


    Add nnrt_host to the host list.

    allow chipset_init { light_host input_user_host wifi_host camera_host power_host audio_host nnrt_host }:process { rlimitinh siginh transition };

  8. Create the nnrt_host.te configuration file.

    # Create the nnrt folder.
    mkdir base/security/selinux/sepolicy/ohos_policy/drivers/peripheral/nnrt

    # Create the vendor folder.
    mkdir base/security/selinux/sepolicy/ohos_policy/drivers/peripheral/nnrt/vendor

    # Create the `nnrt_host.te` file.
    touch base/security/selinux/sepolicy/ohos_policy/drivers/peripheral/nnrt/vendor/nnrt_host.te

  9. Write the following required permissions to the nnrt_host.te file:

    allow nnrt_host dev_hdf_kevent:chr_file { ioctl };
    allow nnrt_host hilog_param:file { read open map };
    allow nnrt_host sh:binder { transfer };
    allow nnrt_host samgr:binder { call };
    allow nnrt_host dev_ashmem_file:chr_file { open };
    allow nnrt_host dev_unix_socket:dir { search };
    allow nnrt_host hdf_device_manager:hdf_devmgr_class { get };
    allow nnrt_host hdf_nnrt_device_service:hdf_devmgr_class { add get };
    allow nnrt_host dev_console_file:chr_file { read write };
    allow nnrt_host debug_param:file { read open map };
    allow nnrt_host sa_device_service_manager:samgr_class { get };
    allow nnrt_host hdf_devmgr:binder { call transfer };
    allow nnrt_host hdf_nnrt_device_service:binder { call };
    allow nnrt_host sysfs_devices_system_cpu:file { read open getattr };
    allow sh hdf_nnrt_device_service:hdf_devmgr_class { add get };
    allow sh hdf_hci_interface_service:hdf_devmgr_class { get };
    allow sh nnrt_host:dir { getattr search };
    allow sh nnrt_host:file { open read };
    allow sh nnrt_host:process { getattr };
    allow sh nnrt_host:binder { call };
    allow sh nnrt_host:fd { use };

  10. Configure access permissions because SELinux uses the trustlist access permission mechanism. Upon service startup, run the dmesg command to view the AVC alarm, which provides a list of missing permissions. For details about the SELinux configuration, see security_selinux.

    hdc_std shell
    dmesg|grep nnrt


Configuring the Component Build Entry

Access the chipset_common.json file.

vim //productdefine/common/inherit/chipset_common.json

Add the following configuration to "subsystems", "subsystem":"hdf", and "components":

{
  "component": "drivers_peripheral_nnrt",
  "features": []
}

Deleting the out Directory and Building the Entire System

# Delete the out directory.
rm -rf ./out

# Build the entire system.
./build.sh --product-name rk3568 –ccache --jobs=4

Commissioning and Verification

On completion of service development, you can use XTS to verify its basic functions and compatibility. The operation procedure is as follows:

  1. Compile the hats test cases of NNRt in the test/xts/hats/ai/nnrt/hdi directory.

    # Go to the hats directory.
    cd test/xts/hats

    # Compile the `hats` test cases.
    ./build.sh suite=hats system_size=standard product_name=rk3568

    # Return to the root directory.
    cd -


    The test case executable file HatsHdfNnrtFunctionTest is exported to the out/rk3568/suites/hats/testcases/ directory.

  2. Push the test case executable file to the /data/local/tmp/ directory of the RK3568 device.

    # Push the test case executable file to the device. In this example, the executable file is HatsHdfNnrtFunctionTest.
    hdc_std file send out/rk3568/suites/hats/testcases/HartsHdfNnrtFunctionTest /data/local/tmp/

    # Grant required permissions to the test case executable file.
    hdc_std shell "chmod +x /data/local/tmp/HatsHdfNnrtFunctionTest"

  3. Execute the test cases and view the result.

    # Execute the test cases.
    hdc_std shell "/data/local/tmp/HatsHdfNnrtFunctionTest"


    According to the following example test report, all of the 47 test cases are successfully executed, indicating the service has passed the compatibility test.

    ...
    [----------] Global test environment tear-down
    Gtest xml output finished
    [==========] 47 tests from 3 test suites ran. (515 ms total)
    [  PASSED  ] 47 tests.


Development Example

For the complete demo code, see NNRt Service Implementation Example.

  1. Go to the root directory of OpenHarmony source code and create the nnrt folder in the drivers/peripheral directory. Then, copy the example/driver/nnrt/v2_0 folder from the foundation/ai/neural_network_runtime directory of NNRt source code to the created nnrt folder.

    cp -r example/drivers/nnrt/v2_0 drivers/peripheral/nnrt

  2. Add the bundle.json file to the drivers/peripheral/nnrt directory. For details about how to write the bundle.json file, see Implementing the HDI Service.

  3. Add the dependency files of MindSpore Lite because the demo depends on the CPU operator of MindSpore Lite.

    • Download the header file of MindSpore Lite 1.8.1.

    • Create the mindspore folder in the drivers/peripheral/nnrt/v2_0 directory to store the dynamic libraries and header files of MindSpore Lite. shell mkdir drivers/peripheral/nnrt/v2_0/mindspore

    • Decompress the mindspore-lite-1.8.1-android-aarch64.tar.gz file, and copy the runtime/include folder to the drivers/peripheral/nnrt/v2_0/mindspore directory. shell cp mindspore-lite-1.8.1-android-aarch64/runtime/include drivers/peripheral/nnrt/v2_0/mindspore

    • Create and copy the schema file of MindSpore Lite. “`shell

      Create the mindspore_schema folder.

      mkdir drivers/peripheral/nnrt/v2_0/hdi_cpu_service/include/mindspore_schema

    # Copy the MindSpore schema file from the third_party directory. cp third_party/mindspore/mindspore/lite/schema/* drivers/peripheral/nnrt/v2_0/hdi_cpu_service/include/mindspore_schema/

    - Build the MindSpore Lite dynamic libraries of OpenHarmony, and copy them to the `mindspore` folder.
      ```shell
      # Build the MindSpore Lite dynamic libraries.
      ./build.sh --product-name rk3568 -ccaache --jobs 4 --build-target mindspore_lib


      # Create the `mindspore` folder in the `drivers/peripheral/nnrt/v2_0/mindspore` directory.
      mkdir drivers/peripheral/nnrt/v2_0/mindspore/mindspore


      # Copy the MindSpore dynamic libraries from the `out` folder to the `drivers/peripheral/nnrt/v2_0/mindspore/mindspore` directory.
      cp out/rk3568/package/phone/system/lib/libmindspore-lite.huawei.so drivers/peripheral/nnrt/v2_0/mindspore/mindspore/

  4. Follow the development procedure to complete other configurations.

你可能感兴趣的鸿蒙文章

harmony 鸿蒙Subsystems

harmony 鸿蒙AI Framework Development Guide

harmony 鸿蒙Application Privilege Configuration

harmony 鸿蒙Development Example

harmony 鸿蒙Setting Up a Development Environment

harmony 鸿蒙Development Guidelines

harmony 鸿蒙Application Framework Overview

harmony 鸿蒙ArkCompiler Development

harmony 鸿蒙Custom Window Title Bar Development

harmony 鸿蒙appspawn Module

0  赞
