Ability Call Development

When to Use

Ability call is an extension of the ability capability. It enables an ability to be invoked by and communicate with external systems. The ability invoked can be either started in the foreground or created and run in the background. You can use the ability call to implement data sharing between two abilities (caller ability and callee ability) through inter-process communication (IPC).

The core API used for the ability call is startAbilityByCall, which differs from startAbility in the following ways: - startAbilityByCall supports ability startup in the foreground and background, whereas startAbility supports ability startup in the foreground only. - The caller ability can use the Caller object returned by startAbilityByCall to communicate with the callee ability, but startAbility does not provide the communication capability.

Ability call is usually used in the following scenarios: - Communicating with the callee ability - Starting the callee ability in the background

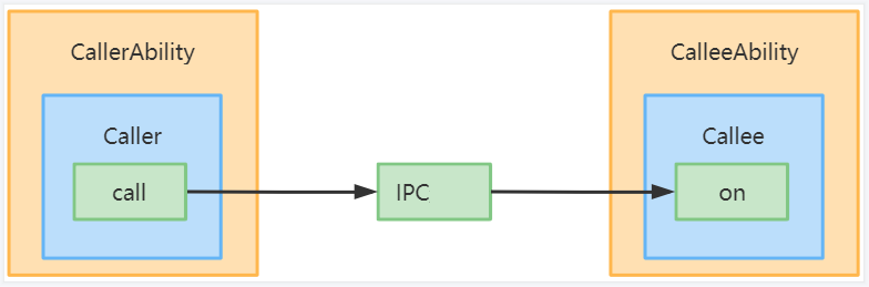

The ability call process is as follows: - The caller ability uses startAbilityByCall to obtain a Caller object and uses call() of the Caller object to send data to the callee ability. - The callee ability, which holds a Callee object, uses on() of the Callee object to register a callback. This callback is invoked when the callee ability receives data from the caller ability. stage-call

NOTE

The launch type of the callee ability must be singleton.

Currently, only system applications can use the ability call.

Available APIs

The table below describes the ability call APIs. For details, see UIAbility.

Table 2 Ability call APIs |API|Description| |:——|:——| |startAbilityByCall(want: Want): Promise<Caller>|Starts an ability in the foreground (through the want configuration) or background (default) and obtains the Caller object for communication with the ability. For details, see AbilityContext or ServiceExtensionContext.| |on(method: string, callback: CalleeCallBack): void|Callback invoked when the callee ability registers a method.| |off(method: string): void|Callback invoked when the callee ability deregisters a method.| |call(method: string, data: rpc.Sequenceable): Promise<void>|Sends agreed sequenceable data to the callee ability.| |callWithResult(method: string, data: rpc.Sequenceable): Promise<rpc.MessageParcel>|Sends agreed sequenceable data to the callee ability and obtains the agreed sequenceable data returned by the callee ability.| |release(): void|Releases the Caller object.| |on(type: “release”, callback: OnReleaseCallback): void|Callback invoked when the Caller object is released.|

How to Develop

The procedure for developing the ability call is as follows: 1. Create a callee ability. 2. Access the callee ability.

Creating a Callee Ability

For the callee ability, implement the callback to receive data and the methods to marshal and unmarshal data. When data needs to be received, use on() to register a listener. When data does not need to be received, use off() to deregister the listener.

Configure the ability launch type.

Set launchType of the callee ability to singleton in the module.json5 file.

An example of the ability configuration is as follows:

   "abilities":[{
       "name": ".CalleeAbility",
       "srcEntry": "./ets/CalleeAbility/CalleeAbility.ts",
       "launchType": "singleton",
       "description": "$string:CalleeAbility_desc",
       "icon": "$media:icon",
       "label": "$string:CalleeAbility_label",
       "exported": true
   }]

Import the UIAbility module.

   import UIAbility from '@ohos.app.ability.UIAbility';

Define the agreed sequenceable data.

The data formats sent and received by the caller and callee abilities must be consistent. In the following example, the data formats are number and string. The code snippet is as follows:

   export default class MySequenceable {
       num: number = 0
       str: string = ""

       constructor(num, string) {
           this.num = num
           this.str = string
       }

       marshalling(messageParcel) {
           messageParcel.writeInt(this.num)
           messageParcel.writeString(this.str)
           return true
       }

       unmarshalling(messageParcel) {
           this.num = messageParcel.readInt()
           this.str = messageParcel.readString()
           return true
       }
   }

Implement Callee.on and Callee.off.

The time to register a listener for the callee ability depends on your application. The data sent and received before the listener is registered and that after the listener is deregistered are not processed. In the following example, the MSG_SEND_METHOD listener is registered in onCreate of the ability and deregistered in onDestroy. After receiving sequenceable data, the application processes the data and returns the data result. You need to implement processing based on service requirements. The code snippet is as follows:

   const TAG: string = '[CalleeAbility]'
   const MSG_SEND_METHOD: string = 'CallSendMsg'

   function sendMsgCallback(data) {
       console.log('CalleeSortFunc called')

       // Obtain the sequenceable data sent by the caller ability.
       let receivedData = new MySequenceable(0, '')
       data.readSequenceable(receivedData)
       console.log(`receiveData[${receivedData.num}, ${receivedData.str}]`)

       // Process the data.
       // Return the sequenceable data result to the caller ability.
       return new MySequenceable(receivedData.num + 1, `send ${receivedData.str} succeed`)
   }

   export default class CalleeAbility extends Ability {
       onCreate(want, launchParam) {
           try {
               this.callee.on(MSG_SEND_METHOD, sendMsgCallback)
           } catch (error) {
               console.log(`${MSG_SEND_METHOD} register failed with error ${JSON.stringify(error)}`)
           }
       }

       onDestroy() {
           try {
               this.callee.off(MSG_SEND_METHOD)
           } catch (error) {
               console.error(TAG, `${MSG_SEND_METHOD} unregister failed with error ${JSON.stringify(error)}`)
           }
       }
   }

Accessing the Callee Ability

Import the Ability module.

   import UIAbility from '@ohos.app.ability.UIAbility';

Obtain the Caller object.

The context attribute of the ability implements startAbilityByCall to obtain the Caller object for communication. The following example uses this.context to obtain the context attribute of the ability, uses startAbilityByCall to start the callee ability, obtain the Caller object, and register the onRelease listener of the caller ability. You need to implement processing based on service requirements. The code snippet is as follows:

   // Register the onRelease listener of the caller ability.
   private regOnRelease(caller) {
       try {
           caller.on("release", (msg) => {
               console.log(`caller onRelease is called ${msg}`)
           })
           console.log('caller register OnRelease succeed')
       } catch (error) {
           console.log(`caller register OnRelease failed with ${error}`)
       }
   }

   async onButtonGetCaller() {
       try {
           this.caller = await context.startAbilityByCall({
               bundleName: 'com.samples.CallApplication',
               abilityName: 'CalleeAbility'
           })
           if (this.caller === undefined) {
               console.log('get caller failed')
               return
           }
           console.log('get caller success')
           this.regOnRelease(this.caller)
       } catch (error) {
           console.log(`get caller failed with ${error}`)
       }
   }

In the cross-device scenario, you need to specify the ID of the peer device. The code snippet is as follows:

   async onButtonGetRemoteCaller() {
       var caller = undefined
       var context = this.context

       context.startAbilityByCall({
           deviceId: getRemoteDeviceId(),
           bundleName: 'com.samples.CallApplication',
           abilityName: 'CalleeAbility'
       }).then((data) => {
           if (data != null) {
               caller = data
               console.log('get remote caller success')
               // Register the onRelease listener of the caller ability.
               caller.on("release", (msg) => {
                   console.log(`remote caller onRelease is called ${msg}`)
               })
               console.log('remote caller register OnRelease succeed')
           }
       }).catch((error) => {
           console.error(`get remote caller failed with ${error}`)
       })
   }

Obtain the ID of the peer device from DeviceManager. Note that the getTrustedDeviceListSync API is open only to system applications. The code snippet is as follows:

   import deviceManager from '@ohos.distributedHardware.deviceManager';
   var dmClass;
   function getRemoteDeviceId() {
       if (typeof dmClass === 'object' && dmClass != null) {
           var list = dmClass.getTrustedDeviceListSync()
           if (typeof (list) == 'undefined'||typeof (list.length) == 'undefined') {
               console.log("EntryAbility onButtonClick getRemoteDeviceId err: list is null")
               return
           }
           console.log("EntryAbility onButtonClick getRemoteDeviceId success:" + list[0].deviceId)
           return list[0].deviceId
       } else {
           console.log("EntryAbility onButtonClick getRemoteDeviceId err: dmClass is null")
       }
   }

In the cross-device scenario, your application must also apply for the data synchronization permission from end users. The code snippet is as follows:

   import abilityAccessCtrl from '@ohos.abilityAccessCtrl.d.ts';

   requestPermission() {
       let context = this.context
       let permissions: Array<string> = ['ohos.permission.DISTRIBUTED_DATASYNC']
       let atManager = abilityAccessCtrl.createAtManager();
       atManager.requestPermissionsFromUser(context, permissions).then((data) => {
           console.log("Succeed to request permission from user with data: "+ JSON.stringify(data))
       }).catch((error) => {
           console.log("Failed to request permission from user with error: "+ JSON.stringify(error))
       })
   }

Send agreed sequenceable data.

The sequenceable data can be sent to the callee ability with or without a return value. The method and sequenceable data must be consistent with those of the callee ability. The following example describes how to send data to the callee ability. The code snippet is as follows:

   const MSG_SEND_METHOD: string = 'CallSendMsg'
   async onButtonCall() {
       try {
           let msg = new MySequenceable(1, 'origin_Msg')
           await this.caller.call(MSG_SEND_METHOD, msg)
       } catch (error) {
           console.log(`caller call failed with ${error}`)
       }
   }

In the following, CallWithResult is used to send data originMsg to the callee ability and assign the data processed by the CallSendMsg method to backMsg. The code snippet is as follows:

   const MSG_SEND_METHOD: string = 'CallSendMsg'
   originMsg: string = ''
   backMsg: string = ''
   async onButtonCallWithResult(originMsg, backMsg) {
       try {
           let msg = new MySequenceable(1, originMsg)
           const data = await this.caller.callWithResult(MSG_SEND_METHOD, msg)
           console.log('caller callWithResult succeed')

           let result = new MySequenceable(0, '')
           data.readSequenceable(result)
           backMsg(result.str)
           console.log(`caller result is [${result.num}, ${result.str}]`)
       } catch (error) {
           console.log(`caller callWithResult failed with ${error}`)
       }
   }

Release the Caller object.

When the Caller object is no longer required, use release() to release it. The code snippet is as follows:

   releaseCall() {
       try {
           this.caller.release()
           this.caller = undefined
           console.log('caller release succeed')
       } catch (error) {
           console.log(`caller release failed with ${error}`)
       }
   }
