Bundle Manager

The Bundle Manager enables you to install, uninstall, update, and query a bundle (application). It provides the bundle debugging capabilities, for example, installing and uninstalling a bundle and querying bundle information.

NOTE

Before using this tool, you must obtain the hdc tool and run the hdc shell command.

Table 1 bm commands

Help Command

Table 2 Help command

Example

# Display the help information.
bm help

Installation Command

bm install [-h] [-p path] [-u userId] [-r] [-w waitting-time]

Table 3 Installation command parameters

Example

bm install -p /data/app/ohosapp.hap -u 100 -w 5s -r
// The execution result is as follows:
install bundle successfully.

Uninstall Command

bm uninstall [-h help] [-n bundleName] [-m moduleName] [-u userId] [-k]

Table 4 Uninstall command parameters

Example

bm uninstall -n com.ohos.app -m com.ohos.app.EntryAbility -u 100 -k
// The execution result is as follows:
uninstall bundle successfully.

Dump Command

bm dump [-h help] [-a] [-n bundleName] [-s shortcutInfo] [-u userId] [-d deviceId]

If -u is not specified, the command applies to all users.

Table 5 Dump command parameters

Example

# Display the names of all bundles installed in the system.
bm dump -a
# Display the details of a bundle.
bm dump -n com.ohos.app -u 100
# Display the shortcut information of a bundle.
bm dump -s com.ohos.app -u 100
# Display cross-device bundle information.
bm dump -n com.ohos.app -d xxxxx

Clean Command

bm clean [-h] [-c] [-n  bundleName] [-d] [-u userId]

If -u is not specified, the command applies to all active users.

Table 6 Clean command parameters

Example

# Clear the cache data of a bundle.
bm clean -c -n com.ohos.app -u 100
// The execution result is as follows:
clean bundle cache files successfully.
# Clear the user data of a bundle.
bm clean -d -n com.ohos.app -u 100
// The execution result is as follows:
clean bundle data files successfully.

Enable Command

bm enable [-h] [-n bundleName] [-a abilityName] [-u userId]

If -u is not specified, the command applies to all active users.

Table 7 Enable command parameters

Example

# Enable a bundle.
bm enable -n com.ohos.app -a com.ohos.app.EntryAbility -u 100
// The execution result is as follows:
enable bundle successfully.

Disable Command

bm disable [-h] [-n bundleName] [-a abilityName] [-u userId]

If -u is not specified, the command applies to all active users.

Table 8 Disabled command parameters

Example

# Disable a bundle.
bm disable -n com.ohos.app -a com.ohos.app.EntryAbility -u 100
// The execution result is as follows:
disable bundle successfully.

Obtaining UDID

bm get [-h] [-u]

Table 9 Parameters used in the command for obtaining the UDID

Example

# Obtain the UDID of a device.
bm get -u
// The execution result is as follows:
udid of current device is :
23CADE0C

Quick Fix

bm quickfix [-h] [-a -f filePath] [-q -b bundleName]

Table 10 Parameters used in the command for quick fix

Example

# Display patch package information by the bundle name.
bm quickfix -q -b com.ohos.app
// The execution result is as follows:
// Information as follows:
// ApplicationQuickFixInfo:
//  bundle name: com.ohos.app
//  bundle version code: xxx
//  bundle version name: xxx
//  patch version code: x
//  patch version name:
//  cpu abi:
//  native library path:
//  type:
# Patch installation in the quick fix:
bm quickfix -a -f /data/app/
// The execution result is as follows:
apply quickfix succeed.

Commands for Querying the Shared Library

bm dump-shared [-h help] [-a] [-n bundleName] [-m moudleName]

Table 11 Commands for querying the shared library

Example

# Display the bundle names of all shared libraries installed in the system.
bm dump-shared -a
# Display the details about the specified shared library.
bm dump-shared -n com.ohos.lib
# Display information about the shared library on which a specified module of an application depends.
bm dump-dependencies -n com.ohos.app -m entry

FAQs

Error Message “code:9568320 error: no signature file” Is Displayed During HAP Installation

Symptom

When you run a signed HAP, the error message “failed to install bundle. error: install no signature info” or “failed to install bundle. error: no signature file” is displayed.

Solution

An unsigned HAP is installed. To solve this problem, sign the HAP before installing it. 1. Use automatic signature. After the device is connected, sign the application again. 2. To use manual signature, follow the instructions provided in hapsigner Guide.

Error Message “code:9568347 error: install parse native so failed” Is Displayed During HAP Installation

Symptom

When you start debugging or run a C++ application, the error message “error: install parse native so failed” is displayed during the installation of the HAP.

Solution

The ABI type configured for the C++ project does not match that supported by the device. To solve this problem, perform the following steps:

1. Connect the device to DevEco Studio.
2. Open the command line tool and go to the toolchains{Version} directory in the OpenHarmony SDK installation directory.

To check the OpenHarmony SDK installation directory, choose File > Settings > SDK.

1. Run the following command to obtain the list of ABI types supported by the device, which include one or more of the following: default, armeabi-v7a, armeabi, arm64-v8a, x86, and x86_64. hdc shell param get const.product.cpu.abilist

2. Depending on the obtained list, modify the abiFilters settings in the module-level build-profile.json5 file. The rules are as follows:

   • If the list includes only default, run the following command to check whether the lib64 folder exists: cd /system/ ls



   • If the lib64 folder exists, add the arm64-v8a type to abiFilters.
   • If the lib64 folder does not exist, add armeabi, armeabi-v7a, or both types to abiFilters.
   • If the list includes one or more of the following, add at least one of them to abiFilters: armeabi-v7a, armeabi, arm64-v8a, x86, and x86_64.

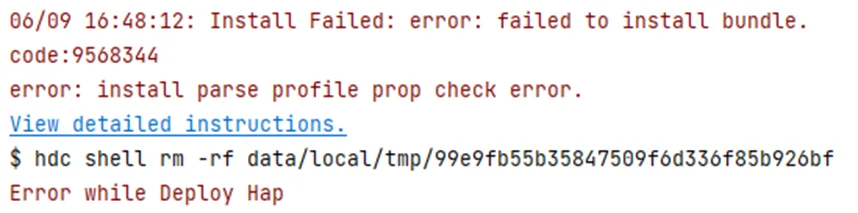

Error Message “code:9568344 error: install parse profile prop check error” Is Displayed During HAP Installation

Symptom

When you start debugging or run an application, the error message “error: install parse profile prop check error” is displayed during the installation of the HAP.

Solution

The signature file of the application is changed, but the new signature fingerprint is not reconfigured in the install_list_capability.json file of the device. To solve this problem, perform the following steps:

1. Obtain the new signature fingerprint.

   a. Obtain the storage path of the signature file, which is the value of profile in the signingConfigs field in the project-level build-profile.json5 file.

   b. Open the signature file (with the file name extension .p7b), search for development-certificate in the file, copy —–BEGIN CERTIFICATE—–, —–END CERTIFICATE—–, and the information between them to a new text file, delete the newline characters, and save the file as a new .cer file.

   The format of the new .cer file is shown below. (The file content is an example.)



   c. Use the keytool (available in the jbr/bin folder of the DevEco Studio installation directory) to obtain the SHA-256 value of the certificate fingerprint from the .cer file:

     keytool -printcert -file xxx.cer


   d. Remove the colon (:) from the SHA-256 content in the certificate fingerprint. What you get is the signature fingerprint.

   An example SHA-256 value is shown below.



   The signature fingerprint obtained by removing the colon is 5753DDBC1A8EF88A62058A9FC4B6AFAFC1C5D8D1A1B86FB3532739B625F8F3DB.

2. Obtain the install_list_capability.json file of the device.

   a. Connect the device.

   b. Run the following command to view the install_list_capability.json file of the device:

   find /system -name install_list_capability.json


   The install_list_capability.json file of the device is stored in the following directory. Find the corresponding configuration file based on the bundle name.

   /system/etc/app/install_list_capability.json


   c. Run the following command to obtain the install_list_capability.json file:

   hdc shell mount -o rw,remount /
   hdc file recv /system/etc/app/install_list_capability.json


3. Add the signature fingerprint obtained to app_signature in the install_list_capability.json file. Note that the signature fingerprint must be configured under the corresponding bundle name.

1. Push the modified install_list_capability.json file to the device and restart the device.

   hdc shell mount -o rw,remount /
   hdc file send install_list_capability.json /system/etc/app/install_list_capability.json
   hdc shell chmod 777 /system/etc/app/install_list_capability.json
   hdc shell reboot


2. Reinstall the application.

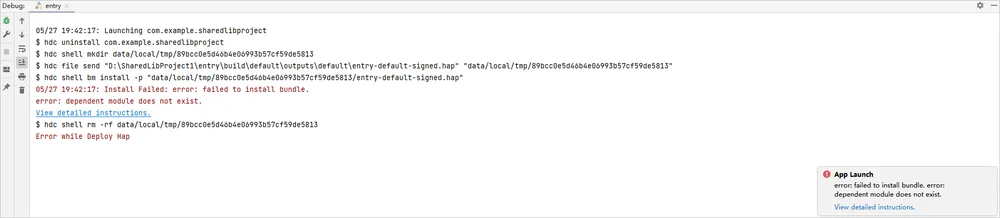

Error Message “code:9568305 error: dependent module does not exist” Is Displayed During HAP Installation

Symptom

When you start debugging or run an application, the error message “error: dependent module does not exist” is displayed during the installation of the HAP.

Solution

The SharedLibrary module on which the application depends is not installed. To solve this problem, perform the following steps:

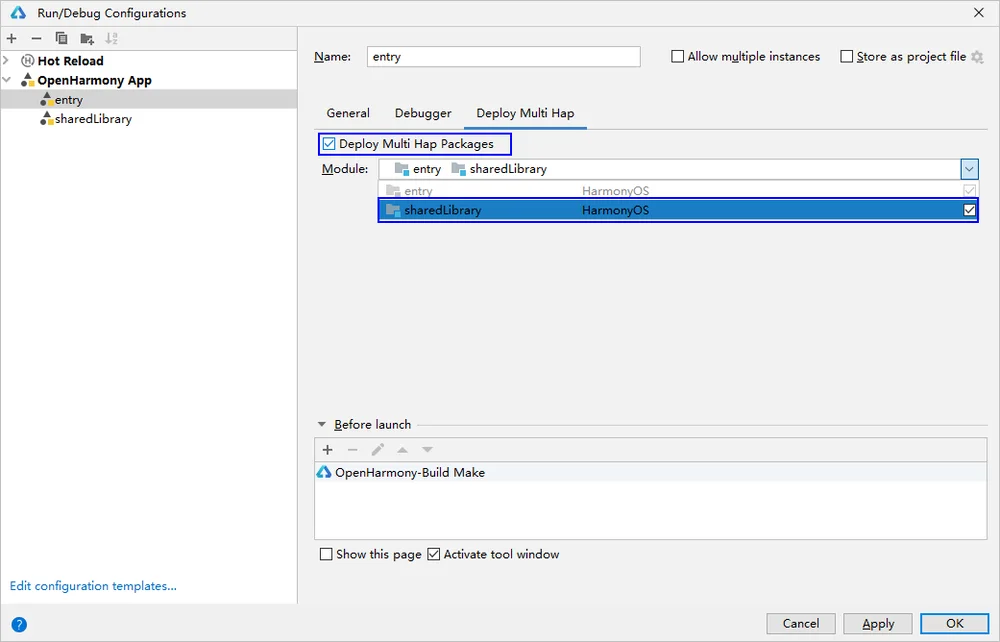

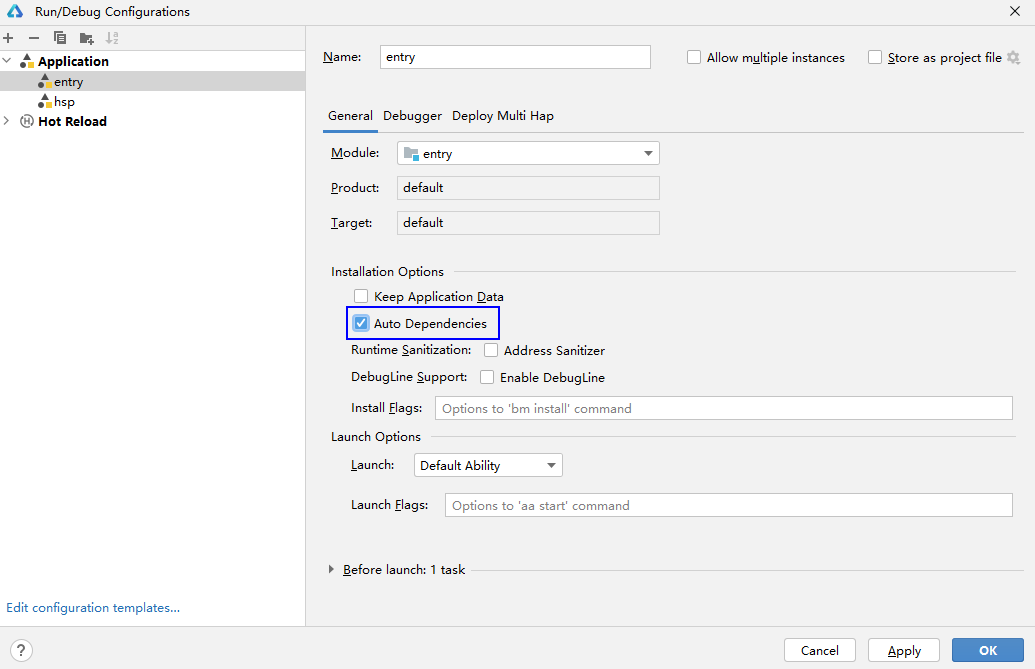

• Install the dependent SharedLibrary module. On the Run/Debug Configurations page of DevEco Studio, select Keep Application Data on the General tab page, and click OK to save the configuration. Then run or debug the application again.

• On the Run/Debug Configurations page of DevEco Studio, click the Deploy Multi Hap tab, select Deploy Multi Hap Packages, select the dependent module SharedLibrary, and click OK to save the configuration. Then run or debug the application again.

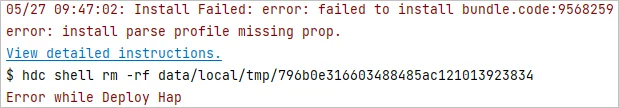

Error Message “code:9568259 error: install parse profile missing prop” Is Displayed During HAP Installation

Symptom

When you start debugging or run an application, the error message “error: install parse profile missing prop” is displayed during the installation of the HAP.

Solution

Some mandatory fields are missing in the app.json5 and module.json5 files.

• Method 1: Check and add mandatory fields by referring to the app.json5 file and module.json5 file.

• Method 2: Determine the missing fields based on the HiLog.

  Run the following command to enable disk flushing:

  hilog -w start


  Disk location: /data/log/hilog

  Open the log file and find profile prop %{public}s is mission. For example, profile prop icon is mission indicates that the icon field is missing.

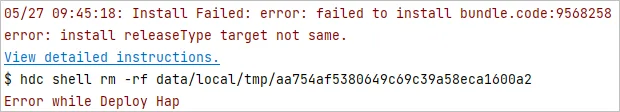

Error Message “code:9568258 error: install releaseType target not same” Is Displayed During HAP Installation

Symptom

When you start debugging or run an application, the error message “error: install releaseType target not same” is displayed during the installation of the HAP.

Solution

The value of releaseType in the SDK used by the existing HAP is different from that used by the new HAP. Uninstall the existing HAP on the device, and then install the new HAP.

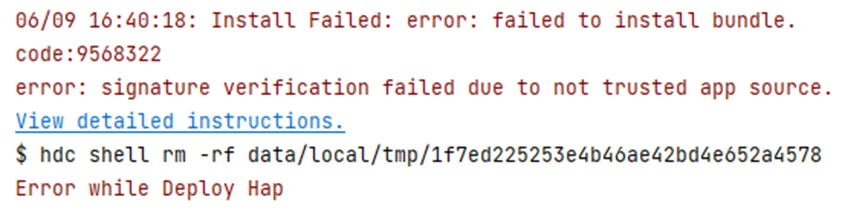

Error Message “code:9568322 error: signature verification failed due to not trusted app source” Is Displayed During HAP Installation

Symptom

When you start debugging or run an application, the error message “error: signature verification failed due to not trusted app source” is displayed during the installation of the HAP.

Solution

The signature does not contain the UDID of the debugging device. To solve this problem, perform the following steps:

• Use automatic signature. After the device is connected, sign the application again.
• If manual signature is used, add the UDID of the device to the UnsgnedDebugProfileTemplate.json file. For details, see OpenHarmony Application Manual Signature. // Command for obtaining the UDID hdc shell bm get -u

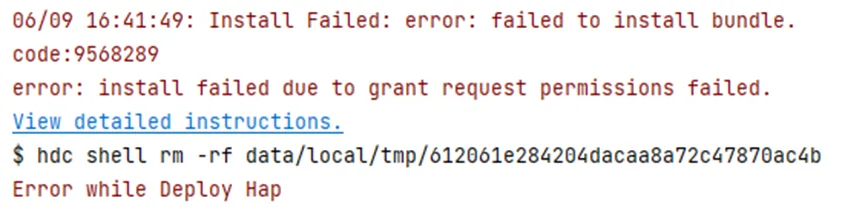

Error Message “code:9568289 error: install failed due to grant request permissions failed” Is Displayed During HAP Installation

Symptom

When you start debugging or run an application, the error message “error: install failed due to grant request permissions failed” is displayed during the installation of the HAP.

Solution

The application uses the default Ability Privilege Level (APL), which is normal, and requires the system_basic or system_core permission.

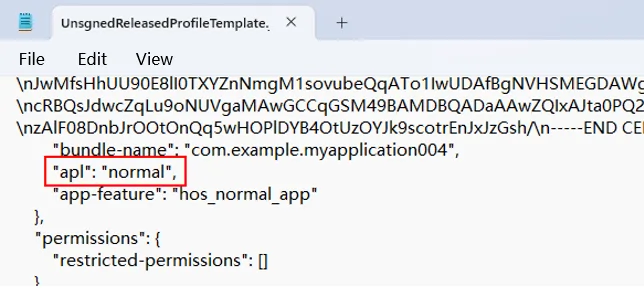

Change the API in the UnsgnedDebugProfileTemplate.json file to system_basic or system_core, and sign and pack the application again.

Error Message “code:9568297 error: install failed due to older sdk version in the device” Is Displayed During HAP Installation

Symptom

When you start debugging or run an application, the error message “error: install failed due to older sdk version in the device” is displayed during the installation of the HAP.

Solution

The SDK version used for build and packing does not match the device image version. The possible scenarios are as follows:

• Scenario 1: The device image version is earlier than the SDK version for build and packing. Update the device image version. Run the following command to query the device image version:

  hdc shell param get const.ohos.apiversion


  If the API version provided by the image is 10 and the SDK version used for application build is also 10, the possible cause is that the image version is too early to be compatible with the SDK verification rules of the new version. In this case, update the image version to the latest version.

• Scenario 2: For applications that need to run on OpenHarmony devices, ensure that runtimeOS has been changed to OpenHarmony.

Error Message “code:9568332 error: install sign info inconsistent” Is Displayed During HAP Installation

Symptom

When you start debugging or run an application, the error message “error: install sign info inconsistent” is displayed during the installation of the HAP.

Solution

The signature of the application installed on the device is different from that of the new application. Keep Application Data is selected in Edit Configurations (the application is installed without being uninstalled) and the signature is re-signed.

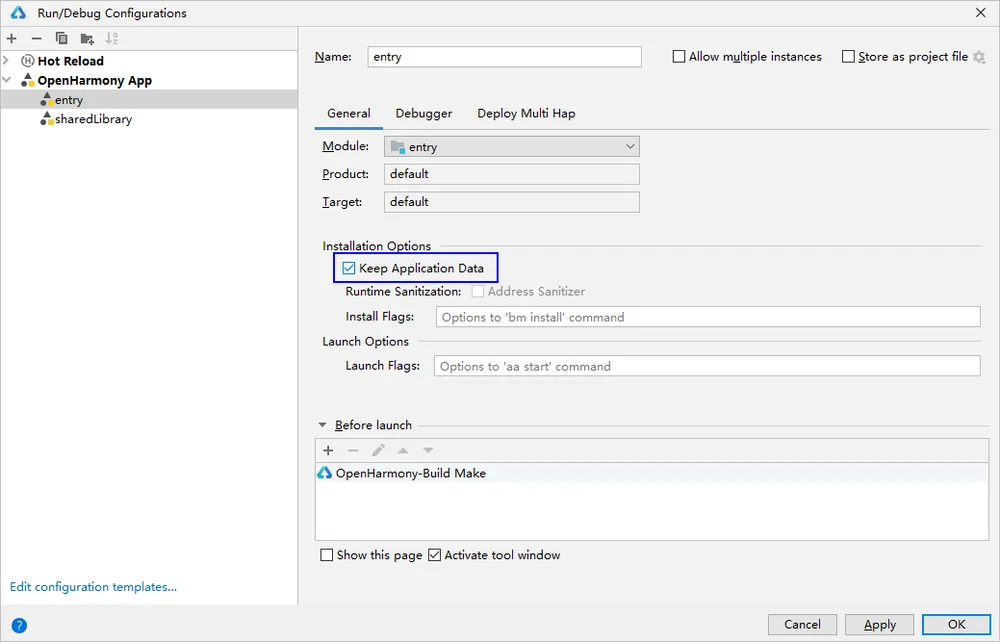

Uninstall the application, or deselect Keep Application Data. Then install the new application.
