Module
Configuration Rules
The Compilation and Building subsystem implements compilation and packaging by module, component, and product. A module is a target to build. It can be a dynamic library, static library, configuration file, or prebuilt module. A module must belong to a component and can belong to only one component. OpenHarmony provides customized GN templates to configure modules. For details about the GN basics, see GN Reference.
The common templates for module configuration are as follows:
# C/C++ templates
ohos_shared_library
ohos_static_library
ohos_executable
ohos_source_set
# Prebuilt templates
ohos_prebuilt_executable
ohos_prebuilt_shared_library
ohos_prebuilt_static_library
# HAP templates
ohos_hap
ohos_app_scope
ohos_js_assets
ohos_resources
# Rust templates
ohos_rust_executable
ohos_rust_shared_library
ohos_rust_static_library
ohos_rust_proc_macro
ohos_rust_shared_ffi
ohos_rust_static_ffi
ohos_rust_cargo_crate
ohos_rust_systemtest
ohos_rust_unittest
# Other templates
# Configuration file
ohos_prebuilt_etc
# SA profile
ohos_sa_profile
You are advised to use the OpenHarmony customized templates.
C/C++ Template Example
The .gni file corresponding to the templates starting with ohos is located in openharmony/build/templates/cxx/cxx.gni.
ohos_shared_library example:
import("//build/ohos.gni")
ohos_shared_library("helloworld") {
sources = ["file"]
include_dirs = [] # If there are duplicate header files, the header files defined earlier take effect.
cflags = [] # If there are duplicate or conflict settings, the settings in cflags take effect.
cflags_c = []
cflags_cc = []
ldflags = [] # If there are duplicate or conflict definitions, the settings in ohos_template take effect.
configs = []
deps = [] # Define dependent modules that belong to the same component.
external_deps = [ # Define dependent modules that belong to different components.
"part_name:module_name", # The value is in the Component_name:Module_name format.
] # The dependent modules must be declared in inner_kits by the dependent component.
output_name = [string] # Name of the module output.
output_extension = [] # Extension name of the module.
module_install_dir = [] # Module installation directory. The default directory is /system/lib64 or /system/lib. Specify the directory from system/ or vendor/.
relative_install_dir = [] # Relative module installation directory (relative to /system/lib64 or /system/lib). If module_install_dir is configured, the parameter does not take effect.
part_name = [string] # (Mandatory) Component name.
output_dir
# Sanitizer configuration. Each item is optional, and set to false or left unspecified by default.
sanitize = {
# Sanitizer settings
cfi = [boolean] # Whether to enable the control-flow integrity (CFI) check.
cfi_cross_dso = [boolean] # Whether to enable the cross-DSO CFI check.
integer_overflow = [boolean] # Whether to enable the integer overflow check.
boundary_sanitize = [boolean] # Whether to enable the boundary check.
ubsan = [boolean] # Whether to enable some Undefined Behavior Sanitizer (UBSAN) options.
all_ubsan = [boolean] # Whether to enable all UBSAN options.
...
debug = [boolean] # Whether to enable the debug mode.
blocklist = [string] # Path of the blocklist.
}
testonly = [boolean]
license_as_sources = []
license_file = [] # A .txt file.
remove_configs = []
no_default_deps = []
install_images = []
install_enable = [boolean]
symlink_target_name = []
version_script = []
use_exceptions = []
}
ohos_static_library example
import("//build/ohos.gni")
ohos_static_library("helloworld") {
sources = ["file"] # .c files.
include_dirs = ["dir"] # Directories to be included.
configs = [] # Configuration.
deps = [] # Define dependent modules that belong to the same component.
part_name = [string] # Component name.
subsystem_name = [string] # Subsystem name.
cflags = []
external_deps = [ # Define dependent modules that belong to different components.
"part_name:module_name", # The value is in the Component_name:Module_name format.
] # The dependent modules must be declared in inner_kits by the dependent component.
lib_dirs = []
public_configs = []
# Sanitizer configuration. Each item is optional, and set to false or left unspecified by default.
sanitize = {
# Sanitizer settings
cfi = [boolean] # Whether to enable the control-flow integrity (CFI) check.
cfi_cross_dso = [boolean] # Whether to enable the cross-DSO CFI check.
integer_overflow = [boolean] # Whether to enable the integer overflow check.
boundary_sanitize = [boolean] # Whether to enable the boundary check.
ubsan = [boolean] # Whether to enable some Undefined Behavior Sanitizer (UBSAN) options.
all_ubsan = [boolean] # Whether to enable all UBSAN options.
...
debug = [boolean] # Whether to enable the debug mode.
blocklist = [string] # Path of the blocklist.
}
remove_configs = []
no_default_deps = []
license_file = [] # A .txt file.
license_as_sources = []
use_exceptions = []
}
ohos_executable example:
import("//build/ohos.gni")
ohos_executable("helloworld") {
configs = [] # Configuration.
part_name = [string] # Component name.
subsystem_name = [string] # Subsystem name.
deps = [] # Define dependent modules that belong to the same component.
external_deps = [ # Define dependent modules that belong to different components.
"part_name:module_name", # The value is in the Component_name:Module_name format.
] # The dependent modules must be declared in inner_kits by the dependent component.
ohos_test = []
test_output_dir = []
# Sanitizer configuration. Each item is optional, and set to false or left unspecified by default.
sanitize = {
# Sanitizer settings
cfi = [boolean] # Whether to enable the control-flow integrity (CFI) check.
cfi_cross_dso = [boolean] # Whether to enable the cross-DSO CFI check.
integer_overflow = [boolean] # Whether to enable the integer overflow check.
boundary_sanitize = [boolean] # Whether to enable the boundary check.
ubsan = [boolean] # Whether to enable some Undefined Behavior Sanitizer (UBSAN) options.
all_ubsan = [boolean] # Whether to enable all UBSAN options.
...
debug = [boolean] # Whether to enable the debug mode.
blocklist = [string] # Path of the blocklist.
}
testonly = [boolean]
license_as_sources = []
license_file = [] # A .txt file.
remove_configs = []
static_link = []
install_images = []
module_install_dir = [] # Module installation directory, starting from system/ or vendor/.
relative_install_dir = []
symlink_target_name = []
output_dir = [directory] # Directory in which output files are located.
install_enable = [boolean]
version_script = []
use_exceptions = []
}
ohos_source_set example
import("//build/ohos.gni")
ohos_source_set("helloworld") {
sources = ["file"] # .c files.
include_dirs = [] # Directories to be included.
configs = [] # Configuration.
public = [] # .h header files.
defines = []
public_configs = []
part_name = [string] # Component name.
subsystem_name = [string] # Subsystem name.
deps = [] # Define dependent modules that belong to the same component.
external_deps = [ # Define dependent modules that belong to different components.
"part_name:module_name", # The value is in the Component_name:Module_name format.
] # The dependent modules must be declared in inner_kits by the dependent component.
# Sanitizer configuration. Each item is optional, and set to false or left unspecified by default.
sanitize = {
# Sanitizer settings
cfi = [boolean] # Whether to enable the control-flow integrity (CFI) check.
cfi_cross_dso = [boolean] # Whether to enable the cross-DSO CFI check.
integer_overflow = [boolean] # Whether to enable the integer overflow check.
boundary_sanitize = [boolean] # Whether to enable the boundary check.
ubsan = [boolean] # Whether to enable some Undefined Behavior Sanitizer (UBSAN) options.
all_ubsan = [boolean] # Whether to enable all UBSAN options.
...
debug = [boolean] # Whether to enable the debug mode.
blocklist = [string] # Path of the blocklist.
}
testonly = [boolean]
license_as_sources = []
license_file = []
remove_configs = []
no_default_deps = []
license_file = [] # A .txt file.
license_as_sources = []
use_exceptions = []
}
NOTE
- Only sources and part_name are mandatory.
- For details about the Sanitizer configuration, see Using Sanitizer.
Prebuilt Template Example
The .gni file of the prebuilt templates is located in openharmony/build/templates/cxx/prebuilt.gni.
ohos_prebuilt_executable example
import("//build/ohos.gni")
ohos_prebuilt_executable("helloworld") {
sources = ["file"] # Source.
output = []
install_enable = [boolean]
deps = [] # Define dependent modules that belong to the same component.
public_configs = []
subsystem_name = [string] # Subsystem name.
part_name = [string] # Component name.
testonly = [boolean]
visibility = []
install_images = []
module_install_dir = [] # Module installation directory, starting from system/ or vendor/.
relative_install_dir = [] # Relative module installation directory (relative to system/etc). If module_install_dir is configured, the parameter does not take effect.
symlink_target_name = []
license_file = [] # A .txt file.
license_as_sources = []
}
ohos_prebuilt_shared_library example
import("//build/ohos.gni")
ohos_prebuilt_shared_library("helloworld") {
sources = ["file"] # .so files.
output = []
install_enable = [boolean]
deps = [] # Define dependent modules that belong to the same component.
public_configs = []
subsystem_name = [string] # Subsystem name.
part_name = [string] # Component name.
testonly = [boolean]
visibility = []
install_images = []
module_install_dir = [] # Module installation directory, starting from system/ or vendor/.
relative_install_dir = [] # Relative module installation directory (relative to system/etc). If module_install_dir is configured, the parameter does not take effect.
symlink_target_name = [string]
license_file = [string] # A .txt file.
license_as_sources = []
}
ohos_prebuilt_static_library example
import("//build/ohos.gni")
ohos_prebuilt_static_library("helloworld") {
sources = ["file"] # .so files.
output = []
deps = [] # Define dependent modules that belong to the same component.
public_configs = []
subsystem_name = [string] # Subsystem name.
part_name = [string] # Component name.
testonly = [boolean]
visibility = []
license_file = [string] # A .txt file.
license_as_sources = []
}
NOTE: Only sources and part_name are mandatory.
HAP Templates
For details about the HAP templates, see HAP Build Guide.
Rust Templates
For details about the Rust templates, see Rust Module Configuration Rules and Guide.
Other Templates
ohos_prebuilt_etc example:
import("//build/ohos.gni")
ohos_prebuilt_etc("helloworld") {
# The most common attributes of the ohos_prebuilt_etc template.
sources = ["file"]
module_install_dir = [] # Module installation directory, starting from system/ or vendor/.
subsystem_name = [string] # Subsystem name.
part_name = [string] # (Mandatory) Component name.
install_images = []
relative_install_dir = [] # Relative module installation directory (relative to system/etc). If module_install_dir is configured, the parameter does not take effect.
# Uncommon attributes of the ohos_prebuilt_etc template:
deps = [] # Define dependent modules that belong to the same component.
testonly = [boolean]
visibility = []
public_configs = []
symlink_target_name = [string]
license_file = [string]
license_as_sources = []
}
ohos_sa_profile example:
import("//build/ohos.gni")
ohos_sa_profile("helloworld") {
sources = [".xml"] # .xml file.
part_name = [string] # Component name.
subsystem_name = [string] # Subsystem name.
}
NOTE: Only sources and part_name are mandatory.
Adding and Building a Module

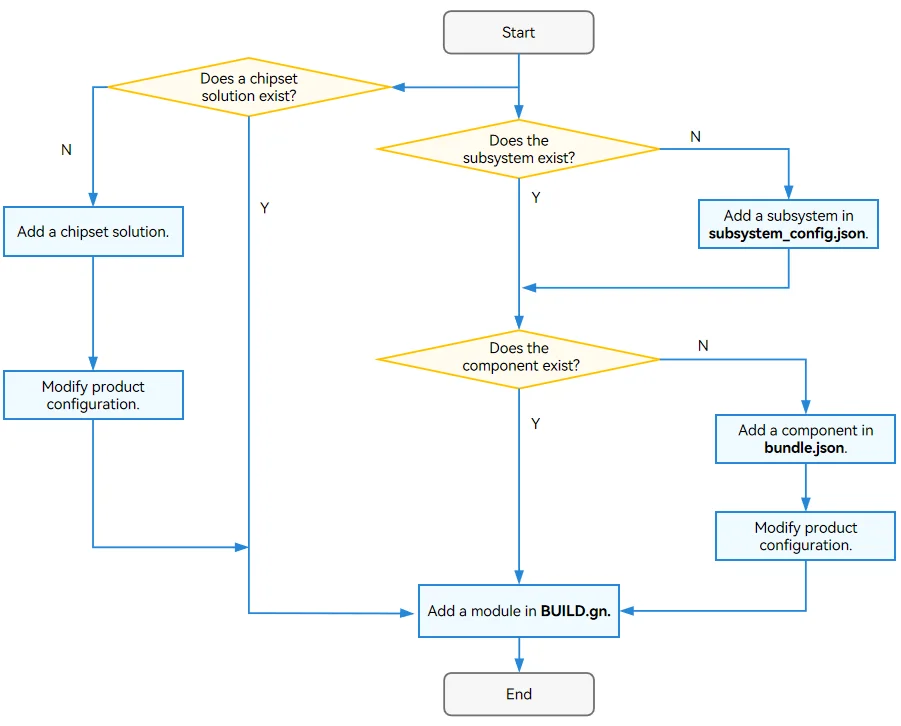

The following figure shows the logic for adding a module. Generally, you need to add a module to a component of a subsystem. If there is no subsystem or component, you must add the subsystem and component first. Note that the chip solution is a special component and does not have a subsystem.
Add a module to an existing component.
Add a module to a new component.
Add a module to a new subsystem.
Adding a Module to an Existing Component
Configure the BUILD.gn file in the module directory and select the GN template.
Modify the bundle.json file.
{
"name": "@ohos/<component_name>, # HPM component name, in the "@Organization/Component_name" format.
"description": "xxxxxxxxxxxxxxxxxxx", # Description of the component functions.
"version": "3.1", # Version, which must be the same as the version of OpenHarmony.
"license": "MIT", # Component license.
"publishAs": "code-segment", # HPM package release mode. The default value is code-segment.
"segment": {
"destPath": "third_party/nghttp2"
}, # Code restoration path (source code path) set when publishAs is code-segment.
"dirs": {}, # Directory structure of the HPM package. This field is mandatory and can be left empty.
"scripts": {}, # Scripts to be executed. This field is mandatory and can be left empty.
"licensePath": "COPYING",
"readmePath": {
"en": "README.rst"
},
"component": { # Component attributes.
"name": "<component_name>", # Component name.
"subsystem": "", # Subsystem to which the component belongs.
"syscap": [], # System capabilities provided by the component for applications.
"features": [], # List of configurable features of the component. Generally, this parameter corresponds to sub_component in build.
"adapted_system_type": [], # Types of adapted systems. The value can be mini, small, standard, or their combinations.
"rom": "xxxKB" # ROM baseline. If there is no baseline, enter the current value.
"ram": "xxxKB", # RAM baseline. If there is no baseline, enter the current value.
"deps": {
"components": [ # Other components on which this component depends.
"third_party": [ # Third-party open-source software on which this component depends.
},
"build": { # Build-related configuration.
"sub_component": [
"//foundation/arkui/napi:napi_packages", # Existing module 1.
"//foundation/arkui/napi:napi_packages_ndk" # Existing module 2.
"//foundation/arkui/napi:new" # Module to add.
], # Component build entry. Configure the module here.
"inner_kits": [], # APIs between components.
"test": [] # Entry for building the component's test cases.
}
}
}
The bundle.json file must be in the folder of the corresponding subsystem.
- Start the build and check whether a .so file or binary file is generated.
Creating a Component and Adding a Module
Configure the BUILD.gn file in the module directory and select the corresponding GN template. Note that part_name in the BUILD.gn file is the name of the component to add.
Create a bundle.json file in the folder of the corresponding subsystem.
Add the new component to the end of existing components in vendor/{product_company}/{product-name}/config.json.
"subsystems": [
{
"subsystem": "Subsystem to which the component belongs",
"components": [
{"component": "Component 1 name", "features":[]}, # Existing component 1 in the subsystem
{ "component": "Component 2 name", "features":[] }, # Existing component 2 in the subsystem
{"component": "New component name", "features":[]} # New component in the subsystem
]
},
.
]
- Start the build and check whether a .so file or binary file is generated.
Creating a Subsystem and Adding a Module
Configure the BUILD.gn file in the module directory and select the corresponding GN template. This step is the same as Step 1 in “Creating a Component and Adding a Module.”
Create a bundle.json file in the folder of the component of the subsystem. This step is the same as Step 2 in “Creating a Component and Adding a Module.”
Modify the subsystem_config.json file in the build directory.
{
"Subsystem 1 name": { # Existing subsystem 1
"path": "Subsystem 1 directory",
"name": "Subsystem 1 name"
},
"Subsystem 2 name": { # Existing subsystem 2
"path": "Subsystem 2 directory",
"name": "Subsystem 2 name"
},
"Subsystem name new": { # Subsystem to add
"path": "New subsystem directory",
"name": "New subsystem name"
},
}
The subsystem_config.json file defines the subsystems and their directories. When adding a subsystem, specify path and name for the subsystem.
- If product-name in the vendor/{product_company}/{product-name} directory is hispark_taurus_standard, add the new component information to the end of existing components in the config.json file.
"subsystems": [
{
"subsystem": "arkui", # Name of the existing subsystem
"components": [ # All components of the subsystem
{
"component": "ace_engine_standard", # Name of the existing component
"features": []
},
{
"component": "napi", # Name of the existing component
"features": []
}
{
"component": "component_new1", # Name of the new component to add
"features": []
}
]
},
{
"subsystem": "subsystem_new", # Name of the new subsystem to add.
"components": [
{
"component": "component_new2", # Name of the component to be added to the new subsystem
"features": []
}
]
},
]
- Start the build and check whether a .so file or binary file is generated.
Building a Module
You can start the build by using the CLI or hb tool. The following uses the CLI as an example:
You can run the –build-target Module_name command to build a module separately.
./build.sh --build-target Module_name
You can also build a product. For example, to build hispark_taurus_standard, run the following command:
./build.sh --product-name hispark_taurus_standard --build-target Module_name --ccache
You can also build the component to which the module belongs.
./build.sh --product-name hispark_taurus_standard --build-target musl --build-target Module_name --ccache
你可能感兴趣的鸿蒙文章
harmony 鸿蒙AI Framework Development Guide
harmony 鸿蒙NNRt Access Adaptation
harmony 鸿蒙Application Privilege Configuration
harmony 鸿蒙Setting Up a Development Environment
harmony 鸿蒙Development Guidelines
harmony 鸿蒙Application Framework Overview
0
赞
- 所属分类： 后端技术
- 本文标签：
热门推荐
-
2、 - 优质文章
-
3、 gate.io
-
8、 golang
-
9、 openharmony
-
10、 Vue中input框自动聚焦
