Mutual Invoking Between the Application and the Frontend Page (C/C++)

This guide applies to the communication between ArkWeb applications and frontend pages. You can use the ArkWeb native APIs to conduct the service communication mechanism (native JSBridge for short) based on the application architecture.

Applicable Application Architecture

If an application is developed using ArkTS and C++ language, or if its architecture is close to that of an applet and has a built-in C++ environment, you are advised to use ArkWeb_ControllerAPI and ArkWeb_ComponentAPI provided by ArkWeb on the native side to implement the JSBridge capabilities.

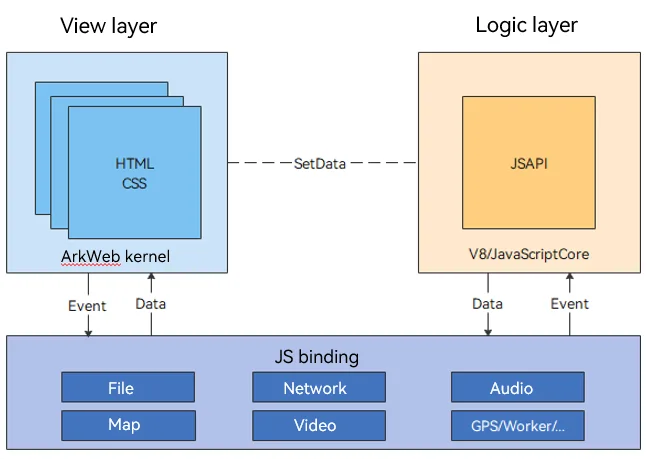

arkweb_jsbridge_arch

The preceding figure shows a general architecture of applets with universal applicability. In this architecture, the logical layer depends on a JavaScript runtime built in an application, and the runtime runs in an existing C++ environment. The logic layer can communicate with the view layer (in which ArkWeb as the renderer) in the C++ environment through the native API, instead of using the ArkTS JSBridge API in the ArkTS environment.

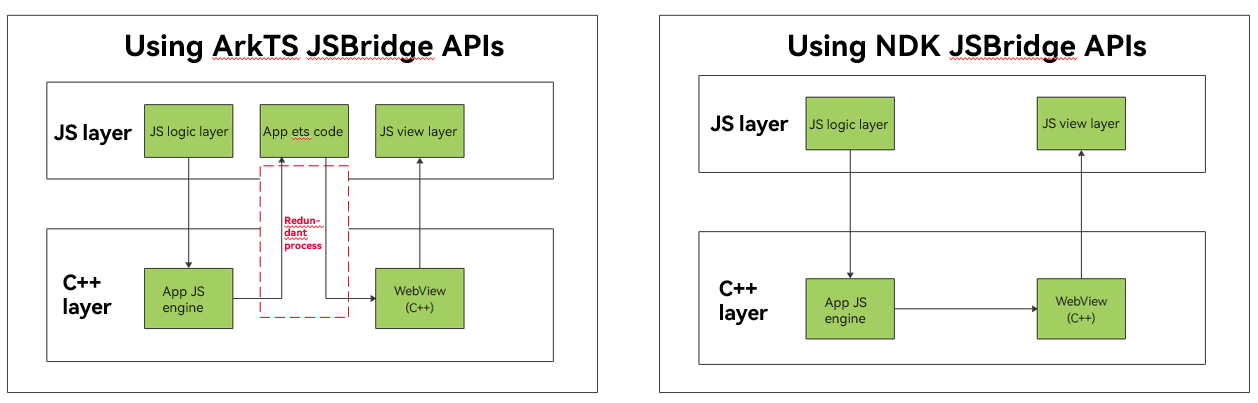

The figure on the left shows that the application needs to invoke the ArkTS environment and then the C++ environment to build an applet using the ArkTS JSBridge API. Using the native JSBridge API is more efficient because the switching between the ArkTS and C++ environments is not required, as shown in the figure on the right.

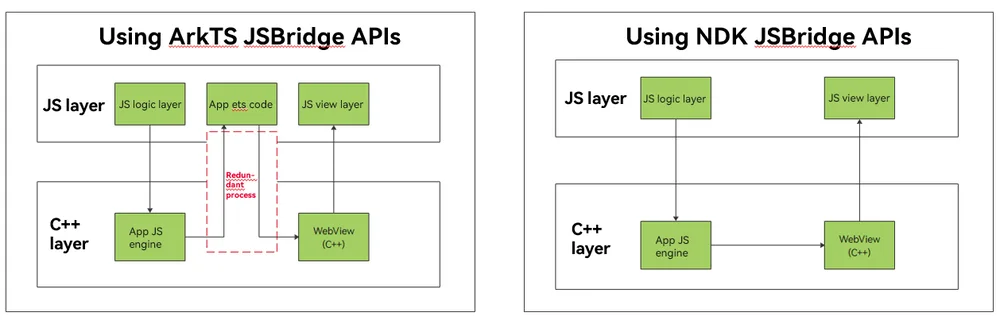

arkweb_jsbridge_diff

The native JSBridge APIs are provided to avoid unnecessary switching to the ArkTS environment and allow callback to run in non-UI threads to avoid UI blocking.

Using Native APIs to Implement JSBridge Communication (Recommended)

In the previous version, the return value of native synchronization APIs is fixed to void. With the continuous expansion of services, many service scenarios require APIs to provide return values to support synchronous calls. To meet this requirement, substitute APIs are introduced since API version 16. They support return values of the Boolean, string, and buffer types.

In addition, the permission field is added for the synchronous API registerJavaScriptProxyEx and asynchronous API registerAsyncJavaScriptProxyEx to control the calling permission.

Substitute APIs

Unrecommended API	Substitute API	Description
ArkWeb_OnJavaScriptProxyCallback	ArkWeb_OnJavaScriptProxyCallbackWithResult	Defines a callback used when the proxy method is executed.
ArkWeb_ProxyMethod	ArkWeb_ProxyMethodWithResult	Defines a proxy method.
ArkWeb_ProxyObject	ArkWeb_ProxyObjectWithResult	Defines a proxy object.
registerJavaScriptProxy	registerJavaScriptProxyEx	Registers a JavaScript object with the window. Synchronous APIs of this object can then be invoked in the window.
registerAsyncJavaScriptProxy	registerAsyncJavaScriptProxyEx	Registers a JavaScript object with the window. Asynchronous APIs of this object can then be invoked in the window.

Binding the Native API to ArkWeb

The ArkWeb component is declared on the ArkTS side. You need to define a webTag and transfer it to the native application side using Node-API. The webTag is used as a unique identifier of the corresponding component when an ArkWeb native API is used.
ArkTS side:

  // Define a webTag and transfer it as an input parameter when WebviewController is created to establish the mapping between controller and webTag.
  webTag: string = 'ArkWeb1';
  controller: web_webview.WebviewController = new web_webview.WebviewController(this.webTag);

  // Use aboutToAppear() to pass webTag to C++ through Node-API. The webTag uniquely identifies the C++ ArkWeb component.
  aboutToAppear() {
    console.info("aboutToAppear")
    // Initialize the web NDK.
    testNapi.nativeWebInit(this.webTag);
  }

C++ Side:

  // Parse and store the webTag.
  static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
      size_t argc = 1;
      napi_value args[1] = {nullptr};
      napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
      // Obtain the first parameter webTag.
      size_t webTagSize = 0;
      napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
      char *webTagValue = new (std::nothrow) char[webTagSize + 1];
      size_t webTagLength = 0;
      napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);

      // Save the webTag in the instance object.
      jsbridge_object_ptr = std::make_shared<JSBridgeObject>(webTagValue);
      // ...

Obtaining API Struct Using the Native API

To invoke the native APIs, obtain the API structs on the ArkWeb native side first. You can use OH_ArkWeb_GetNativeAPI) to obtain the native ArkWeb API, and use ArkWeb_ControllerAPI and ArkWeb_ComponentAPI to obtain function pointer structs based on the input parameter type. The ArkWeb_ControllerAPI corresponds to the web_webview.WebviewController API on ArkTS, and the ArkWeb_ComponentAPI corresponds to the ArkWeb component API on ArkTS.

  static ArkWeb_ControllerAPI *controller = nullptr;
  static ArkWeb_ComponentAPI *component = nullptr;
  // ...
  controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
  component = reinterpret_cast<ArkWeb_ComponentAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_COMPONENT));

Registering Component Lifecycle Callback on the Native Side

Use ArkWeb_ComponentAPI to register the component lifecycle callback. To avoid crash caused by mismatch between SDK and device ROM, you are advised to use ARKWEB_MEMBER_MISSING to check whether there is a pointer to the function struct before calling an API.

  if (!ARKWEB_MEMBER_MISSING(component, onControllerAttached)) {
      component->onControllerAttached(webTagValue, ValidCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onControllerAttached func not exist");
  }

  if (!ARKWEB_MEMBER_MISSING(component, onPageBegin)) {
      component->onPageBegin(webTagValue, LoadStartCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageBegin func not exist");
  }

  if (!ARKWEB_MEMBER_MISSING(component, onPageEnd)) {
      component->onPageEnd(webTagValue, LoadEndCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageEnd func not exist");
  }

  if (!ARKWEB_MEMBER_MISSING(component, onDestroy)) {
      component->onDestroy(webTagValue, DestroyCallback,
                                      static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
  } else {
      OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onDestroy func not exist");
  }

Invoking Application Functions on the Frontend Page

Use registerJavaScriptProxyEx to register the application function in the frontend page. You are advised to register the function in onControllerAttached. In other cases, you need to call refresh for the registration.

  // Register an object.
  OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk registerJavaScriptProxyEx begin");
  ArkWeb_ProxyMethodWithResult method1 = {"method1", ProxyMethod1, static_cast<void *>(jsbridge_object_ptr->GetWeakPt  ())};
  ArkWeb_ProxyMethodWithResult method2 = {"method2", ProxyMethod2, static_cast<void *>(jsbridge_object_ptr->GetWeakPt  ())};
  ArkWeb_ProxyMethodWithResult methodList[2] = {method1, method2};
  // Call the NDK API to register an object.
  // In this case, you can use proxy.method1 and proxy.method2 to call ProxyMethod1 and ProxyMethod2 in this file on HTML5 pages.
  ArkWeb_ProxyObjectWithResult proxyObject = {"ndkProxy", methodList, 2};
  // If the permission parameter is empty, permission control is not performed.
  controller->registerJavaScriptProxyEx(webTag, &proxyObject, /*permission*/"");

The permission parameter is a JSON string as follows: json { "javascriptProxyPermission": { "urlPermissionList": [ // Object-level permission. If it is granted, all methods are available. { "scheme": "resource", // Exact match. The value cannot be empty. "host": "rawfile", // Exact match. The value cannot be empty. "port": "", // Exact match. If the value is empty, it is not checked. "path": "" // Prefix match. If the value is empty, it is not checked. }, { "scheme": "https", // Exact match. The value cannot be empty. "host": "xxx.com", // Exact match. The value cannot be empty. "port": "8080", // Exact match. If the value is empty, it is not checked. "path": "a/b/c" // Prefix match. If the value is empty, it is not checked. } ], "methodList": [ { "methodName": "test", "urlPermissionList": [ // Method-level permission. { "scheme": "https", // Exact match. The value cannot be empty. "host": "xxx.com", // Exact match. The value cannot be empty. "port": "", // Exact match. If the value is empty, it is not checked. "path": "" // Prefix match. If the value is empty, it is not checked. }, { "scheme": "resource",// Exact match. The value cannot be empty. "host": "rawfile", // Exact match. The value cannot be empty. "port": "", // Exact match. If the value is empty, it is not checked. "path": "" // Prefix match. If the value is empty, it is not checked. } ] }, { "methodName": "test11", "urlPermissionList": [ // Method-level permission. { "scheme": "q", // Exact match. The value cannot be empty. "host": "r", // Exact match. The value cannot be empty. "port": "", // Exact match. If the value is empty, it is not checked. "path": "t" // Prefix match. If the value is empty, it is not checked. }, { "scheme": "u", // Exact match. The value cannot be empty. "host": "v", // Exact match. The value cannot be empty. "port": "", // Exact match. If the value is empty, it is not checked. "path": "" // Prefix match. If the value is empty, it is not checked. } ] } ] } }

Invoking Frontend Page Functions on the Application

Use runJavaScript to invoke frontend page functions.

  // Construct a struct executed in runJS.
  char* jsCode = "runJSRetStr()";
  ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode, bufferSize, &JSBridgeObject::StaticRunJavaScriptCallback,
                                       static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
  // Call runJSRetStr() of the frontend page.
  controller->runJavaScript(webTagValue, &object);

Sample Code

Frontend page code:

  <!-- entry/src/main/resources/rawfile/runJS.html -->
  <!-- runJS.html -->
  <!DOCTYPE html>
  <html lang="en-gb">
  <head>
      <meta name="viewport" content="width=device-width, initial-scale=1.0">
      <title>run javascript demo</title>
  </head>
  <body>
  <h1>run JavaScript Ext demo</h1>
  <p id="webDemo"></p>
  <br>
  <button type="button" style="height:30px;width:200px" onclick="testNdkProxyObjMethod1()">test ndk method1 ! </button>
  <br>
  <br>
  <button type="button" style="height:30px;width:200px" onclick="testNdkProxyObjMethod2()">test ndk method2 ! </button>
  <br>

  </body>
  <script type="text/javascript">

  function testNdkProxyObjMethod1() {
        if (window.ndkProxy == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy undefined"
              return "objName undefined"
        }

        if (window.ndkProxy.method1 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method1 undefined"
              return "objName  test undefined"
        }

        if (window.ndkProxy.method2 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method2 undefined"
              return "objName  test undefined"
        }
        let retStr = window.ndkProxy.method1("hello", "world", [1.2, -3.4, 123.456], ["Saab", "Volvo", "BMW", undefined], 1.23456, 123789, true, false, 0,  undefined);
        console.log("ndkProxy and method1 is ok, " + retStr + ", type:" + typeof(retStr));
  }

  function testNdkProxyObjMethod2() {
        if (window.ndkProxy == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy undefined"
              return "objName undefined"
        }

        if (window.ndkProxy.method1 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method1 undefined"
              return "objName  test undefined"
        }

        if (window.ndkProxy.method2 == undefined) {
              document.getElementById("webDemo").innerHTML = "ndkProxy method2 undefined"
              return "objName  test undefined"
        }

      var student = {
              name:"zhang",
              sex:"man",
              age:25
      };
      var cars = [student, 456, false, 4.567];
      let params = "[\"{\\\"scope\\\"]";

      let retStr = window.ndkProxy.method2("hello", "world", false, cars, params);
      console.log("ndkProxy and method2 is ok, " + retStr + ", type:" + typeof(retStr));
  }

  function runJSRetStr(data) {
      const d = new Date();
      let time = d.getTime();
      return JSON.stringify(time)
  }
  </script>
  </html>

Code in ArkTS:

  // entry/src/main/ets/pages/Index.ets
  import testNapi from 'libentry.so';
  import { webview } from '@kit.ArkWeb';

  class testObj {
    constructor() {
    }

    test(): string {
      console.log('ArkUI Web Component');
      return "ArkUI Web Component";
    }

    toString(): void {
      console.log('Web Component toString');
    }
  }

  @Entry
  @Component
  struct Index {
    webTag: string = 'ArkWeb1';
    controller: webview.WebviewController = new webview.WebviewController(this.webTag);
    @State testObjtest: testObj = new testObj();

    aboutToAppear() {
      console.info("aboutToAppear")
      // Initialize the web NDK.
      testNapi.nativeWebInit(this.webTag);
    }

    build() {
      Column() {
        Row() {
          Button('runJS hello')
            .fontSize(12)
            .onClick(() => {
              testNapi.runJavaScript(this.webTag, "runJSRetStr(\"" + "hello" + "\")");
            })
        }.height('20%')

        Row() {
          Web({ src: $rawfile('runJS.html'), controller: this.controller })
            .javaScriptAccess(true)
            .fileAccess(true)
            .onControllerAttached(() => {
              console.error("ndk onControllerAttached webId: " + this.controller.getWebId());
            })
        }.height('80%')
      }
    }
  }

ArkTS APIs exposed on the Node-API side:

  // entry/src/main/cpp/types/libentry/index.d.ts
  export const nativeWebInit: (webName: string) => void;
  export const runJavaScript: (webName: string, jsCode: string) => void;

Compilation configuration on the Node-API side in entry/src/main/cpp/CMakeLists.txt.

  # the minimum version of CMake.
  cmake_minimum_required(VERSION 3.4.1)
  project(NDKJSBridg)

  set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})

  if(DEFINED PACKAGE_FIND_FILE)
      include(${PACKAGE_FIND_FILE})
  endif()

  include_directories(${NATIVERENDER_ROOT_PATH}
                      ${NATIVERENDER_ROOT_PATH}/include)

  add_library(entry SHARED hello.cpp jsbridge_object.cpp)

  find_library(
      # Sets the name of the path variable.
      hilog-lib
      # Specifies the name of the NDK library that
      # you want CMake to locate.
      hilog_ndk.z
  )

  target_link_libraries(entry PUBLIC libace_napi.z.so ${hilog-lib} libohweb.so)

Node-API layer code:

  // entry/src/main/cpp/hello.cpp
  #include "napi/native_api.h"
  #include <bits/alltypes.h>
  #include <memory>
  #include <string>
  #include <sys/types.h>
  #include <thread>

  #include "hilog/log.h"
  #include "web/arkweb_interface.h"
  #include "jsbridge_object.h"

  constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;
  std::shared_ptr<JSBridgeObject> jsbridge_object_ptr = nullptr;
  static ArkWeb_ControllerAPI *controller = nullptr;
  static ArkWeb_ComponentAPI *component = nullptr;
  ArkWeb_JavaScriptValueAPI *javaScriptValueApi = nullptr;

  // Send the JS script to the HTML5 side for execution. This method is a callback of the execution result.
  static void RunJavaScriptCallback(const char *webTag, const char *result, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RunJavaScriptCallback webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk RunJavaScriptCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->RunJavaScriptCallback(result);
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "ndk RunJavaScriptCallback jsb_weak_ptr lock failed");
      }
  }

  // This example registers one object and two methods.
  static ArkWeb_JavaScriptValuePtr ProxyMethod1(const char *webTag, const ArkWeb_JavaScriptBridgeData *dataArray, size_t arraySize, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 userData is nullptr");
          return nullptr;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->ProxyMethod1(dataArray, arraySize);
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod1 jsb_weak_ptr lock failed");
      }

      bool boolValue = true;
      return javaScriptValueApi->createJavaScriptValue(ArkWeb_JavaScriptValueType::ARKWEB_JAVASCRIPT_BOOL, (void*)(&boolValue), 1);
  }

  static ArkWeb_JavaScriptValuePtr ProxyMethod2(const char *webTag, const ArkWeb_JavaScriptBridgeData *dataArray, size_t arraySize, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 userData is nullptr");
          return nullptr;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);

      std::string jsCode = "runJSRetStr()";
      ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode.c_str(), jsCode.size(),
                                       &JSBridgeObject::StaticRunJavaScriptCallback,
                                       static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      controller->runJavaScript(webTag, &object);

      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->ProxyMethod2(dataArray, arraySize);
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ProxyMethod2 jsb_weak_ptr lock failed");
      }

      std::string str = "this is a string";
      return javaScriptValueApi->createJavaScriptValue(ArkWeb_JavaScriptValueType::ARKWEB_JAVASCRIPT_STRING, (void*)str.c_str(), str.length() + 1);
  }

  void ValidCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("ValidCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk ValidCallback jsb_weak_ptr lock failed");
      }

      // Register an object.
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk registerJavaScriptProxyEx begin");
      ArkWeb_ProxyMethodWithResult method1 = {"method1", ProxyMethod1, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      ArkWeb_ProxyMethodWithResult method2 = {"method2", ProxyMethod2, static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      ArkWeb_ProxyMethodWithResult methodList[2] = {method1, method2};
      // Call the NDK API to register an object.
      // In this case, you can use proxy.method1 and proxy.method2 to call ProxyMethod1 and ProxyMethod2 in this file on HTML5 pages.
      ArkWeb_ProxyObjectWithResult proxyObject = {"ndkProxy", methodList, 2};
      controller->registerJavaScriptProxyEx(webTag, &proxyObject, "");

      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk registerJavaScriptProxyEx end");
  }

  void LoadStartCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("LoadStartCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadStartCallback jsb_weak_ptr lock failed");
      }
  }

  void LoadEndCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("LoadEndCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk LoadEndCallback jsb_weak_ptr lock failed");
      }
  }

  void DestroyCallback(const char *webTag, void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestoryCallback webTag: %{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          jsb_ptr->SaySomething("DestroyCallback");
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk DestroyCallback jsb_weak_ptr lock failed");
      }
  }

  void SetComponentCallback(ArkWeb_ComponentAPI * component, const char* webTagValue) {
      if (!ARKWEB_MEMBER_MISSING(component, onControllerAttached)) {
          component->onControllerAttached(webTagValue, ValidCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onControllerAttached func not exist");
      }

      if (!ARKWEB_MEMBER_MISSING(component, onPageBegin)) {
          component->onPageBegin(webTagValue, LoadStartCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageBegin func not exist");
      }

      if (!ARKWEB_MEMBER_MISSING(component, onPageEnd)) {
          component->onPageEnd(webTagValue, LoadEndCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onPageEnd func not exist");
      }

      if (!ARKWEB_MEMBER_MISSING(component, onDestroy)) {
          component->onDestroy(webTagValue, DestroyCallback,
                                          static_cast<void *>(jsbridge_object_ptr->GetWeakPtr()));
      } else {
          OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "component onDestroy func not exist");
      }
  }

  // Parse and store the webTag.
  static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
    size_t argc = 1;
    napi_value args[1] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
    // Obtain the first parameter webTag.
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);

    jsbridge_object_ptr = std::make_shared<JSBridgeObject>(webTagValue);
    if (jsbridge_object_ptr)
        jsbridge_object_ptr->Init();

    controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
    if (controller)
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_ControllerAPI success");

    component = reinterpret_cast<ArkWeb_ComponentAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_COMPONENT));
    if (component)
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_ComponentAPI success");

    javaScriptValueApi =
        reinterpret_cast<ArkWeb_JavaScriptValueAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_JAVASCRIPT_VALUE));
    if (javaScriptValueApi)
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_JavaScriptValueAPI success");
    else
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_JavaScriptValueAPI failed");

    SetComponentCallback(component, webTagValue);

    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit end");

    return nullptr;
  }

  // Send the JS script to the HTML5 side for execution.
  static napi_value RunJavaScript(napi_env env, napi_callback_info info) {
      size_t argc = 2;
      napi_value args[2] = {nullptr};
      napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

      // Obtain the first parameter webTag.
      size_t webTagSize = 0;
      napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
      char *webTagValue = new (std::nothrow) char[webTagSize + 1];
      size_t webTagLength = 0;
      napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk OH_NativeArkWeb_RunJavaScript webTag:%{public}s",
                   webTagValue);

      // Obtain the second parameter jsCode.
      size_t bufferSize = 0;
      napi_get_value_string_utf8(env, args[1], nullptr, 0, &bufferSize);
      char *jsCode = new (std::nothrow) char[bufferSize + 1];
      size_t byteLength = 0;
      napi_get_value_string_utf8(env, args[1], jsCode, bufferSize + 1, &byteLength);

      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                   "ndk OH_NativeArkWeb_RunJavaScript jsCode len:%{public}zu", strlen(jsCode));

      // Construct a struct executed in runJS.
      ArkWeb_JavaScriptObject object = {(uint8_t *)jsCode, bufferSize, &JSBridgeObject::StaticRunJavaScriptCallback,
                                       static_cast<void *>(jsbridge_object_ptr->GetWeakPtr())};
      controller->runJavaScript(webTagValue, &object);
      return nullptr;
  }

  EXTERN_C_START
  static napi_value Init(napi_env env, napi_value exports) {
      napi_property_descriptor desc[] = {
          {"nativeWebInit", nullptr, NativeWebInit, nullptr, nullptr, nullptr, napi_default, nullptr},
          {"runJavaScript", nullptr, RunJavaScript, nullptr, nullptr, nullptr, napi_default, nullptr},
      };
      napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
      return exports;
  }
  EXTERN_C_END

  static napi_module demoModule = {
      .nm_version = 1,
      .nm_flags = 0,
      .nm_filename = nullptr,
      .nm_register_func = Init,
      .nm_modname = "entry",
      .nm_priv = ((void *)0),
      .reserved = {0},
  };

  extern "C" __attribute__((constructor)) void RegisterEntryModule(void) { napi_module_register(&demoModule); }

Native service code:

  // entry/src/main/cpp/jsbridge_object.h
  #include "web/arkweb_type.h"
  #include <string>

  class JSBridgeObject : public std::enable_shared_from_this<JSBridgeObject> {
  public:
      JSBridgeObject(const char* webTag);
      ~JSBridgeObject() = default;
      void Init();
      std::weak_ptr<JSBridgeObject>* GetWeakPtr();
      static void StaticRunJavaScriptCallback(const char *webTag, const ArkWeb_JavaScriptBridgeData *data, void *userData);
      void RunJavaScriptCallback(const char *result);
      void ProxyMethod1(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize);
      void ProxyMethod2(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize);
      void SaySomething(const char* say);

  private:
      std::string webTag_;
      std::weak_ptr<JSBridgeObject> weak_ptr_;
  };

  // entry/src/main/cpp/jsbridge_object.cpp
  #include "jsbridge_object.h"

  #include "hilog/log.h"

  constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;

  JSBridgeObject::JSBridgeObject(const char *webTag) : webTag_(webTag) {}

  void JSBridgeObject::Init() { weak_ptr_ = shared_from_this(); }

  std::weak_ptr<JSBridgeObject> *JSBridgeObject::GetWeakPtr() { return &weak_ptr_; }

  void JSBridgeObject::StaticRunJavaScriptCallback(const char *webTag, const ArkWeb_JavaScriptBridgeData *data,
                                                   void *userData) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                   "JSBridgeObject StaticRunJavaScriptCallback webTag:%{public}s", webTag);
      if (!userData) {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject StaticRunJavaScriptCallback userData is nullptr");
          return;
      }
      std::weak_ptr<JSBridgeObject> jsb_weak_ptr = *static_cast<std::weak_ptr<JSBridgeObject> *>(userData);
      if (auto jsb_ptr = jsb_weak_ptr.lock()) {
          std::string result((char *)data->buffer, data->size);
          jsb_ptr->RunJavaScriptCallback(result.c_str());
      } else {
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject StaticRunJavaScriptCallback jsb_weak_ptr lock failed");
      }
  }

  void JSBridgeObject::RunJavaScriptCallback(const char *result) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                   "JSBridgeObject OH_NativeArkWeb_RunJavaScript result:%{public}s", result);
  }

  void JSBridgeObject::ProxyMethod1(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject ProxyMethod1 argc:%{public}d",
                   arraySize);
      for (int i = 0; i < arraySize; i++) {
          std::string result((char *)dataArray[i].buffer, dataArray[i].size);
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject ProxyMethod1 argv[%{public}d]:%{public}s, size:%{public}d", i, result.c_str(),
                       dataArray[i].size);
      }
  }

  void JSBridgeObject::ProxyMethod2(const ArkWeb_JavaScriptBridgeData *dataArray, int32_t arraySize) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject ProxyMethod2 argc:%{public}d",
                   arraySize);
      for (int i = 0; i < arraySize; i++) {
          std::string result((char *)dataArray[i].buffer, dataArray[i].size);
          OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                       "JSBridgeObject ProxyMethod2 argv[%{public}d]:%{public}s, size:%{public}d", i, result.c_str(),
                       dataArray[i].size);
      }
  }

  void JSBridgeObject::SaySomething(const char *say) {
      OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "JSBridgeObject SaySomething argc:%{public}s", say);
  }

Using the Native API to Implement JSBridge
