UIPickerComponent

The UIPickerComponent container is used to implement user selection operations. It supports single selection from a limited set of options and can be applied to various scenarios such as time selection, date selection, region selection, and status selection. Its display effect is a three-dimensional wheel style, supporting customizable options including text type, image type, and text-image combination type.

NOTE

  • This component is supported since API version 22. Updates will be marked with a superscript to indicate their earliest API version.

  • The height of the UIPickerComponent container options is fixed at 40 vp, and a maximum of seven options can be displayed. Due to the three-dimensional wheel display effect, options other than the selected one will be rotated at different angles, so the actual visible height will be less than 40 vp.

  • It is recommended that the height of the UIPickerComponent container be set to 200 vp. When the set height is greater than or equal to this recommended value, all 7 options can be fully displayed. Otherwise, the display area will be cropped from the top and bottom edges towards the center, and the number of displayed options will be reduced accordingly, always keeping the selected item vertically centered.

  • When the UIPickerComponent container's width is not set, the maximum width of the visible child components in the current view is taken as the container width. You are advised to set the width of the UIPickerComponent container or set the same width for each child component to avoid dynamic changes in container width during sliding, which affects the display effect.

  • The alignment mode of child components in the UIPickerComponent container is fixed to center alignment, and cannot be changed via the align attribute.

  • Currently, the UIPickerComponent container does not support wearables.

  • This component supports WithTheme since API version 26.0.0.

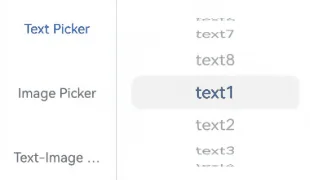

Child Components

NOTE

  • When the Row container is used as a child component, the Row container can contain only the Text, Image, and SymbolGlyph basic components. Including other container components may affect the display effect or cause sliding functionality abnormalities.

  • When counting the number of child components, the Row container and its child components are counted as one child component.

  • When the child component is Text, Image, or SymbolGlyph, the height attribute does not take effect and is fixed at 40 vp.

  • When the child component is a Row container, its height attribute does not take effect and is fixed at 40 vp. The height attribute of the child components in the Row container takes effect. The final display effect is determined by the Row container.

  • The text-image combination option requires that the Row container contain the Text and Image components. When using the text-image combination option, you are advised to set the image's height to 40 vp or below to avoid cropping when images are large.

  • The fontSize attribute of all text components (including the Text components in the Row container) in the UIPickerComponent container is 20 fp by default. User settings will override the default value, and abnormal values will be processed according to the result of handling the text component's fontSize. You are advised to set the fontSize attribute to a unified value or not to set it to ensure a good display effect.

APIs

UIPickerComponent(options?: UIPickerComponentOptions)

Creates a UIPickerComponent container, whose selected item is determined by the selectedIndex attribute in the options parameter.

Model restriction: This API can be used only in the stage model.

Atomic service API: This API can be used in atomic services since API version 22.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

NameTypeMandatoryDescription
optionsUIPickerComponentOptionsNoParameters of the UIPickerComponent container.

UIPickerComponentOptions

Describes the parameters of the UIPickerComponent container.

Model restriction: This API can be used only in the stage model.

Atomic service API: This API can be used in atomic services since API version 22.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameTypeRead-OnlyOptionalDescription
selectedIndexnumberNoYesIndex of the selected item.
Value range: an integer in the range of [0, Number of child components – 1]. If the value is not within the value range, the default value is used. If a decimal number is set, the integer part after rounding down is used.
Default value: 0
NOTE
When counting the number of child components, the Row container and its child components are counted as one child component.

Attributes

In addition to the universal attributes, the following attributes are supported.

canLoop

canLoop(isLoop: Optional<boolean>)

Sets whether the option list can loop scrolling.

Model restriction: This API can be used only in the stage model.

Atomic service API: This API can be used in atomic services since API version 22.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

NameTypeMandatoryDescription
isLoopOptional<boolean>YesWhether loop scrolling is enabled.
- true: Loop scrolling is enabled.
- false: Loop scrolling is disabled.
Default value: true
If the value of isLoop is undefined, the default value is used.
If the number of child components is less than 8, loop scrolling will not occur regardless of whether isLoop is set to true or false.

enableHapticFeedback

enableHapticFeedback(enable: Optional<boolean>)

Sets whether to enable haptic feedback.

To enable haptic feedback, you must declare the following permission under requestPermissions in module in src/main/module.json5 of the project.

"requestPermissions": [
   {
      "name": "ohos.permission.VIBRATE",
   }
]

Model restriction: This API can be used only in the stage model.

Atomic service API: This API can be used in atomic services since API version 22.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

NameTypeMandatoryDescription
enableOptional<boolean>YesWhether to enable haptic feedback.
- true: Enable haptic feedback.
- false: Disable haptic feedback.
Default value: true
If the value of enable is undefined, the default value is used.
After this function is enabled, whether haptic feedback is available depends on the hardware support of the system.

selectionIndicator

selectionIndicator(style: Optional<PickerIndicatorStyle>)

Sets the style of the selected item indicator.

Model restriction: This API can be used only in the stage model.

Atomic service API: This API can be used in atomic services since API version 22.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

NameTypeMandatoryDescription
styleOptional<PickerIndicatorStyle>YesStyle of the selected item indicator.
Default value:
{
type: PickerIndicatorType.BACKGROUND,
borderRadius: {
value:12,
unit:LengthUnit.vp
},
backgroundColor: 'sys.color.comp_background_tertiary'
}
If the value of style is undefined, the default value is used.

Events

In addition to the universal events, the following events are supported.

onChange

onChange(callback: Optional<OnUIPickerComponentCallback>)

Triggered when the selected item changes.

NOTE

If more than half of an option's area enters the selected item area, the option becomes the selected item.

The selected item area can be identified by setting selectionIndicator. If the selected item indicator is set to the background, the background area is the selected item area. If the selected item indicator is set to the divider, the area between the center lines of the upper and lower dividers is the selected item area.

Model restriction: This API can be used only in the stage model.

Atomic service API: This API can be used in atomic services since API version 22.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

NameTypeMandatoryDescription
callbackOptional<OnUIPickerComponentCallback>YesCallback triggered when the selected item changes.
If callback is set to undefined, the callback is not used.

onScrollStop

onScrollStop(callback: Optional<OnUIPickerComponentCallback>)

Triggered when the picker scrolling stops. The picker scrolling stops when the scrolling animation triggered by an action is complete. If a new scrolling animation is triggered before the previous one finishes, it does not count as scrolling stop.

Model restriction: This API can be used only in the stage model.

Atomic service API: This API can be used in atomic services since API version 22.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

NameTypeMandatoryDescription
callbackOptional<OnUIPickerComponentCallback>YesCallback triggered when the picker scrolling stops.
If callback is set to undefined, the callback is not used.

PickerIndicatorStyle

Sets parameters of the selected item indicator style.

Model restriction: This API can be used only in the stage model.

Atomic service API: This API can be used in atomic services since API version 22.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameTypeRead-OnlyOptionalDescription
typePickerIndicatorTypeNoNoType of the selected item indicator.
Default value: PickerIndicatorType.BACKGROUND
If the value of type is a decimal number, the integer after rounding down is used. If the value of type is not within the value range of PickerIndicatorType, the default value is used.
strokeWidthLengthMetricsNoYesStroke width of the divider.
Default value: 2.0px.
Unit: same as that of LengthMetrics
Value range: [0, half the height of the selected item (that is, 20 vp)]. If the value of strokeWidth is less than 0 or greater than half the height of the selected item, the default value is used. Percentages are not supported.
NOTE
1. This parameter takes effect only when type is set to PickerIndicatorType.DIVIDER.
2. If this parameter is set in LengthMetrics.resource mode, the value of a non-length attribute will be treated as 0 vp.
dividerColorResourceColorNoYesColor of the divider.
Default value: 'sys.color.comp_divider'
NOTE
This parameter takes effect only when type is set to PickerIndicatorType.DIVIDER.
startMarginLengthMetricsNoYesDistance between the divider and the start edge of the UIPickerComponent container.
Default value: 0
Unit: same as that of LengthMetrics
Value range: The sum of startMargin and endMargin must not exceed the width of the UIPickerComponent container. If the value is less than 0 or the sum of startMargin and endMargin exceeds the width of the UIPickerComponent container, the default value is used. Percentages are not supported.
NOTE
This parameter takes effect only when type is set to PickerIndicatorType.DIVIDER.
endMarginLengthMetricsNoYesDistance between the divider and the end edge of the UIPickerComponent container.
Default value: 0
Unit: same as that of LengthMetrics
Value range: The sum of startMargin and endMargin must not exceed the width of the UIPickerComponent container. If the value is less than 0 or the sum of startMargin and endMargin exceeds the width of the UIPickerComponent container, the default value is used. Percentages are not supported.
NOTE
This parameter takes effect only when type is set to PickerIndicatorType.DIVIDER.
backgroundColorResourceColorNoYesBackground color of the selected item.
Default value: 'sys.color.comp_background_tertiary'
NOTE
This parameter takes effect only when type is set to PickerIndicatorType.BACKGROUND.
borderRadiusLengthMetrics  |  BorderRadiuses  |  LocalizedBorderRadiusesNoYesBackground border radius of the selected item.
Default value: { value:12, unit:LengthUnit.vp }, meaning 12 vp for all corners
Value range: no more than half of the smaller value between the width and height of the selected item. If the value is less than 0, the default value is used. If the value is greater than the maximum value, the maximum value is used.
NOTE
1. This parameter takes effect only when type is set to PickerIndicatorType.BACKGROUND.
2. LengthMetrics: Sets the size and unit of the four corner radii in a unified manner.
3. BorderRadiuses: Sets the size (unit: vp) of the four corner radii individually.
4. LocalizedBorderRadiuses: Sets the size and unit of the four corner radii individually.

PickerIndicatorType

Enumerates the types of the selected item indicator.

Model restriction: This API can be used only in the stage model.

Atomic service API: This API can be used in atomic services since API version 22.

System capability: SystemCapability.ArkUI.ArkUI.Full

NameValueDescription
BACKGROUND0Identifies the selected item by adding a background to it.
DIVIDER1Identifies the selected item by adding dividers above and below its edges.

OnUIPickerComponentCallback

type OnUIPickerComponentCallback = (selectedIndex: number) => void

Defines the callback types for the onChange and onScrollStop events.

Model restriction: This API can be used only in the stage model.

Atomic service API: This API can be used in atomic services since API version 22.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

NameTypeMandatoryDescription
selectedIndexnumberYesIndex of the selected item.
Value range: an integer in the range of [0, Number of child components – 1].

Example

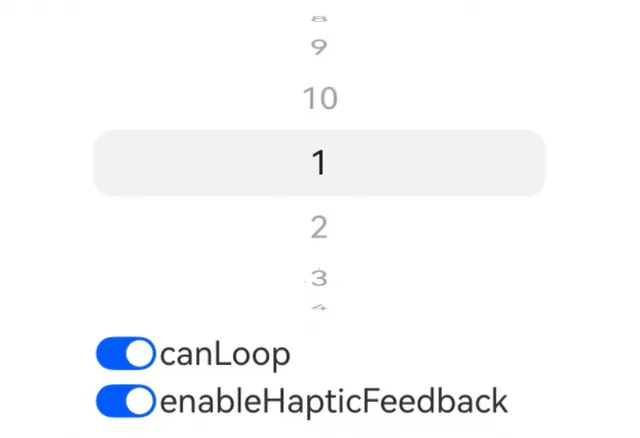

Example 1: Switching Loop Scrolling and Enabling/Disabling Haptic Feedback

Since API version 22, this example demonstrates how to switch the loop scrolling of the UIPickerComponent container and how to enable or disable haptic feedback via button clicks.

// xxx.ets
@Entry
@Component
struct UIPickerComponentAttrsExample {
  private dataArray: string[] = [];
  @State loop: boolean = true;
  @State hapticFeedback: boolean = true;

  aboutToAppear(): void {
    // Construct options.
    for (let i = 1; i <= 10; i++) {
      this.dataArray.push(i.toString())
    }
  }

  build() {
    Column() {
      Row() {
        UIPickerComponent() {
          ForEach(this.dataArray, (item: string) => {
            Text(item)
          })
        }
        // Configure the option list looping.
        .canLoop(this.loop)
        // Configure haptic feedback.
        .enableHapticFeedback(this.hapticFeedback)
        .width('70%')
      }

      Column() {
        Row() {
          Toggle({ type: ToggleType.Switch, isOn: true })
            .onChange((isOn: boolean) => {
              this.loop = isOn;
            })
          Text('canLoop').fontSize(20)
        }
        .width('70%')

        Row() {
          Toggle({ type: ToggleType.Switch, isOn: true })
            .onChange((isOn: boolean) => {
              this.hapticFeedback = isOn;
            })
          Text('enableHapticFeedback').fontSize(20)
        }
        .width('70%')
      }

    }
    .width('100%')
  }
}

containerPicker

Example 2: Setting Event Callbacks

Since API version 22, this example demonstrates how to set the onChange and onScrollStop callbacks of the UIPickerComponent container based on status selection.

// xxx.ets
@Entry
@Component
struct UIPickerComponentEventsExample {
  // Construct status options.
  private dataArray: string[] = ['To-do', 'In progress', 'Completed'];
  @State onChangeDesc: string = '';
  @State onScrollStopDesc: string = '';

  build() {
    Column() {
      Row() {
        UIPickerComponent() {
          ForEach(this.dataArray, (item: string) => {
            Text(item)
          })
        }
        // Configure the onChange callback.
        .onChange((selectedIndex: number) => {
          this.onChangeDesc = 'on change: ' + selectedIndex
        })
        // Configure the onScrollStop callback.
        .onScrollStop((selectedIndex: number) => {
          this.onScrollStopDesc = 'on scroll stop: ' + selectedIndex
        })
        .width('70%')
      }

      Column() {
        Text(this.onChangeDesc)
        Text(this.onScrollStopDesc)
      }

    }
    .width('100%')
  }
}

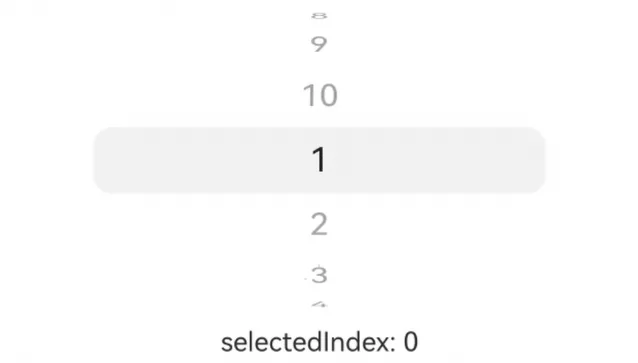

Example 3: Setting the Selected Item Index

Since API version 22, this example demonstrates how to set the selected item index of the UIPickerComponent container.

// xxx.ets
@Entry
@Component
struct UIPickerComponentSelectedIndexExample {
  private dataArray: string[] = [];
  @State selectedIndex: number = 0;

  aboutToAppear(): void {
    // Construct options.
    for (let i = 1; i <= 10; i++) {
      this.dataArray.push(i.toString())
    }
  }

  build() {
    Column() {
      Row() {
        UIPickerComponent({
          // Configure the index of the selected item.
          selectedIndex: this.selectedIndex
        }) {
          ForEach(this.dataArray, (item: string) => {
            Text(item)
          })
        }
        .onChange((selectedIndex: number) => {
          this.selectedIndex = selectedIndex
        })
        .onScrollStop((selectedIndex: number) => {
          this.selectedIndex = selectedIndex
        })
        .width('70%')
      }

      Column() {
        Text('selectedIndex: ' + this.selectedIndex)
      }

    }
    .width('100%')
  }
}

containerPicker

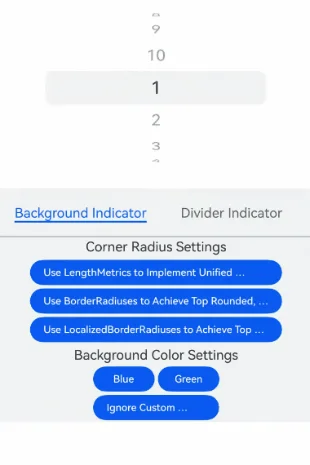

Example 4: Setting the Selected Item Indicator

Since API version 22, this example demonstrates how to set the selected item indicator of the UIPickerComponent container. Scenarios include the following: When using a background indicator, set the background color and background corner radius. When using a divider indicator, set the divider color, divider width, start side margin, and end side margin.

// xxx.ets
import { LengthMetrics } from '@kit.ArkUI';

@Entry
@Component
struct UIPickerComponentIndicatorExample {
  private dataArray: string[] = [];
  @State indicatorType: PickerIndicatorType|undefined = undefined;
  @State bgColor: Color|undefined = undefined;
  @State dividerColor: Color|undefined = undefined;
  @State strokeWidth: LengthMetrics = LengthMetrics.px(2);
  @State startMargin: LengthMetrics = LengthMetrics.px(2);
  @State endMargin: LengthMetrics = LengthMetrics.px(2);
  @State selectIndicator: PickerIndicatorStyle|undefined = undefined;
  @State bgBorderRadius: LengthMetrics|BorderRadiuses|LocalizedBorderRadiuses|undefined = undefined
  bgBorderRadiuses1: LengthMetrics = LengthMetrics.vp(10)
  bgBorderRadiuses2: BorderRadiuses = {
    topLeft: 10,
    bottomLeft: 0,
    topRight: 10,
    bottomRight: 0,
  }
  bgBorderRadiuses3: LocalizedBorderRadiuses = {
    topStart: LengthMetrics.vp(0),
    bottomStart: LengthMetrics.vp(10),
    topEnd: LengthMetrics.vp(0),
    bottomEnd: LengthMetrics.vp(10)
  }
  private controller: TabsController = new TabsController();
  @State curTabIndex: number = 0;

  @Builder
  dividerBuilder() {
    Column() {
      Row() {
        Text('Divider Stroke Width')
      }.margin(2)

      Row() {
        Button('0')
          .onClick(() => {
            this.strokeWidth = LengthMetrics.px(0)
          })
          .fontSize(12)
          .height(30)
          .width(100)
          .margin(2)
        Button('10px')
          .onClick(() => {
            this.strokeWidth = LengthMetrics.px(10)
          })
          .fontSize(12)
          .height(30)
          .width(100)
          .margin(2)
        Button('10vp')
          .onClick(() => {
            this.strokeWidth = LengthMetrics.vp(10)
          })
          .fontSize(12)
          .height(30)
          .width(100)
          .margin(2)
      }

      Row() {
        Text('Start Side Margin')
      }.margin(2)

      Row() {
        Button('0')
          .onClick(() => {
            this.startMargin = LengthMetrics.px(0)
          })
          .fontSize(12)
          .height(30)
          .width(100)
          .margin(2)
        Button('10px')
          .onClick(() => {
            this.startMargin = LengthMetrics.px(10)
          })
          .fontSize(12)
          .height(30)
          .width(100)
          .margin(2)
        Button('10vp')
          .onClick(() => {
            this.startMargin = LengthMetrics.vp(10)
          })
          .fontSize(12)
          .height(30)
          .width(100)
          .margin(2)
      }

      Row() {
        Text('End Side Margin')
      }.margin(2)

      Row() {
        Button('0')
          .onClick(() => {
            this.endMargin = LengthMetrics.px(0)
          })
          .fontSize(12)
          .height(30)
          .width(100)
          .margin(2)
        Button('10px')
          .onClick(() => {
            this.endMargin = LengthMetrics.px(10)
          })
          .fontSize(12)
          .height(30)
          .width(100)
          .margin(2)
        Button('10vp')
          .onClick(() => {
            this.endMargin = LengthMetrics.vp(10)
          })
          .fontSize(12)
          .height(30)
          .width(100)
          .margin(2)
      }

      Row() {
        Text('Divider Color')
      }

      Row() {
        Button('Blue')
          .onClick(() => {
            this.dividerColor = Color.Blue
          })
          .fontSize(12)
          .height(30)
          .width(73)
          .margin(2)
        Button('Black')
          .onClick(() => {
            this.dividerColor = Color.Black
          })
          .fontSize(12)
          .height(30)
          .width(73)
          .margin(2)
      }

      Row() {
        Button('Ignore Custom Settings')
          .onClick(() => {
            this.dividerColor = undefined
          })
          .fontSize(12)
          .height(30)
          .width(150)
          .margin(2)
      }
    }
  }

  @Builder
  backgroundBuilder() {
    Column() {
      Row() {
        Text('Corner Radius Settings')
      }.margin(2)

      Column() {
        Button('Use LengthMetrics to Implement Unified Corner Radius')
          .onClick(() => {
            this.bgBorderRadius = this.bgBorderRadiuses1
          })
          .fontSize(12)
          .height(30)
          .width(300)
          .margin(2)
        Button('Use BorderRadiuses to Achieve Top Rounded, Bottom Square')
          .onClick(() => {
            this.bgBorderRadius = this.bgBorderRadiuses2
          })
          .fontSize(12)
          .height(30)
          .width(300)
          .margin(2)
        Button('Use LocalizedBorderRadiuses to Achieve Top Square, Bottom Rounded')
          .onClick(() => {
            this.bgBorderRadius = this.bgBorderRadiuses3
          })
          .fontSize(12)
          .height(30)
          .width(300)
          .margin(2)
      }.margin(2)

      Row() {
        Text('Background Color Settings')
      }.margin(2)

      Row() {
        Button('Blue')
          .onClick(() => {
            this.bgColor = Color.Blue
          })
          .fontSize(12)
          .height(30)
          .width(73)
          .margin(2)
        Button('Green')
          .onClick(() => {
            this.bgColor = Color.Green
          })
          .fontSize(12)
          .height(30)
          .width(73)
          .margin(2)
      }

      Row() {
        Button('Ignore Custom Settings')
          .onClick(() => {
            this.bgColor = undefined
          })
          .fontSize(12)
          .height(30)
          .width(150)
          .margin(2)
      }
    }
  }

  aboutToAppear(): void {
    // Construct options.
    for (let i = 1; i <= 10; i++) {
      this.dataArray.push(i.toString())
    }
  }

  build() {
    Column() {
      Row() {
        UIPickerComponent() {
          ForEach(this.dataArray, (item: string) => {
            Text(item)
          })
        }
        // Configure the selected item indicator.
        .selectionIndicator({
          type: this.indicatorType,
          strokeWidth: this.strokeWidth,
          dividerColor: this.dividerColor,
          startMargin: this.startMargin,
          endMargin: this.endMargin,
          backgroundColor: this.bgColor,
          borderRadius: this.bgBorderRadius
        })
        .width('70%')
      }
      Tabs({ barPosition: BarPosition.Start, index: this.curTabIndex, controller: this.controller }) {
        TabContent() {
          this.backgroundBuilder()
        }.tabBar('Background Indicator')

        TabContent() {
          this.dividerBuilder()
        }.tabBar('Divider Indicator')
      }
      .vertical(false)
      .barMode(BarMode.Fixed)
      .barWidth(360)
      .barHeight(56)
      .animationDuration(400)
      .onChange((index: number) => {
        this.curTabIndex = index
        if (this.curTabIndex == 1) {
          this.indicatorType = PickerIndicatorType.DIVIDER
        } else {
          this.indicatorType = PickerIndicatorType.BACKGROUND
        }
      })
      .height(LayoutPolicy.wrapContent)
      .divider({ strokeWidth: 2 })
      .margin({ top: 20 })
      .backgroundColor('#F1F3F5')
    }
    .width('100%')
  }
}

containerPicker

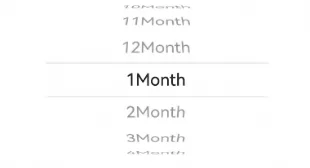

Example 5: Customizing the Month Picker

Since API version 22, this example demonstrates how to use the UIPickerComponent container to nest text child components to implement the month picker.

// xxx.ets
@Entry
@Component
struct MonthUIPickerComponentExample {
  private fontSize: number|string|Resource = '20vp';
  private monthArray: string[] = [];

  aboutToAppear(): void {
    // Construct options.
    for (let i = 1; i <= 12; i++) {
      this.monthArray.push(i + 'Month')
    }
  }

  build() {
    Column() {
      UIPickerComponent() {
        ForEach(this.monthArray, (item: string) => {
          Text(item)
            .fontSize(this.fontSize)
            .textAlign(TextAlign.Center)
            .fontColor(Color.Black)
        })
      }
      .width('70%')
      // Configure the option list looping.
      .canLoop(true)
      // Disable haptic feedback.
      .enableHapticFeedback(false)
      // Set the indicator of the selected item to a divider.
      .selectionIndicator({ type: PickerIndicatorType.DIVIDER })
      // Subscribe to the selected item change event.
      .onChange((idx: number) => {
        console.info('UIPickerComponent item changed: ' + this.monthArray[idx])
      })
      // Subscribe to the scrolling stop event.
      .onScrollStop((idx: number) => {
        console.info('UIPickerComponent scroll stopped: ' + this.monthArray[idx])
      })
    }
    .width('100%')
  }
}

containerPicker

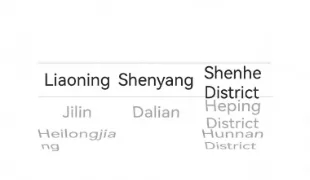

Example 6: Customizing the Area Picker

Since API version 22, this example demonstrates how to use the multi-column UIPickerComponent container combination to implement an area selector.

// xxx.ets

type RegionDict = Record<string, Record<string, Array<string>>>;
// Define a region dictionary.
let regionData: RegionDict = {
  'Liaoning': {
    'Shenyang': ['Shenhe District', 'Heping District', 'Hunnan District'],
    'Dalian': ['Zhongshan District', 'Jinzhou District', 'Changhai County'],
  },
  'Jilin': {
    'Changchun': ['Nanguan District', 'Kuancheng District', 'Chaoyang District'],
    'Siping': ['Tiexi District', 'Tiedong District', 'Lishu County']
  },
  'Heilongjiang': {
    'Harbin': ['Daoli District', 'Daowai District', 'Nangang District'],
    'Daqing': ['Honggang District', Longfeng District', Datong District']
  },
};

@Entry
@Component
struct RegionUIPickerComponentExample {
  @State provinceIndex: number = 0;
  @State cityIndex: number = 0;
  @State countyIndex: number = 0;
  @State provinces: Array<string> = [];
  @State cities: Array<string> = [];
  @State counties: Array<string> = [];

  aboutToAppear(): void {
    this.provinces = Object.keys(regionData);
    this.flushCityColumn()
  }

  flushCityColumn() {
    let currentProvince = this.provinces[this.provinceIndex]
    this.cities = Object.keys(regionData[currentProvince])
    this.cityIndex = 0
    this.flushCountyColumn()
  }

  flushCountyColumn() {
    let currentProvince = this.provinces[this.provinceIndex]
    let currentCity = this.cities[this.cityIndex]
    this.counties = regionData[currentProvince][currentCity]
    this.countyIndex = 0
  }

  build() {
    Column() {
      Row() {
        // Province
        UIPickerComponent({
          selectedIndex: this.provinceIndex
        }) {
          ForEach(this.provinces, (province: string) => {
            Text(province)
          })
        }
        .onChange((selectedIndex: number) => {
          this.provinceIndex = selectedIndex
          this.flushCityColumn()

        })
        .onScrollStop((selectedIndex: number) => {
          this.provinceIndex = selectedIndex
        })
        .selectionIndicator({ type: PickerIndicatorType.DIVIDER })
        .width('25%')

        // City
        UIPickerComponent({
          selectedIndex: this.cityIndex
        }) {
          ForEach(this.cities, (city: string) => {
            Text(city)
          })
        }
        .onChange((selectedIndex: number) => {
          this.cityIndex = selectedIndex
          this.flushCountyColumn()
        })
        .onScrollStop((selectedIndex: number) => {
          this.cityIndex = selectedIndex
        })
        .selectionIndicator({ type: PickerIndicatorType.DIVIDER })
        .width('25%')

        // County
        UIPickerComponent({
          selectedIndex: this.countyIndex
        }) {
          ForEach(this.counties, (county: string) => {
            Text(county)
          })
        }
        .onChange((selectedIndex: number) => {
          this.countyIndex = selectedIndex
        })
        .onScrollStop((selectedIndex: number) => {
          this.countyIndex = selectedIndex
        })
        .selectionIndicator({ type: PickerIndicatorType.DIVIDER })
        .width('25%')
      }
    }
    .width('100%')
  }
}

containerPicker

Example 7: Customizing Option Types

Since API version 22, this example uses the UIPickerComponent container to implement pickers with different option types, including text picker, image picker, and text-image combination picker.

// xxx.ets
@Entry
@Component
struct UIPickerComponentExample {
  @State textList: string[] =
    ['text1', 'text2', 'text3', 'text4', 'text5', 'text6', 'text7', 'text8'];
  // Replace $r('sys.media.*') with the image resource file you use.
  @State imageList: Resource[] =
    [$r('sys.media.ohos_ic_normal_white_grid_audio'), $r('sys.media.ohos_ic_normal_white_grid_calendar'),
      $r('sys.media.ohos_ic_normal_white_grid_compress'), $r('sys.media.ohos_ic_normal_white_grid_doc'),
      $r('sys.media.ohos_ic_normal_white_grid_flac'), $r('sys.media.ohos_ic_normal_white_grid_folder'),
      $r('sys.media.ohos_ic_normal_white_grid_html'), $r('sys.media.ohos_ic_normal_white_grid_image')];
  // Replace the $r('sys.symbol.*') file with the image resource file you use.
  @State symbolList: Resource[] =
    [$r('sys.symbol.calendar_01'), $r('sys.symbol.calendar_02'), $r('sys.symbol.calendar_03'),
      $r('sys.symbol.calendar_04'), $r('sys.symbol.calendar_05'), $r('sys.symbol.calendar_06'),
      $r('sys.symbol.calendar_07'), $r('sys.symbol.calendar_08')];
  private controller: TabsController = new TabsController();
  @State curTabIndex: number = 0;

  @Builder
  ImagePicker() {
    Column() {
      UIPickerComponent() {
        ForEach(this.imageList, (item: Resource) => {
          Image(item)
        })
      }
      .margin(20)
      .width(200)
    }
  }

  @Builder
  TextPicker() {
    Column() {
      UIPickerComponent() {
        ForEach(this.textList, (item: string) => {
          Text(item)
        })
      }
      .margin(20)
      .width(200)
    }
  }

  @Builder
  HybridPicker() {
    Column() {
      UIPickerComponent() {
        ForEach(this.symbolList, (item: Resource, index: number) => {
          Row() {
            SymbolGlyph(item)
              .height('20vp')
            Text(this.textList[index])
          }
        })
      }
      .margin(20)
      .width(200)
    }
  }

  build() {
    Column() {
      Tabs({ barPosition: BarPosition.Start, index: this.curTabIndex, controller: this.controller }) {
        TabContent() {
          this.TextPicker()
        }.tabBar('Text Picker')

        TabContent() {
          this.ImagePicker()
        }.tabBar('Image Picker')

        TabContent() {
          this.HybridPicker()
        }.tabBar('Text-Image Picker')
      }
      .vertical(true)
      .divider({ strokeWidth: 1 })
      .barMode(BarMode.Fixed)
      .barWidth(140)
      .barHeight(230)
      .height(230)
      .animationDuration(400)
    }
  }
}

containerPicker

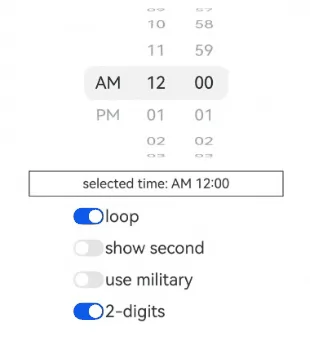

Example 8: Customizing the Time Picker

Since API version 22, this example implements a time picker with the following functions: enabling/disabling loop scrolling, showing/hiding seconds, toggling 24-hour format, displaying/hiding leading zeros, adapting to the current system language for content rendering, and adjusting the column display order based on language habits.

NOTE

  • In this example, the content of each column of the time picker is displayed in the corresponding language based on the system language. For example, AM/PM is displayed in the English system.
  • In this example, the columns of the time picker are adjusted according to the system language, for example: English system displays hour/minute/second/AMPM.

To achieve text switching with system language, you need to add the text for the corresponding languages in the project's resource directory, for example:

  • Chinese (default): Create the base directory in the resource directory, create the element directory in the base directory, and add the string.json file to the element directory. (If the file already exists, add the following key-value pair in the name-value format to the file. Do not directly overwrite the original file.) The following shows the file content:
    {
  "string": [
    {
      "name": "app_name",
      "value": "timePicker"
    },
    {
      "name": "am",
      "value": "AM"
    },
    {
      "name": "pm",
      "value": "PM"
    }
  ]
}
  • English: Create the en directory in the resource directory, create the element directory in the en directory, and add the string.json file to the element directory. If the file already exists, add the key-value pair in the name-value format to the file. Do not overwrite the original file. The following shows the file content:
    {
  "string": [
    {
      "name": "app_name",
      "value": "timePicker"
    },
    {
      "name": "am",
      "value": "AM"
    },
    {
      "name": "pm",
      "value": "PM"
    }
  ]
}
  • Arabic: Create the ar directory in the resource directory, create the element directory in the ar directory, and add the string.json file to the element directory. If the file already exists, add the key-value pair in the name-value format to the file. Do not overwrite the original file. The following shows the file content:
    {
  "string": [
    {
      "name": "app_name",
      "value": "timePicker"
    },
    {
      "name": "am",
      "value": "ص"
    },
    {
      "name": "pm",
      "value": "م"
    }
  ]
}
  • Other languages are similar.

Sample code:

// xxx.ets
import { LengthMetrics } from '@kit.ArkUI';
import { i18n, intl } from '@kit.LocalizationKit';
import { commonEventManager } from '@kit.BasicServicesKit';

@Entry
@Component
struct TimeUIPickerComponentExample {
  @State showSecond: boolean = false;
  @State useMilitary: boolean = false;
  @State zeroPrefix: boolean = true;
  @State loop: boolean = true;
  @State amPmAtLast: boolean = false
  @State isRtl: boolean = false;

  startBorderStyle: LocalizedBorderRadiuses = {
    topStart: LengthMetrics.px(40),
    bottomStart: LengthMetrics.px(40),
    topEnd: LengthMetrics.px(0),
    bottomEnd: LengthMetrics.px(0)
  }
  centerBorderStyle: LengthMetrics = LengthMetrics.px(0)
  endBorderStyle: LocalizedBorderRadiuses = {
    topStart: LengthMetrics.px(0),
    bottomStart: LengthMetrics.px(0),
    topEnd: LengthMetrics.px(40),
    bottomEnd: LengthMetrics.px(40)
  }
  @State amPmBorder: LengthMetrics|LocalizedBorderRadiuses = this.startBorderStyle;
  @State hourBorder: LengthMetrics|LocalizedBorderRadiuses = this.startBorderStyle;
  @State minBorder: LengthMetrics|LocalizedBorderRadiuses = this.endBorderStyle;
  @State secBorder: LengthMetrics|LocalizedBorderRadiuses = this.endBorderStyle;

  @State amPmIndex: number = 0;
  @State hourIndex: number = 0;
  @State minIndex: number = 0;
  @State secIndex: number = 0;

  @State amPmArr: Array<string|undefined> = []
  @State hourArr: Array<string> = []
  @State minSecArr: Array<string> = []

  @State currentTime: string = '';

  sysLanguageChanged: boolean = false
  zero: string = '0'
  systemLanguage: string = i18n.System.getSystemLanguage();
  // Create a NumberFormat object using the current system locale ID.
  formatter: intl.NumberFormat = new intl.NumberFormat();

  aboutToAppear(): void {
    this.zero = this.formatter.format(0)
    this.flushAmPmColumn()
    this.flushHourColumn()
    this.flushMinSecColumn()
    this.flushCurrentTime()
    this.flushBorderStyle()
    let subscriber: commonEventManager.CommonEventSubscriber;
    let subscribeInfo: commonEventManager.CommonEventSubscribeInfo = {
      events: [commonEventManager.Support.COMMON_EVENT_LOCALE_CHANGED]
    };
    // Create a subscriber to listen for the system language changes.
    commonEventManager.createSubscriber(subscribeInfo)
      .then((commonEventSubscriber: commonEventManager.CommonEventSubscriber) => {
        console.info("CreateSubscriber");
        subscriber = commonEventSubscriber;
        commonEventManager.subscribe(subscriber, (err, data) => {
          if (err) {
            console.error(`Failed to subscribe common event. error code: ${err.code}, message: ${err.message}.`);
            return;
          }
          this.formatter = new intl.NumberFormat();
          this.zero = this.formatter.format(0)
          this.sysLanguageChanged = true
          this.systemLanguage = i18n.System.getSystemLanguage();
          this.flushAmPmColumn()
          this.flushHourColumn()
          this.flushMinSecColumn()
          this.flushCurrentTime()
          this.flushBorderStyle()
        })
      })
      .catch((err: BusinessError) => {
        console.error(`CreateSubscriber failed, code is ${err.code}, message is ${err.message}`);
      });
  }

  onPageShow(): void {
    if (this.sysLanguageChanged) {
      this.flushAmPmColumn()
      this.flushCurrentTime()
      this.flushBorderStyle()
      this.sysLanguageChanged = false
    }
  }

  buildColumnOptions(start: number, end: number, isHour: boolean = false) : string[] {
    let newOptions: string[] = []
    for (let i = start; i <= end; i++) {
      if (isHour && i == 0 && !this.useMilitary) {
        newOptions.push(this.formatter.format(12))
        continue
      }
      if (this.zeroPrefix) {
        newOptions.push(this.formatTime(i))
      } else {
        newOptions.push(this.formatter.format(i))
      }
    }
    return newOptions
  }

  flushAmPmColumn() {
    // Set whether to display the amPm column at the end based on linguistic habits.
    if (this.systemLanguage.startsWith('en')||this.systemLanguage == 'ug') {
      this.amPmAtLast = true
    } else {
      this.amPmAtLast = false
    }
    this.amPmArr[0] = this.getUIContext().getHostContext()?.resourceManager.getStringSync($r('app.string.am').id)
    this.amPmArr[1] = this.getUIContext().getHostContext()?.resourceManager.getStringSync($r('app.string.pm').id)
  }

  flushHourColumn() {
    if (this.useMilitary) {
      this.hourArr = this.buildColumnOptions(0, 23)
    } else {
      this.hourArr = this.buildColumnOptions(0, 11, true)
    }
  }

  flushMinSecColumn() {
    this.minSecArr = this.buildColumnOptions(0, 59)
  }

  flushBorderStyle() {
    let realStartBorder = this.startBorderStyle
    let realEndBorder = this.endBorderStyle
    // Set the time sequence of the RTL language based on linguistic habits.
    if (this.systemLanguage == 'ar'||this.systemLanguage == 'ug') {
      this.isRtl = true
      realStartBorder = this.endBorderStyle
      realEndBorder = this.startBorderStyle
    } else {
      this.isRtl = false
    }
    if (!this.useMilitary) {
      if (this.amPmAtLast) {
        this.amPmBorder = realEndBorder
        this.hourBorder = realStartBorder
        this.minBorder = this.centerBorderStyle
        this.secBorder = this.centerBorderStyle
      } else {
        this.amPmBorder = realStartBorder
        this.hourBorder = this.centerBorderStyle
        if (this.showSecond) {
          this.minBorder = this.centerBorderStyle
        } else {
          this.minBorder = realEndBorder
        }
        this.secBorder = realEndBorder
      }
    } else {
      this.hourBorder = realStartBorder
      if (this.showSecond) {
        this.minBorder = this.centerBorderStyle
      } else {
        this.minBorder = realEndBorder
      }
      this.secBorder = realEndBorder
    }
  }

  formatTime(time: number): string {
    if (time < 10) {
      return this.zero + this.formatter.format(time)
    }
    return this.formatter.format(time)
  }

  @Builder
  buildAmPmColumn() {
    UIPickerComponent({ selectedIndex: this.amPmIndex }) {
      ForEach(this.amPmArr, (amPm: string) => {
        Text(amPm)
      })
    }
    .width('200px')
    .canLoop(this.loop)
    .selectionIndicator({
      type: PickerIndicatorType.BACKGROUND,
      borderRadius: this.amPmBorder
    })
    .onChange((selectedIndex: number) => {
      this.amPmIndex = selectedIndex
      this.flushCurrentTime()
    })
    .onScrollStop((selectedIndex: number) => {
      this.amPmIndex = selectedIndex
      this.flushCurrentTime()
    })
  }

  @Builder
  buildHourColumn() {
    UIPickerComponent({ selectedIndex: this.hourIndex }) {
      ForEach(this.hourArr, (hour: string) => {
        Text(hour)
      })
    }
    .width('200px')
    .canLoop(this.loop)
    .selectionIndicator({
      type: PickerIndicatorType.BACKGROUND,
      borderRadius: this.hourBorder
    })
    .onChange((selectedIndex: number) => {
      this.hourIndex = selectedIndex
      this.flushCurrentTime()
    })
    .onScrollStop((selectedIndex: number) => {
      this.hourIndex = selectedIndex
      this.flushCurrentTime()
    })
  }

  @Builder
  buildMinColumn() {
    UIPickerComponent({ selectedIndex: this.minIndex }) {
      ForEach(this.minSecArr, (min: string) => {
        Text(min)
      })
    }
    .width('200px')
    .canLoop(this.loop)
    .selectionIndicator({
      type: PickerIndicatorType.BACKGROUND,
      borderRadius: this.minBorder
    })
    .onChange((selectedIndex: number) => {
      this.minIndex = selectedIndex
      this.flushCurrentTime()
    })
    .onScrollStop((selectedIndex: number) => {
      this.minIndex = selectedIndex
      this.flushCurrentTime()
    })
  }

  @Builder
  buildSecColumn() {
    UIPickerComponent({ selectedIndex: this.secIndex }) {
      ForEach(this.minSecArr, (sec: string) => {
        Text(sec)
      })
    }
    .width('200px')
    .canLoop(this.loop)
    .selectionIndicator({
      type: PickerIndicatorType.BACKGROUND,
      borderRadius: this.secBorder
    })
    .onChange((selectedIndex: number) => {
      this.secIndex = selectedIndex
      this.flushCurrentTime()
    })
    .onScrollStop((selectedIndex: number) => {
      this.secIndex = selectedIndex
      this.flushCurrentTime()
    })
  }

  flushCurrentTime() {
    this.currentTime = ''
    if (!this.useMilitary) {
      this.currentTime += this.amPmArr[this.amPmIndex] + ' '
    }
    this.currentTime += this.hourArr[this.hourIndex] + ':' + this.minSecArr[this.minIndex]
    if (this.showSecond) {
      this.currentTime += ':' + this.minSecArr[this.secIndex]
    }
  }

  build() {
    Column() {
      Row() {
        // Create columns according to the display sequence of the RTL language.
        if (!this.isRtl) {
          if (!this.useMilitary && !this.amPmAtLast) {
            this.buildAmPmColumn()
            this.buildHourColumn()
          } else {
            this.buildHourColumn()
          }
          this.buildMinColumn()
          if (this.showSecond) {
            this.buildSecColumn()
          }
          if (!this.useMilitary && this.amPmAtLast) {
            this.buildAmPmColumn()
          }
        } else {
          if (!this.useMilitary && this.amPmAtLast) {
            this.buildAmPmColumn()
          }
          if (this.showSecond) {
            this.buildSecColumn()
          }
          this.buildMinColumn()
          if (!this.useMilitary && !this.amPmAtLast) {
            this.buildHourColumn()
            this.buildAmPmColumn()
          } else {
            this.buildHourColumn()
          }
        }
      }

      Row() {
        Text('selected time: ' + this.currentTime)
          .margin(5)
          .width("80%")
          .textAlign(TextAlign.Center)
      }
      .border({ width: 1 })
      .margin(5)

      Column() {
        Row() {
          Toggle({ type: ToggleType.Switch, isOn: true })
            .onChange((isOn: boolean) => {
              this.loop = isOn;
            })
          Text('loop').fontSize(20)
        }.width(200).margin(5)
        Row() {
          Toggle({ type: ToggleType.Switch, isOn: false })
            .onChange((isOn: boolean) => {
              this.showSecond = isOn
              this.flushCurrentTime()
              this.flushBorderStyle()
            })
          Text('show second').fontSize(20)
        }.width(200).margin(5)
        Row() {
          Toggle({ type: ToggleType.Switch, isOn: false })
            .onChange((isOn: boolean) => {
              this.useMilitary = isOn
              if (this.useMilitary) {
                if (this.amPmIndex) {
                  this.hourIndex += 12
                }
              } else {
                if (this.hourIndex >= 12) {
                  this.amPmIndex = 1
                  this.hourIndex -= 12
                } else {
                  this.amPmIndex = 0
                }
              }
              this.flushBorderStyle()
              this.flushHourColumn()
              this.flushCurrentTime()
            })
          Text('use military').fontSize(20)
        }.width(200).margin(5)
        Row() {
          Toggle({ type: ToggleType.Switch, isOn: true })
            .onChange((isOn: boolean) => {
              this.zeroPrefix = isOn
              this.flushHourColumn()
              this.flushMinSecColumn()
              this.flushCurrentTime()
            })
          Text('2-digits').fontSize(20)
        }.width(200).margin(5)
      }
    }
    .width('100%')
  }
}

containerPicker

你可能感兴趣的鸿蒙文章

openharmony 鸿蒙 ts-drawing-components-shape

openharmony 鸿蒙 ts-universal-attributes-sharp-clipping

openharmony 鸿蒙 ts-universal-attributes-toolbar

openharmony 鸿蒙 ts-container-lazyvgridlayout

openharmony 鸿蒙 ohos-arkui-advanced-FoldSplitContainer

openharmony 鸿蒙 ts-methods-calendarpicker-dialog

openharmony 鸿蒙 ts-uicommonevent

openharmony 鸿蒙 ts-basic-gestures-tapgesture

openharmony 鸿蒙 ohos-arkui-advanced-DialogV2

openharmony 鸿蒙 ts-components-canvas-canvas

  • 所属分类： 后端技术
  • 本文标签： 鸿蒙 软件
  • 版权声明： 本文链接 https://seaxiang.com/blog/u8hDRh20
