使用MindSpore Lite实现语音识别（C/C++）

场景说明

开发者可以使用MindSpore，在UI代码中集成MindSpore Lite能力，快速部署AI算法，进行AI模型推理，实现语音识别的应用。

语音识别可以将一段音频信息转换为文本，在智能语音助手、语音输入、语音搜索等领域有广泛的应用。

基本概念

N-API：用于构建ArkTS本地化组件的一套接口。可利用N-API，将C/C++开发的库封装成ArkTS模块。

开发流程

选择语音识别模型。
在端侧使用MindSpore Lite推理模型，实现对语音文件的语音识别。

环境准备

安装DevEco Studio，要求版本 >= 5.0.2，并更新SDK到API 14或以上。

开发步骤

本文以对语音识别模型进行推理为例，提供使用MindSpore Lite实现语音识别应用的开发指导。

选择模型

本示例程序中使用的语音识别模型文件为tiny-encoder.ms、tiny-decoder-main.ms、tiny-decoder-loop.ms，放置在entry/src/main/resources/rawfile工程目录下。

编写代码

播放音频

调用@ohos.multimedia.media、@ohos.multimedia.audio，实现播放音频的功能。

// player.ets
import { media } from '@kit.MediaKit';
import { common } from '@kit.AbilityKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { audio } from '@kit.AudioKit';
import { UIContext } from '@kit.ArkUI';

export default class AVPlayerDemo {
  private isSeek: boolean = false; // 用于区分模式是否支持seek操作。
  // 注册avplayer回调函数。
  setAVPlayerCallback(avPlayer: media.AVPlayer) {
    // seek操作结果回调函数。
    avPlayer.on('seekDone', (seekDoneTime: number) => {
      console.info(`MS_LITE_LOG: AVPlayer seek succeeded, seek time is ${seekDoneTime}`);
    });
    // error回调监听函数，当avPlayer在操作过程中出现错误时调用reset接口触发重置流程。
    avPlayer.on('error', (err: BusinessError) => {
      console.error(`MS_LITE_LOG: Invoke avPlayer failed, code is ${err.code}, message is ${err.message}`);
      avPlayer.reset(); // 调用reset重置资源，触发idle状态。
    });
    // 状态机变化回调函数。
    avPlayer.on('stateChange', async (state: string, reason: media.StateChangeReason) => {
      switch (state) {
        case 'idle': // 成功调用reset接口后触发该状态机上报。
          console.info('MS_LITE_LOG: AVPlayer state idle called.');
          avPlayer.release(); // 调用release接口销毁实例对象。
          break;
        case 'initialized': // avplayer 设置播放源后触发该状态上报。
          console.info('MS_LITE_LOG: AVPlayer state initialized called.');
          avPlayer.audioRendererInfo = {
            usage: audio.StreamUsage.STREAM_USAGE_MUSIC, // 音频流使用类型：音乐。根据业务场景配置。
            rendererFlags: 0 // 音频渲染器标志。
          };
          avPlayer.prepare();
          break;
        case 'prepared': // prepare调用成功后上报该状态机。
          console.info('MS_LITE_LOG: AVPlayer state prepared called.');
          avPlayer.play(); // 调用播放接口开始播放。
          break;
        case 'playing': // play成功调用后触发该状态机上报。
          console.info('MS_LITE_LOG: AVPlayer state playing called.');
          if (this.isSeek) {
            console.info('MS_LITE_LOG: AVPlayer start to seek.');
            avPlayer.seek(0); // seek到音频末尾。
          } else {
            // 当播放模式不支持seek操作时继续播放到结尾。
            console.info('MS_LITE_LOG: AVPlayer wait to play end.');
          }
          break;
        case 'paused': // pause成功调用后触发该状态机上报。
          console.info('MS_LITE_LOG: AVPlayer state paused called.');
          setTimeout(() => {
            console.info('MS_LITE_LOG: AVPlayer paused wait to play again');
            avPlayer.play(); // 暂停3s后再次调用播放接口开始播放。
          }, 3000);
          break;
        case 'completed': // 播放结束后触发该状态机上报。
          console.info('MS_LITE_LOG: AVPlayer state completed called.');
          avPlayer.stop(); // 调用播放结束接口。
          break;
        case 'stopped': // stop接口成功调用后触发该状态机上报。
          console.info('MS_LITE_LOG: AVPlayer state stopped called.');
          avPlayer.reset(); // 调用reset接口初始化avplayer状态。
          break;
        case 'released':
          console.info('MS_LITE_LOG: AVPlayer state released called.');
          break;
        default:
          console.info('MS_LITE_LOG: AVPlayer state unknown called.');
          break;
      }
    });
  }

  // 使用资源管理接口获取音频文件并通过fdSrc属性进行播放。
  async avPlayerFdSrcDemo() {
    // 创建avPlayer实例对象。
    let avPlayer: media.AVPlayer = await media.createAVPlayer();
    // 创建状态机变化回调函数。
    this.setAVPlayerCallback(avPlayer);
    // 通过UIAbilityContext的resourceManager成员的getRawFd接口获取媒体资源播放地址。
    // 返回类型为{fd,offset,length},fd为HAP包fd地址，offset为媒体资源偏移量，length为播放长度。
    let context = new UIContext().getHostContext() as common.UIAbilityContext;
    let fileDescriptor = await context.resourceManager.getRawFd('zh.wav');
    let avFileDescriptor: media.AVFileDescriptor =
      { fd: fileDescriptor.fd, offset: fileDescriptor.offset, length: fileDescriptor.length };
    this.isSeek = true; // 支持seek操作。
    // 为fdSrc赋值触发initialized状态机上报。
    avPlayer.fdSrc = avFileDescriptor;
  }
}

识别音频

调用MindSpore，依次对3个模型进行推理，推理代码流程如下。

引用对应的头文件。其中三方库librosa来源是LibrosaCpp，libsamplerate来源是libsamplerate，AudioFile.h、base64.h来源是whisper.axera。

#include "AudioFile.h"
#include "base64.h"
#include "napi/native_api.h"
#include "utils.h"
#include <algorithm>
#include <cstdlib>
#include <fstream>
#include <hilog/log.h>
#include <iostream>
#include <librosa/librosa.h>
#include <mindspore/context.h>
#include <mindspore/model.h>
#include <mindspore/status.h>
#include <mindspore/tensor.h>
#include <mindspore/types.h>
#include <numeric>
#include <rawfile/raw_file_manager.h>
#include <sstream>
#include <vector>

读取音频文件、模型文件等，转换为buffer数据。

#define LOGI(...) ((void)OH_LOG_Print(LOG_APP, LOG_INFO, LOG_DOMAIN, "[MSLiteNapi]", __VA_ARGS__))
#define LOGD(...) ((void)OH_LOG_Print(LOG_APP, LOG_DEBUG, LOG_DOMAIN, "[MSLiteNapi]", __VA_ARGS__))
#define LOGW(...) ((void)OH_LOG_Print(LOG_APP, LOG_WARN, LOG_DOMAIN, "[MSLiteNapi]", __VA_ARGS__))
#define LOGE(...) ((void)OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_DOMAIN, "[MSLiteNapi]", __VA_ARGS__))

using BinBuffer = std::pair<void *, size_t>;

BinBuffer ReadBinFile(NativeResourceManager *nativeResourceManager, const std::string &modelName)
{
    auto rawFile = OH_ResourceManager_OpenRawFile(nativeResourceManager, modelName.c_str());
    if (rawFile == nullptr) {
        LOGE("MS_LITE_ERR: Open model file failed");
        return BinBuffer(nullptr, 0);
    }
    long fileSize = OH_ResourceManager_GetRawFileSize(rawFile);
    if (fileSize <= 0) {
        LOGE("MS_LITE_ERR: FileSize not correct");
        return BinBuffer(nullptr, 0);
    }
    void *buffer = malloc(fileSize);
    if (buffer == nullptr) {
        LOGE("MS_LITE_ERR: OH_ResourceManager_ReadRawFile failed");
        return BinBuffer(nullptr, 0);
    }
    int ret = OH_ResourceManager_ReadRawFile(rawFile, buffer, fileSize);
    if (ret == 0) {
        LOGE("MS_LITE_LOG: OH_ResourceManager_ReadRawFile failed");
        OH_ResourceManager_CloseRawFile(rawFile);
        return BinBuffer(nullptr, 0);
    }
    OH_ResourceManager_CloseRawFile(rawFile);
    return BinBuffer(buffer, fileSize);
}

BinBuffer ReadTokens(NativeResourceManager *nativeResourceManager, const std::string &modelName) {
    auto rawFile = OH_ResourceManager_OpenRawFile(nativeResourceManager, modelName.c_str());
    if (rawFile == nullptr) {
        LOGE("MS_LITE_ERR: Open model file failed");
    }
    long fileSize = OH_ResourceManager_GetRawFileSize(rawFile);
    if (fileSize <= 0) {
        LOGE("MS_LITE_ERR: FileSize not correct");
    }
    void *buffer = malloc(fileSize);
    if (buffer == nullptr) {
        LOGE("MS_LITE_ERR: OH_ResourceManager_ReadRawFile failed");
    }
    int ret = OH_ResourceManager_ReadRawFile(rawFile, buffer, fileSize);
    if (ret == 0) {
        LOGE("MS_LITE_LOG: OH_ResourceManager_ReadRawFile failed");
        OH_ResourceManager_CloseRawFile(rawFile);
    }
    OH_ResourceManager_CloseRawFile(rawFile);
    BinBuffer res(buffer, fileSize);
    return res;
}

创建上下文，设置设备类型，并加载模型。

void DestroyModelBuffer(void **buffer)
{
    if (buffer == nullptr) {
        return;
    }
    free(*buffer);
    *buffer = nullptr;
}

OH_AI_ModelHandle CreateMSLiteModel(BinBuffer &bin)
{
    // 创建并配置上下文
    auto context = OH_AI_ContextCreate();
    if (context == nullptr) {
        DestroyModelBuffer(&bin.first);
        LOGE("MS_LITE_ERR: Create MSLite context failed.\n");
        return nullptr;
    }
    auto cpu_device_info = OH_AI_DeviceInfoCreate(OH_AI_DEVICETYPE_CPU);
    OH_AI_DeviceInfoSetEnableFP16(cpu_device_info, false);
    OH_AI_ContextAddDeviceInfo(context, cpu_device_info);

    // 创建模型
    auto model = OH_AI_ModelCreate();
    if (model == nullptr) {
        DestroyModelBuffer(&bin.first);
        LOGE("MS_LITE_ERR: Allocate MSLite Model failed.\n");
        return nullptr;
    }

    // 加载与编译模型，模型的类型为OH_AI_MODELTYPE_MINDIR
    auto build_ret = OH_AI_ModelBuild(model, bin.first, bin.second, OH_AI_MODELTYPE_MINDIR, context);
    DestroyModelBuffer(&bin.first);
    if (build_ret != OH_AI_STATUS_SUCCESS) {
        OH_AI_ModelDestroy(&model);
        LOGE("MS_LITE_ERR: Build MSLite model failed.\n");
        return nullptr;
    }
    LOGI("MS_LITE_LOG: Build MSLite model success.\n");
    return model;
}

设置模型输入数据，执行模型推理。

constexpr int K_NUM_PRINT_OF_OUT_DATA = 20;

int FillInputTensor(OH_AI_TensorHandle input, const BinBuffer &bin)
{
    if (OH_AI_TensorGetDataSize(input) != bin.second) {
        return OH_AI_STATUS_LITE_INPUT_PARAM_INVALID;
    }
    char *data = (char *)OH_AI_TensorGetMutableData(input);
    memcpy(data, (const char *)bin.first, OH_AI_TensorGetDataSize(input));
    return OH_AI_STATUS_SUCCESS;
}

// 执行模型推理
int RunMSLiteModel(OH_AI_ModelHandle model, std::vector<BinBuffer> inputBins)
{
    // 设置模型的输入数据
    auto inputs = OH_AI_ModelGetInputs(model);
    for(int i = 0; i < inputBins.size(); i++)
    {
        auto ret = FillInputTensor(inputs.handle_list[i], inputBins[i]);
        if (ret != OH_AI_STATUS_SUCCESS) {
            LOGE("MS_LITE_ERR: set input %{public}d error.\n", i);
            return OH_AI_STATUS_LITE_ERROR;
        }
    }

    // 获取模型的输出张量
    auto outputs = OH_AI_ModelGetOutputs(model);

    // 模型推理
    auto predict_ret = OH_AI_ModelPredict(model, inputs, &outputs, nullptr, nullptr);
    if (predict_ret != OH_AI_STATUS_SUCCESS) {
        OH_AI_ModelDestroy(&model);
        LOGE("MS_LITE_ERR: MSLite Predict error.\n");
        return OH_AI_STATUS_LITE_ERROR;
    }
    LOGD("MS_LITE_LOG: Run MSLite model Predict success.\n");

    // 打印输出数据
    LOGD("MS_LITE_LOG: Get model outputs:\n");
    for (size_t i = 0; i < outputs.handle_num; i++) {
        auto tensor = outputs.handle_list[i];
        LOGD("MS_LITE_LOG: - Tensor %{public}d name is: %{public}s.\n", static_cast<int>(i),
             OH_AI_TensorGetName(tensor));
        LOGD("MS_LITE_LOG: - Tensor %{public}d size is: %{public}d.\n", static_cast<int>(i),
             (int)OH_AI_TensorGetDataSize(tensor));
        LOGD("MS_LITE_LOG: - Tensor data is:\n");
        auto out_data = reinterpret_cast<const float *>(OH_AI_TensorGetData(tensor));
        std::stringstream outStr;
        for (int i = 0; (i < OH_AI_TensorGetElementNum(tensor)) && (i <= K_NUM_PRINT_OF_OUT_DATA); i++) {
            outStr << out_data[i] << " ";
        }
        LOGD("MS_LITE_LOG: %{public}s", outStr.str().c_str());
    }
    return OH_AI_STATUS_SUCCESS;
}

调用以上方法，实现3个模型的推理流程。

const float NEG_INF = -std::numeric_limits<float>::infinity();
const int WHISPER_SOT = 50258;
const int WHISPER_TRANSCRIBE = 50359;
const int WHISPER_TRANSLATE = 50358;
const int WHISPER_NO_TIMESTAMPS = 50363;
const int WHISPER_EOT = 50257;
const int WHISPER_BLANK = 220;
const int WHISPER_NO_SPEECH = 50362;
const int WHISPER_N_TEXT_CTX = 448;
const int WHISPER_N_TEXT_STATE = 384;
constexpr int WHISPER_SAMPLE_RATE = 16000;

BinBuffer GetMSOutput(OH_AI_TensorHandle output) {
    float *outputData = reinterpret_cast<float *>(OH_AI_TensorGetMutableData(output));
    size_t size = OH_AI_TensorGetDataSize(output);
    return {outputData, size};
}

void SupressTokens(BinBuffer &logits, bool is_initial) {
    auto logits_data = static_cast<float *>(logits.first);
    if (is_initial) {
        logits_data[WHISPER_EOT] = NEG_INF;
        logits_data[WHISPER_BLANK] = NEG_INF;
    }

    // 其他令牌的抑制
    logits_data[WHISPER_NO_TIMESTAMPS] = NEG_INF;
    logits_data[WHISPER_SOT] = NEG_INF;
    logits_data[WHISPER_NO_SPEECH] = NEG_INF;
    logits_data[WHISPER_TRANSLATE] = NEG_INF;
}

std::vector<int> LoopPredict(const OH_AI_ModelHandle model, const BinBuffer &n_layer_cross_k,
                             const BinBuffer &n_layer_cross_v, const BinBuffer &logits_init,
                             BinBuffer &out_n_layer_self_k_cache, BinBuffer &out_n_layer_self_v_cache,
                             const BinBuffer &data_embedding, const int loop, const int offset_init) {
    BinBuffer logits{nullptr, 51865 * sizeof(float)};
    logits.first = malloc(logits.second);
    if (!logits.first) {
        LOGE("MS_LITE_LOG: Fail to malloc!\n");
    }
    void *logits_init_src = static_cast<char *>(logits_init.first) + 51865 * 3 * sizeof(float);
    memcpy(logits.first, logits_init_src, logits.second);
    SupressTokens(logits, true);

    std::vector<int> output_token;
    float *logits_data = static_cast<float *>(logits.first);
    int max_token_id = 0;
    float max_token = logits_data[0];
    for (int i = 0; i < logits.second / sizeof(float); i++) {
        if (logits_data[i] > max_token) {
            max_token_id = i;
            max_token = logits_data[i];
        }
    }

    int offset = offset_init;
    BinBuffer slice{nullptr, 0};
    slice.second = WHISPER_N_TEXT_STATE * sizeof(float);
    slice.first = malloc(slice.second);
    if (!slice.first) {
        LOGE("MS_LITE_LOG: Fail to malloc!\n");
    }

    auto out_n_layer_self_k_cache_new = out_n_layer_self_k_cache;
    auto out_n_layer_self_v_cache_new = out_n_layer_self_v_cache;

    for (size_t i = 0; i < loop; i++) {
        if (max_token_id == WHISPER_EOT) {
            break;
        }
        output_token.push_back(max_token_id);
        std::vector<float> mask(WHISPER_N_TEXT_CTX, 0.0f);
        for (size_t i = 0; i < WHISPER_N_TEXT_CTX - offset - 1; ++i) {
            mask[i] = NEG_INF;
        }
        BinBuffer tokens{&max_token_id, sizeof(int)};

        void *data_embedding_src =
            static_cast<char *>(data_embedding.first) + offset * WHISPER_N_TEXT_STATE * sizeof(float);
        memcpy(slice.first, data_embedding_src, slice.second);
        BinBuffer mask_bin(mask.data(), mask.size() * sizeof(float));
        int ret = RunMSLiteModel(model, {tokens, out_n_layer_self_k_cache_new, out_n_layer_self_v_cache_new,
                                         n_layer_cross_k, n_layer_cross_v, slice, mask_bin});

        auto outputs = OH_AI_ModelGetOutputs(model);
        logits = GetMSOutput(outputs.handle_list[0]);
        out_n_layer_self_k_cache_new = GetMSOutput(outputs.handle_list[1]);
        out_n_layer_self_v_cache_new = GetMSOutput(outputs.handle_list[2]);
        offset++;
        SupressTokens(logits, false);
        logits_data = static_cast<float *>(logits.first);
        max_token = logits_data[0];

        for (int j = 0; j < logits.second / sizeof(float); j++) {
            if (logits_data[j] > max_token) {
                max_token_id = j;
                max_token = logits_data[j];
            }
        }
        LOGI("MS_LITE_LOG: run decoder loop %{public}d ok!\n token = %{public}d", i, max_token_id);
    }
    return output_token;
}

std::vector<std::string> ProcessDataLines(const BinBuffer token_txt) {
    void *data_ptr = token_txt.first;
    size_t data_size = token_txt.second;
    std::vector<std::string> tokens;

    const char *char_data = static_cast<const char *>(data_ptr);
    std::stringstream ss(std::string(char_data, char_data + data_size));
    std::string line;
    while (std::getline(ss, line)) {
        size_t space_pos = line.find(' ');
        tokens.push_back(line.substr(0, space_pos));
    }
    return tokens;
}

static napi_value RunDemo(napi_env env, napi_callback_info info)
{
    // 执行样例推理
    napi_value error_ret;
    napi_create_int32(env, -1, &error_ret);
    size_t argc = 1;
    napi_value argv[1] = {nullptr};
    napi_get_cb_info(env, info, &argc, argv, nullptr, nullptr);
    auto resourcesManager = OH_ResourceManager_InitNativeResourceManager(env, argv[0]);

    // 数据预处理
    AudioFile<float> audioFile;
    std::string filePath = "zh.wav";
    auto audioBin = ReadBinFile(resourcesManager, filePath);
    if (audioBin.first == nullptr) {
        LOGI("MS_LITE_LOG: Fail to read  %{public}s!", filePath.c_str());
    }
    size_t dataSize = audioBin.second;
    uint8_t *dataBuffer = (uint8_t *)audioBin.first;
    bool ok = audioFile.loadFromMemory(std::vector<uint8_t>(dataBuffer, dataBuffer + dataSize));
    if (!ok) {
        LOGI("MS_LITE_LOG: Fail to read  %{public}s!", filePath.c_str());
    }
    std::vector<float> data(audioFile.samples[0]);
    ResampleAudio(data, audioFile.getSampleRate(), WHISPER_SAMPLE_RATE, 1, SRC_SINC_BEST_QUALITY);
    std::vector<float> audio(data);

    int padding = 480000;
    int sr = 16000;
    int n_fft = 480;
    int n_hop = 160;
    int n_mel = 80;
    int fmin = 0; // 最小频率，默认值为0.0 Hz
    int fmax =
        sr /
        2.0; // 最大频率，默认值为采样率（sr/2.0）的一半
    audio.insert(audio.end(), padding, 0.0f);
    std::vector<std::vector<float>> mels_T =
        librosa::Feature::melspectrogram(audio, sr, n_fft, n_hop, "hann", true, "reflect", 2.f, n_mel, fmin, fmax);
    std::cout << "mels: " << std::endl;

    std::vector<std::vector<float>> mels = TransposeMel(mels_T);
    ProcessMelSpectrogram(mels);

    std::vector<float> inputMels(mels.size() * mels[0].size(), 0);
    for (int i = 0; i < mels.size(); i++) {
        std::copy(mels[i].begin(), mels[i].end(), inputMels.begin() + i * mels[0].size());
    }

    BinBuffer inputMelsBin(inputMels.data(), inputMels.size() * sizeof(float));

    // tiny-encoder.ms模型推理
    auto encoderBin = ReadBinFile(resourcesManager, "tiny-encoder.ms");
    if (encoderBin.first == nullptr) {
        return error_ret;
    }

    auto encoder = CreateMSLiteModel(encoderBin);

    int ret = RunMSLiteModel(encoder, {inputMelsBin});
    if (ret != OH_AI_STATUS_SUCCESS) {
        OH_AI_ModelDestroy(&encoder);
        return error_ret;
    }
    LOGI("run encoder ok!\n");

    auto outputs = OH_AI_ModelGetOutputs(encoder);
    auto n_layer_cross_k = GetMSOutput(outputs.handle_list[0]);
    auto n_layer_cross_v = GetMSOutput(outputs.handle_list[1]);

    // tiny-decoder-main.ms模型推理
    std::vector<int> SOT_SEQUENCE = {WHISPER_SOT,
                                     WHISPER_SOT + 1 + 1,
                                     WHISPER_TRANSCRIBE, WHISPER_NO_TIMESTAMPS};
    BinBuffer sotSequence(SOT_SEQUENCE.data(), SOT_SEQUENCE.size() * sizeof(int));

    const std::string decoder_main_path = "tiny-decoder-main.ms";
    auto decoderMainBin = ReadBinFile(resourcesManager, decoder_main_path);
    if (decoderMainBin.first == nullptr) {
        return error_ret;
    }
    auto decoder_main = CreateMSLiteModel(decoderMainBin);
    int ret2 = RunMSLiteModel(decoder_main, {sotSequence, n_layer_cross_k, n_layer_cross_v});

    if (ret2 != OH_AI_STATUS_SUCCESS) {
        OH_AI_ModelDestroy(&decoder_main);
        return error_ret;
    }
    LOGI("run decoder_main ok!\n");

    auto decoderMainOut = OH_AI_ModelGetOutputs(decoder_main);
    auto logitsBin = GetMSOutput(decoderMainOut.handle_list[0]);
    auto out_n_layer_self_k_cache_Bin = GetMSOutput(decoderMainOut.handle_list[1]);
    auto out_n_layer_self_v_cache_Bin = GetMSOutput(decoderMainOut.handle_list[2]);

    // tiny-decoder-loop.ms模型推理
    const std::string modelName3 = "tiny-decoder-loop.ms";
    auto modelBuffer3 = ReadBinFile(resourcesManager, modelName3);
    auto decoder_loop = CreateMSLiteModel(modelBuffer3);

    const std::string dataName_embedding = "tiny-positional_embedding.bin"; // 获取输入数据
    auto data_embedding = ReadBinFile(resourcesManager, dataName_embedding);
    if (data_embedding.first == nullptr) {
        return error_ret;
    }

    int loop_times = WHISPER_N_TEXT_CTX - SOT_SEQUENCE.size();
    int offset_init = SOT_SEQUENCE.size();
    auto output_tokens =
        LoopPredict(decoder_loop, n_layer_cross_k, n_layer_cross_v, logitsBin, out_n_layer_self_k_cache_Bin,
                    out_n_layer_self_v_cache_Bin, data_embedding, loop_times, offset_init);

    std::vector<std::string> token_tables = ProcessDataLines(ReadTokens(resourcesManager, "tiny-tokens.txt"));
    std::string result;
    for (const auto i : output_tokens) {
        char str[1024];
        base64_decode((const uint8 *)token_tables[i].c_str(), (uint32)token_tables[i].size(), str);
        result += str;
    }
    LOGI("MS_LITE_LOG: result is -> %{public}s", result.c_str());

    OH_AI_ModelDestroy(&encoder);
    OH_AI_ModelDestroy(&decoder_main);
    OH_AI_ModelDestroy(&decoder_loop);

    napi_value out_data;
    napi_create_string_utf8(env, result.c_str(), result.length(), &out_data);
    return out_data;
}

编写CMake脚本，链接MindSpore Lite动态库。

# the minimum version of CMake.
cmake_minimum_required(VERSION 3.5.0)
project(test)
set(CMAKE_CXX_STANDARD 17) # AudioFile.h
set(CMAKE_CXX_STANDARD_REQUIRED TRUE)
set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})

if(DEFINED PACKAGE_FIND_FILE)
    include(${PACKAGE_FIND_FILE})
endif()

include_directories(${NATIVERENDER_ROOT_PATH}
                    ${NATIVERENDER_ROOT_PATH}/include)

# libsamplerate
set(LIBSAMPLERATE_DIR ${NATIVERENDER_ROOT_PATH}/third_party/libsamplerate)
include_directories(${LIBSAMPLERATE_DIR}/include)
add_subdirectory(${LIBSAMPLERATE_DIR})

include_directories(${NATIVERENDER_ROOT_PATH}/third_party/opencc/include/opencc)
# src
aux_source_directory(src SRC_DIR)
include_directories(${NATIVERENDER_ROOT_PATH}/src)

include_directories(${CMAKE_SOURCE_DIR}/third_party)

file(GLOB SRC src/*.cc)

add_library(entry SHARED mslite_napi.cpp ${SRC})
target_link_libraries(entry PUBLIC samplerate)
target_link_libraries(entry PUBLIC mindspore_lite_ndk)
target_link_libraries(entry PUBLIC hilog_ndk.z)
target_link_libraries(entry PUBLIC rawfile.z)
target_link_libraries(entry PUBLIC ace_napi.z)

使用N-API将C++动态库封装成ArkTS模块

在 entry/src/main/cpp/types/libentry/Index.d.ts，定义ArkTS接口runDemo() 。内容如下：
```
export const runDemo: (a: Object) => string;
```

在 oh-package.json5 文件，将API与so相关联，成为一个完整的ArkTS模块：

{
  "name": "entry",
  "version": "1.0.0",
  "description": "MindSpore Lite inference module",
  "main": "",
  "author": "",
  "license": "",
  "dependencies": {
    "libentry.so": "file:./src/main/cpp/types/libentry"
  }
}

调用封装的ArkTS模块进行推理并输出结果

在 entry/src/main/ets/pages/Index.ets 中，调用封装的ArkTS模块，最后对推理结果进行处理。

// Index.ets

import msliteNapi from 'libentry.so'
import AVPlayerDemo from './player';
import { transverter, TransverterType, TransverterLanguage } from "@nutpi/chinese_transverter"

@Entry
@Component
struct Index {
  @State message: string = 'MSLite Whisper Demo';
  @State wavName: string = 'zh.wav';
  @State content: string = '';

  build() {
    Row() {
      Column() {
        Text(this.message)
          .fontSize(30)
          .fontWeight(FontWeight.Bold);
        Button() {
          Text('播放示例音频')
            .fontSize(20)
            .fontWeight(FontWeight.Medium)
        }
        .type(ButtonType.Capsule)
        .margin({
          top: 20
        })
        .backgroundColor('#0D9FFB')
        .width('40%')
        .height('5%')
        .onClick(async () =>{
          // 通过实例调用类中的函数
          console.info('MS_LITE_LOG: begin to play wav.');
          let myClass = new AVPlayerDemo();
          myClass.avPlayerFdSrcDemo();
        })
        Button() {
          Text('识别示例音频')
            .fontSize(20)
            .fontWeight(FontWeight.Medium)
        }
        .type(ButtonType.Capsule)
        .margin({
          top: 20
        })
        .backgroundColor('#0D9FFB')
        .width('40%')
        .height('5%')
        .onClick(() => {
          let resMgr = this.getUIContext()?.getHostContext()?.getApplicationContext().resourceManager;

          // 调用封装的runDemo函数
          console.info('MS_LITE_LOG: *** Start MSLite Demo ***');
          let output = msliteNapi.runDemo(resMgr);
          console.info('MS_LITE_LOG: output length = ', output.length, ';value = ', output.slice(0, 20));
          this.content = output;
          console.info('MS_LITE_LOG: *** Finished MSLite Demo ***');
        })

        // 显示识别内容
        if (this.content) {
          Text('识别内容: \n' + transverter({
            type: TransverterType.SIMPLIFIED,
            str: this.content,
            language: TransverterLanguage.ZH_CN
          }) + '\n').focusable(true).fontSize(20).height('20%')
        }
      }.width('100%')
    }
    .height('100%')
  }
}

调测验证

在DevEco Studio中连接设备，点击Run entry，编译Hap，有如下显示：

Launching com.samples.mindsporelitecdemoasr
$ hdc shell aa force-stop com.samples.mindsporelitecdemoasr
$ hdc shell mkdir data/local/tmp/xxx
$ hdc file send E:\xxx\entry\build\default\outputs\default\entry-default-signed.hap "data/local/tmp/xxx"
$ hdc shell bm install -p data/local/tmp/xxx
$ hdc shell rm -rf data/local/tmp/xxx
$ hdc shell aa start -a EntryAbility -b com.samples.mindsporelitecdemoasr
com.samples.mindsporelitecdemoasr successfully launched...

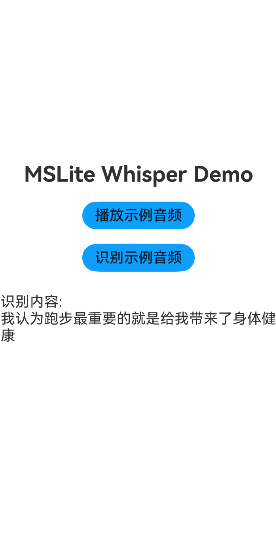

在设备屏幕点击播放示例音频按钮，会播放本示例音频文件。点击识别示例音频按钮，设备屏幕显示本示例音频文件的中文内容。在日志打印结果中，过滤关键字”MS_LITE_LOG“，可得到如下结果：

05-16 14:53:44.200   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: begin to play wav.
05-16 14:53:44.210   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     [a92ab1e0f831191, 0, 0] MS_LITE_LOG: AVPlayer state initialized called.
05-16 14:53:44.228   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     [a92ab1e0f831191, 0, 0] MS_LITE_LOG: AVPlayer state prepared called.
05-16 14:53:44.242   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: AVPlayer state playing called.
05-16 14:53:44.242   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: AVPlayer start to seek.
05-16 14:53:44.372   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: AVPlayer seek succeeded, seek time is 0
05-16 14:53:49.621   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: AVPlayer state completed called.
05-16 14:53:49.646   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: AVPlayer state stopped called.
05-16 14:53:49.647   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: AVPlayer state idle called.
05-16 14:53:49.649   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: AVPlayer state released called.
05-16 14:53:53.282   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: *** Start MSLite Demo ***
05-16 14:53:53.926   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  I     MS_LITE_LOG: Build MSLite model success.
05-16 14:53:54.260   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: Run MSLite model Predict success.
05-16 14:53:54.260   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: Get model outputs:
05-16 14:53:54.260   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: - Tensor 0 name is: n_layer_cross_k.
05-16 14:53:54.260   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: - Tensor 0 size is: 9216000.
05-16 14:53:54.260   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: - Tensor data is:
05-16 14:53:54.260   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: -1.14678 -2.30223 0.868679 0.284441 1.03233 -2.02062 0.688163 -0.732034 -1.10553 1.43459 0.083885 -0.116173 -0.772636 1.5466 -0.631993 -0.897929 -0.0501685 -1.62517 0.375988 -1.77772 -0.432178
05-16 14:53:54.260   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: - Tensor 1 name is: n_layer_cross_v.
05-16 14:53:54.260   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: - Tensor 1 size is: 9216000.
05-16 14:53:54.260   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: - Tensor data is:
05-16 14:53:54.260   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: 0.0876085 -0.560317 -0.652518 -0.116969 -0.182608 -9.40531e-05 0.186293 0.123206 0.0127445 0.0708352 -0.489624 -0.226322 -0.0686949 -0.0341293 -0.0719619 0.103588 0.398025 -0.444261 0.396124 -0.347295 0.00541205
05-16 14:53:54.430   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  I     MS_LITE_LOG: Build MSLite model success.
05-16 14:53:54.462   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  D     MS_LITE_LOG: Run MSLite model Predict success.
......
05-16 14:53:55.272   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  I     MS_LITE_LOG: run decoder loop 16 ok!
                                                                                                token = 50257
05-16 14:53:55.307   1679-1679     A00000/[MSLiteNapi]             com.sampl...cdemoasr  I     MS_LITE_LOG: result is -> 我認為跑步最重要的就是給我帶來了身體健康
05-16 14:53:55.334   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: output length =  20 ;value =  我認為跑步最重要的就是給我帶來了身體健康
05-16 14:53:55.334   1679-1679     A03d00/JSAPP                    com.sampl...cdemoasr  I     MS_LITE_LOG: *** Finished MSLite Demo ***
