Running an Image

Starting the System

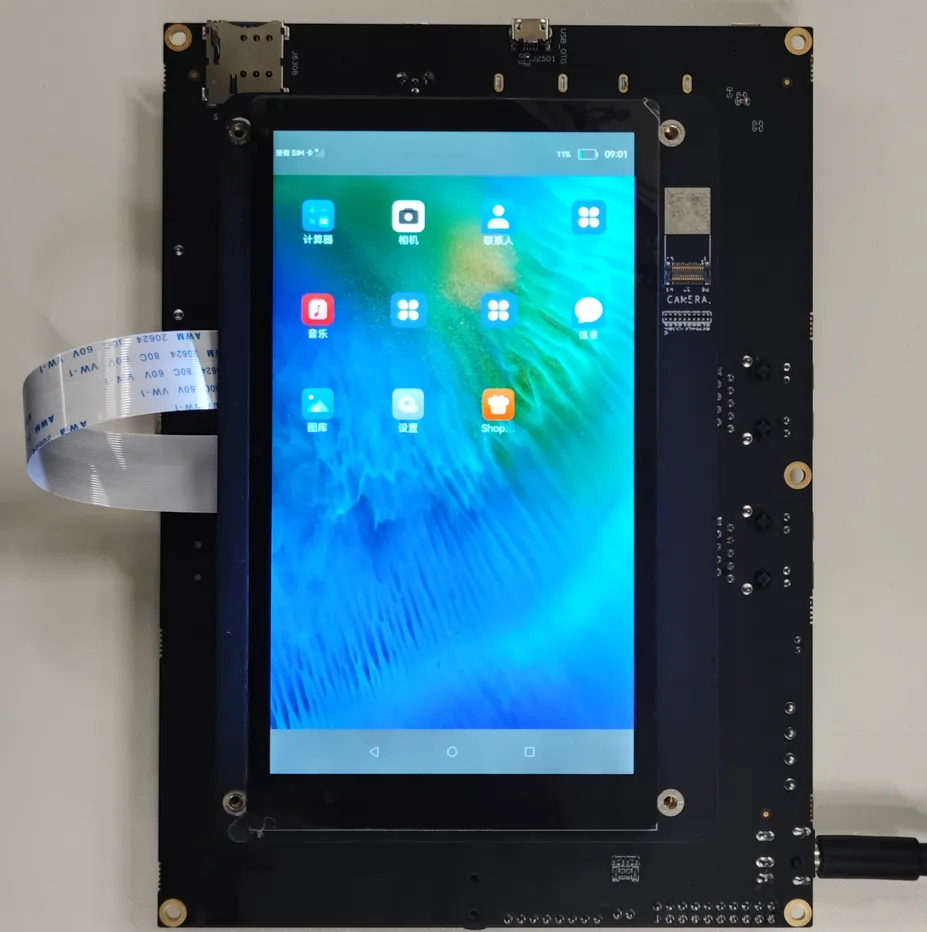

After the image is burnt and the development board is restarted, the system automatically starts. If the following page is displayed on the screen of the development board, the system is running properly.

Figure 1 System startup effect

quickstart-pkg-3568-running-restart

Running a Hello World Program

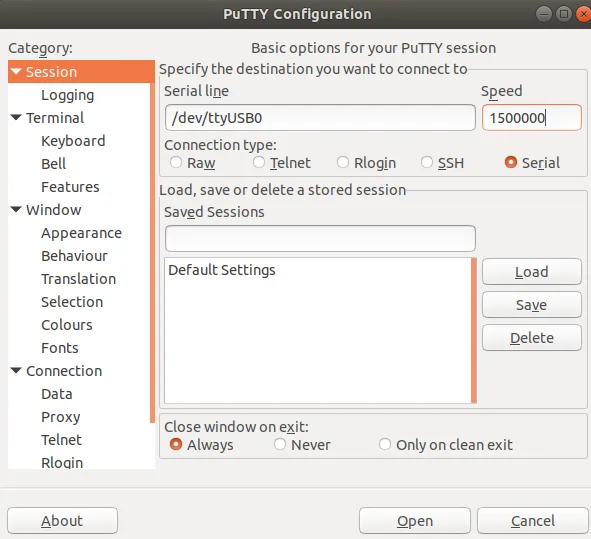

  1. When the system is running, start the serial port tool (for example, PuTTY), set the baud rate to 1500000, and connect to the device.

rk3568-run-configuration

  1. Enable the serial port, enter the helloworld command in any directory (for example, the root directory of the device) and press Enter. If the message “Hello World!” is displayed, the program runs successfully.

helloworld
