ExtensionContext

The ExtensionContext module, inherited from Context, implements the context for Extension abilities.

This module provides APIs for accessing resources of a specific Extension ability. An Extension ability can use the context directly provided by ExtensionContext or that extended from ExtensionContext. For example, ServiceExtension uses ServiceExtensionContext, which extends the capabilities of starting, stopping, binding, and unbinding abilities based on ExtensionContext.

NOTE

  • The initial APIs of this module are supported since API version 9. Newly added APIs will be marked with a superscript to indicate their earliest API version.
  • The APIs of this module can be used only in the stage model.

Modules to Import

import common from '@ohos.app.ability.common';

Attributes

System capability: SystemCapability.Ability.AbilityRuntime.Core

Name Type Readable Writable Description
currentHapModuleInfo HapModuleInfo Yes No Information about the HAP file.
(See api\bundle\hapModuleInfo.d.ts in the SDK directory.)
config Configuration Yes No Module configuration information.
(See api\@ohos.app.ability.Configuration.d.ts in the SDK directory.)
extensionAbilityInfo ExtensionAbilityInfo Yes No Extension ability information.
(See api\bundle\extensionAbilityInfo.d.ts in the SDK directory.)

When to Use

ExtensionContext provides information about an Extension ability, module, and HAP file. You can use the information based on service requirements. The following uses ServiceExtension as an example to describe a use case of ExtensionContext.

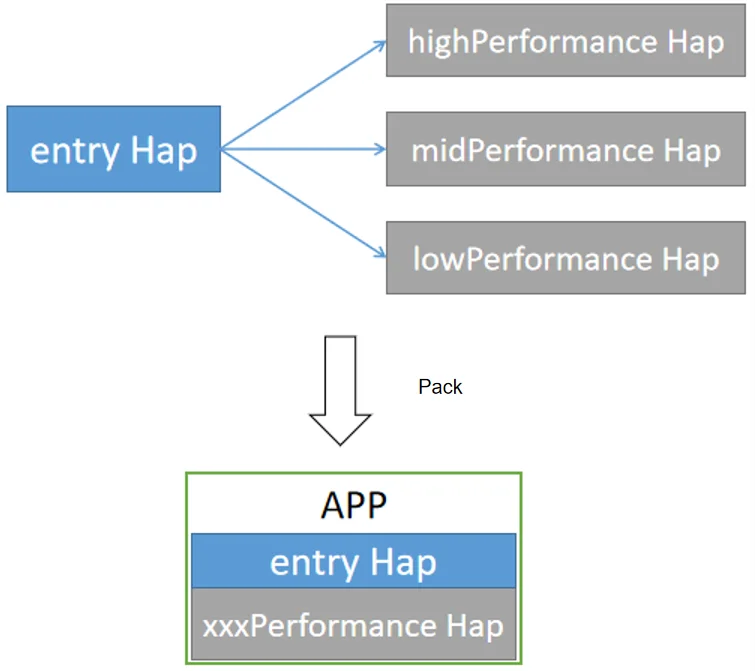

Scenario description To adapt to devices with different performance, an application provides three modules: highPerformance, midPerformance, and lowPerformance. Each of them provides a ServiceExtensionAbility for the entry. During application installation, the application market installs the HAP file of the entry and the HAP file of the module that matches the device performance. During application running, the entry parses ServiceExtensionContext.HapModuleInfo to obtain the HAP file information and executes service logic based on this file.

Example

Example

Define a ServiceExtension with the same name for the three modules.

// Singleton object GlobalContext.ts
export class GlobalContext {
    private constructor() {}
    private static instance: GlobalContext;
    private _objects = new Map<string, Object>();

    public static getContext(): GlobalContext {
        if (!GlobalContext.instance) {
            GlobalContext.instance = new GlobalContext();
        }
        return GlobalContext.instance;
    }

    getObject(value: string): Object|undefined {
        return this._objects.get(value);
    }

    setObject(key: string, objectClass: Object): void {
        this._objects.set(key, objectClass);
    }
}
import ServiceExtension from '@ohos.app.ability.ServiceExtensionAbility';
import Want from '@ohos.app.ability.Want';
import rpc from '@ohos.rpc';
import { GlobalContext } from '../GlobalContext'

export default class TheServiceExtension extends ServiceExtension {
    onCreate(want: Want) {
        console.log('ServiceAbility onCreate, want: ${want.abilityName}');
        GlobalContext.getContext().setObject("ExtensionContext", this.context);
    }

    onRequest(want: Want, startId: number) {
        console.log('ServiceAbility onRequest, want: ${want.abilityName}, startId: ${startId}');
    }

    onConnect(want: Want) {
        console.log('ServiceAbility onConnect, want: ${want.abilityName}');
        let remoteObject = new rpc.RemoteObject("test");
        return remoteObject;
    }

    onDisconnect(want: Want) {
        console.log('ServiceAbility onDisconnect, want: ${want.abilityName}');
    }

    onDestroy() {
        console.log('ServiceAbility onDestroy');
    }
};

Start ServiceExtension within the onCreate callback of the main ability of the entry.

import UIAbility from '@ohos.app.ability.UIAbility';
import AbilityConstant from '@ohos.app.ability.AbilityConstant';
import Want from '@ohos.app.ability.Want';

export default class EntryAbility extends UIAbility {
    onCreate(want: Want, launchParam: AbilityConstant.LaunchParam) {
        console.log('[Demo] EntryAbility onCreate');
        let wantExt: Want = {
            deviceId: '',
            bundleName: 'com.example.TheServiceExtension',
            abilityName: 'TheServiceExtension',
        };
        this.context.startServiceExtensionAbility(wantExt);
    }
};

Create a ServiceModule.ts file in the entry to execute service logic.

import common from '@ohos.app.ability.common';
import { GlobalContext } from '../GlobalContext';

export default class ServiceModel {
    moduleName: string = '';

    constructor() {}

    executeTask() {
        if (GlobalContext.getContext().getObject('ExtensionContext') === undefined) {
            console.log('ERROR, ServiceExtension does not exist');
            return;
        }

        let extensionContext = GlobalContext.getContext().getObject('ExtensionContext') as common.ServiceExtensionContext;
        this.moduleName = extensionContext.currentHapModuleInfo.name;
        // Execute service logic based on the module name, which differentiates devices with different performance.
        switch (this.moduleName) {
            case 'highPerformance':
                console.log('This is high performance device.');
                // Execute the corresponding service logic.
                break;
            case 'midPerformance':
                console.log('This is mid performance device.');
                // Execute the corresponding service logic.
                break;
            case 'lowPerformance':
                console.log('This is low performance device.');
                // Execute the corresponding service logic.
                break;
            default:
                console.log('ERROR, invalid moduleName.');
                break;
        }
    }
};
