Grid (System API)

The Grid component consists of cells formed by rows and columns. You can specify the cells where items are located to form various layouts.

NOTE

This component is supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.

This topic describes only system APIs provided by the module. For details about its public APIs, see Grid.

GridLayoutOptions¹⁰⁺

Defines the grid layout options.

To improve the layout performance and accuracy of the grid that contains nodes of irregular sizes, you can use the onGetStartIndexByOffset and onGetStartIndexByIndex callback parameters. The two callbacks must be set at the same time to take effect. In this scenario, you are advised to set onScrollBarUpdate to accurately locate the scrollbar.

System capability: SystemCapability.ArkUI.ArkUI.Full

Name	Type	Read-Only	Optional	Description
onGetStartIndexByOffset²³⁺	OnGetStartIndexByOffsetCallback	No	Yes	Calculates the start line position of the current page in the grid based on the total scrolling offset of the Grid component, which is used for fast scrolling or reverse scrolling. System API: This is a system API. Model restriction: This API can be used only in the stage model.
onGetStartIndexByIndex²³⁺	OnGetStartIndexByIndexCallback	No	Yes	Calculates the start line on the page when the grid is scrolled to the specified target index. This API is used to support operations such as scrollToIndex. System API: This is a system API. Model restriction: This API can be used only in the stage model.

StartLineInfo²³⁺

Records the position of the start line in the grid.

System capability: SystemCapability.ArkUI.ArkUI.Full

System API: This is a system API.

Model constraint: This API can be used only in the stage model.

Name	Type	Read-Only	Optional	Description
startIndex	number	No	No	Start index of the row where the target index or target offset is located.
startLine	number	No	No	Start line of the GridItem corresponding to startIndex. Generally, the start line is in the Grid window. For a GridItem that spans multiple lines, the start line of the node needs to be found, which may be outside the window.
startOffset	number	No	No	Offset between the top of the GridItem corresponding to startIndex and the top of the Grid. Unit: vp
totalOffset	number	No	No	Total scrolling offset, that is, the offset between the top of the first GridItem in the Grid component and the top of the Grid component. Unit: vp

OnGetStartIndexByOffsetCallback²³⁺

type OnGetStartIndexByOffsetCallback = (totalOffset: number) => StartLineInfo

Calculates the start line position of the current page based on the total offset of the Grid component, which is used for fast scrolling or reverse scrolling.

System capability: SystemCapability.ArkUI.ArkUI.Full

System API: This is a system API.

Model constraint: This API can be used only in the stage model.

Parameters

Name	Type	Mandatory	Description
totalOffset	number	Yes	Total scrolling offset, that is, the offset between the top of the first GridItem in the Grid component and the top of the Grid component. Unit: vp

Return value

Type	Description
StartLineInfo	Position of the start line in the grid.

OnGetStartIndexByIndexCallback²³⁺

type OnGetStartIndexByIndexCallback = (targetIndex: number) => StartLineInfo

Calculates the start line on the page when the grid is scrolled to the specified target index. This API is used to support operations such as scrollToIndex.

System capability: SystemCapability.ArkUI.ArkUI.Full

System API: This is a system API.

Model constraint: This API can be used only in the stage model.

Parameters

Name	Type	Mandatory	Description
targetIndex	number	Yes	Index of the target GridItem to be scrolled to.

Return value

Type	Description
StartLineInfo	Position of the start line in the grid.

Examples

Example 1: Basic Usage

This example shows how to use the onGetStartIndexByOffset and onGetStartIndexByIndex in GridLayoutOptions to quickly locate the scrolling position.

GridLayoutOptions supports onGetStartIndexByOffset and onGetStartIndexByIndex since API version 23.

@Entry
@Component
struct Index {
  numbers: GridDataSource = new GridDataSource([]);
  scroller: Scroller = new Scroller();
  crossCount: number = 3;
  itemHeight: number = 100;
  childrenCount: number = 500;
  @State options: GridLayoutOptions = {
    regularSize: [1, 1],
    irregularIndexes: [],
    onGetIrregularSizeByIndex: (index: number) => {
      return [2, 2]
    },
    // Set two callback functions to accurately calculate the scrolling position of the grid.
    onGetStartIndexByOffset: (offset: number) => {
      if (offset < 0) {
        return {
          startIndex: 0,
          startLine: 0,
          startOffset: -offset,
          totalOffset: offset
        }
      }
      let line = Math.floor(offset / (this.itemHeight * 2))
      let startOffset = -offset % (this.itemHeight * 2)
      return {
        startIndex: line * this.crossCount,
        startLine: line * 2,
        startOffset: startOffset,
        totalOffset: offset
      }
    },
    onGetStartIndexByIndex: (index: number) => {
      let line = Math.floor(index / this.crossCount)
      let offset = index % 3 == 2 ? -this.itemHeight : 0
      return {
        startIndex: line * 3,
        startLine: line * 2,
        startOffset: offset,
        totalOffset: line * this.itemHeight * 2 - offset
      }
    }
  }

  // Initialize the data source and irregular node index in aboutToAppear.
  aboutToAppear() {
    let list: string[] = [];
    let irregularList: number[] = []
    for (let i = 0; i <= this.childrenCount; i++) {
      list.push(i.toString())
      if (i % 3 == 0) {
        irregularList.push(i)
      }
    }
    this.numbers = new GridDataSource(list);
    this.options.irregularIndexes = irregularList
  }

  build() {
    Column({ space: 5 }) {
      Text('Custom').fontColor(0xCCCCCC).fontSize(9).width('90%')
      Grid(this.scroller, this.options) {
        LazyForEach(this.numbers, (day: string, index: number) => {
          if (index % 3 == 0) {
            GridItem() {
              Text(day)
                .fontSize(16)
                .backgroundColor(0xF9CF93)
                .width(200)
                .height(190)
                .textAlign(TextAlign.Center)
            }
          } else {
            GridItem() {
              Text(day)
                .fontSize(16)
                .backgroundColor(0xF9CF93)
                .width(100)
                .height(90)
                .textAlign(TextAlign.Center)
            }
          }
        }, (index: number) => index.toString())
      }
      .columnsTemplate('1fr 1fr 1fr')
      .columnsGap(10)
      .rowsGap(10)
      .edgeEffect(EdgeEffect.Spring)
      .width(320)
      .backgroundColor(0xFAEEE0)
      .height(300)
      .onScrollBarUpdate((index: number, offset: number) => {
        console.info('XXX' + 'Grid onScrollBarUpdate,index : ' + index.toString() + ',offset' + offset.toString());
        return {
          totalOffset: (index / this.crossCount) * (this.itemHeight) * 2 - offset,
          totalLength: this.itemHeight * 2 * (this.childrenCount + 1) / this.crossCount
        };
      }) // The sample code applies only to the current data source. If the data source changes, modify the code.
    }.width('100%').margin({ top: 5 })
  }
}


// GridDataSource.ets
export class GridDataSource implements IDataSource {
  private list: string[] = [];
  private listeners: DataChangeListener[] = [];

  constructor(list: string[]) {
    this.list = list;
  }

  totalCount(): number {
    return this.list.length;
  }

  getData(index: number): string {
    return this.list[index];
  }

  registerDataChangeListener(listener: DataChangeListener): void {
    if (this.listeners.indexOf(listener) < 0) {
      this.listeners.push(listener);
    }
  }

  unregisterDataChangeListener(listener: DataChangeListener): void {
    const pos = this.listeners.indexOf(listener);
    if (pos >= 0) {
      this.listeners.splice(pos, 1);
    }
  }

  // Notify the controller of the data location change.
  notifyDataMove(from: number, to: number): void {
    this.listeners.forEach(listener => {
      listener.onDataMove(from, to);
    })
  }
}

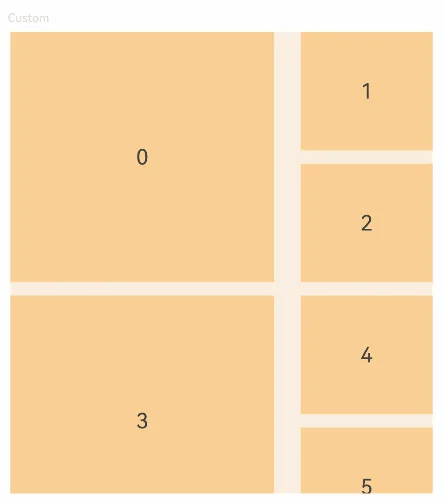

gridCustomScroll
