Setting Custom Node Cross-Language Attributes

Overview

ArkUI supports creating imperative nodes using the ArkTS language on the frontend, that is, FrameNodes. It also allows creating imperative nodes using the C language on the native side, and both types of nodes can be used together to build pages.

For this scenario, ArkUI provides cross-language attribute setting for imperative nodes, meaning nodes created with ArkTS can have their attributes set on the native side, and nodes created in C can have their attributes set in ArkTS.

NOTE

In the examples below, native-side configuration must be completed first. For details, see Integrating with ArkTS Pages.

Setting and Obtaining Cross-Language Options

Cross-language refers to operations between ArkTS and C languages. Cross-language options refer to permission settings for cross-language operations on imperative nodes.

You can set a node's cross-language options using setCrossLanguageOptions and OH_ArkUI_NodeUtils_SetCrossLanguageOption. If the node cannot modify or set cross-language options, an exception will be thrown.

You can obtain the current cross-language options using getCrossLanguageOptions and OH_ArkUI_NodeUtils_GetCrossLanguageOption.

The following example demonstrates how to set and obtain cross-language options for ArkTS imperative nodes.

// Index.ets
import { NodeController, UIContext, FrameNode, typeNode, BuilderNode } from '@kit.ArkUI';

@Builder
function insideScroll() {
  Column() {
    ForEach([1, 2, 3, 4, 5, 6, 7, 8, 9, 10], (item: number) => {
      Text(item.toString())
        .width("75%")
        .height(50)
        .backgroundColor(0xFFFFFF)
        .borderRadius(15)
        .fontSize(30)
        .textAlign(TextAlign.Center)
        .margin({ top: 10 })
    }, (item: string) => item)
  }
  .width("100%")
}

class MyNodeController extends NodeController {
  uiContext: UIContext|null = null;
  rootNode: FrameNode|null = null;
  scrollNode: FrameNode|null = null;
  scroller: Scroller = new Scroller();

  makeNode(uiContext: UIContext): FrameNode|null {
    this.uiContext = uiContext;
    this.rootNode = new FrameNode(uiContext);
    this.rootNode.commonAttribute.width("80%").height("50%").borderWidth(2).margin(15);
    const scroll = typeNode.createNode(uiContext, 'Scroll');
    scroll.initialize(this.scroller).id("scroll");
    this.scrollNode = scroll;
    this.rootNode.appendChild(this.scrollNode);
    const builderNode = new BuilderNode(uiContext);
    builderNode.build(wrapBuilder(insideScroll));
    this.scrollNode?.appendChild(builderNode.getFrameNode());
    return this.rootNode;
  }
}

@Entry
@Component
struct CrossLanguage {
  myNodeController: MyNodeController = new MyNodeController()
  @State attributeSetting: boolean = false;
  @State getCrossLanguageOptions: string = '{"attributeSetting": false}';

  build() {
    Scroll() {
      Column({ space: 15 }) {
        Column() {
          Scroll() {
            Column() {
              NodeContainer(this.myNodeController)
              Button("setCrossLanguageOptions").margin({ bottom: 15})
                .onClick(() => {
                  this.attributeSetting = !this.attributeSetting;
                  this.myNodeController.scrollNode?.setCrossLanguageOptions({
                    attributeSetting: this.attributeSetting
                  });
                  // If attributeSetting is true, scrollNode supports attribute modification via non-ArkTS languages; otherwise, it does not.
                  this.getCrossLanguageOptions = JSON.stringify(this.myNodeController.scrollNode?.getCrossLanguageOptions());
                })
              Text("CrossLanguageOptions: " + this.getCrossLanguageOptions)
            }
          }.scrollBarColor(Color.Transparent)
        }
        .width('100%')
        .height(350)
        .backgroundColor(0xeeeeee)
        .id('Part_TS')
      }
      .width('100%')
    }.scrollBarColor(Color.Transparent)
  }
}

Setting Cross-Language Node Attributes

After obtaining a node, if its cross-language configuration allows attribute setting, ArkTS can use the getAttribute API to access objects for modifying native node attributes, while the native side can use setAttribute to modify ArkTS node attributes.

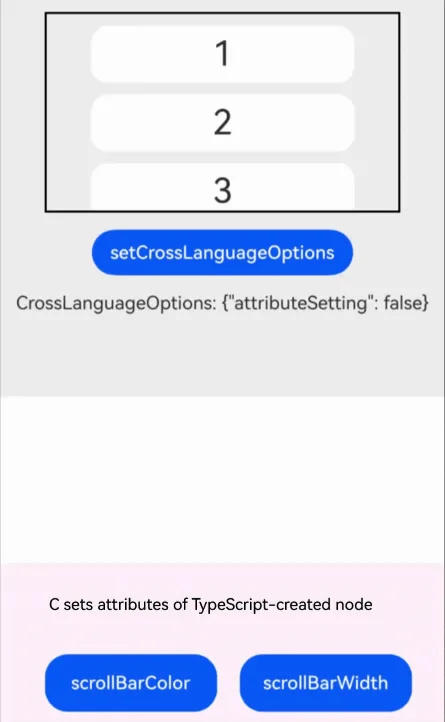

The following example creates an ArkTS Scroll node and modifies its properties on the native side.

1. Create an imperative node of type Scroll on the ArkTS side.

   // Index.ets
   import nativeNode from 'libentry.so';
   import { NodeController, UIContext, FrameNode, typeNode, BuilderNode, NodeContent } from '@kit.ArkUI';

   @Builder
   function insideScroll() {
     Column() {
       ForEach([1, 2, 3, 4, 5, 6, 7, 8, 9, 10], (item: number) => {
         Text(item.toString())
           .width("75%")
           .height(50)
           .backgroundColor(0xFFFFFF)
           .borderRadius(15)
           .fontSize(30)
           .textAlign(TextAlign.Center)
           .margin({ top: 10 })
       }, (item: string) => item)
     }
     .width("100%")
   }

   class MyNodeController extends NodeController {
     uiContext: UIContext|null = null;
     rootNode: FrameNode|null = null;
     scrollNode: FrameNode|null = null;
     scroller: Scroller = new Scroller();

     makeNode(uiContext: UIContext): FrameNode|null {
       this.uiContext = uiContext;
       this.rootNode = new FrameNode(uiContext);
       this.rootNode.commonAttribute.width("80%").height("50%").borderWidth(2).margin(15);
       const scroll = typeNode.createNode(uiContext, 'Scroll');
       scroll.initialize(this.scroller).id("scroll");
       this.scrollNode = scroll;
       this.rootNode.appendChild(this.scrollNode);
       const builderNode = new BuilderNode(uiContext);
       builderNode.build(wrapBuilder(insideScroll));
       this.scrollNode?.appendChild(builderNode.getFrameNode());
       return this.rootNode;
     }
   }

   @Entry
   @Component
   struct CrossLanguage {
     private myNodeController: MyNodeController = new MyNodeController();
     @State attributeSetting: boolean = false;
     @State getCrossLanguageOptions: string = '{"attributeSetting": false}';
     private rootSlot = new NodeContent();

     aboutToAppear(): void {
       nativeNode.createNativeRoot(this.rootSlot);
     }

     build() {
       Scroll() {
         Column({ space: 15 }) {
           Column() {
             Scroll() {
               Column() {
                 NodeContainer(this.myNodeController)
                 Button("setCrossLanguageOptions").margin({ bottom: 15})
                   .onClick(() => {
                     this.attributeSetting = !this.attributeSetting;
                     this.myNodeController.scrollNode?.setCrossLanguageOptions({
                       attributeSetting: this.attributeSetting
                     });
                     // If attributeSetting is true, scrollNode supports attribute modification via non-ArkTS languages; otherwise, it does not.
                     this.getCrossLanguageOptions = JSON.stringify(this.myNodeController.scrollNode?.getCrossLanguageOptions());
                   })
                 Text("CrossLanguageOptions: " + this.getCrossLanguageOptions)
               }
             }.scrollBarColor(Color.Transparent)
           }
           .width('100%')
           .height(350)
           .backgroundColor(0xeeeeee)
           .id('Part_TS')

           Column() {
             ContentSlot(this.rootSlot)
           }
           .width(500)
           .height(400)
           .id('Part_C')
         }
         .width('100%')
       }.scrollBarColor(Color.Transparent)
     }
   }


2. Create CrossLanguageExample.h to obtain the target node (created in ArkTS) and set its properties.

   // CrossLanguageExample.h
   #ifndef MYAPPLICATION_CROSSLANGUAGEEXAMPLE_H
   #define MYAPPLICATION_CROSSLANGUAGEEXAMPLE_H

   #include "ArkUINode.h"
   #include <hilog/log.h>

   namespace NativeModule {

   std::shared_ptr<ArkUIBaseNode> CreateCrossLanguageExample() {
       auto nodeAPI = NativeModuleInstance::GetInstance()->GetNativeNodeAPI();

       // Create the root Scroll node.
       ArkUI_NodeHandle scroll = nodeAPI->createNode(ARKUI_NODE_SCROLL);
       ArkUI_NumberValue length_value[] = {{.f32 = 480}};
       ArkUI_AttributeItem length_item = {length_value, sizeof(length_value) / sizeof(ArkUI_NumberValue)};
       nodeAPI->setAttribute(scroll, NODE_WIDTH, &length_item);
       ArkUI_NumberValue length_value1[] = {{.f32 = 650}};
       ArkUI_AttributeItem length_item1 = {length_value1, sizeof(length_value1) / sizeof(ArkUI_NumberValue)};
       nodeAPI->setAttribute(scroll, NODE_HEIGHT, &length_item1);
       ArkUI_AttributeItem scroll_id = {.string = "Scroll_CAPI"};
       nodeAPI->setAttribute(scroll, NODE_ID, &scroll_id);

       // Create a Column node.
       ArkUI_NodeHandle column = nodeAPI->createNode(ARKUI_NODE_COLUMN);
       ArkUI_NumberValue value[] = {480};
       ArkUI_AttributeItem item = {value, sizeof(value) / sizeof(ArkUI_NumberValue)};
       nodeAPI->setAttribute(column, NODE_WIDTH, &item);
       ArkUI_NumberValue column_bc[] = {{.u32 = 0xFFF00BB}};
       ArkUI_AttributeItem column_item = {column_bc, 1};
       nodeAPI->setAttribute(column, NODE_BACKGROUND_COLOR, &column_item);
       ArkUI_AttributeItem column_id = {.string = "Column_CAPI"};
       nodeAPI->setAttribute(column, NODE_ID, &column_id);

       // Create a Text node.
       ArkUI_NodeHandle text0 = nodeAPI->createNode(ARKUI_NODE_TEXT);
       ArkUI_NumberValue text_width[] = {300};
       ArkUI_AttributeItem text_item0 = {text_width, sizeof(text_width) / sizeof(ArkUI_NumberValue)};
       nodeAPI->setAttribute(text0, NODE_WIDTH, &text_item0);
       ArkUI_NumberValue text_height[] = {50};
       ArkUI_AttributeItem text_item1 = {text_height, sizeof(text_height) / sizeof(ArkUI_NumberValue)};
       nodeAPI->setAttribute(text0, NODE_HEIGHT, &text_item1);
       ArkUI_AttributeItem text_item = {.string = "C sets attributes of TypeScript-created node"};
       nodeAPI->setAttribute(text0, NODE_TEXT_CONTENT, &text_item);
       ArkUI_NumberValue margin[] = {10};
       ArkUI_AttributeItem item_margin = {margin, sizeof(margin) / sizeof(ArkUI_NumberValue)};
       nodeAPI->setAttribute(text0, NODE_MARGIN, &item_margin);

       // Create a Row node.
       ArkUI_NodeHandle row0 = nodeAPI->createNode(ARKUI_NODE_ROW);
       ArkUI_NumberValue width_value[] = {{.f32=330}};
       ArkUI_AttributeItem width_item = {width_value, sizeof(width_value) / sizeof(ArkUI_NumberValue)};
       nodeAPI->setAttribute(row0, NODE_WIDTH, &width_item);
       nodeAPI->setAttribute(row0, NODE_HEIGHT, &text_item1);
       nodeAPI->setAttribute(row0, NODE_MARGIN, &item_margin);

       // Create a Button node.
       ArkUI_NodeHandle bt0 = nodeAPI->createNode(ARKUI_NODE_BUTTON);
       ArkUI_NumberValue btn_width[] = {150};
       ArkUI_AttributeItem btn_item0 = {btn_width, sizeof(btn_width) / sizeof(ArkUI_NumberValue)};
       nodeAPI->setAttribute(bt0, NODE_WIDTH, &btn_item0);
       nodeAPI->setAttribute(bt0, NODE_HEIGHT, &text_item1);
       nodeAPI->setAttribute(bt0, NODE_MARGIN, &item_margin);
       ArkUI_AttributeItem bt0_item = {.string = "scrollBarColor"};
       nodeAPI->setAttribute(bt0, NODE_BUTTON_LABEL, &bt0_item);
       nodeAPI->registerNodeEvent(bt0, NODE_ON_CLICK, 0, nullptr);

       ArkUI_NodeHandle bt1 = nodeAPI->createNode(ARKUI_NODE_BUTTON);
       nodeAPI->setAttribute(bt1, NODE_WIDTH, &btn_item0);
       nodeAPI->setAttribute(bt1, NODE_HEIGHT, &text_item1);
       nodeAPI->setAttribute(bt1, NODE_MARGIN, &item_margin);
       ArkUI_AttributeItem bt1_item = {.string = "scrollBarWidth"};
       nodeAPI->setAttribute(bt1, NODE_BUTTON_LABEL, &bt1_item);
       nodeAPI->registerNodeEvent(bt1, NODE_ON_CLICK, 1, nullptr);

       // Register events.
       auto onClick = [](ArkUI_NodeEvent *event) {
           ArkUI_NodeHandle node = OH_ArkUI_NodeEvent_GetNodeHandle(event);
           auto nodeAPI = NativeModuleInstance::GetInstance()->GetNativeNodeAPI();

           if (OH_ArkUI_NodeEvent_GetTargetId(event) == 0) {  // scrollBarColor
               ArkUI_NodeHandle node_ptr = nullptr;
               OH_ArkUI_NodeUtils_GetAttachedNodeHandleById("scroll", &node_ptr);
               try {
                   ArkUI_NumberValue scroll_color_value[] = {{.u32 = 0xff00ff00}};
                   ArkUI_AttributeItem scroll_color_item = {scroll_color_value, sizeof(scroll_color_value) / sizeof(ArkUI_NumberValue)};
                   nodeAPI->setAttribute(node_ptr, NODE_SCROLL_BAR_COLOR, &scroll_color_item);
               } catch (...) {
                   OH_LOG_Print(LOG_APP, LOG_ERROR, 0xFF00, "CrossLanguageExample", "crossLanguage setAttribute error");
               }
           }

           if (OH_ArkUI_NodeEvent_GetTargetId(event) == 1) {  // scrollBarWidth
               ArkUI_NodeHandle node_ptr = nullptr;
               OH_ArkUI_NodeUtils_GetAttachedNodeHandleById("scroll", &node_ptr);
               try {
                   ArkUI_NumberValue scroll_width_value[] = {{20}};
                   ArkUI_AttributeItem scroll_width_item = {scroll_width_value, sizeof(scroll_width_value) / sizeof(ArkUI_NumberValue)};
                   nodeAPI->setAttribute(node_ptr, NODE_SCROLL_BAR_WIDTH, &scroll_width_item);
               } catch (...) {
                   OH_LOG_Print(LOG_APP, LOG_ERROR, 0xFF00, "CrossLanguageExample", "crossLanguage setAttribute error");
               }
           }
       };
       nodeAPI->registerNodeEventReceiver(onClick);

       // Add nodes.
       nodeAPI->addChild(scroll, column);
       nodeAPI->addChild(column, text0);
       nodeAPI->addChild(column, row0);
       nodeAPI->addChild(row0, bt0);
       nodeAPI->addChild(row0, bt1);

       return std::make_shared<ArkUINode>(scroll);
   }
   } // namespace NativeModule

   #endif //MYAPPLICATION_CROSSLANGUAGEEXAMPLE_H


3. Mount the native node in NativeEntry.cpp.

   // NativeEntry.cpp


   #include <arkui/native_node_napi.h>
   #include <hilog/log.h>
   #include <js_native_api.h>
   #include "NativeEntry.h"
   #include "CrossLanguageExample.h"


   namespace NativeModule {


   napi_value CreateNativeRoot(napi_env env, napi_callback_info info) {
       size_t argc = 1;
       napi_value args[1] = {nullptr};


       napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);


       // Obtain NodeContent.
       ArkUI_NodeContentHandle contentHandle;
       OH_ArkUI_GetNodeContentFromNapiValue(env, args[0], &contentHandle);
       NativeEntry::GetInstance()->SetContentHandle(contentHandle);


       // Create a node.
       auto node = CreateCrossLanguageExample();


       // Keep the native-side object in the management class to maintain its lifecycle.
       NativeEntry::GetInstance()->SetRootNode(node);
       return nullptr;
   }


   napi_value DestroyNativeRoot(napi_env env, napi_callback_info info) {
       // Release the native-side object from the management class.
       NativeEntry::GetInstance()->DisposeRootNode();
       return nullptr;
   }


   } // namespace NativeModule


4. Update the CMakeLists.txt file and add the required link libraries.

   // CMakeLists.txt
   # the minimum version of CMake.
   cmake_minimum_required(VERSION 3.5.0)
   project(CAPI_DEMO)

   set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})

   if(DEFINED PACKAGE_FIND_FILE)
       include(${PACKAGE_FIND_FILE})
   endif()

   include_directories(${NATIVERENDER_ROOT_PATH}
                     ${NATIVERENDER_ROOT_PATH}/include)

   add_library(entry SHARED napi_init.cpp NativeEntry.cpp)
   target_link_libraries(entry PUBLIC libace_napi.z.so libace_ndk.z.so hilog_ndk.z.so)


5. Run the program. On the ArkTS side, click the button to set attributeSetting to true. On the native side, click the buttons to set the Scroll component's scrollbar color and width.

Node Types Supporting Cross-Language Attribute Setting

Only the following node types support cross-language attribute setting.

ArkTS TypedFrameNode type	Native ArkUI_NodeType type	ArkTS Attribute Getter	ArkTS Controller Getter/Binding
Button	ARKUI_NODE_BUTTON	getAttribute	NA
Checkbox	ARKUI_NODE_CHECKBOX	getAttribute	NA
Radio	ARKUI_NODE_RADIO	getAttribute	NA
Slider	ARKUI_NODE_SLIDER	getAttribute	NA
Toggle	ARKUI_NODE_TOGGLE	getAttribute	NA
Progress	ARKUI_NODE_PROGRESS	getAttribute	NA
LoadingProgress	ARKUI_NODE_LOADING_PROGRESS	getAttribute	NA
Image	ARKUI_NODE_IMAGE	getAttribute	NA
XComponent	ARKUI_NODE_XCOMPONENT	getAttribute	getController
Column	ARKUI_NODE_COLUMN	getAttribute	NA
Row	ARKUI_NODE_ROW	getAttribute	NA
Stack	ARKUI_NODE_STACK	getAttribute	NA
Flex	ARKUI_NODE_FLEX	getAttribute	NA
RelativeContainer	ARKUI_NODE_RELATIVE_CONTAINER	getAttribute	NA
Swiper	ARKUI_NODE_SWIPER	getAttribute	bindController
Scroll	ARKUI_NODE_SCROLL	getAttribute	bindController
List	ARKUI_NODE_LIST	getAttribute	bindController
ListItem	ARKUI_NODE_LIST_ITEM	getAttribute	NA
ListItemGroup	ARKUI_NODE_LIST_ITEM_GROUP	getAttribute	NA
WaterFlow	ARKUI_NODE_WATER_FLOW	getAttribute	bindController
FlowItem	ARKUI_NODE_FLOW_ITEM	getAttribute	NA
Grid	ARKUI_NODE_GRID	getAttribute	bindController
GridItem	ARKUI_NODE_GRID_ITEM	getAttribute	NA
Text	ARKUI_NODE_TEXT	getAttribute	bindController
TextInput	ARKUI_NODE_TEXT_INPUT	getAttribute	bindController
TextArea	ARKUI_NODE_TEXT_AREA	getAttribute	bindController

你可能感兴趣的鸿蒙文章

openharmony 鸿蒙 arkts-common-components-text-input

openharmony 鸿蒙 arkts-select-component-faq

openharmony 鸿蒙 arkui-overview

openharmony 鸿蒙 js-framework-syntax-css

openharmony 鸿蒙 arkts-popup-and-menu-components-popup

openharmony 鸿蒙 arkts-navigation-animation-faq

openharmony 鸿蒙 arkts-rotation-transition-animation

openharmony 鸿蒙 ndk-inspector-component-observer

openharmony 鸿蒙 arkts-popup-and-menu-components-uicontext-popup

openharmony 鸿蒙 arkts-styled-string
