LazyVGridLayout

Implements a grid layout that supports lazy loading.

In versions earlier than API version 26.0.0, the parent component of the LazyVGridLayout component supports the WaterFlow and FlowItem components. You can also encapsulate the parent component using a custom component or NodeContainer component and use it in WaterFlow or FlowItem.

Since API version 26.0.0, the parent component of this component also supports List and Scroll. Additionally, it can be encapsulated using a custom component or NodeContainer and applied to List or Scroll.

NOTE

This component is supported since API version 19. Updates will be marked with a superscript to indicate their earliest API version.

This component's height adapts to content by default. Setting the height, height constraints, or aspect ratio causes display anomalies.

The lazy loading conditions of this component in different parent components are as follows:

In the WaterFlow component, lazy loading is supported only when it uses single-column mode or single-column segments in segmented layout and FlexDirection is set to FlexDirection.Column. Lazy loading is not supported if the WaterFlow component is in multi-column mode or the layout direction is FlexDirection.Row or FlexDirection.RowReverse. Using this component with FlexDirection.ColumnReverse in the WaterFlow component causes display anomalies.

In the List component, the layout direction must be vertical (that is, the listDirection property is set to Axis.Vertical). Using this component in a non-vertical List component will cause an application crash. If any of the lanes, chainAnimation, and scrollSnapAlign properties is set for the List component, the lazy loading of this component will become invalid.

In the Scroll component, the layout direction must be vertical (that is, the value of the scrollable property is ScrollDirection.Vertical). Using this component in a non-vertical Scroll component will cause an application crash.

When lazy loading is enabled, the component only loads child components within the visible area of the parent component, with pre-loading of half-screen content above and below the viewport during frame idle periods.

APIs

LazyVGridLayout()

Creates a vertical lazy-loading grid layout container.

Atomic service API: This API can be used in atomic services since API version 19.

System capability: SystemCapability.ArkUI.ArkUI.Full

Attributes

In addition to the universal attributes, the following attributes are supported.

columnsTemplate

columnsTemplate(value: string)

Sets the number of columns, fixed column width, or minimum column width of the grid. If this attribute is not set, one column will be used.

For example, '1fr 1fr 2fr' indicates three columns, with the first column taking up 1/4 of the parent component's full width, the second column 1/4, and the third column 2/4.

columnsTemplate('repeat(auto-fit, track-size)'): The layout automatically calculates the number of columns and their actual widths while respecting the minimum column width specified by track-size.

columnsTemplate('repeat(auto-fill, track-size)'): The layout automatically calculates the number of columns based on the fixed column width specified by track-size.

columnsTemplate('repeat(auto-stretch, track-size)'): The layout uses columnsGap to define the minimum gap between columns and automatically calculates the number of columns and the actual gap size based on the fixed column width specified by track-size.

repeat, auto-fit, auto-fill, and auto-stretch are keywords. track-size indicates the column width, in units of px, vp (default), %, or any valid numeric value. The value must be greater than or equal to a valid column width.
In auto-fit and auto-stretch modes, only a valid column width value is supported for track-size. Additionally, in auto-stretch mode, track-size only supports units such as px, vp, and valid numbers, but does not support percentage (%). The auto-fill mode supports one or more valid column widths, for example: columnsTemplate('repeat(auto-fill, 20)') or columnsTemplate('repeat(auto-fill, 20 80px)').

If this attribute is set to '0fr', the column width is 0, and child components are not displayed. If this attribute is set to an invalid value, the child components are displayed in a fixed column.

Atomic service API: This API can be used in atomic services since API version 19.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
value	string	Yes	Number of columns or minimum column width of the grid.

columnsGap

columnsGap(value: LengthMetrics): T

Sets the gap between columns. Values less than 0 are treated as the default value.

Atomic service API: This API can be used in atomic services since API version 19.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
value	LengthMetrics	Yes	Gap between columns. Default value: 0vp

Return value

Type	Description
T	Current LazyVGridLayout component.

rowsGap

rowsGap(value: LengthMetrics): T

Sets the gap between rows. Values less than 0 are treated as the default value.

Atomic service API: This API can be used in atomic services since API version 19.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
value	LengthMetrics	Yes	Gap between rows. Default value: 0vp

Return value

Type	Description
T	Current LazyVGridLayout component.

Events

In addition to the universal events, the following events are supported.

onVisibleIndexesChange

onVisibleIndexesChange(callback: OnVisibleIndexesChangeCallback|undefined)

Sets a callback for onVisibleIndexesChange. This callback is triggered when the index of a child component in the visible area of LazyVGridLayout changes. It returns the start and end indexes of the child components in the visible area. This API uses an asynchronous callback to return the result.

Since: 26.0.0

Atomic service API: This API can be used in atomic services since API version 26.0.0.

Model restriction: This API can be used only in the stage model.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
callback	OnVisibleIndexesChangeCallback \| undefined	Yes	Callback for the onVisibleIndexesChange event. If the input parameter is undefined, the listening is canceled.

OnVisibleIndexesChangeCallback

OnVisibleIndexesChangeCallback = (start: number, end: number) => void

Triggered when the index of a child component in the visible area of LazyVGridLayout changes.

Since: 26.0.0

Atomic service API: This API can be used in atomic services since API version 26.0.0.

Model restriction: This API can be used only in the stage model.

System capability: SystemCapability.ArkUI.ArkUI.Full

Parameters

Name	Type	Mandatory	Description
start	number	Yes	Start index of a child component in the current visible area. If there is no child component in the visible area or LazyVGridLayout, -1 is returned.
end	number	Yes	End index of a child component in the current visible area. If there is no child component in the visible area or LazyVGridLayout, -1 is returned.

Example

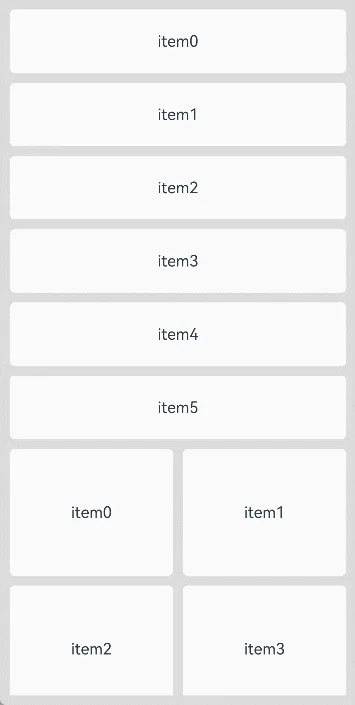

In this example, WaterFlow and LazyVGridLayout are used to implement the lazy loading grid layout, and onVisibleIndexesChange is used to call back the index when the display area changes.

MyDataSource implements the IDataSource API for LazyForEach, which provides child components for LazyVGridLayout through LazyForEach.

The onVisibleIndexesChange event is added since API version 26.0.0.

import { LengthMetrics } from '@kit.ArkUI'
import { MyDataSource } from './MyDataSource'

@Entry
@Component
struct LazyVGridLayoutSample1 {
  private arr1:MyDataSource<number> = new MyDataSource<number>();
  private arr2:MyDataSource<number> = new MyDataSource<number>();
  build() {
    Column() {
      WaterFlow() {
        LazyVGridLayout() {
          LazyForEach(this.arr1, (item:number)=>{
            Text('item' + item.toString())
              .height(64)
              .width('100%')
              .borderRadius(5)
              .backgroundColor(Color.White)
              .textAlign(TextAlign.Center)
          })
        }
        .columnsTemplate('1fr')
        .rowsGap(LengthMetrics.vp(10))
        // The onVisibleIndexesChange event is added since API version 26.0.0.
        .onVisibleIndexesChange((start: number, end: number) => {
          console.info('visible indexes: start= ' + 'start,' + 'end= ' + 'end');
      })

        LazyVGridLayout() {
          LazyForEach(this.arr2, (item:number)=>{
            Text('item' + item.toString())
              .height(128)
              .width('100%')
              .borderRadius(5)
              .backgroundColor(Color.White)
              .textAlign(TextAlign.Center)
          })
        }
        .columnsTemplate('1fr 1fr')
        .rowsGap(LengthMetrics.vp(10))
        .columnsGap(LengthMetrics.vp(10))
      }.padding(10)
      .rowsGap(10)
    }
    .width('100%').height('100%')
    .backgroundColor('#DCDCDC')
  }

  aboutToAppear(): void {
    for (let i = 0; i < 6; i++) {
      this.arr1.pushData(i);
    }
    for (let i = 0; i < 100; i++) {
      this.arr2.pushData(i);
    }
  }
}

// MyDataSource.ets
export class BasicDataSource<T> implements IDataSource {
  private listeners: DataChangeListener[] = [];
  protected dataArray: T[] = [];

  public totalCount(): number {
    return this.dataArray.length;
  }

  public getData(index: number): T {
    return this.dataArray[index];
  }

  registerDataChangeListener(listener: DataChangeListener): void {
    if (this.listeners.indexOf(listener) < 0) {
      console.info('add listener');
      this.listeners.push(listener);
    }
  }

  unregisterDataChangeListener(listener: DataChangeListener): void {
    const pos = this.listeners.indexOf(listener);
    if (pos >= 0) {
      console.info('remove listener');
      this.listeners.splice(pos, 1);
    }
  }

  notifyDataReload(): void {
    this.listeners.forEach(listener => {
      listener.onDataReloaded();
    })
  }

  notifyDataAdd(index: number): void {
    this.listeners.forEach(listener => {
      listener.onDataAdd(index);
    })
  }

  notifyDataChange(index: number): void {
    this.listeners.forEach(listener => {
      listener.onDataChange(index);
    })
  }

  notifyDataDelete(index: number): void {
    this.listeners.forEach(listener => {
      listener.onDataDelete(index);
    })
  }

  notifyDataMove(from: number, to: number): void {
    this.listeners.forEach(listener => {
      listener.onDataMove(from, to);
    })
  }

  notifyDatasetChange(operations: DataOperation[]): void {
    this.listeners.forEach(listener => {
      listener.onDatasetChange(operations);
    })
  }
}

export class MyDataSource<T> extends BasicDataSource<T> {
  public shiftData(): void {
    this.dataArray.shift();
    this.notifyDataDelete(0);
  }
  public unshiftData(data: T): void {
    this.dataArray.unshift(data);
    this.notifyDataAdd(0);
  }
  public pushData(data: T): void {
    this.dataArray.push(data);
    this.notifyDataAdd(this.dataArray.length - 1);
  }
  public popData(): void {
    this.dataArray.pop();
    this.notifyDataDelete(this.dataArray.length);
  }
  public clearData(): void {
    this.dataArray = [];
    this.notifyDataReload();
  }
}
