Key Import Overview and Algorithm Specifications

You can import an externally generated key (for example, a key generated after key agreement or generated by a server) into HUKS for management. Once a key is imported into HUKS, the plaintext can be accessed only in a secure environment in its lifecycle. This ensures that no one can obtain the plaintext of the key.

A key can be imported in plaintext or in encrypted (wrapped) mode.

Plaintext Import

Importing a key in plaintext may expose the plaintext to a non-secure environment. This import mode applies to lightweight devices or security-insensitive services.

Plaintext import is recommended to import the public key of an asymmetric key pair.
It is not recommended to import symmetric keys or asymmetric key pairs.

NOTE
The mini-system devices support plaintext import but not encrypted import.

Encrypted Import

In this mode, the key to be imported is encrypted (wrapped) and then imported to HUKS through an end-to-end encrypted transmission channel established between the service and HUKS. This mode applies to security-sensitive services due to higher security than plaintext import. However, it involves more complex key material and operations.

Encrypted import is recommended to import symmetric keys or asymmetric key pairs.

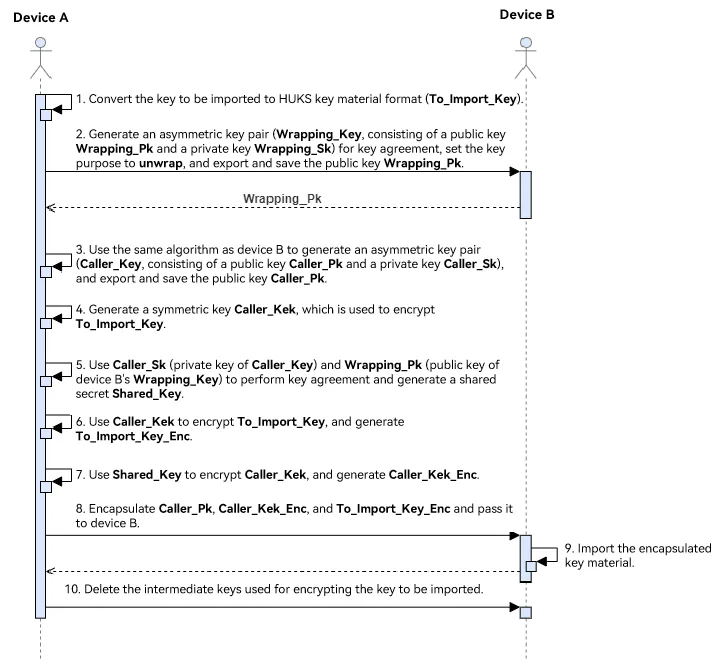

The following figure illustrates the development sequence of encrypted import.

During the encrypted import process, the following HUKS capabilities are called in sequence:

Generate an asymmetric key pair and export the public key for key agreement between devices.
Generate a symmetric key to encrypt the key to be imported.
Use the symmetric key to encrypt the key to be imported to generate the key ciphertext.
Imports the encrypted key.
Delete the intermediate keys used for encrypting the key to be imported.

The public key plaintext material returned by the key export API is encapsulated in X.509 format. The key material in the key import API must be encapsulated in the Length_Data-Data format, for example, [(Length_part1Data_part1)... (Length_partnData_partn)].

NOTE

The encrypted import supports key agreement algorithms ECDH and X25519. The generated Shared_Key uses the AES-GCM algorithm to encrypt Caller_Kek. For details about the cipher suites, see HuksUnwrapSuite.

The mini-system devices support plaintext import but not encrypted import.

Key Material Format for Encrypted Import

Content	Length
Service public key Caller_Pk length (L_{Caller_Pk})	4 bytes
Service public key Caller_Pk	L_{Caller_Pk} bytes
Shared_Key AAD2 length (L_AAD2)	4 bytes
Shared_Key AAD2	L_AAD2 bytes
Shared_Key Nonce2 length (L_Nonce2)	4 bytes
Shared_Key Nonce2	L_Nonce2 bytes
Shared_Key AEAD2 length (L_AEAD2)	4 bytes
Shared_Key AEAD2	L_AEAD2 bytes
Caller_Kek_enc length (L_{Caller_Kek_enc})	4 bytes
Caller_Kek ciphertext Caller_Kek_enc	L_{Caller_Kek_enc} bytes
Caller_Kek AAD3 length (L_AAD3)	4 bytes
Caller_Kek AAD3	L_AAD3 bytes
Caller_Kek Nonce3 length (L_Nonce3)	4 bytes
Caller_Kek Nonce3	L_Nonce3 bytes
Caller_Kek AEAD3 length (L_AEAD3)	4 bytes
Caller_Kek AEAD3	L_AEAD3 bytes
To_Import_Key_size length (L_{To_Import_Key_size})	4 bytes
Key plaintext material length To_Import_Key_size	L_{To_Import_Key_size} bytes
To_Import_Key_enc length (L_{To_Import_Key_enc})	4 bytes
To_Import_Key ciphertext To_Import_Key_enc	L_{To_Import_Key_enc} bytes

Supported Algorithms

The following table lists the supported key import specifications.

The key management service specifications include mandatory specifications and optional specifications. Mandatory specifications are algorithm specifications that must be supported. Optional specifications can be used based on actual situation. Before using the optional specifications, refer to the documents provided by the vendor to ensure that the specifications are supported.

You are advised to use mandatory specifications in your development for compatibility purposes.

Specifications for Standard-System Devices

Algorithm	Supported Key Length (Bit)	API Version	Mandatory
AES	128, 192, 256	8+	Yes
RSA	512, 768, 1024	8+	No
RSA	2048, 3072, 4096	8+	Yes
RSA	An integer multiple of 8, ranging from 1024 to 2048 (inclusive)	16+	Yes
HMAC	An integer multiple of 8, ranging from 8 to 1024 (inclusive)	8+	Yes
ECC	224	8+	No
ECC	256, 384, 521	8+	Yes
ED25519	256	8+	Yes
X25519	256	8+	Yes
DSA	An integer multiple of 8, ranging from 512 to 1024 (inclusive)	8+	No
DH	2048	8+	Yes
DH	3072, 4096	8+	No
SM2	256	9+	Yes
SM4	128	9+	Yes
DES	64	16+	Yes
3DES	128, 192	16+	Yes

Specifications for Mimi-System Devices

Before implementing the specifications for mini-system devices, determine whether your device supports the related specifications.

Algorithm	Supported Key Length (Bit)	API Version
AES	128, 192, 256	12+
DES	64	12+
3DES	128, 192	12+
RSA	An integer multiple of 8, ranging from 1024 to 2048 (inclusive)	12+
HMAC	An integer multiple of 8, ranging from 8 to 1024 (inclusive)	12+
CMAC	128	12+

Key Import Formats

HUKS supports various types of keys in different formats. The following table lists the key types and key material formats supported by HUKS.

Key Type	Algorithm	Import Format
Symmetric key	-	Key in bytes
Asymmetric key pair	-	Key pair material format
Public key of an asymmetric key pair	Ed25519, X25519	See Importing the X25519 Key and Public Key.
Public key of an asymmetric key pair	RSA, ECC, ECDH, DSA, DH, SM2	DER format defined in X.509
