applySync/flushUpdates/flushUIUpdates APIs: Synchronous Update

To synchronize the update of state management V2 and animation effects such as animateTo, you can use the applySync, flushUpdates, or flushUIUpdates API.

NOTE

Since API version 22, you can use the applySync, flushUpdates, and flushUIUpdates APIs in UIUtils to implement synchronous dirty data marking for state management V2.

Overview

Unlike state management V1, state management V2 does not immediately mark the variable as dirty. Instead, it throws a Promise microtask (with a lower priority than a macrotask). The microtask processes the dirty marking of the custom component only after the current macrotask is executed. For details about the differences, see Differences Between V1 and V2 State Variable Updates. The animateTo animation immediately refreshes the marked dirty node to determine the first frame of the animation. If the V2 state variable is used in the animation and the state variable is modified before the animation, the first frame of the animation does not meet the expectation because the change of the state variable is not marked dirty when animateTo is called. Therefore, the applySync, flushUpdates, and flushUIUpdates APIs are introduced to achieve synchronized dirty marking for state management V2, thus ensuring that animation effects meet expectations.

To use the applySync/flushUpdates/flushUIUpdates APIs, you need to import the UIUtils tool.

import { UIUtils } from '@kit.ArkUI';

Use Rules

The applySync API is used to synchronously refresh the specified state variables. It accepts a closure function and only refreshes the modifications made within the closure function, including updating @Computed calculations, triggering @Monitor callbacks, and re-rendering UI nodes.

import { UIUtils } from '@kit.ArkUI';

@Entry
@ComponentV2
struct Index {
  @Local w: number = 50; // Width.
  @Local h: number = 50; // Height.
  @Local message: string = 'Hello';

  @Monitor('message')
  onMessageChange(monitor: IMonitor) {
    monitor.dirty.forEach((path: string) => {
      console.info(`${path} change from ${monitor.value(path)?.before} to ${monitor.value(path)?.now}`);
    });
  }

  build() {
    Column() {
      Button('change size')
        .margin(20)
        .onClick(() => {
          // Values are changed additionally before the animation is executed.
          UIUtils.applySync(() => {
            this.w = 100;
            this.h = 100;
            this.message = 'Hello World';
          });

          this.getUIContext().animateTo({
            duration: 1000
          }, () => {
            this.w = 200;
            this.h = 200;
            this.message = 'Hello ArkUI';
          });
        })
        // ...
      Column() {
        Text(`${this.message}`)
      }
      .backgroundColor('#ff17a98d')
      .width(this.w)
      .height(this.h)
    }
  }
}

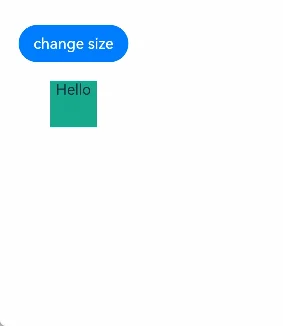

applySync-flushUpdates-flushUIUpdates

The flushUpdates API is used to synchronously refresh all state variable modifications before this function is called, including updating the @Computed calculation, @Monitor callback, and re-rendering the UI node.

import { UIUtils } from '@kit.ArkUI';

@Entry
@ComponentV2
struct Index {
  @Local w: number = 50; // Width.
  @Local h: number = 50; // Height.
  @Local message: string = 'Hello';

  @Monitor('message')
  onMessageChange(monitor: IMonitor) {
    monitor.dirty.forEach((path: string) => {
      console.info(`${path} change from ${monitor.value(path)?.before} to ${monitor.value(path)?.now}`);
    });
  }

  build() {
    Column() {
      Button('change size')
        .margin(20)
        .onClick(() => {
          // Values are changed additionally before the animation is executed.
          this.w = 100;
          this.h = 100;
          this.message = 'Hello World';
          UIUtils.flushUpdates();

          this.getUIContext().animateTo({
            duration: 1000
          }, () => {
            this.w = 200;
            this.h = 200;
            this.message = 'Hello ArkUI';
          });
        })
        // ...
      Column() {
        Text(`${this.message}`)
      }
      .backgroundColor('#ff17a98d')
      .width(this.w)
      .height(this.h)
    }
  }
}

applySync-flushUpdates-flushUIUpdates

The mentioned applySync and flushUpdates APIs both synchronously execute @Computed calculations and trigger @Monitor callbacks. This causes two @Monitor callbacks to be triggered by a single click event in the above sample code, which may be inconsistent with your expectations. For this reason, the flushUIUpdates API is introduced. It is only used to synchronously refresh all UI nodes modified before the function is called, and does not execute @Computed calculations or trigger @Monitor callbacks.

import { UIUtils } from '@kit.ArkUI';

@Entry
@ComponentV2
struct Index {
  @Local message: string = 'Hello';

  @Monitor('message')
  onMessageChange(monitor: IMonitor) {
    monitor.dirty.forEach((path: string) => {
      console.info(`${path} change from ${monitor.value(path)?.before} to ${monitor.value(path)?.now}`);
    });
  }

  build() {
    Column() {
      Text(`message: ${this.message}`)
      Button('change size')
        .margin(20)
        .onClick(() => {
          // test1: Call the applySync API. The log is printed twice.
          // UIUtils.applySync(() => {
          //   this.message = 'Hello World';
          // })

          // test2: Call the flushUpdates API. The log is printed twice.
          // this.message = 'Hello World';
          // UIUtils.flushUpdates();

          // test3: Call the flushUIUpdates API. The log is printed once.
          this.message = 'Hello World';
          UIUtils.flushUIUpdates();
          this.message = 'Hello ArkUI';
        })
        // ...
    }
  }
}

Constraints

If applySync is called nestedly within the closure function of another applySync, the inner applySync will be skipped and return undefined, and the warning message "UIUtils.applySync will be skipped when called within another UIUtils.applySync. The inner UIUtils.applySync will return undefined" will be printed.

import { UIUtils } from '@kit.ArkUI';

@Entry
@ComponentV2
struct Index {
  @Local w: number = 50; // Width.
  @Local h: number = 50; // Height.

  build() {
    Column() {
      Button('change size')
        .margin(20)
        .onClick(() => {
          // Values are changed additionally before the animation is executed.
          UIUtils.applySync(() => {
            this.w = 100;
            // The inner applySync is skipped.
            UIUtils.applySync(() => {
              this.h = 100;
            });
          });

          this.getUIContext().animateTo({
            duration: 1000
          }, () => {
            this.w = 200;
            this.h = 200;
          });
        })
        // ...
      Column() {
        Text('BOX')
      }
      .backgroundColor('#ff17a98d')
      .width(this.w)
      .height(this.h)
    }
  }
}

Calling the flushUpdates or flushUIUpdates API in the applySync closure function will have no effect, and the warning message "UIUtils.flushUpdates will be skipped when called within UIUtils.applySync"/"UIUtils.flushUIUpdates will be skipped when called within UIUtils.applySync" will be printed.

import { UIUtils } from '@kit.ArkUI';

@Entry
@ComponentV2
struct Index {
  @Local w: number = 50; // Width.
  @Local h: number = 50; // Height.

  build() {
    Column() {
      Button('change size')
        .margin(20)
        .onClick(() => {
          // Values are changed additionally before the animation is executed.
          UIUtils.applySync(() => {
            this.w = 100;
            UIUtils.flushUpdates(); // In applySync, flushUpdates is ignored.
            UIUtils.flushUIUpdates(); // In applySync, flushUIUpdates is ignored.
          });
          this.h = 100;
          UIUtils.flushUpdates(); // Take effect.

          this.getUIContext().animateTo({
            duration: 1000
          }, () => {
            this.w = 200;
            this.h = 200;
          });
        })
        // ...
      Column() {
        Text('BOX')
      }
      .backgroundColor('#ff17a98d')
      .width(this.w)
      .height(this.h)
    }
  }
}

Calling the applySync, flushUpdates, and flushUIUpdates APIs within the getter methods decorated with @Computed is not supported; otherwise, a runtime error is reported. The error message is "The function is not allowed to be called in @Computed", and the error code is 140001.

import { UIUtils } from '@kit.ArkUI';

@Entry
@ComponentV2
struct Page {
  @Local firstName: string = 'Hua';
  @Local lastName: string = 'Li';
  @Local count: number = 0;

  @Computed
  get fullName() {
    // An error is reported when applySync, flushUpdates, and flushUIUpdates are called in computed.
    UIUtils.flushUIUpdates();
    UIUtils.flushUpdates();
    UIUtils.applySync(() => {
      this.count++;
    });
    return this.firstName + ' ' + this.lastName;
  }

  build() {
    Column() {
      Text(`${this.fullName}`)
      Text(`${this.count}`)
      Button('change fullName').onClick(() => {
        this.firstName = 'Zhang';
        this.lastName = 'San';
      })
    }
  }
}

Calling the flushUpdates and flushUIUpdates APIs in the @Monitor callback function is not supported. Otherwise, an error is reported. The error message is "The function is not allowed to be called in @Monitor", and the error code is 140002.

import { UIUtils } from '@kit.ArkUI';

@Entry
@ComponentV2
struct Page {
  @Local count: number = 0;

  @Monitor('count')
  onCountChange(monitor: IMonitor) {
    monitor.dirty.forEach((path: string) => {
      console.info(`${path} changed from ${monitor.value(path)?.before} to ${monitor.value(path)?.now}`);
    });
    UIUtils.flushUpdates(); // An error is reported when flushUpdates is called in the monitor.
    UIUtils.flushUIUpdates(); // An error is reported when flushUIUpdates is called in the monitor.
  }

  build() {
    Column() {
      Text(`${this.count}`)
      Button('change count')
        .onClick(() => {
        this.count++;
        })
        // ...
    }
  }
}

Use Cases

Animation Scenario

There is a conflict between the asynchronous dirty marking logic of state management V2 and the logic where animateTo immediately refreshes dirty nodes, which causes no animation to be displayed when animateTo is triggered in @Monitor. The expected effect can be achieved by using the applySync API to synchronize the changes of state variables. The following is an example:

import { UIUtils } from '@kit.ArkUI';

@Entry
@ComponentV2
struct Index {
  @Local message: string = 'Hello World';
  @Local x: number = 0;
  @Local y: number = 0;
  @Local w: number = 200;
  @Local h: number = 50;

  @Monitor('message')
  onMsgChange() {
    console.info('message change to', this.message);
    this.animateAction();
  }

  animateAction() {
    this.getUIContext().animateTo({
      duration: 1000
    }, () => {
      // Call the applySync API to synchronously refresh the animation tail frame. Otherwise, the animation is not displayed.
      UIUtils.applySync(() => {
        this.x = 100;
        this.y = 100;
      });
    });
  }

  build() {
    Column() {
      Text(this.message)
        .fontSize(20)
        .width(this.w)
        .height(this.h)
        .backgroundColor(Color.Pink)
        .onClick(() => {
          this.message = 'New Message';
        })
        .position({
          x: this.x,
          y: this.y
        })
        // ...
    }
    .height('100%')
    .width('100%')
  }
}

applySync-animateTo

Routing Scenario

To set shared transition in the routing scenario, use the applySync API to refresh the name value during transition. In the following sample code, when navigating from the index page to the PageTransitionTwo page, the IDs of the two pages do not match, and the page transition animation fails to play. When the index page is returned from the PageTransitionTwo page, the IDs of the two pages match, and the page transition displayed.

// PageUse.ets

import { UIUtils, AppStorageV2 } from '@kit.ArkUI';

@ObservedV2
export class Info {
  @Trace public name: string = '';
}

@Entry
@ComponentV2
struct SharedTransitionExample {
  @Local info: Info = AppStorageV2.connect(Info, () => new Info())!;

  build() {
    Column() {
      // 'app.media.startIcon' is only an example. Replace it with the actual one.
      Image($r('app.media.startIcon'))
        .width(50)
        .height(50)
        .margin({ left: 20, top: 20 })
        .sharedTransition(this.info.name, { duration: 800, curve: Curve.Linear, delay: 100 })
    }
    .width('100%')
    .height('100%')
    .alignItems(HorizontalAlign.Start)
    .onClick(() => {
      UIUtils.applySync(() => {
        this.info.name = 'id1'; // Not matched.
      });
      this.getUIContext().getRouter().pushUrl({ url: 'pages/PageTransitionTwo' })
    })
    // ...
  }
}

// PageTransitionTwo.ets

import { UIUtils, AppStorageV2 } from '@kit.ArkUI';
import { Info } from './PageUse';

@Entry
@ComponentV2
struct PageBExample {
  build() {
    Stack() {
      // 'app.media.startIcon' is only an example. Replace it with the actual one.
      Image($r('app.media.startIcon'))
        .width(150)
        .height(150)
        .sharedTransition('sharedImage', { duration: 800, curve: Curve.Linear, delay: 100 })
        .onClick(() => {
          UIUtils.applySync(() => {
            AppStorageV2.connect(Info, () => new Info())!.name = 'sharedImage'; // Matched.
          });
          this.getUIContext().getRouter().back();
        })
        // ...
    }
    .width('100%')
    .height('100%')
  }
}

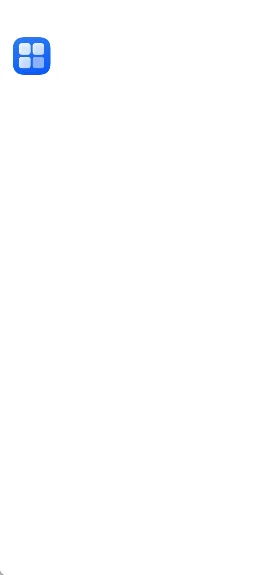

applySync-pagetransition
