Camera

Overview

Function

The OpenHarmony camera driver model provides the camera hardware device interface (HDI) and the camera pipeline model to manage camera devices. The camera driver model is divided into three layers:

• HDI implementation layer: implements standard ohos (OpenHarmony operating system) APIs for cameras.
• Framework layer: interacts with the HDI implementation layer to set up data channels and operate camera devices.
• Device adaptation layer: supports different platforms by shielding the differences in underlying chips and operating systems.

Working Principles

The camera module is used to initialize services and devices, set up data channels, and configure, create, deliver, and capture streams. The following figure shows the camera driver model.

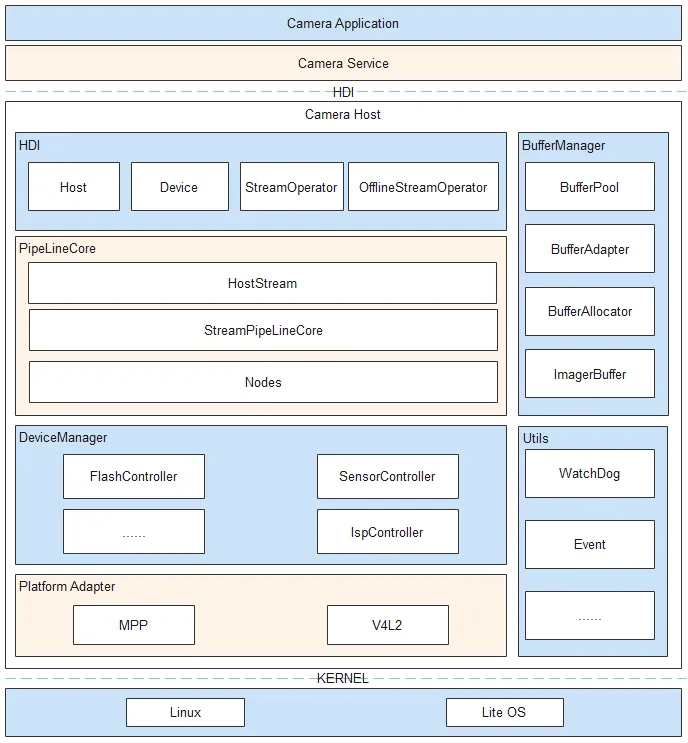

Figure 1 HDF-based camera driver model

1. When the system starts, the camera_host process is created. The process enumerates underlying devices, creates a DeviceManager instance (to manage the device tree), an object for each underlying device, and a CameraHost instance, and registers the CameraHost instance with the user-mode HDF (UHDF) service. Through the UHDF service, the camera service can obtain the underlying CameraDeviceHost services to operate the hardware devices. The DeviceManager instance can also be created by using the configuration table.

2. The Camera Service obtains the CameraHost instance through the CameraDeviceHost service.

The CameraHost instance can be used to obtain the underlying camera capabilities, turn on the flashlight, call Open() to start a camera and set up a connection with the camera, create a DeviceManager instance (to power on the hardware modules), and create a CameraDevice instance (to provide the device control interface for the upper layer).

When the CameraDevice instance is created, the PipelineCore modules will be instantiated. The StreamPipelineCore module creates pipelines, and the MetaQueueManager module reports metadata.

1. The Camera Service configures stream and creates a Stream class through the CameraDevice module. The StreamPipelineStrategy module creates the node connection mode of the corresponding stream by using the mode issued by the upper layer and querying the configuration table. The StreamPipelineBuilder module creates a node and returns the pipeline to the StreamPipelineDispatcher module through the connection. The StreamPipelineDispatcher module dispatches pipelines.

2. The Camera Service controls the stream operations through the Stream instance.

AttachBufferQueue() delivers the buffer queue requested from the display module to the bottom layer. The CameraDeviceDriverModel manages the buffer. After Capture() is called to deliver commands, the bottom layer transfers the buffer to the upper layer. The Image Signal Processor (ISP) node obtains a specified number of buffers from the buffer queue and delivers the buffers to the bottom-layer ISP hardware. After filling the buffers, the ISP hardware transfers the buffers to the CameraDeviceDriverModel. The CameraDeviceDriverModel fills the created pipeline with the received buffers by using a loop thread. Each node processes the pipeline data and transfers the data to the upper layer in a callback. At the same time, the buffers are freed to the buffer queue for reuse.

1. The Camera Service delivers the photographing command through Capture(). ChangeToOfflineStream() is used to query the position of the photographing buffer. If the ISP hardware has output an image and sent the image data to the IPP node, the common photographing stream can be converted into an offline stream. Otherwise, the close process is executed. ChangeToOfflineStream() passes StreamInfo to enable the offline stream to obtain the stream information of the common stream, determines the node connection mode of the offline stream based on the configuration table, and creates the node connection for the offline stream (if the node connection has been created, the node required by the non-offline stream will be closed by CloseCamera.) When the buffer is transferred from the pipeline to the upper layer, the pipeline resources are released.

2. The Camera Service sends the CaptureSetting parameter to the CameraDeviceDriverModel through UpdateSettings() of the CameraDevice instance. The CameraDeviceDriverModel forwards the parameter to each node through the StreamPipelineDispatcher module. The CaptureSetting parameter carried in StartStreamingCapture() and Capture() is forwarded to the node to which the stream belongs through the StreamPipelineDispatcher module.

3. The Camera Service uses EnableResult() and DisableResult() to control the reporting of underlying metadata. If the underlying metadata needs to be reported, the pipeline creates a buffer queue in the CameraDeviceDriverModel to collect and transfer metadata, queries the configuration table based on the StreamPipelineStrategy module, and creates and connects to the specified node through the StreamPipelineBuilder module. The MetaQueueManager module delivers the buffer to the bottom layer, and the bottom-layer node fills in data. The MetaQueueManager module then invokes the upper-layer callback to transfer the data to the upper layer.

4. The Camera Service calls Close() of the CameraDevice class, and the CameraDevice instance calls the corresponding DeviceManager module to power off each hardware. If an offline stream exists in the subpipeline of the IPP node, the offline stream must be reserved until the execution is complete.

5. To implement dynamic frame control, a CollectBuffer thread is started in the StreamOperator. The CollectBuffer thread obtains a buffer from the buffer queue of each stream. If the frame rate of a stream needs to be controlled (1/n of the sensor output frame rate), the CollectBuffer thread can control the buffer packaging of each frame as required, and determine whether to collect the buffer of the stream. For example, if the output frame rate of the sensor is 120 fps and the preview stream frame rate is 30 fps, the CollectBuffer thread collects the buffer of the preview stream every 4 fps.

Development Guidelines

When to Use

The camera module encapsulates camera operations in camera preview, photographing, and video streams to implement camera hardware operations and improve development efficiency.

Available APIs

The following table describes the C++ APIs generated from the Interface Definition Language (IDL) interface description. For details about the interface declaration, see the .idl file in /drivers/interface/camera/v1_0/.
The parameters passed in the HDI cannot exceed the capability range obtained by GetCameraAbility. Even if the parameters beyond the capability range can be passed in APIs such as UpdateSettings, CommitStreams, and Capture with no error returned, unexpected behavior may be caused. - icamera_device.h

• icamera_device_callback.h

• icamera_host.h

• icamera_host_callback.h

• ioffline_stream_operator.h

• istream_operator.h

• istream_operator_callback.h

How to Develop

The camera driver development procedure is as follows:

1. Register a CameraHost instance.

   Define the HdfDriverEntry structure to define the method for initializing CameraHost. For details about the code, see drivers/peripheral/camera/interfaces/hdi_ipc/camera_host_driver.cpp.

   struct HdfDriverEntry g_cameraHostDriverEntry = {
      .moduleVersion = 1,
      .moduleName = "camera_service",
      .Bind = HdfCameraHostDriverBind,
      .Init = HdfCameraHostDriverInit,
      .Release = HdfCameraHostDriverRelease,
   };
   HDF_INIT(g_cameraHostDriverEntry); // Register the HdfDriverEntry structure with the HDF.


2. Initialize the CameraHost service.

   The HdfCameraHostDriverBind() method defined in the HdfDriverEntry structure registers CameraServiceDispatch() and CameraHostStubInstance(). CameraServiceDispatch() is used to remotely call the CameraHost methods, such as OpenCamera() and SetFlashlight(). CameraHostStubInstance() is called during the system startup to initialize the camera.

   static int HdfCameraHostDriverBind(struct HdfDeviceObject *deviceObject)
   {
       HDF_LOGI("HdfCameraHostDriverBind enter");

       auto *hdfCameraHostHost = new (std::nothrow) HdfCameraHostHost;
       if (hdfCameraHostHost == nullptr) {
           HDF_LOGE("%{public}s: failed to create HdfCameraHostHost object", __func__);
           return HDF_FAILURE;
       }

       hdfCameraHostHost->ioService.Dispatch = CameraHostDriverDispatch; // Provide a method to remotely call a CameraHost method.
       hdfCameraHostHost->ioService.Open = NULL;
       hdfCameraHostHost->ioService.Release = NULL;

       auto serviceImpl = ICameraHost::Get(true);
       if (serviceImpl == nullptr) {
           HDF_LOGE("%{public}s: failed to get of implement service", __func__);
           delete hdfCameraHostHost;
           return HDF_FAILURE;
       }

       hdfCameraHostHost->stub = OHOS::HDI::ObjectCollector::GetInstance().GetOrNewObject(serviceImpl,
           ICameraHost::GetDescriptor()); // Initialize the camera.
       if (hdfCameraHostHost->stub == nullptr) {
           HDF_LOGE("%{public}s: failed to get stub object", __func__);
           delete hdfCameraHostHost;
           return HDF_FAILURE;
       }

       deviceObject->service = &hdfCameraHostHost->ioService;
       return HDF_SUCCESS;
   }

The following functions are the implementation of the methods of the CameraHost:

   int32_t CameraHostStub::CameraHostServiceStubOnRemoteRequest(int cmdId, MessageParcel &data,
       MessageParcel &reply, MessageOption &option)
   {
       switch(cmdId) {
           case CMD_CAMERA_HOST_SET_CALLBACK: {
               return CameraHostStubSetCallback(data, reply, option);
           }
           case CMD_CAMERA_HOST_GET_CAMERAID: {
               return CameraHostStubGetCameraIds(data, reply, option);
           }
           case CMD_CAMERA_HOST_GET_CAMERA_ABILITY: {
               return CameraHostStubGetCameraAbility(data, reply, option);
           }
           case CMD_CAMERA_HOST_OPEN_CAMERA: {
               return CameraHostStubOpenCamera(data, reply, option);
           }
           case CMD_CAMERA_HOST_SET_FLASH_LIGHT: {
               return CameraHostStubSetFlashlight(data, reply, option);
           }
           default: {
               HDF_LOGE("%s: not support cmd %d", __func__, cmdId);
               return HDF_ERR_INVALID_PARAM;
           }
       }
       return HDF_SUCCESS;
   }

CameraHostStubInstance() finally calls CameraHostImpl::Init() to obtain the physical camera and initialize the DeviceManager and PipelineCore modules.

1. Obtain the CameraHost service.

Use Get() to obtain the CameraHost from the CameraService. The Get() method is as follows:

   sptr<ICameraHost> ICameraHost::Get(const char *serviceName)
   {
       do {
           using namespace OHOS::HDI::ServiceManager::V1_0;
           auto servMgr = IServiceManager::Get();
           if (servMgr == nullptr) {
               HDF_LOGE("%s: IServiceManager failed!", __func__);
               break;
           }
           auto remote = servMgr->GetService(serviceName);  // Obtain the CameraHost based on serviceName.
           if (remote != nullptr) {
               sptr<CameraHostProxy> hostSptr = iface_cast<CameraHostProxy>(remote); // Return the CameraHostProxy object that contains interfaces such as OpenCamera() to the caller.
               return hostSptr;
           }
           HDF_LOGE("%s: GetService failed! serviceName = %s", __func__, serviceName);
       } while(false);
       HDF_LOGE("%s: get %s failed!", __func__, serviceName);
       return nullptr;
   }

1. Open a camera device.

The CameraHostProxy class provides SetCallback(), GetCameraIds(), GetCameraAbility(), OpenCamera(), and SetFlashlight().

Use OpenCamera() to call the remote CameraHostStubOpenCamera() through the CMD_CAMERA_HOST_OPEN_CAMERA to obtain an ICameraDevice object.

   int32_t CameraHostProxy::OpenCamera(const std::string& cameraId, const sptr<ICameraDeviceCallback>& callbackObj,
       sptr<ICameraDevice>& device)
   {
       MessageParcel cameraHostData;
       MessageParcel cameraHostReply;
       MessageOption cameraHostOption(MessageOption::TF_SYNC);

       if (!cameraHostData.WriteInterfaceToken(ICameraHost::GetDescriptor())) {
           HDF_LOGE("%{public}s: failed to write interface descriptor!", __func__);
           return HDF_ERR_INVALID_PARAM;
       }

       if (!cameraHostData.WriteCString(cameraId.c_str())) {
           HDF_LOGE("%{public}s: write cameraId failed!", __func__);
           return HDF_ERR_INVALID_PARAM;
       }

       if (!cameraHostData.WriteRemoteObject(OHOS::HDI::ObjectCollector::GetInstance().GetOrNewObject(callbackObj,
           ICameraDeviceCallback::GetDescriptor()))) {
           HDF_LOGE("%{public}s: write callbackObj failed!", __func__);
           return HDF_ERR_INVALID_PARAM;
       }

       int32_t cameraHostRet = Remote()->SendRequest(CMD_CAMERA_HOST_OPEN_CAMERA, cameraHostData, cameraHostReply, cameraHostOption);
       if (cameraHostRet != HDF_SUCCESS) {
           HDF_LOGE("%{public}s failed, error code is %{public}d", __func__, cameraHostRet);
           return cameraHostRet;
       }

       device = hdi_facecast<ICameraDevice>(cameraHostReply.ReadRemoteObject());

       return cameraHostRet;
   }

Remote()->SendRequest calls CameraHostServiceStubOnRemoteRequest(), locates CameraHostStubOpenCamera() based on cmdId, and finally calls CameraHostImpl::OpenCamera() to obtain a CameraDevice and power on the camera hardware.

   int32_t CameraHostImpl::OpenCamera(const std::string& cameraId, const sptr<ICameraDeviceCallback>& callbackObj,
       sptr<ICameraDevice>& device)
   {
       CAMERA_LOGD("OpenCamera entry");
       DFX_LOCAL_HITRACE_BEGIN;
       if (CameraIdInvalid(cameraId) != RC_OK||callbackObj == nullptr) {
           CAMERA_LOGW("open camera id is empty or callback is null.");
           return INVALID_ARGUMENT;
       }

       auto itr = cameraDeviceMap_.find(cameraId);
       if (itr == cameraDeviceMap_.end()) {
           CAMERA_LOGE("camera device not found.");
           return INSUFFICIENT_RESOURCES;
       }
       CAMERA_LOGD("OpenCamera cameraId find success.");

       std::shared_ptr<CameraDeviceImpl> cameraDevice = itr->second;
       if (cameraDevice == nullptr) {
           CAMERA_LOGE("camera device is null.");
           return INSUFFICIENT_RESOURCES;
       }

       CamRetCode ret = cameraDevice->SetCallback(callbackObj);
       CHECK_IF_NOT_EQUAL_RETURN_VALUE(ret, HDI::Camera::V1_0::NO_ERROR, ret);

       CameraHostConfig *config = CameraHostConfig::GetInstance();
       CHECK_IF_PTR_NULL_RETURN_VALUE(config, INVALID_ARGUMENT);

       std::vector<std::string> phyCameraIds;
       RetCode rc = config->GetPhysicCameraIds(cameraId, phyCameraIds);
       if (rc != RC_OK) {
           CAMERA_LOGE("get physic cameraId failed.");
           return DEVICE_ERROR;
       }
       if (CameraPowerUp(cameraId, phyCameraIds) != RC_OK) { // Power on the camera hardware.
           CAMERA_LOGE("camera powerup failed.");
           CameraPowerDown(phyCameraIds);
           return DEVICE_ERROR;
       }

       auto sptrDevice = deviceBackup_.find(cameraId);
       if (sptrDevice == deviceBackup_.end()) {
   #ifdef CAMERA_BUILT_ON_OHOS_LITE
           deviceBackup_[cameraId] = cameraDevice;
   #else
           deviceBackup_[cameraId] = cameraDevice.get();
   #endif
       }
       device = deviceBackup_[cameraId];
       cameraDevice->SetStatus(true);
       CAMERA_LOGD("open camera success.");
       DFX_LOCAL_HITRACE_END;
       return HDI::Camera::V1_0::NO_ERROR;
   }

1. Obtain streams.

CameraDeviceImpl defines GetStreamOperator(), UpdateSettings(), SetResultMode(), and GetEnabledResult(). Use GetStreamOperator() to obtain steams.

   int32_t CameraDeviceImpl::GetStreamOperator(const sptr<IStreamOperatorCallback>& callbackObj,
       sptr<IStreamOperator>& streamOperator)
   {
       HDI_DEVICE_PLACE_A_WATCHDOG;
       DFX_LOCAL_HITRACE_BEGIN;
       if (callbackObj == nullptr) {
           CAMERA_LOGW("input callback is null.");
           return INVALID_ARGUMENT;
       }

       spCameraDeciceCallback_ = callbackObj;
       if (spStreamOperator_ == nullptr) {
   #ifdef CAMERA_BUILT_ON_OHOS_LITE
           // Create a spStreamOperator_ object and pass it to the caller for subsequent stream operations.
           spStreamOperator_ = std::make_shared<StreamOperator>(spCameraDeciceCallback_, shared_from_this());
   #else
           spStreamOperator_ = new(std::nothrow) StreamOperator(spCameraDeciceCallback_, shared_from_this());
   #endif
           if (spStreamOperator_ == nullptr) {
               CAMERA_LOGW("create stream operator failed.");
               return DEVICE_ERROR;
           }
           spStreamOperator_->Init();
           ismOperator_ = spStreamOperator_;
       }
       streamOperator = ismOperator_;
   #ifndef CAMERA_BUILT_ON_OHOS_LITE
       CAMERA_LOGI("CameraDeviceImpl %{public}s: line: %{public}d", __FUNCTION__, __LINE__);
       pipelineCore_->GetStreamPipelineCore()->SetCallback(
           [this](const std::shared_ptr<CameraMetadata> &metadata) {
           OnMetadataChanged(metadata);
       });
   #endif
       DFX_LOCAL_HITRACE_END;
       return HDI::Camera::V1_0::NO_ERROR;
   }

1. Create streams.

Fill in the StreamInfo structure before creating streams by calling CreateStreams().

   using StreamInfo = struct _StreamInfo {
       int streamId_;
       int width_;                             // Stream width
       int height_;                            // Stream height
       int format_;                            // Stream format, for example, PIXEL_FMT_YCRCB_420_SP
       int dataSpace_;
       StreamIntent intent_;                   // StreamIntent, for example, PREVIEW
       bool tunneledMode_;
       ufferProducerSequenceable bufferQueue_; // Use streamCustomer->CreateProducer() to create a buffer queue for streams.
       int minFrameDuration_;
       EncodeType encodeType_;
   };

CreateStreams() is a method in the StreamOperator class (StreamOperatorImpl is the base class of StreamOperator). Use CreateStreams() to create a StreamBase object, which initializes operations such as CreateBufferPool through its Init() method.

   int32_t StreamOperator::CreateStreams(const std::vector<StreamInfo>& streamInfos)
   {
       PLACE_A_NOKILL_WATCHDOG(requestTimeoutCB_);
       DFX_LOCAL_HITRACE_BEGIN;
       for (const auto& it : streamInfos) {
           CHECK_IF_NOT_EQUAL_RETURN_VALUE(CheckStreamInfo(it), true, INVALID_ARGUMENT);
           CAMERA_LOGI("streamId:%{public}d and format:%{public}d and width:%{public}d and height:%{public}d",
               it.streamId_, it.format_, it.width_, it.height_);
           if (streamMap_.count(it.streamId_) > 0) {
               CAMERA_LOGE("stream [id = %{public}d] has already been created.", it.streamId_);
               return INVALID_ARGUMENT;
           }
           std::shared_ptr<IStream> stream = StreamFactory::Instance().CreateShared( // Create a stream instance.
               IStream::g_availableStreamType[it.intent_], it.streamId_, it.intent_, pipelineCore_, messenger_);
           if (stream == nullptr) {
               CAMERA_LOGE("create stream [id = %{public}d] failed.", it.streamId_);
               return INSUFFICIENT_RESOURCES;
           }
           StreamConfiguration scg;
           StreamInfoToStreamConfiguration(scg, it);
           RetCode rc = stream->ConfigStream(scg);
           if (rc != RC_OK) {
               CAMERA_LOGE("configure stream %{public}d failed", it.streamId_);
               return INVALID_ARGUMENT;
           }
           if (!scg.tunnelMode && (it.bufferQueue_)->producer_ != nullptr) {
               CAMERA_LOGE("stream [id:%{public}d] is not tunnel mode, can't bind a buffer producer", it.streamId_);
               return INVALID_ARGUMENT;
           }
           if ((it.bufferQueue_)->producer_ != nullptr) {
               auto tunnel = std::make_shared<StreamTunnel>();
               CHECK_IF_PTR_NULL_RETURN_VALUE(tunnel, INSUFFICIENT_RESOURCES);
               rc = tunnel->AttachBufferQueue((it.bufferQueue_)->producer_);
               CHECK_IF_NOT_EQUAL_RETURN_VALUE(rc, RC_OK, INVALID_ARGUMENT);
               if (stream->AttachStreamTunnel(tunnel) != RC_OK) {
                   CAMERA_LOGE("attach buffer queue to stream [id = %{public}d] failed", it.streamId_);
                   return INVALID_ARGUMENT;
               }
           }
           {
               std::lock_guard<std::mutex> l(streamLock_);
               streamMap_[stream->GetStreamId()] = stream;
           }
           CAMERA_LOGI("create stream success [id:%{public}d] [type:%{public}s]", stream->GetStreamId(),
                       IStream::g_availableStreamType[it.intent_].c_str());
       }
       DFX_LOCAL_HITRACE_END;
       return HDI::Camera::V1_0::NO_ERROR;
    }

1. Configure streams.

Use CommitStreams() to configure streams, including initializing and creating PipelineCore. CommitStreams() must be called after streams are created.

   int32_t StreamOperator::CommitStreams(OperationMode mode, const std::vector<uint8_t>& modeSetting)
   {
       CAMERA_LOGV("enter");
       CHECK_IF_PTR_NULL_RETURN_VALUE(streamPipeline_, DEVICE_ERROR);
       PLACE_A_NOKILL_WATCHDOG(requestTimeoutCB_);
       if (modeSetting.empty()) {
           CAMERA_LOGE("input vector is empty");
           return INVALID_ARGUMENT;
       }
       DFX_LOCAL_HITRACE_BEGIN;

       std::vector<StreamConfiguration> configs = {};
       {
           std::lock_guard<std::mutex> l(streamLock_);
           std::transform(streamMap_.begin(), streamMap_.end(), std::back_inserter(configs),
               [](auto &iter) { return iter.second->GetStreamAttribute(); });
       }

       std::shared_ptr<CameraMetadata> setting;
       MetadataUtils::ConvertVecToMetadata(modeSetting, setting);
       DynamicStreamSwitchMode method = streamPipeline_->CheckStreamsSupported(mode, setting, configs);
       if (method == DYNAMIC_STREAM_SWITCH_NOT_SUPPORT) {
           return INVALID_ARGUMENT;
       }
       if (method == DYNAMIC_STREAM_SWITCH_NEED_INNER_RESTART) {
           std::lock_guard<std::mutex> l(streamLock_);
           for (auto it : streamMap_) {
               it.second->StopStream();
           }
       }
       {
           std::lock_guard<std::mutex> l(streamLock_);
           for (auto it : streamMap_) {
               if (it.second->CommitStream() != RC_OK) {
                   CAMERA_LOGE("commit stream [id = %{public}d] failed.", it.first);
                   return DEVICE_ERROR;
               }
           }
       }
       RetCode rc = streamPipeline_->PreConfig(setting); // Configure the device stream.
       if (rc != RC_OK) {
           CAMERA_LOGE("prepare mode settings failed");
           return DEVICE_ERROR;
       }
       rc = streamPipeline_->CreatePipeline(mode); // Create a pipeline.
       if (rc != RC_OK) {
           CAMERA_LOGE("create pipeline failed.");
           return INVALID_ARGUMENT;
       }

       DFX_LOCAL_HITRACE_END;
       return HDI::Camera::V1_0::NO_ERROR;
   }

1. Capture images.

Fill in the CaptureInfo structure before calling Capture().

   using CaptureInfo = struct _CaptureInfo {
       int[] streamIds_;                 // IDs of the streams to capture.
       unsigned char[]  captureSetting_; // Use the camera ability obtained by GetCameraAbility() of CameraHost to fill in the settings.
       bool enableShutterCallback_;
   };

Use the Capture() method in StreamOperator to capture data streams.

   int32_t StreamOperator::Capture(int32_t captureId, const CaptureInfo& info, bool isStreaming)
   {
       CHECK_IF_EQUAL_RETURN_VALUE(captureId < 0, true, INVALID_ARGUMENT);
       PLACE_A_NOKILL_WATCHDOG(requestTimeoutCB_);
       DFX_LOCAL_HITRACE_BEGIN;

       for (auto id : info.streamIds_) {
           std::lock_guard<std::mutex> l(streamLock_);
           auto it = streamMap_.find(id);
           if (it == streamMap_.end()) {
               return INVALID_ARGUMENT;
           }
       }

       {
           std::lock_guard<std::mutex> l(requestLock_);
           auto itr = requestMap_.find(captureId);
           if (itr != requestMap_.end()) {
               return INVALID_ARGUMENT;
           }
       }

       std::shared_ptr<CameraMetadata> captureSetting;
       MetadataUtils::ConvertVecToMetadata(info.captureSetting_, captureSetting);
       CaptureSetting setting = captureSetting;
       auto request =
           std::make_shared<CaptureRequest>(captureId, info.streamIds_.size(), setting,
                                             info.enableShutterCallback_, isStreaming);
       for (auto id : info.streamIds_) {
           RetCode rc = streamMap_[id]->AddRequest(request);
           if (rc != RC_OK) {
               return DEVICE_ERROR;
           }
       }

       {
           std::lock_guard<std::mutex> l(requestLock_);
           requestMap_[captureId] = request;
       }
       return HDI::Camera::V1_0::NO_ERROR;
   }

1. Cancel the capture and release the offline stream.

Use CancelCapture() in the StreamOperatorImpl class to cancel the stream capture based on captureId.

   int32_t StreamOperator::CancelCapture(int32_t captureId)
   {
       CHECK_IF_EQUAL_RETURN_VALUE(captureId < 0, true, INVALID_ARGUMENT);
       PLACE_A_NOKILL_WATCHDOG(requestTimeoutCB_);
       DFX_LOCAL_HITRACE_BEGIN;

       std::lock_guard<std::mutex> l(requestLock_);
       auto itr = requestMap_.find(captureId); // Search for the CameraCapture object in the Map based on the captureId.
       if (itr == requestMap_.end()) {
           CAMERA_LOGE("can't cancel capture [id = %{public}d], this capture doesn't exist", captureId);
           return INVALID_ARGUMENT;
       }

       RetCode rc = itr->second->Cancel();    // Call Cancel() in CameraCapture to cancel the stream capture.
       if (rc != RC_OK) {
           return DEVICE_ERROR;
       }
       requestMap_.erase(itr);                // Erase the CameraCapture object.

       DFX_LOCAL_HITRACE_END;
       return HDI::Camera::V1_0::NO_ERROR;
   }

Use ReleaseStreams() in the StreamOperatorImpl class to release the streams created by using CreateStream() and CommitStreams() and destroy the pipeline.

   int32_t StreamOperator::ReleaseStreams(const std::vector<int32_t>& streamIds)
   {
       PLACE_A_NOKILL_WATCHDOG(requestTimeoutCB_);
       DFX_LOCAL_HITRACE_BEGIN;
       for (auto id : streamIds) {
           std::lock_guard<std::mutex> l(streamLock_);
           auto it = streamMap_.find(id);
           if (it == streamMap_.end()) {
               continue;
           }
           if (it->second->IsRunning()) {
               it->second->StopStream();
           }
           it->second->DumpStatsInfo();
           streamMap_.erase(it);
       }

       for (auto id : streamIds) {
           CHECK_IF_EQUAL_RETURN_VALUE(id < 0, true, INVALID_ARGUMENT);
       }

       DFX_LOCAL_HITRACE_END;
       return HDI::Camera::V1_0::NO_ERROR;
   }

1. Close the camera device.

   Use Close() in the CameraDeviceImpl class to close the camera device. The PowerDown() in DeviceManager is called to power off the device.

Example

There is a ohos_camera_demo in the /drivers/peripheral/camera/hal/test/demo directory. After the system is started, the executable file ohos_camera_demo is generated in the /vendor/bin directory. This demo implements basic camera capabilities such as preview and photographing.

The following uses the demo to describe how to use the HDI to implement PreviewOn() and CaptureON().

1. Construct a CameraDemo object in the main function. This object contains methods for initializing the camera and starting, stopping, and releasing streams. The mainDemo->InitSensors() function is used to initialize the CameraHost, and the mainDemo->InitCameraDevice() function is used to initialize the CameraDevice.

   int main(int argc, char** argv)
   {
       RetCode rc = RC_OK;
       auto mainDemo = std::make_shared<CameraDemo>();
       rc = mainDemo->InitSensors();      // Initialize the CameraHost.
       if (rc == RC_ERROR) {
           CAMERA_LOGE("main test: mainDemo->InitSensors() error\n");
           return -1;
       }

       rc = mainDemo->InitCameraDevice(); // Initialize the CameraDevice.
       if (rc == RC_ERROR) {
           CAMERA_LOGE("main test: mainDemo->InitCameraDevice() error\n");
           return -1;
       }

       rc = PreviewOn(0, mainDemo);       // Configure and enable streams.
       if (rc != RC_OK) {
           CAMERA_LOGE("main test: PreviewOn() error demo exit");
           return -1;
       }

       ManuList(mainDemo, argc, argv);    // Print the menu to the console.

       return RC_OK;
   }

The function used to initialize the CameraHost is implemented as follows, where the HDI ICameraHost::Get() is called to obtain the demoCameraHost and set the callback:

   RetCode OhosCameraDemo::InitSensors()
   {
       int rc = 0;

       CAMERA_LOGD("demo test: InitSensors enter");

       if (demoCameraHost_ != nullptr) {
           return RC_OK;
       }
   #ifdef CAMERA_BUILT_ON_OHOS_LITE
       demoCameraHost_ = OHOS::Camera::CameraHost::CreateCameraHost();
   #else
       constexpr const char *DEMO_SERVICE_NAME = "camera_service";
       demoCameraHost_ = ICameraHost::Get(DEMO_SERVICE_NAME, false);
   #endif
       if (demoCameraHost_ == nullptr) {
           CAMERA_LOGE("demo test: ICameraHost::Get error");
           return RC_ERROR;
       }

   #ifdef CAMERA_BUILT_ON_OHOS_LITE
       hostCallback_ = std::make_shared<DemoCameraHostCallback>();
   #else
       hostCallback_ = new DemoCameraHostCallback();
   #endif
       rc = demoCameraHost_->SetCallback(hostCallback_);
       if (rc != HDI::Camera::V1_0::NO_ERROR) {
           CAMERA_LOGE("demo test: demoCameraHost_->SetCallback(hostCallback_) error");
           return RC_ERROR;
       }

       CAMERA_LOGD("demo test: InitSensors exit");

       return RC_OK;
   }

The function for initializing the CameraDevice is implemented as follows. The GetCameraIds(cameraIds_), GetCameraAbility(cameraId, ability_), and OpenCamera(cameraIds_.front(), callback, demoCameraDevice_) methods are used to obtain the demoCameraHost.

   RetCode OhosCameraDemo::InitCameraDevice()
   {
       int rc = 0;

       CAMERA_LOGD("demo test: InitCameraDevice enter");

       if (demoCameraHost_ == nullptr) {
           CAMERA_LOGE("demo test: InitCameraDevice demoCameraHost_ == nullptr");
           return RC_ERROR;
       }

       (void)demoCameraHost_->GetCameraIds(cameraIds_);
       if (cameraIds_.empty()) {
           return RC_ERROR;
       }
       const std::string cameraId = cameraIds_.front();
       demoCameraHost_->GetCameraAbility(cameraId, cameraAbility_);

       MetadataUtils::ConvertVecToMetadata(cameraAbility_, ability_);

       GetFaceDetectMode(ability_);
       GetFocalLength(ability_);
       GetAvailableFocusModes(ability_);
       GetAvailableExposureModes(ability_);
       GetExposureCompensationRange(ability_);
       GetExposureCompensationSteps(ability_);
       GetAvailableMeterModes(ability_);
       GetAvailableFlashModes(ability_);
       GetMirrorSupported(ability_);
       GetStreamBasicConfigurations(ability_);
       GetFpsRange(ability_);
       GetCameraPosition(ability_);
       GetCameraType(ability_);
       GetCameraConnectionType(ability_);
       GetFaceDetectMaxNum(ability_);

   #ifdef CAMERA_BUILT_ON_OHOS_LITE
       std::shared_ptr<CameraDeviceCallback> callback = std::make_shared<CameraDeviceCallback>();
   #else
       sptr<DemoCameraDeviceCallback> callback = new DemoCameraDeviceCallback();
   #endif
       rc = demoCameraHost_->OpenCamera(cameraIds_.front(), callback, demoCameraDevice_);
       if (rc != HDI::Camera::V1_0::NO_ERROR||demoCameraDevice_ == nullptr) {
           CAMERA_LOGE("demo test: InitCameraDevice OpenCamera failed");
           return RC_ERROR;
       }

       CAMERA_LOGD("demo test: InitCameraDevice exit");

       return RC_OK;
   }

1. Implement PreviewOn() to configure streams, enable preview streams, and start stream capture.

After PreviewOn() is called, the camera preview channel starts running. Two streams are enabled: preview stream and capture or video stream. Only the preview stream will be captured.

   static RetCode PreviewOn(int mode, const std::shared_ptr<OhosCameraDemo>& mainDemo)
   {
       RetCode rc = RC_OK;
       CAMERA_LOGD("main test: PreviewOn enter");

       rc = mainDemo->StartPreviewStream();     // Configure the preview stream.
       if (rc != RC_OK) {
           CAMERA_LOGE("main test: PreviewOn StartPreviewStream error");
           return RC_ERROR;
       }

       if (mode == 0) {
           rc = mainDemo->StartCaptureStream(); // Configure the capture stream.
           if (rc != RC_OK) {
               CAMERA_LOGE("main test: PreviewOn StartCaptureStream error");
               return RC_ERROR;
           }
       } else {
           rc = mainDemo->StartVideoStream();   // Configure the video stream.
           if (rc != RC_OK) {
               CAMERA_LOGE("main test: PreviewOn StartVideoStream error");
               return RC_ERROR;
           }
       }

       rc = mainDemo->CaptureON(STREAM_ID_PREVIEW, CAPTURE_ID_PREVIEW, CAPTURE_PREVIEW);
       if (rc != RC_OK) {
           CAMERA_LOGE("main test: PreviewOn mainDemo->CaptureON() preview error");
           return RC_ERROR;
       }

       CAMERA_LOGD("main test: PreviewOn exit");
       return RC_OK;
   }

The StartCaptureStream(), StartVideoStream(), and StartPreviewStream() methods call CreateStream() with different input parameters.

Use CreateStream() to call an HDI API to configure and create streams. Specifically, CreateStream() calls the HDI to obtain a StreamOperation object and then creates a StreamInfo object. Call CreateStreams() and CommitStreams() to create and configure streams.

   RetCode OhosCameraDemo::CreateStream(const int streamId, std::shared_ptr<StreamCustomer> &streamCustomer,
       StreamIntent intent)
   {
       int rc = 0;
       CAMERA_LOGD("demo test: CreateStream enter");

       GetStreamOpt(); // Obtain a StreamOperator object.
       if (streamOperator_ == nullptr) {
           CAMERA_LOGE("demo test: CreateStream GetStreamOpt() is nullptr\n");
           return RC_ERROR;
       }

       StreamInfo streamInfo = {0};

       SetStreamInfo(streamInfo, streamCustomer, streamId, intent); // Fills in the StreamInfo stream.
       if (streamInfo.bufferQueue_->producer_ == nullptr) {
           CAMERA_LOGE("demo test: CreateStream CreateProducer(); is nullptr\n");
           return RC_ERROR;
       }

       std::vector<StreamInfo> streamInfos;
       streamInfos.push_back(streamInfo);

       rc = streamOperator_->CreateStreams(streamInfos); // Create a stream.
       if (rc != HDI::Camera::V1_0::NO_ERROR) {
           CAMERA_LOGE("demo test: CreateStream CreateStreams error\n");
           return RC_ERROR;
       }

       rc = streamOperator_->CommitStreams(NORMAL, cameraAbility_);
       if (rc != HDI::Camera::V1_0::NO_ERROR) {
           CAMERA_LOGE("demo test: CreateStream CommitStreams error\n");
           std::vector<int> streamIds;
           streamIds.push_back(streamId);
           streamOperator_->ReleaseStreams(streamIds);
           return RC_ERROR;
       }

       CAMERA_LOGD("demo test: CreateStream exit");

       return RC_OK;
   }

Use CaptureON() to call the Capture() method of StreamOperator to obtain camera data, flip the buffer, and start a thread to receive data of the corresponding type.

   RetCode OhosCameraDemo::CaptureON(const int streamId,
       const int captureId, CaptureMode mode)
   {
       CAMERA_LOGI("demo test: CaptureON enter streamId == %{public}d and captureId == %{public}d and mode == %{public}d",
           streamId, captureId, mode);
       std::lock_guard<std::mutex> l(metaDatalock_);
       if (mode == CAPTURE_SNAPSHOT) {
           constexpr double latitude = 27.987500; // dummy data: Qomolangma latitde
           constexpr double longitude = 86.927500; // dummy data: Qomolangma longituude
           constexpr double altitude = 8848.86; // dummy data: Qomolangma altitude
           constexpr size_t entryCapacity = 100;
           constexpr size_t dataCapacity = 2000;
           captureSetting_ = std::make_shared<CameraSetting>(entryCapacity, dataCapacity);
           captureQuality_ = OHOS_CAMERA_JPEG_LEVEL_HIGH;
           captureOrientation_ = OHOS_CAMERA_JPEG_ROTATION_270;
           mirrorSwitch_ = OHOS_CAMERA_MIRROR_ON;
           gps_.push_back(latitude);
           gps_.push_back(longitude);
           gps_.push_back(altitude);
           captureSetting_->addEntry(OHOS_JPEG_QUALITY, static_cast<void*>(&captureQuality_),
               sizeof(captureQuality_));
           captureSetting_->addEntry(OHOS_JPEG_ORIENTATION, static_cast<void*>(&captureOrientation_),
               sizeof(captureOrientation_));
           captureSetting_->addEntry(OHOS_CONTROL_CAPTURE_MIRROR, static_cast<void*>(&mirrorSwitch_),
               sizeof(mirrorSwitch_));
           captureSetting_->addEntry(OHOS_JPEG_GPS_COORDINATES, gps_.data(), gps_.size());
       }

       std::vector<uint8_t> setting;
       MetadataUtils::ConvertMetadataToVec(captureSetting_, setting);
       captureInfo_.streamIds_ = {streamId};
       if (mode == CAPTURE_SNAPSHOT) {
           captureInfo_.captureSetting_ = setting;
       } else {
           captureInfo_.captureSetting_ = cameraAbility_;
       }
       captureInfo_.enableShutterCallback_ = false;

       int rc = streamOperator_->Capture(captureId, captureInfo_, true); // The capture starts, and buffer starts to flip.
       if (rc != HDI::Camera::V1_0::NO_ERROR) {
           CAMERA_LOGE("demo test: CaptureStart Capture error\n");
           streamOperator_->ReleaseStreams(captureInfo_.streamIds_);
           return RC_ERROR;
       }

       if (mode == CAPTURE_PREVIEW) {
           streamCustomerPreview_->ReceiveFrameOn(nullptr); // Create a preview thread to receive the passed buffer.
       } else if (mode == CAPTURE_SNAPSHOT) {
           streamCustomerCapture_->ReceiveFrameOn([this](void* addr, const uint32_t size) { // Create a capture thread to receive the passed buffer through the StoreImage callback.
               StoreImage(addr, size);
           });
       } else if (mode == CAPTURE_VIDEO) {
           OpenVideoFile();

           streamCustomerVideo_->ReceiveFrameOn([this](void* addr, const uint32_t size) { // Create a video thread to receive the passed buffer through the StoreImage callback.
               StoreVideo(addr, size);
           });
       }
       CAMERA_LOGD("demo test: CaptureON exit");

       return RC_OK;
   }

1. Implement ManuList() to obtain characters from the console through fgets(). Different characters correspond to different capabilities provided by the demo, and the functionality menu is printed.

   static void ManuList(const std::shared_ptr<OhosCameraDemo>& mainDemo,
       const int argc, char** argv)
   {
       int idx, c;
       bool isAwb = true;
       const char *shortOptions = "h:cwvaeqof:";
       c = getopt_long(argc, argv, shortOptions, LONG_OPTIONS, &idx);
       while (1) {
           switch (c) {
               case 'h':
                   c = PutMenuAndGetChr();   // Print the menu.
                   break;
               case 'f':
                   FlashLightTest(mainDemo); // Verify the flashlight capability.
                   c = PutMenuAndGetChr();
                   break;
               case 'o':
                   OfflineTest(mainDemo);    // Verify the offline capability.
                   c = PutMenuAndGetChr();
                   break;
               case 'c':
                   CaptureTest(mainDemo);    // Verify the capture capability.
                   c = PutMenuAndGetChr();
                   break;
               case 'w':                     // Verify the AWB capability.
                   if (isAwb) {
                       mainDemo->SetAwbMode(OHOS_CAMERA_AWB_MODE_INCANDESCENT);
                   } else {
                       mainDemo->SetAwbMode(OHOS_CAMERA_AWB_MODE_OFF);
                   }
                   isAwb = !isAwb;
                   c = PutMenuAndGetChr();
                   break;
               case 'a':                    // Verify the AE capability.
                   mainDemo->SetAeExpo();
                   c = PutMenuAndGetChr();
                   break;
               case'e':                     // Verify the metadata operations.
                   mainDemo->SetMetadata();
                   c = PutMenuAndGetChr();
                   break;
               case'v':                     // Verify the video function.
                   VideoTest(mainDemo);
                   c = PutMenuAndGetChr();
                   break;
               case 'q':                    // Exit the demo.
                   PreviewOff(mainDemo);
                   mainDemo->QuitDemo();
                   return;
               default:
                   CAMERA_LOGE("main test: command error please retry input command");
                   c = PutMenuAndGetChr();
                   break;
           }
       }
   }

Use PutMenuAndGetChr() to print the menu of the demo and call fgets() to wait for commands from the console.

   static int PutMenuAndGetChr(void)
   {
       constexpr uint32_t inputCount = 50;
       int c = 0;
       char strs[inputCount];
       Usage(stdout);
       CAMERA_LOGD("pls input command(input -q exit this app)\n");
       fgets(strs, inputCount, stdin);

       for (int i = 0; i < inputCount; i++) {
           if (strs[i] != '-') {
               c = strs[i];
               break;
           }
       }
       return c;
   }

The console outputs the menu details as follows:

   "Options:\n"
   "-h|--help          Print this message\n"
   "-o|--offline       stream offline test\n"
   "-c|--capture       capture one picture\n"
   "-w|--set WB        Set white balance Cloudy\n"
   "-v|--video         capture Video of 10s\n"
   "-a|--Set AE        Set Auto exposure\n"
   "-e|--Set Metadeta  Set Metadata\n"
   "-f|--Set Flashlight        Set flashlight ON 5s OFF\n"
   "-q|--quit          stop preview and quit this app\n");

1. Compile and build the ohos_camera_demo.


Add init:ohos_camera_demo to deps in the drivers/peripheral/camera/hal/BUILD.gn file.

The sample code is as follows:

   deps = [
       "buffer_manager:camera_buffer_manager",
       "device_manager:camera_device_manager",
       "hdi_impl:camera_host_service_1.0",
       "pipeline_core:camera_pipeline_core",
       "utils:camera_utils",
       "init:ohos_camera_demo",
       ]

The following uses RK3568 development board as an example.
1. Run the ./build.sh –product-name rk3568 –ccache command to generate the executable binary file ohos_camera_demo in out/rk3568/packages/phone/vendor/bin/.
2. Import the executable file ohos_camera_demo to the development board, modify the permission, and run the file.

你可能感兴趣的鸿蒙文章

harmony 鸿蒙Drivers

harmony 鸿蒙HDF Driver Development Process

harmony 鸿蒙Driver Overview

harmony 鸿蒙Audio

harmony 鸿蒙Codec

harmony 鸿蒙WLAN

harmony 鸿蒙Facial Authentication

harmony 鸿蒙Fingerprint Authentication

harmony 鸿蒙LCD

harmony 鸿蒙Light
