WebGL开发指导

场景介绍

WebGL主要帮助开发者在前端开发中完成图形图像的相关处理，比如绘制彩色图形等。

说明：

目前该功能仅支持使用兼容JS的类Web开发范式开发。

接口说明

表1 WebGL主要接口列表

开发步骤

以下分别展示无着色器绘制2D图形和着色器绘制彩色三角形的两个场景示例及开发过程。

说明： 使用WebGL开发时，为保证界面图形显示效果，请使用真机运行。

无着色器绘制2D图形

此场景为未使用WebGL绘制的2D图形（CPU绘制非GPU绘制）。开发示例如下：

1. 创建页面布局。index.hml示例如下：

   <div class="container">
      <canvas ref="canvas1" style="width : 400px; height : 200px; background-color : lightyellow;"></canvas>
      <button class="btn-button" onclick="BtnDraw2D">BtnDraw2D</button>
   </div>


2. 设置页面样式。index.css示例如下：

   .container {
      flex-direction: column;
      justify-content: center;
      align-items: center;
   }
   .btn-button {
      margin: 1px;
      height: 40px;
      width: 220px;
      background-color: lightblue;
      font-size: 20px;
      text-color: blue;
   }


3. 编辑JavaScript代码文件，增加2D绘制逻辑代码。index.js示例如下：

   // index.js
   export default {//NAPI交互代码
      data: {
          title: "DEMO BY TEAMOL",
          fit:"cover",
          fits: ["cover", "contain", "fill", "none", "scale-down"]
      },
      onInit() {
          this.title = this.$t('strings.world');
      },
      BtnDraw2D(){
          // 获取canvas元素
          const canvas = this.$refs.canvas1;
          // 获取2D上下文
          const ctx = canvas.getContext('2d');


          // 执行CPU绘制函数
          // Set line width
          ctx.lineWidth = 10;
          // Wall
          ctx.strokeRect(75, 140, 150, 110);
          // Door
          ctx.fillRect(130, 190, 40, 60);
          // Roof
          ctx.beginPath();
          ctx.moveTo(50, 140);
          ctx.lineTo(150, 60);
          ctx.lineTo(250, 140);
          ctx.closePath();
          ctx.stroke();
      }
   }

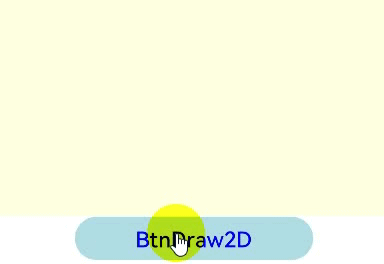

图1 点击按钮绘制2D图形的效果图

着色器绘制彩色三角形

此场景为使用WebGL绘制的彩色三角形图形（GPU绘制）。开发示例如下：

1. 创建页面布局。index.hml示例如下：

   <div class="container">
   <canvas ref="canvas1" style="width : 400px; height : 200px; background-color : lightyellow;"></canvas>
   <button class="btn-button" onclick="BtnColorTriangle">BtnColorTriangle</button>
   </div>


2. 设置页面样式。index.css示例如下：

   .container {
      flex-direction: column;
      justify-content: center;
      align-items: center;
   }
   .btn-button {
      margin: 1px;
      height: 40px;
      width: 220px;
      background-color: lightblue;
      font-size: 20px;
      text-color: blue;
   }


3. 编辑JavaScript代码文件，增加彩色三角形绘制逻辑代码。index.js示例如下： “` // index.js

// WebGL相关预定义 var gl = { DEPTH_BUFFER_BIT: 0x00000100, STENCIL_BUFFER_BIT: 0x00000400, COLOR_BUFFER_BIT: 0x00004000, POINTS: 0x0000, LINES: 0x0001, LINE_LOOP: 0x0002, LINE_STRIP: 0x0003, TRIANGLES: 0x0004, TRIANGLE_STRIP: 0x0005, TRIANGLE_FAN: 0x0006, ZERO: 0, ONE: 1, SRC_COLOR: 0x0300, ONE_MINUS_SRC_COLOR: 0x0301, SRC_ALPHA: 0x0302, ONE_MINUS_SRC_ALPHA: 0x0303, DST_ALPHA: 0x0304, ONE_MINUS_DST_ALPHA: 0x0305, DST_COLOR: 0x0306, ONE_MINUS_DST_COLOR: 0x0307, SRC_ALPHA_SATURATE: 0x0308, FUNC_ADD: 0x8006, BLEND_EQUATION: 0x8009, BLEND_EQUATION_RGB: 0x8009, BLEND_EQUATION_ALPHA: 0x883D, FUNC_SUBTRACT: 0x800A, FUNC_REVERSE_SUBTRACT: 0x800B, BLEND_DST_RGB: 0x80C8, BLEND_SRC_RGB: 0x80C9, BLEND_DST_ALPHA: 0x80CA, BLEND_SRC_ALPHA: 0x80CB, CONSTANT_COLOR: 0x8001, ONE_MINUS_CONSTANT_COLOR: 0x8002, CONSTANT_ALPHA: 0x8003, ONE_MINUS_CONSTANT_ALPHA: 0x8004, BLEND_COLOR: 0x8005, ARRAY_BUFFER: 0x8892, ELEMENT_ARRAY_BUFFER: 0x8893, ARRAY_BUFFER_BINDING: 0x8894, ELEMENT_ARRAY_BUFFER_BINDING: 0x8895, STREAM_DRAW: 0x88E0, STATIC_DRAW: 0x88E4, DYNAMIC_DRAW: 0x88E8, BUFFER_SIZE: 0x8764, BUFFER_USAGE: 0x8765, CURRENT_VERTEX_ATTRIB: 0x8626, FRONT: 0x0404, BACK: 0x0405, FRONT_AND_BACK: 0x0408, CULL_FACE: 0x0B44, BLEND: 0x0BE2, DITHER: 0x0BD0, STENCIL_TEST: 0x0B90, DEPTH_TEST: 0x0B71, SCISSOR_TEST: 0x0C11, POLYGON_OFFSET_FILL: 0x8037, SAMPLE_ALPHA_TO_COVERAGE: 0x809E, SAMPLE_COVERAGE: 0x80A0, NO_ERROR: 0, INVALID_ENUM: 0x0500, INVALID_VALUE: 0x0501, INVALID_OPERATION: 0x0502, OUT_OF_MEMORY: 0x0505, CW: 0x0900, CCW: 0x0901, LINE_WIDTH: 0x0B21, ALIASED_POINT_SIZE_RANGE: 0x846D, ALIASED_LINE_WIDTH_RANGE: 0x846E, CULL_FACE_MODE: 0x0B45, FRONT_FACE: 0x0B46, DEPTH_RANGE: 0x0B70, DEPTH_WRITEMASK: 0x0B72, DEPTH_CLEAR_VALUE: 0x0B73, DEPTH_FUNC: 0x0B74, STENCIL_CLEAR_VALUE: 0x0B91, STENCIL_FUNC: 0x0B92, STENCIL_FAIL: 0x0B94, STENCIL_PASS_DEPTH_FAIL: 0x0B95, STENCIL_PASS_DEPTH_PASS: 0x0B96, STENCIL_REF: 0x0B97, STENCIL_VALUE_MASK: 0x0B93, STENCIL_WRITEMASK: 0x0B98, STENCIL_BACK_FUNC: 0x8800, STENCIL_BACK_FAIL: 0x8801, STENCIL_BACK_PASS_DEPTH_FAIL: 0x8802, STENCIL_BACK_PASS_DEPTH_PASS: 0x8803, STENCIL_BACK_REF: 0x8CA3, STENCIL_BACK_VALUE_MASK: 0x8CA4, STENCIL_BACK_WRITEMASK: 0x8CA5, VIEWPORT: 0x0BA2, SCISSOR_BOX: 0x0C10, COLOR_CLEAR_VALUE: 0x0C22, COLOR_WRITEMASK: 0x0C23, UNPACK_ALIGNMENT: 0x0CF5, PACK_ALIGNMENT: 0x0D05, MAX_TEXTURE_SIZE: 0x0D33, MAX_VIEWPORT_DIMS: 0x0D3A, SUBPIXEL_BITS: 0x0D50, RED_BITS: 0x0D52, GREEN_BITS: 0x0D53, BLUE_BITS: 0x0D54, ALPHA_BITS: 0x0D55, DEPTH_BITS: 0x0D56, STENCIL_BITS: 0x0D57, POLYGON_OFFSET_UNITS: 0x2A00, POLYGON_OFFSET_FACTOR: 0x8038, TEXTURE_BINDING_2D: 0x8069, SAMPLE_BUFFERS: 0x80A8, SAMPLES: 0x80A9, RGBA8: 0x8058, SAMPLE_COVERAGE_VALUE: 0x80AA, SAMPLE_COVERAGE_INVERT: 0x80AB, COMPRESSED_TEXTURE_FORMATS: 0x86A3, DONT_CARE: 0x1100, FASTEST: 0x1101, NICEST: 0x1102, GENERATE_MIPMAP_HINT: 0x8192, BYTE: 0x1400, UNSIGNED_BYTE: 0x1401, SHORT: 0x1402, UNSIGNED_SHORT: 0x1403, INT: 0x1404, UNSIGNED_INT: 0x1405, FLOAT: 0x1406, DEPTH_COMPONENT: 0x1902, ALPHA: 0x1906, RGB: 0x1907, RGBA: 0x1908, LUMINANCE: 0x1909, LUMINANCE_ALPHA: 0x190A, UNSIGNED_SHORT_4_4_4_4: 0x8033, UNSIGNED_SHORT_5_5_5_1: 0x8034, UNSIGNED_SHORT_5_6_5: 0x8363, FRAGMENT_SHADER: 0x8B30, VERTEX_SHADER: 0x8B31, MAX_VERTEX_ATTRIBS: 0x8869, MAX_VERTEX_UNIFORM_VECTORS: 0x8DFB, MAX_VARYING_VECTORS: 0x8DFC, MAX_COMBINED_TEXTURE_IMAGE_UNITS: 0x8B4D, MAX_VERTEX_TEXTURE_IMAGE_UNITS: 0x8B4C, MAX_TEXTURE_IMAGE_UNITS: 0x8872, MAX_FRAGMENT_UNIFORM_VECTORS: 0x8DFD, SHADER_TYPE: 0x8B4F, DELETE_STATUS: 0x8B80, LINK_STATUS: 0x8B82, VALIDATE_STATUS: 0x8B83, ATTACHED_SHADERS: 0x8B85, ACTIVE_UNIFORMS: 0x8B86, ACTIVE_ATTRIBUTES: 0x8B89, SHADING_LANGUAGE_VERSION: 0x8B8C, CURRENT_PROGRAM: 0x8B8D, NEVER: 0x0200, LESS: 0x0201, EQUAL: 0x0202, LEQUAL: 0x0203, GREATER: 0x0204, NOTEQUAL: 0x0205, GEQUAL: 0x0206, ALWAYS: 0x0207, KEEP: 0x1E00, REPLACE: 0x1E01, INCR: 0x1E02, DECR: 0x1E03, INVERT: 0x150A, INCR_WRAP: 0x8507, DECR_WRAP: 0x8508, VENDOR: 0x1F00, RENDERER: 0x1F01, VERSION: 0x1F02, NEAREST: 0x2600, LINEAR: 0x2601, NEAREST_MIPMAP_NEAREST: 0x2700, LINEAR_MIPMAP_NEAREST: 0x2701, NEAREST_MIPMAP_LINEAR: 0x2702, LINEAR_MIPMAP_LINEAR: 0x2703, TEXTURE_MAG_FILTER: 0x2800, TEXTURE_MIN_FILTER: 0x2801, TEXTURE_WRAP_S: 0x2802, TEXTURE_WRAP_T: 0x2803, TEXTURE_2D: 0x0DE1, TEXTURE: 0x1702, TEXTURE_CUBE_MAP: 0x8513, TEXTURE_BINDING_CUBE_MAP: 0x8514, TEXTURE_CUBE_MAP_POSITIVE_X: 0x8515, TEXTURE_CUBE_MAP_NEGATIVE_X: 0x8516, TEXTURE_CUBE_MAP_POSITIVE_Y: 0x8517, TEXTURE_CUBE_MAP_NEGATIVE_Y: 0x8518, TEXTURE_CUBE_MAP_POSITIVE_Z: 0x8519, TEXTURE_CUBE_MAP_NEGATIVE_Z: 0x851A, MAX_CUBE_MAP_TEXTURE_SIZE: 0x851C, TEXTURE0: 0x84C0, TEXTURE1: 0x84C1, TEXTURE2: 0x84C2, TEXTURE3: 0x84C3, TEXTURE4: 0x84C4, TEXTURE5: 0x84C5, TEXTURE6: 0x84C6, TEXTURE7: 0x84C7, TEXTURE8: 0x84C8, TEXTURE9: 0x84C9, TEXTURE10: 0x84CA, TEXTURE11: 0x84CB, TEXTURE12: 0x84CC, TEXTURE13: 0x84CD, TEXTURE14: 0x84CE, TEXTURE15: 0x84CF, TEXTURE16: 0x84D0, TEXTURE17: 0x84D1, TEXTURE18: 0x84D2, TEXTURE19: 0x84D3, TEXTURE20: 0x84D4, TEXTURE21: 0x84D5, TEXTURE22: 0x84D6, TEXTURE23: 0x84D7, TEXTURE24: 0x84D8, TEXTURE25: 0x84D9, TEXTURE26: 0x84DA, TEXTURE27: 0x84DB, TEXTURE28: 0x84DC, TEXTURE29: 0x84DD, TEXTURE30: 0x84DE, TEXTURE31: 0x84DF, ACTIVE_TEXTURE: 0x84E0, REPEAT: 0x2901, CLAMP_TO_EDGE: 0x812F, MIRRORED_REPEAT: 0x8370, FLOAT_VEC2: 0x8B50, FLOAT_VEC3: 0x8B51, FLOAT_VEC4: 0x8B52, INT_VEC2: 0x8B53, INT_VEC3: 0x8B54, INT_VEC4: 0x8B55, BOOL: 0x8B56, BOOL_VEC2: 0x8B57, BOOL_VEC3: 0x8B58, BOOL_VEC4: 0x8B59, FLOAT_MAT2: 0x8B5A, FLOAT_MAT3: 0x8B5B, FLOAT_MAT4: 0x8B5C, SAMPLER_2D: 0x8B5E, SAMPLER_CUBE: 0x8B60, VERTEX_ATTRIB_ARRAY_ENABLED: 0x8622, VERTEX_ATTRIB_ARRAY_SIZE: 0x8623, VERTEX_ATTRIB_ARRAY_STRIDE: 0x8624, VERTEX_ATTRIB_ARRAY_TYPE: 0x8625, VERTEX_ATTRIB_ARRAY_NORMALIZED: 0x886A, VERTEX_ATTRIB_ARRAY_POINTER: 0x8645, VERTEX_ATTRIB_ARRAY_BUFFER_BINDING: 0x889F, IMPLEMENTATION_COLOR_READ_TYPE: 0x8B9A, IMPLEMENTATION_COLOR_READ_FORMAT: 0x8B9B, COMPILE_STATUS: 0x8B81, LOW_FLOAT: 0x8DF0, MEDIUM_FLOAT: 0x8DF1, HIGH_FLOAT: 0x8DF2, LOW_INT: 0x8DF3, MEDIUM_INT: 0x8DF4, HIGH_INT: 0x8DF5, FRAMEBUFFER: 0x8D40, RENDERBUFFER: 0x8D41, RGBA4: 0x8056, RGB5_A1: 0x8057, RGB565: 0x8D62, DEPTH_COMPONENT16: 0x81A5, STENCIL_INDEX8: 0x8D48, DEPTH_STENCIL: 0x84F9, RENDERBUFFER_WIDTH: 0x8D42, RENDERBUFFER_HEIGHT: 0x8D43, RENDERBUFFER_INTERNAL_FORMAT: 0x8D44, RENDERBUFFER_RED_SIZE: 0x8D50, RENDERBUFFER_GREEN_SIZE: 0x8D51, RENDERBUFFER_BLUE_SIZE: 0x8D52, RENDERBUFFER_ALPHA_SIZE: 0x8D53, RENDERBUFFER_DEPTH_SIZE: 0x8D54, RENDERBUFFER_STENCIL_SIZE: 0x8D55, FRAMEBUFFER_ATTACHMENT_OBJECT_TYPE: 0x8CD0, FRAMEBUFFER_ATTACHMENT_OBJECT_NAME: 0x8CD1, FRAMEBUFFER_ATTACHMENT_TEXTURE_LEVEL: 0x8CD2, FRAMEBUFFER_ATTACHMENT_TEXTURE_CUBE_MAP_FACE: 0x8CD3, COLOR_ATTACHMENT0: 0x8CE0, DEPTH_ATTACHMENT: 0x8D00, STENCIL_ATTACHMENT: 0x8D20, DEPTH_STENCIL_ATTACHMENT: 0x821A, NONE: 0, FRAMEBUFFER_COMPLETE: 0x8CD5, FRAMEBUFFER_INCOMPLETE_ATTACHMENT: 0x8CD6, FRAMEBUFFER_INCOMPLETE_MISSING_ATTACHMENT: 0x8CD7, FRAMEBUFFER_INCOMPLETE_DIMENSIONS: 0x8CD9, FRAMEBUFFER_UNSUPPORTED: 0x8CDD, FRAMEBUFFER_BINDING: 0x8CA6, RENDERBUFFER_BINDING: 0x8CA7, MAX_RENDERBUFFER_SIZE: 0x84E8, INVALID_FRAMEBUFFER_OPERATION: 0x0506, UNPACK_FLIP_Y_WEBGL: 0x9240, UNPACK_PREMULTIPLY_ALPHA_WEBGL: 0x9241, CONTEXT_LOST_WEBGL: 0x9242, UNPACK_COLORSPACE_CONVERSION_WEBGL: 0x9243, BROWSER_DEFAULT_WEBGL: 0x9244, TEXTURE_MAX_LOD: 0x813B, TEXTURE_BASE_LEVEL: 0x813C, TEXTURE_IMMUTABLE_FORMAT: 0x912F, UNIFORM_BLOCK_BINDING: 0x8A3F, UNIFORM_BLOCK_DATA_SIZE: 0x8A40, UNIFORM_BLOCK_ACTIVE_UNIFORMS: 0x8A42, UNIFORM_BLOCK_ACTIVE_UNIFORM_INDICES: 0x8A43, UNIFORM_BLOCK_REFERENCED_BY_VERTEX_SHADER: 0x8A44, UNIFORM_BLOCK_REFERENCED_BY_FRAGMENT_SHADER: 0x8A46, RED: 0x1903, PIXEL_UNPACK_BUFFER: 0x88EC, RGB8: 0x8051, R16F: 0x822D, COPY_WRITE_BUFFER: 0x8F37, TEXTURE_3D: 0x806F, COMPRESSED_R11_EAC: 0x9270, COPY_READ_BUFFER: 0x8F36, TRANSFORM_FEEDBACK_BUFFER: 0x8C8E, TRANSFORM_FEEDBACK_BUFFER_BINDING: 0x8C8F, TRANSFORM_FEEDBACK_BUFFER_SIZE: 0x8C85, TRANSFORM_FEEDBACK_BUFFER_START: 0x8C84, UNIFORM_BUFFER_BINDING: 0x8A28, UNIFORM_BUFFER_SIZE: 0x8A2A, UNIFORM_BUFFER_START: 0x8A29, DYNAMIC_READ: 0x88E9, READ_FRAMEBUFFER: 0x8CA8, COLOR_ATTACHMENT1: 0x8CE1, INTERLEAVED_ATTRIBS: 0x8C8C, UNIFORM_OFFSET: 0x8A3B, UNIFORM_TYPE: 0x8A37, UNIFORM_SIZE: 0x8A38, UNIFORM_BLOCK_INDEX: 0x8A3A, UNIFORM_ARRAY_STRIDE: 0x8A3C, UNIFORM_MATRIX_STRIDE: 0x8A3D, UNIFORM_IS_ROW_MAJOR: 0x8A3E, TEXTURE_MAX_ANISOTROPY_EXT: 0x84FE }

// 顶点着色器程序 var VSHADER_SOURCE = ‘attribute vec4 a_Position;\n’ + // attribute variable ‘attribute vec4 a_Color;\n’ + ‘varying vec4 v_Color;\n’ + ‘void main() {\n’ + ‘ gl_Position = a_Position;\n’ + // Set the vertex coordinates of the point ‘ v_Color = a_Color;\n’ + ‘}\n’;

// 片元着色器程序 var FSHADER_SOURCE = ‘precision mediump float;\n’ + ‘varying vec4 v_Color;\n’ + ‘void main() {\n’ + ‘ gl_FragColor = v_Color;\n’ + ‘}\n’;

function initVertexBuffers(gl) { // 顶点坐标和颜色 var verticesColors = new Float32Array([ 0.0, -0.5, 1.0, 0.0, 0.0, -0.5, -0.8, 0.0, 1.0, 0.0, 0.5, -0.8, 0.0, 0.0, 1.0, ]);

   var n = 3; // 点的个数
   var FSIZE = verticesColors.BYTES_PER_ELEMENT; //数组中每个元素的字节数

   // 创建缓冲区对象
   var vertexBuffer = gl.createBuffer();
   if (!vertexBuffer) {
       console.log('Failed to create the buffer object');
       return -1;
   }

   // 将缓冲区对象绑定到目标
   gl.bindBuffer(gl.ARRAY_BUFFER, vertexBuffer);
   // 向缓冲区对象写入数据
   gl.bufferData(gl.ARRAY_BUFFER, verticesColors.buffer, gl.STATIC_DRAW);

   // 获取着色器中attribute变量a_Position的地址
   var a_Position = gl.getAttribLocation(gl.program, 'a_Position');
   if (a_Position < 0) {
       console.log('Failed to get the storage location of a_Position');
       return -1;
   }
   // 将缓冲区对象分配给a_Position变量
   gl.vertexAttribPointer(a_Position, 2, gl.FLOAT, false, 5 * FSIZE, 0);

   // 连接a_Position变量与分配给它的缓冲区对象
   gl.enableVertexAttribArray(a_Position);

   // 获取着色器中attribute变量a_Color的地址
   var a_Color = gl.getAttribLocation(gl.program, 'a_Color');
   if (a_Color < 0) {
       console.log('Failed to get the storage location of a_Color');
       return -1;
   }
   // 将缓冲区对象分配给a_Color变量
   gl.vertexAttribPointer(a_Color, 3, gl.FLOAT, false, FSIZE * 5, FSIZE * 2);

   // 连接a_Color变量与分配给它的缓冲区对象
   gl.enableVertexAttribArray(a_Color);

   // 解除绑定
   gl.bindBuffer(gl.ARRAY_BUFFER, null);

   return n;

}

/** * Creates a program object and makes it as the current object. * @param gl Indicates the WebGL context. * @param vshader Indicates a vertex shader program (string). * @param fshader Indicates a fragment shader program (string). * @return Returns true if the WebGLProgram object was created and successfully made as the current object; returns false otherwise. */ function initShaders(gl, vshader, fshader) { var program = createProgram(gl, vshader, fshader); console.log(”======createProgram program: “ + program);

   if (!program) {
       console.log('Failed to create program');
       return false;
   }
   gl.useProgram(program);
   gl.program = program;

   return true;

}

/** * Creates a linked program object. * @param gl Indicates the WebGL context. * @param vshader Indicates a vertex shader program (string). * @param fshader Indicates a fragment shader program (string). * @return Returns the created program object if the operation is successful; returns null otherwise. */ function createProgram(gl, vshader, fshader) { console.log(”======createProgram start======“); // Create shader object var vertexShader = loadShader(gl, gl.VERTEX_SHADER, vshader); console.log(”======vertexShader: “ + vertexShader); var fragmentShader = loadShader(gl, gl.FRAGMENT_SHADER, fshader); if (!vertexShader||!fragmentShader) { return null; }

   // Create a program object.
   var program = gl.createProgram();
   console.log("======createProgram program: " + program);

   if (!program) {
       return null;
   }

   // Attach the shader objects.
   gl.attachShader(program, vertexShader);
   gl.attachShader(program, fragmentShader);

   // Link the program object.
   gl.linkProgram(program);

   // Check the result of linking.
   var linked = gl.getProgramParameter(program, 0x8B82);
   console.log("======getProgramParameter linked: " + linked);

   if (!linked) {
       var error = gl.getProgramInfoLog(program);
       console.log('Failed to link the program: ' + error);
       gl.deleteProgram(program);
       gl.deleteShader(fragmentShader);
       gl.deleteShader(vertexShader);
       return null;
   }
   return program;

}

/** * Creates a shader object. * @param gl Indicates the WebGL context. * @param type Indicates the type of the shader object to be created. * @param source Indicates the shader program (string). * @return Returns the created shader object if the operation is successful; returns false otherwise. */ function loadShader(gl, type, source) { console.log(”======into loadShader====“); // Create shader object var shader = gl.createShader(type); if (shader == null) { console.log(‘Failed to create the shader.’); return null; }

   // Set the shader program.
   gl.shaderSource(shader, source);

   // Compile the shader.
   gl.compileShader(shader);

   // Check the result of compilation.
   var compiled = gl.getShaderParameter(shader, gl.COMPILE_STATUS);
   if (!compiled) {
       var error = gl.getShaderInfoLog(shader);
       console.log('Failed to compile the shader: ' + error);
       gl.deleteShader(shader);
       return null;
   }

   return shader;

}

export default { data: { title: “DEMO BY TEAMOL”, fit:“cover”, fits: [“cover”, “contain”, “fill”, “none”, “scale-down”] } ,onInit() { this.title = this.$t(‘strings.world’); } ,BtnColorTriangle() { // 获取canvas元素 const el = this.$refs.canvas1; // 获取webgl上下文 var gl = el.getContext(‘webgl’);

       if (!gl) {
           console.log('Failed to get the rendering context for WebGL');
           return;
       }

       // 初始化着色器
       if (!initShaders(gl, VSHADER_SOURCE, FSHADER_SOURCE)) {
           console.log('Failed to initialize shaders.');
           return;
       }

       // 设置顶点位置
       var n = initVertexBuffers(gl);
       if (n < 0) {
           console.log('Failed to set the positions of the vertices');
           return;
       }

       // 指定清空<canvas>的颜色
       gl.clearColor(0.0, 0.0, 0.0, 1.0);

       // 清空<canvas>
       gl.clear(gl.COLOR_BUFFER_BIT);

       // 绘制三角形
       gl.drawArrays(gl.TRIANGLES, 0, n);

       //清buffer
       gl.flush();
   }

} “`

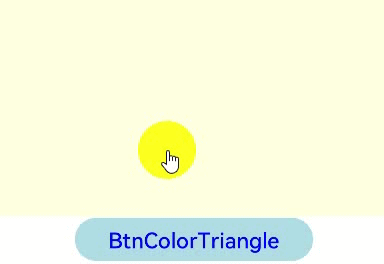

图2 点击按钮绘制彩色三角形的效果图
