通用密钥库开发指导(Native)
场景介绍
HUKS是OpenHarmony
提供密钥的全生命周期管理能力的模块。HUKS
所管理的密钥可以由应用导入或者由应用调用HUKS
接口生成。通过HUKS生成的密钥,密钥的全生命周期明文不会出安全环境,能保证任何人都无法获取到密钥的明文。即使生成密钥的业务自身,后续也只能通过HUKS提供的接口请求执行密钥操作,获取操作结果,但无法接触到密钥自身。
针对HUKS,常见的开发场景如下:
- 通过
HUKS
提供的Native API接口生成新密钥。 - 通过
HUKS
提供的Native API接口导入外部密钥。 - 通过
HUKS
提供的Native API接口使用密钥进行加密解密。 - 通过
HUKS
提供的Native API接口使用密钥进行签名验签。 - 通过
HUKS
提供的Native API接口使用密钥进行密钥协商。 - 通过
HUKS
提供的Native API接口使用密钥进行密钥派生。 - 通过
HUKS
提供的Native API接口进行密钥证明。
接口说明
密钥使用接口
名称 | 描述 |
---|---|
OH_Huks_GetSdkVersion (struct OH_Huks_Blob *sdkVersion) | 获取当前Huks sdk版本号。 |
OH_Huks_GenerateKeyItem (const struct OH_Huks_Blob *keyAlias, const struct OH_Huks_ParamSet *paramSetIn, struct OH_Huks_ParamSet *paramSetOut) | 生成密钥。 |
OH_Huks_ImportKeyItem (const struct OH_Huks_Blob *keyAlias, const struct OH_Huks_ParamSet *paramSet, const struct OH_Huks_Blob *key) | 导入明文密钥。 |
OH_Huks_ImportWrappedKeyItem (const struct OH_Huks_Blob *keyAlias, const struct OH_Huks_Blob *wrappingKeyAlias, const struct OH_Huks_ParamSet *paramSet, const struct OH_Huks_Blob *wrappedKeyData) | 导入密文密钥。 |
OH_Huks_ExportPublicKeyItem (const struct OH_Huks_Blob *keyAlias, const struct OH_Huks_ParamSet *paramSet, struct OH_Huks_Blob *key) | 导出公钥。 |
OH_Huks_DeleteKeyItem (const struct OH_Huks_Blob *keyAlias, const struct OH_Huks_ParamSet *paramSet) | 删除密钥。 |
OH_Huks_GetKeyItemParamSet (const struct OH_Huks_Blob *keyAlias, const struct OH_Huks_ParamSet *paramSetIn, struct OH_Huks_ParamSet *paramSetOut) | 获取密钥的属性集。 |
OH_Huks_IsKeyItemExist (const struct OH_Huks_Blob *keyAlias, const struct OH_Huks_ParamSet *paramSet) | 判断密钥是否存在。 |
OH_Huks_AttestKeyItem (const struct OH_Huks_Blob *keyAlias, const struct OH_Huks_ParamSet *paramSet, struct OH_Huks_CertChain *certChain) | 获取密钥证书链。 |
OH_Huks_InitSession (const struct OH_Huks_Blob *keyAlias, const struct OH_Huks_ParamSet *paramSet, struct OH_Huks_Blob *handle, struct OH_Huks_Blob *token) | 初始化密钥会话接口,并获取一个句柄(必选)和挑战值(可选)。 |
OH_Huks_UpdateSession (const struct OH_Huks_Blob *handle, const struct OH_Huks_ParamSet *paramSet, const struct OH_Huks_Blob *inData, struct OH_Huks_Blob *outData) | 分段添加密钥操作的数据并进行相应的密钥操作,输出处理数据。 |
OH_Huks_FinishSession (const struct OH_Huks_Blob *handle, const struct OH_Huks_ParamSet *paramSet, const struct OH_Huks_Blob *inData, struct OH_Huks_Blob *outData) | 结束密钥会话并进行相应的密钥操作,输出处理数据。 |
OH_Huks_AbortSession (const struct OH_Huks_Blob *handle, const struct OH_Huks_ParamSet *paramSet) | 取消密钥会话。 |
密钥参数接口
名称 | 描述 |
---|---|
OH_Huks_InitParamSet (struct OH_Huks_ParamSet **paramSet) | 初始化参数集。 |
OH_Huks_AddParams (struct OH_Huks_ParamSet *paramSet, const struct OH_Huks_Param *params, uint32_t paramCnt) | 添加参数到参数集里面。 |
OH_Huks_BuildParamSet (struct OH_Huks_ParamSet **paramSet) | 构造正式的参数集。 |
OH_Huks_FreeParamSet (struct OH_Huks_ParamSet **paramSet) | 销毁参数集。 |
OH_Huks_CopyParamSet (const struct OH_Huks_ParamSet *fromParamSet, uint32_t fromParamSetSize, struct OH_Huks_ParamSet **paramSet) | 复制参数集(深拷贝)。 |
OH_Huks_GetParam (const struct OH_Huks_ParamSet *paramSet, uint32_t tag, struct OH_Huks_Param **param) | 从参数集中获取参数。 |
OH_Huks_FreshParamSet (struct OH_Huks_ParamSet *paramSet, bool isCopy) | 刷新(复制)参数集内Blob类型的数据到参数集内。 |
OH_Huks_IsParamSetTagValid (const struct OH_Huks_ParamSet *paramSet) | 检查参数集中的参数是否有效、是否有重复。 |
OH_Huks_IsParamSetValid (const struct OH_Huks_ParamSet *paramSet, uint32_t size) | 检查参数集大小是否有效。 |
OH_Huks_CheckParamMatch (const struct OH_Huks_Param *baseParam, const struct OH_Huks_Param *param) | 比较两个参数是否相同。 |
开发步骤
生成新密钥
HUKS提供为业务安全随机生成密钥的能力。通过HUKS生成的密钥,密钥的全生命周期明文不会出安全环境,能保证任何人都无法获取到密钥的明文。即使生成密钥的业务自身,后续也只能通过HUKS提供的接口请求执行密钥操作,获取操作结果,但无法接触到密钥自身。
开发步骤
生成密钥时使用OH_Huks_GenerateKeyItem方法,传入keyAlias作为密钥别名,传入paramSetIn包含该待生成密钥的属性信息。
- 确定密钥别名;
- 初始化密钥属性集:OH_Huks_InitParamSet、OH_Huks_AddParams、OH_Huks_BuildParamSet构造paramSet,其中必须包含OH_Huks_KeyAlg,OH_Huks_KeySize,OH_Huks_KeyPurpose属性;
- 将密钥别名与密钥参数集作为参数传入,生成密钥。
说明
传入的 keyAlias 密钥别名最大为64字节
C++代码示例:
#include "huks/native_huks_api.h"
#include "huks/native_huks_param.h"
#include <string.h>
OH_Huks_Result InitParamSet(
struct OH_Huks_ParamSet **paramSet,
const struct OH_Huks_Param *params,
uint32_t paramCount)
{
OH_Huks_Result ret = OH_Huks_InitParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_AddParams(*paramSet, params, paramCount);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
ret = OH_Huks_BuildParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
return ret;
}
struct OH_Huks_Param g_testGenerateKeyParam[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_ECC
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_AGREE
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_ECC_KEY_SIZE_256
}, {
.tag = OH_HUKS_TAG_DIGEST,
.uint32Param = OH_HUKS_DIGEST_NONE
}
};
static napi_value GenerateKey(napi_env env, napi_callback_info info)
{
const char *alias = "test_generate";
struct OH_Huks_Blob aliasBlob = { .size = (uint32_t)strlen(alias), .data = (uint8_t *)alias };
struct OH_Huks_ParamSet *testGenerateKeyParamSet = nullptr;
struct OH_Huks_Result ohResult;
do {
ohResult = InitParamSet(&testGenerateKeyParamSet, g_testGenerateKeyParam,
sizeof(g_testGenerateKeyParam) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = OH_Huks_GenerateKeyItem(&aliasBlob, testGenerateKeyParamSet, nullptr);
} while (0);
OH_Huks_FreeParamSet(&testGenerateKeyParamSet);
napi_value ret;
napi_create_int32(env, ohResult.errorCode, &ret);
return ret;
}
导入外部密钥
如果密钥是在HUKS外部生成(比如应用间协商生成、服务器端生成),应用可以将密钥导入到HUKS托管。HUKS支持直接将密钥明文导入到HUKS,但是明文导入会导致密钥暴露在REE内存中,一般适用于轻量级设备或低安业务。对于高安敏感业务,HUKS还提供了安全导入密钥的能力,允许业务自己生成密钥,并通过与处于安全环境中的HUKS建立端到端的加密传输通道,将密钥安全加密导入到HUKS中,确保导入传入过程中密钥不被泄露。
与生成密钥一样,密钥一旦导入到HUKS中,密钥的生命周期明文不出安全环境,同样能保证任何人都无法获取到密钥的明文。
明文导入
导入明文密钥时使用OH_Huks_ImportKeyItem方法,传入keyAlias作为密钥别名,传入paramSetIn包含该密钥的相关信息,其中必须包含密钥材料和密钥属性集。
- 确定密钥别名;
- 封装密钥材料和密钥属性集:密钥材料须符合HUKS密钥材料格式并赋值key字段;另外,OH_Huks_InitParamSet、OH_Huks_AddParams、OH_Huks_BuildParamSet构造paramSet,其中必须包含OH_Huks_KeyAlg,OH_Huks_KeySize,OH_Huks_KeyPurpose属性;
- 导入密钥。
C++代码示例:
#include "huks/native_huks_api.h"
#include "huks/native_huks_param.h"
#include <string.h>
OH_Huks_Result InitParamSet(
struct OH_Huks_ParamSet **paramSet,
const struct OH_Huks_Param *params,
uint32_t paramCount)
{
OH_Huks_Result ret = OH_Huks_InitParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_AddParams(*paramSet, params, paramCount);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
ret = OH_Huks_BuildParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
return ret;
}
static napi_value ImportKey(napi_env env, napi_callback_info info)
{
(void)GenerateKey(env, info);
const char *alias = "test_generate";
struct OH_Huks_Blob aliasBlob = { .size = (uint32_t)strlen(alias), .data = (uint8_t *)alias };
uint8_t pubKey[OH_HUKS_ECC_KEY_SIZE_256] = {0};
struct OH_Huks_Blob publicKey = { OH_HUKS_ECC_KEY_SIZE_256, pubKey };
struct OH_Huks_ParamSet *testImportKeyParamSet = nullptr;
struct OH_Huks_Result ohResult;
do {
ohResult = InitParamSet(&testImportKeyParamSet, g_testGenerateKeyParam,
sizeof(g_testGenerateKeyParam) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = OH_Huks_ExportPublicKeyItem(&aliasBlob, testImportKeyParamSet, &publicKey);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 4. Import Key */
char newKey[] = "test_import";
struct OH_Huks_Blob newKeyAlias = { .size = (uint32_t)strlen(newKey), .data = (uint8_t *)newKey };
ohResult = OH_Huks_ImportKeyItem(&newKeyAlias, testImportKeyParamSet, &publicKey);
} while (0);
OH_Huks_FreeParamSet(&testImportKeyParamSet);
napi_value ret;
napi_create_int32(env, ohResult.errorCode, &ret);
return ret;
}
加密导入

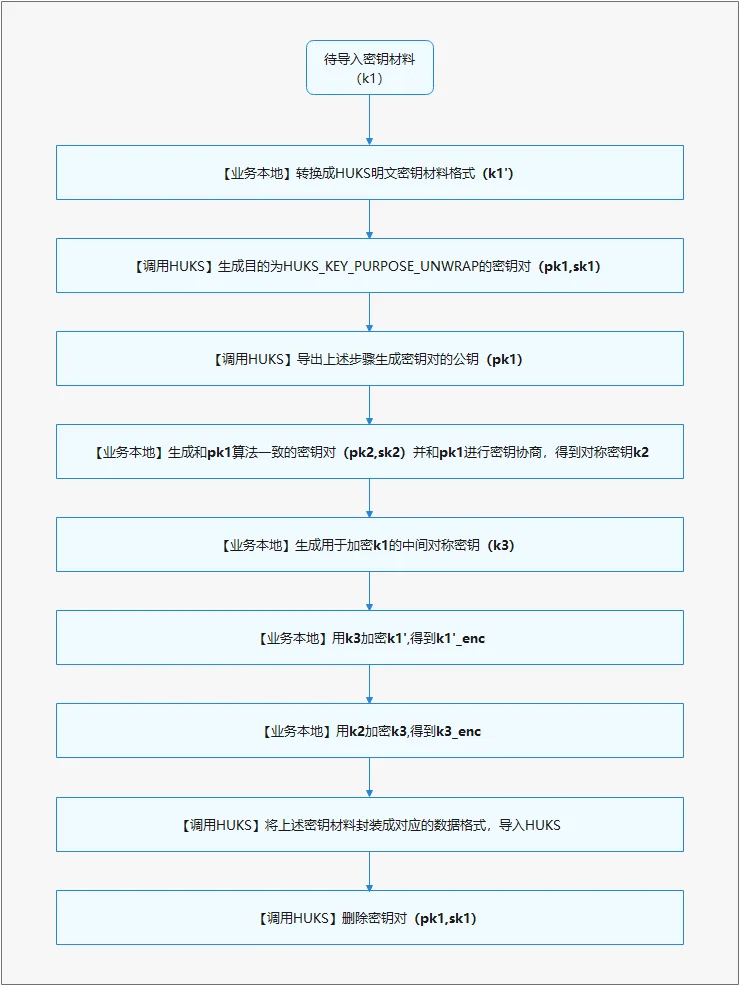

相比明文导入,加密导入步骤更多,密钥材料更复杂,此章节将展示开发过程中关键的开发流程和密钥材料数据结构。下图是加密导入的基本开发流程。
图2 加密导入开发流程
接口说明
根据开发流程,在导入加密密钥过程中,需要依次调用HUKS的生成密钥、导出公钥、导入加密密钥、删除密钥接口。
需要注意的是,导出密钥接口返回的公钥明文材料是按照X.509格式封装,导入加密密钥接口中的密钥材料需满足LengthData-Data 的格式封装。具体,应用需要按照以下表格中的顺序依次封装加密密钥材料。
表2 加密密钥材料格式
内容 | 业务公钥长度Lpk2 | 业务公钥pk2 | k2加密参数AAD2长度LAAD2 | k2加密参数AAD2 | k2加密参数Nonce2长度LNonce2 | k2加密参数Nonce2 |
---|---|---|---|---|---|---|
长度 | 4字节 | Lpk2字节 | 4字节 | LAAD2字节 | 4字节 | LNonce2字节 |
内容 | k2加密参数AEAD2长度LAEAD2 | k2加密参数AEAD2 | k3密文长度Lk3_enc | k3密文k3_enc | k3加密参数AAD3长度LAAD3 | k3加密参数AAD3 |
长度 | 4字节 | LAEAD2字节 | 4字节 | Lk3_enc字节 | 4字节 | LAAD3字节 |
内容 | k3加密参数Nonce3长度LNonce3 | k3加密参数Nonce3 | k3加密参数AEAD3长度LAEAD3 | k3加密参数AEAD3 | 密钥明文材料长度 的长度Lk1’_size | 密钥明文材料长度k1’_size |
长度 | 4字节 | LNonce3字节 | 4字节 | LAEAD3字节 | 4字节 | Lk1’_size字节 |
内容 | k1’密文长度Lk1’_enc | k1’密文k1’_enc | ||||
长度 | 4字节 | Lk1’_enc字节 |
开发步骤
这里主要展示涉及调用HUKS的开发样例(使用ECDH密钥协商套件),部分在业务本地执行的步骤不在这里展示详细样例。
- 设备A(导入设备)将待导入密钥转换成HUKS格式的密钥材料To_Import_Key;
- 设备A生成一个非对称密钥对Caller_Key;
- 设备B(被导入设备)生成一个非对称密钥对Wrapping_Key,其密钥用途设置为unwrap;
- 设备A生成一个对称密钥Caller_Kek;
- 设备A、B导出非对称密钥对的公钥材料;
- 设备A基于Caller_Key和设备B Wrapping_Key的公钥,协商出Agree_Key;
- 设备A使用Caller_Kek加密To_Import_Key,生成To_Import_Key_Enc;
- 设备A使用Agree_Key加密Caller_Kek,生成Caller_Kek_Enc;
- 设备A将Caller_Key的公钥、Caller_Kek_Enc、To_Import_Key_Enc发送给设备B;
- 设备B封装加密导入密钥材料;
- 设备B导入封装的加密密钥材料;
- 设备A、B删除用于加密导入的密钥。
C++代码示例:
#include "napi/native_api.h"
#include "huks/native_huks_api.h"
#include "huks/native_huks_param.h"
#include <algorithm>
OH_Huks_Result InitParamSet(
struct OH_Huks_ParamSet **paramSet,
const struct OH_Huks_Param *params,
uint32_t paramCount)
{
OH_Huks_Result ret = OH_Huks_InitParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_AddParams(*paramSet, params, paramCount);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
ret = OH_Huks_BuildParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
return ret;
}
/**
* 安全导入主要使用场景,设备A希望安全地将密钥导入到设备B的HUKS中
* wrappingKey是B设备的密钥对
* callerKey是A设备的密钥对
* callerAgreeKey是A设备密钥对的私钥+B设备公钥协商生成的
*/
struct HksImportWrappedKeyTestParams {
// server key, for real
struct OH_Huks_Blob *wrappingKeyAlias;
struct OH_Huks_ParamSet *genWrappingKeyParamSet;
uint32_t publicKeySize;
struct OH_Huks_Blob *callerKeyAlias;
struct OH_Huks_ParamSet *genCallerKeyParamSet;
struct OH_Huks_Blob *callerKekAlias;
struct OH_Huks_Blob *callerKek;
struct OH_Huks_ParamSet *importCallerKekParamSet;
struct OH_Huks_Blob *callerAgreeKeyAlias;
struct OH_Huks_ParamSet *agreeParamSet;
struct OH_Huks_ParamSet *importWrappedKeyParamSet;
struct OH_Huks_Blob *importedKeyAlias;
struct OH_Huks_Blob *importedPlainKey;
uint32_t keyMaterialLen;
};
static const uint32_t WRAPPED_KEY_IV_SIZE = 16;
static uint8_t WRAPPED_KEY_IV[IV_SIZE] = "bababababababab"; // this is a test value, for real use the iv should be different every time
static const uint32_t AAD_SIZE = 16;
static uint8_t AAD[AAD_SIZE] = "abababababababa"; // this is a test value, for real use the aad should be different every time
static const uint32_t NONCE_SIZE = 12;
static uint8_t NONCE[NONCE_SIZE] = "hahahahahah"; // this is a test value, for real use the nonce should be different every time
static const uint32_t AEAD_TAG_SIZE = 16;
static const uint32_t X25519_256_SIZE = 256;
static struct OH_Huks_Blob g_wrappingKeyAliasAes256 = {
.size = (uint32_t)strlen("test_wrappingKey_x25519_aes256"),
.data = (uint8_t *)"test_wrappingKey_x25519_aes256"};
static struct OH_Huks_Blob g_callerKeyAliasAes256 = {
.size = (uint32_t)strlen("test_caller_key_x25519_aes256"),
.data = (uint8_t *)"test_caller_key_x25519_aes256"};
static struct OH_Huks_Blob g_callerKekAliasAes256 = {
.size = (uint32_t)strlen("test_caller_kek_x25519_aes256"),
.data = (uint8_t *)"test_caller_kek_x25519_aes256"};
static struct OH_Huks_Blob g_callerAes256Kek = {
.size = (uint32_t)strlen("This is kek to encrypt plain key"),
.data = (uint8_t *)"This is kek to encrypt plain key"};
static struct OH_Huks_Blob g_callerAgreeKeyAliasAes256 = {
.size = (uint32_t)strlen("test_caller_agree_key_x25519_aes256"),
.data = (uint8_t *)"test_caller_agree_key_x25519_aes256"};
static struct OH_Huks_Blob g_importedKeyAliasAes256 = {
.size = (uint32_t)strlen("test_import_key_x25519_aes256"),
.data = (uint8_t *)"test_import_key_x25519_aes256"};
static struct OH_Huks_Blob g_importedAes256PlainKey = {
.size = (uint32_t)strlen("This is plain key to be imported"),
.data = (uint8_t *)"This is plain key to be imported"};
static struct OH_Huks_Param g_importWrappedAes256Params[] = {
{.tag = OH_HUKS_TAG_ALGORITHM, .uint32Param = OH_HUKS_ALG_AES},
{.tag = OH_HUKS_TAG_PURPOSE, .uint32Param = OH_HUKS_KEY_PURPOSE_ENCRYPT|OH_HUKS_KEY_PURPOSE_DECRYPT},
{.tag = OH_HUKS_TAG_KEY_SIZE, .uint32Param = OH_HUKS_AES_KEY_SIZE_256},
{.tag = OH_HUKS_TAG_PADDING, .uint32Param = OH_HUKS_PADDING_NONE},
{.tag = OH_HUKS_TAG_BLOCK_MODE, .uint32Param = OH_HUKS_MODE_GCM},
{.tag = OH_HUKS_TAG_DIGEST, .uint32Param = OH_HUKS_DIGEST_NONE},
{.tag = OH_HUKS_TAG_UNWRAP_ALGORITHM_SUITE, .uint32Param = OH_HUKS_UNWRAP_SUITE_X25519_AES_256_GCM_NOPADDING},
{.tag = OH_HUKS_TAG_ASSOCIATED_DATA, .blob = {.size = AAD_SIZE, .data = (uint8_t *)AAD}}, // this is a test value, for real use the aad should be info associated with caller
{.tag = OH_HUKS_TAG_NONCE, .blob = {.size = NONCE_SIZE, .data = (uint8_t *)NONCE}}}; // this is a test value, for real use the nonce should be different every time
static const uint32_t g_x25519PubKeySize = 32;
static struct OH_Huks_Param g_genWrappingKeyParams[] = {
{.tag = OH_HUKS_TAG_ALGORITHM, .uint32Param = OH_HUKS_ALG_X25519},
{.tag = OH_HUKS_TAG_PURPOSE, .uint32Param = OH_HUKS_KEY_PURPOSE_UNWRAP},
{.tag = OH_HUKS_TAG_KEY_SIZE, .uint32Param = OH_HUKS_CURVE25519_KEY_SIZE_256}};
static struct OH_Huks_Param g_genCallerX25519Params[] = {
{.tag = OH_HUKS_TAG_ALGORITHM, .uint32Param = OH_HUKS_ALG_X25519},
{.tag = OH_HUKS_TAG_PURPOSE, .uint32Param = OH_HUKS_KEY_PURPOSE_AGREE},
{.tag = OH_HUKS_TAG_KEY_SIZE, .uint32Param = OH_HUKS_CURVE25519_KEY_SIZE_256}};
static struct OH_Huks_Param g_importParamsCallerKek[] = {
{.tag = OH_HUKS_TAG_ALGORITHM, .uint32Param = OH_HUKS_ALG_AES},
{.tag = OH_HUKS_TAG_PURPOSE, .uint32Param = OH_HUKS_KEY_PURPOSE_ENCRYPT},
{.tag = OH_HUKS_TAG_KEY_SIZE, .uint32Param = OH_HUKS_AES_KEY_SIZE_256},
{.tag = OH_HUKS_TAG_PADDING, .uint32Param = OH_HUKS_PADDING_NONE},
{.tag = OH_HUKS_TAG_BLOCK_MODE, .uint32Param = OH_HUKS_MODE_GCM},
{.tag = OH_HUKS_TAG_DIGEST, .uint32Param = OH_HUKS_DIGEST_NONE},
{.tag = OH_HUKS_TAG_IV, .blob = {.size = WRAPPED_KEY_IV_SIZE, .data = (uint8_t *)WRAPPED_KEY_IV }}}; // this is a test value, for real use the iv should be different every time
static struct OH_Huks_Param g_callerAgreeParams[] = {
{.tag = OH_HUKS_TAG_ALGORITHM, .uint32Param = OH_HUKS_ALG_X25519},
{.tag = OH_HUKS_TAG_PURPOSE, .uint32Param = OH_HUKS_KEY_PURPOSE_AGREE},
{.tag = OH_HUKS_TAG_KEY_SIZE, .uint32Param = OH_HUKS_CURVE25519_KEY_SIZE_256}
};
static struct OH_Huks_Param g_aesKekEncryptParams[] = {
{.tag = OH_HUKS_TAG_ALGORITHM, .uint32Param = OH_HUKS_ALG_AES},
{.tag = OH_HUKS_TAG_PURPOSE, .uint32Param = OH_HUKS_KEY_PURPOSE_ENCRYPT},
{.tag = OH_HUKS_TAG_KEY_SIZE, .uint32Param = OH_HUKS_AES_KEY_SIZE_256},
{.tag = OH_HUKS_TAG_PADDING, .uint32Param = OH_HUKS_PADDING_NONE},
{.tag = OH_HUKS_TAG_BLOCK_MODE, .uint32Param = OH_HUKS_MODE_GCM},
{.tag = OH_HUKS_TAG_DIGEST, .uint32Param = OH_HUKS_DIGEST_NONE},
{.tag = OH_HUKS_TAG_ASSOCIATED_DATA, .blob = {.size = AAD_SIZE, .data = (uint8_t *)AAD}}, // this is a test value, for real use the aad should be info associated with caller
{.tag = OH_HUKS_TAG_NONCE, .blob = {.size = NONCE_SIZE, .data = (uint8_t *)NONCE}}}; // this is a test value, for real use the nonce should be different every time
static struct OH_Huks_Param g_importAgreeKeyParams[] = {
{.tag = OH_HUKS_TAG_ALGORITHM, .uint32Param = OH_HUKS_ALG_AES},
{.tag = OH_HUKS_TAG_PURPOSE, .uint32Param = OH_HUKS_KEY_PURPOSE_ENCRYPT},
{.tag = OH_HUKS_TAG_KEY_SIZE, .uint32Param = OH_HUKS_AES_KEY_SIZE_256},
{.tag = OH_HUKS_TAG_PADDING, .uint32Param = OH_HUKS_PADDING_NONE},
{.tag = OH_HUKS_TAG_BLOCK_MODE, .uint32Param = OH_HUKS_MODE_GCM},
{.tag = OH_HUKS_TAG_DIGEST, .uint32Param = OH_HUKS_DIGEST_NONE},
{.tag = OH_HUKS_TAG_IV, .blob = {.size = IV_SIZE, .data = (uint8_t *)IV}}}; // this is a test value, for real use the iv should be different every time
OH_Huks_Result HuksAgreeKey(const struct OH_Huks_ParamSet *paramSet, const struct OH_Huks_Blob *keyAlias,
const struct OH_Huks_Blob *peerPublicKey, struct OH_Huks_Blob *agreedKey)
{
uint8_t temp[10] = {0};
struct OH_Huks_Blob inData = {
sizeof(temp),
temp};
uint8_t handleU[sizeof(uint64_t)] = {0};
struct OH_Huks_Blob handle = {sizeof(uint64_t), handleU};
OH_Huks_Result ret = OH_Huks_InitSession(keyAlias, paramSet, &handle, nullptr);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
uint8_t outDataU[1024] = {0};
struct OH_Huks_Blob outDataUpdate = {1024, outDataU};
ret = OH_Huks_UpdateSession(&handle, paramSet, peerPublicKey, &outDataUpdate);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_FinishSession(&handle, paramSet, &inData, agreedKey);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
return ret;
}
static const uint32_t TIMES = 4;
static const uint32_t MAX_UPDATE_SIZE = 64;
static const uint32_t MAX_OUTDATA_SIZE = MAX_UPDATE_SIZE * TIMES;
#define HUKS_FREE_BLOB(blob) do { \
if ((blob).data != nullptr) { \
free((blob).data); \
(blob).data = nullptr; \
} \
(blob).size = 0; \
} while (0)
#define OH_HUKS_KEY_BYTES(keySize) (((keySize) + 7) / 8)
static OH_Huks_Result HksEncryptLoopUpdate(const struct OH_Huks_Blob *handle, const struct OH_Huks_ParamSet *paramSet,
const struct OH_Huks_Blob *inData, struct OH_Huks_Blob *outData)
{
struct OH_Huks_Result ret;
ret.errorCode = OH_HUKS_SUCCESS;
struct OH_Huks_Blob inDataSeg = *inData;
uint8_t *lastPtr = inData->data + inData->size - 1;
struct OH_Huks_Blob outDataSeg = {MAX_OUTDATA_SIZE, NULL};
uint8_t *cur = outData->data;
outData->size = 0;
inDataSeg.size = MAX_UPDATE_SIZE;
bool isFinished = false;
while (inDataSeg.data <= lastPtr) {
if (inDataSeg.data + MAX_UPDATE_SIZE <= lastPtr)
{
outDataSeg.size = MAX_OUTDATA_SIZE;
}
else
{
isFinished = true;
inDataSeg.size = lastPtr - inDataSeg.data + 1;
break;
}
if (MallocAndCheckBlobData(&outDataSeg, outDataSeg.size).errorCode != (int32_t)OH_HUKS_SUCCESS)
{
ret.errorCode = OH_HUKS_ERR_CODE_INTERNAL_ERROR;
return ret;
}
ret = OH_Huks_UpdateSession(handle, paramSet, &inDataSeg, &outDataSeg);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
free(outDataSeg.data);
return ret;
}
std::copy(outDataSeg.data, outDataSeg.data + outDataSeg.size, cur);
cur += outDataSeg.size;
outData->size += outDataSeg.size;
free(outDataSeg.data);
if ((isFinished == false) && (inDataSeg.data + MAX_UPDATE_SIZE > lastPtr)) {
ret.errorCode = OH_HUKS_ERR_CODE_INTERNAL_ERROR;
return ret;
}
inDataSeg.data += MAX_UPDATE_SIZE;
}
struct OH_Huks_Blob outDataFinish = {inDataSeg.size * TIMES, NULL};
if (MallocAndCheckBlobData(&outDataFinish, outDataFinish.size).errorCode != (int32_t)OH_HUKS_SUCCESS) {
ret.errorCode = OH_HUKS_ERR_CODE_INTERNAL_ERROR;
return ret;
}
ret = OH_Huks_FinishSession(handle, paramSet, &inDataSeg, &outDataFinish);
if (ret.errorCode != OH_HUKS_SUCCESS) {
free(outDataFinish.data);
return ret;
}
std::copy(outDataFinish.data, outDataFinish.data + outDataFinish.size, cur);
outData->size += outDataFinish.size;
free(outDataFinish.data);
return ret;
}
OH_Huks_Result HuksEncrypt(const struct OH_Huks_Blob *key, const struct OH_Huks_ParamSet *paramSet,
const struct OH_Huks_Blob *plainText, struct OH_Huks_Blob *cipherText)
{
uint8_t handle[sizeof(uint64_t)] = {0};
struct OH_Huks_Blob handleBlob = {sizeof(uint64_t), handle};
OH_Huks_Result ret = OH_Huks_InitSession(key, paramSet, &handleBlob, nullptr);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = HksEncryptLoopUpdate(&handleBlob, paramSet, plainText, cipherText);
return ret;
}
static OH_Huks_Result BuildWrappedKeyData(struct OH_Huks_Blob **blobArray, uint32_t size, struct OH_Huks_Blob *outData)
{
uint32_t totalLength = size * sizeof(uint32_t);
struct OH_Huks_Result ret;
ret.errorCode = OH_HUKS_SUCCESS;
/* counter size */
for (uint32_t i = 0; i < size; ++i) {
totalLength += blobArray[i]->size;
}
struct OH_Huks_Blob outBlob = {0, nullptr};
outBlob.size = totalLength;
ret = MallocAndCheckBlobData(&outBlob, outBlob.size);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
uint32_t offset = 0;
/* copy data */
for (uint32_t i = 0; i < size; ++i) {
if (totalLength - offset >= sizeof(blobArray[i]->size)) {
std::copy(reinterpret_cast<uint8_t *>(&blobArray[i]->size), reinterpret_cast<uint8_t *>(&blobArray[i]->size) + sizeof(blobArray[i]->size), outBlob.data + offset);
} else {
ret.errorCode = OH_HUKS_ERR_CODE_INTERNAL_ERROR;
return ret;
}
offset += sizeof(blobArray[i]->size);
if (totalLength - offset >= blobArray[i]->size) {
std::copy(blobArray[i]->data, blobArray[i]->data + blobArray[i]->size, outBlob.data + offset);
} else {
ret.errorCode = OH_HUKS_ERR_CODE_INTERNAL_ERROR;
return ret;
}
offset += blobArray[i]->size;
}
outData->size = outBlob.size;
outData->data = outBlob.data;
return ret;
}
static OH_Huks_Result CheckParamsValid(const struct HksImportWrappedKeyTestParams *params)
{
struct OH_Huks_Result ret;
ret.errorCode = OH_HUKS_SUCCESS;
if (params == nullptr) {
ret.errorCode = OH_HUKS_ERR_CODE_ILLEGAL_ARGUMENT;
return ret;
}
if (params->wrappingKeyAlias == nullptr||params->genWrappingKeyParamSet == nullptr||
params->callerKeyAlias == nullptr||
params->genCallerKeyParamSet == nullptr||params->callerKekAlias == nullptr||
params->callerKek == nullptr||params->importCallerKekParamSet == nullptr||
params->callerAgreeKeyAlias == nullptr||params->agreeParamSet == nullptr||
params->importWrappedKeyParamSet == nullptr||params->importedKeyAlias == nullptr||
params->importedPlainKey == nullptr) {
ret.errorCode = OH_HUKS_ERR_CODE_ILLEGAL_ARGUMENT;
return ret;
}
return ret;
}
static OH_Huks_Result GenerateAndExportHuksPublicKey(const struct HksImportWrappedKeyTestParams *params,
struct OH_Huks_Blob *huksPublicKey)
{
OH_Huks_Result ret = OH_Huks_GenerateKeyItem(params->wrappingKeyAlias, params->genWrappingKeyParamSet, nullptr);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
huksPublicKey->size = params->publicKeySize;
ret = MallocAndCheckBlobData(huksPublicKey, huksPublicKey->size);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_ExportPublicKeyItem(params->wrappingKeyAlias, nullptr, huksPublicKey);
return ret;
}
static OH_Huks_Result GenerateAndExportCallerPublicKey(const struct HksImportWrappedKeyTestParams *params,
struct OH_Huks_Blob *callerSelfPublicKey)
{
OH_Huks_Result ret = OH_Huks_GenerateKeyItem(params->callerKeyAlias, params->genCallerKeyParamSet, nullptr);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
callerSelfPublicKey->size = params->publicKeySize;
ret = MallocAndCheckBlobData(callerSelfPublicKey, callerSelfPublicKey->size);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_ExportPublicKeyItem(params->callerKeyAlias, params->genWrappingKeyParamSet, callerSelfPublicKey);
return ret;
}
static OH_Huks_Result ImportKekAndAgreeSharedSecret(const struct HksImportWrappedKeyTestParams *params,
const struct OH_Huks_Blob *huksPublicKey, struct OH_Huks_Blob *outSharedKey)
{
OH_Huks_Result ret = OH_Huks_ImportKeyItem(params->callerKekAlias,
params->importCallerKekParamSet, params->callerKek);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
ret = MallocAndCheckBlobData(outSharedKey, outSharedKey->size);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
ret = HuksAgreeKey(params->agreeParamSet, params->callerKeyAlias, huksPublicKey, outSharedKey);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
struct OH_Huks_ParamSet *importAgreeKeyParams = nullptr;
ret = InitParamSet(&importAgreeKeyParams, g_importAgreeKeyParams,
sizeof(g_importAgreeKeyParams) / sizeof(OH_Huks_Param));
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_ImportKeyItem(params->callerAgreeKeyAlias, importAgreeKeyParams, outSharedKey);
OH_Huks_FreeParamSet(&importAgreeKeyParams);
return ret;
}
static OH_Huks_Result EncryptImportedPlainKeyAndKek(const struct HksImportWrappedKeyTestParams *params,
struct OH_Huks_Blob *plainCipherText, struct OH_Huks_Blob *kekCipherText)
{
struct OH_Huks_ParamSet *encryptParamSet = nullptr;
OH_Huks_Result ret = InitParamSet(&encryptParamSet, g_aesKekEncryptParams,
sizeof(g_aesKekEncryptParams) / sizeof(OH_Huks_Param));
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
ret = HuksEncrypt(params->callerKekAlias, encryptParamSet, params->importedPlainKey, plainCipherText);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
ret = HuksEncrypt(params->callerAgreeKeyAlias, encryptParamSet, params->callerKek, kekCipherText);
OH_Huks_FreeParamSet(&encryptParamSet);
return ret;
}
static OH_Huks_Result ImportWrappedKey(const struct HksImportWrappedKeyTestParams *params, struct OH_Huks_Blob *plainCipher,
struct OH_Huks_Blob *kekCipherText, struct OH_Huks_Blob *peerPublicKey, struct OH_Huks_Blob *wrappedKeyData)
{
struct OH_Huks_Blob commonAad = {.size = AAD_SIZE,
.data = reinterpret_cast<uint8_t *>(AAD)};
struct OH_Huks_Blob commonNonce = {.size = NONCE_SIZE,
.data = reinterpret_cast<uint8_t *>(NONCE)};
struct OH_Huks_Blob keyMaterialLen = {.size = sizeof(uint32_t), .data = (uint8_t *)¶ms->keyMaterialLen};
/* copy AEAD tag from cipher text and decrease its size */
const uint32_t tagSize = AEAD_TAG_SIZE;
uint8_t kekTagBuf[tagSize] = {0};
struct OH_Huks_Blob kekTag = {.size = tagSize, .data = kekTagBuf};
std::copy(plainCipher->data + (plainCipher->size - tagSize), plainCipher->data + (plainCipher->size - tagSize) + tagSize, kekTag.data);
plainCipher->size -= tagSize;
/* copy AEAD tag from kek cipher text and decrease its size */
uint8_t agreeKeyTagBuf[tagSize] = {0};
struct OH_Huks_Blob agreeKeyTag = {.size = tagSize, .data = agreeKeyTagBuf};
std::copy(kekCipherText->data + (kekCipherText->size - tagSize), kekCipherText->data + (kekCipherText->size - tagSize) + tagSize, agreeKeyTagBuf);
kekCipherText->size -= tagSize;
struct OH_Huks_Blob *blobArray[] = {peerPublicKey, &commonAad, &commonNonce, &agreeKeyTag, kekCipherText,
&commonAad, &commonNonce, &kekTag, &keyMaterialLen, plainCipher};
OH_Huks_Result ret = BuildWrappedKeyData(blobArray, OH_HUKS_IMPORT_WRAPPED_KEY_TOTAL_BLOBS, wrappedKeyData);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
struct OH_Huks_Param *purpose = nullptr;
ret = OH_Huks_GetParam(params->importWrappedKeyParamSet, OH_HUKS_TAG_PURPOSE, &purpose);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_ImportWrappedKeyItem(params->importedKeyAlias, params->wrappingKeyAlias,
params->importWrappedKeyParamSet, wrappedKeyData);
return ret;
}
OH_Huks_Result HksImportWrappedKeyTestCommonCase(const struct HksImportWrappedKeyTestParams *params)
{
OH_Huks_Result ret = CheckParamsValid(params);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return ret;
}
struct OH_Huks_Blob huksPublicKey = {0, nullptr};
struct OH_Huks_Blob callerSelfPublicKey = {0, nullptr};
struct OH_Huks_Blob outSharedKey = {.size = OH_HUKS_KEY_BYTES(OH_HUKS_AES_KEY_SIZE_256), .data = nullptr};
struct OH_Huks_Blob wrappedKeyData = {0, nullptr};
uint8_t plainKeyCipherBuffer[OH_HUKS_MAX_KEY_SIZE] = {0};
struct OH_Huks_Blob plainCipherText = {OH_HUKS_MAX_KEY_SIZE, plainKeyCipherBuffer};
uint8_t kekCipherTextBuffer[OH_HUKS_MAX_KEY_SIZE] = {0};
struct OH_Huks_Blob kekCipherText = {OH_HUKS_MAX_KEY_SIZE, kekCipherTextBuffer};
do {
/**
* 模拟密钥安全导入场景,设备A为远端设备,设备B为本端设备
*
* 1. 设备A准备待导入的密钥材料,本示例使用g_importedAes256PlainKey作为模拟
*/
/**
* 2. 设备A生成一个非对称密钥对Caller_Key
*/
ret = GenerateAndExportCallerPublicKey(params, &callerSelfPublicKey);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
break;
}
/**
* 3. 设备B(被导入设备)生成一个非对称密钥对Wrapping_Key,其密钥用途设置为unwrap;
*/
ret = GenerateAndExportHuksPublicKey(params, &huksPublicKey);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
break;
}
/**
* 4. 设备A生成一个对称密钥Caller_Kek
* 5. 设备A、B导出非对称密钥对的公钥材料。本示例将公钥作为变量存放在callerSelfPublicKey,huksPublicKey
* 6. 设备A基于Caller_Key和设备B Wrapping_Key的公钥,协商出Agree_Key
*/
ret = ImportKekAndAgreeSharedSecret(params, &huksPublicKey, &outSharedKey);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
break;
}
/**
* 7. 设备A使用Caller_Kek加密To_Import_Key,生成To_Import_Key_Enc
* 8. 设备A使用Agree_Key加密Caller_Kek,生成Caller_Kek_Enc
*/
ret = EncryptImportedPlainKeyAndKek(params, &plainCipherText, &kekCipherText);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
break;
}
/**
* 9. 设备A将Caller_Key的公钥、Caller_Kek_Enc、To_Import_Key_Enc发送给设备B。本示例作为变量存放在callerSelfPublicKey,plainCipherText,kekCipherText
*/
/**
* 10. 设备B封装加密导入密钥材料
* 11. 设备B导入封装的加密密钥材料
* 12. 设备A、B删除用于加密导入的密钥
*/
ret = ImportWrappedKey(params, &plainCipherText, &kekCipherText, &callerSelfPublicKey, &wrappedKeyData);
} while (0);
HUKS_FREE_BLOB(huksPublicKey);
HUKS_FREE_BLOB(callerSelfPublicKey);
HUKS_FREE_BLOB(outSharedKey);
HUKS_FREE_BLOB(wrappedKeyData);
return ret;
}
void HksClearKeysForWrappedKeyTest(const struct HksImportWrappedKeyTestParams *params)
{
OH_Huks_Result ret = CheckParamsValid(params);
if (ret.errorCode != (int32_t)OH_HUKS_SUCCESS) {
return;
}
(void)OH_Huks_DeleteKeyItem(params->wrappingKeyAlias, nullptr);
(void)OH_Huks_DeleteKeyItem(params->callerKeyAlias, nullptr);
(void)OH_Huks_DeleteKeyItem(params->callerKekAlias, nullptr);
(void)OH_Huks_DeleteKeyItem(params->callerAgreeKeyAlias, nullptr);
(void)OH_Huks_DeleteKeyItem(params->importedKeyAlias, nullptr);
}
static OH_Huks_Result InitCommonTestParamsAndDoImport(
struct HksImportWrappedKeyTestParams *importWrappedKeyTestParams,
const struct OH_Huks_Param *importedKeyParamSetArray,
uint32_t arraySize)
{
struct OH_Huks_ParamSet *genX25519KeyParamSet = nullptr;
struct OH_Huks_ParamSet *genCallerKeyParamSet = nullptr;
struct OH_Huks_ParamSet *callerImportParamsKek = nullptr;
struct OH_Huks_ParamSet *agreeParamSet = nullptr;
struct OH_Huks_ParamSet *importPlainKeyParams = nullptr;
OH_Huks_Result ret;
do {
ret = InitParamSet(&genX25519KeyParamSet, g_genWrappingKeyParams,
sizeof(g_genWrappingKeyParams) / sizeof(OH_Huks_Param));
if (ret.errorCode != OH_HUKS_SUCCESS) {
break;
}
importWrappedKeyTestParams->genWrappingKeyParamSet = genX25519KeyParamSet;
importWrappedKeyTestParams->publicKeySize = g_x25519PubKeySize;
ret = InitParamSet(&genCallerKeyParamSet, g_genCallerX25519Params,
sizeof(g_genCallerX25519Params) / sizeof(OH_Huks_Param));
if (ret.errorCode != OH_HUKS_SUCCESS) {
break;
}
importWrappedKeyTestParams->genCallerKeyParamSet = genCallerKeyParamSet;
ret = InitParamSet(&callerImportParamsKek, g_importParamsCallerKek,
sizeof(g_importParamsCallerKek) / sizeof(OH_Huks_Param));
if (ret.errorCode != OH_HUKS_SUCCESS) {
break;
}
importWrappedKeyTestParams->importCallerKekParamSet = callerImportParamsKek;
ret = InitParamSet(&agreeParamSet, g_callerAgreeParams,
sizeof(g_callerAgreeParams) / sizeof(OH_Huks_Param));
if (ret.errorCode != OH_HUKS_SUCCESS) {
break;
}
importWrappedKeyTestParams->agreeParamSet = agreeParamSet;
ret = InitParamSet(&importPlainKeyParams, importedKeyParamSetArray, arraySize);
if (ret.errorCode != OH_HUKS_SUCCESS) {
break;
}
importWrappedKeyTestParams->importWrappedKeyParamSet = importPlainKeyParams;
ret = HksImportWrappedKeyTestCommonCase(importWrappedKeyTestParams);
} while (0);
OH_Huks_FreeParamSet(&genX25519KeyParamSet);
OH_Huks_FreeParamSet(&genCallerKeyParamSet);
OH_Huks_FreeParamSet(&callerImportParamsKek);
OH_Huks_FreeParamSet(&agreeParamSet);
OH_Huks_FreeParamSet(&importPlainKeyParams);
return ret;
}
static napi_value ImportWrappedKey(napi_env env, napi_callback_info info)
{
struct HksImportWrappedKeyTestParams importWrappedKeyTestParams001 = {0};
importWrappedKeyTestParams001.wrappingKeyAlias = &g_wrappingKeyAliasAes256;
importWrappedKeyTestParams001.keyMaterialLen = g_importedAes256PlainKey.size;
importWrappedKeyTestParams001.callerKeyAlias = &g_callerKeyAliasAes256;
importWrappedKeyTestParams001.callerKekAlias = &g_callerKekAliasAes256;
importWrappedKeyTestParams001.callerKek = &g_callerAes256Kek;
importWrappedKeyTestParams001.callerAgreeKeyAlias = &g_callerAgreeKeyAliasAes256;
importWrappedKeyTestParams001.importedKeyAlias = &g_importedKeyAliasAes256;
importWrappedKeyTestParams001.importedPlainKey = &g_importedAes256PlainKey;
OH_Huks_Result ohResult = InitCommonTestParamsAndDoImport(&importWrappedKeyTestParams001, g_importWrappedAes256Params,
sizeof(g_importWrappedAes256Params) / sizeof(struct OH_Huks_Param));
HksClearKeysForWrappedKeyTest(&importWrappedKeyTestParams001);
napi_value ret;
napi_create_int32(env, ohResult.errorCode, &ret);
return ret;
}
常见密钥操作
场景概述
为了实现对数据机密性、完整性等保护,在生成/导入密钥后,需要对数据进行密钥操作,比如加密解密、签名验签、密钥协商、密钥派生等,本章节提供了常用的密钥操作的示例。
通用开发流程
HUKS基于密钥会话来操作数据,使用密钥时基于以下流程:
- 初始化密钥会话OH_Huks_InitSession: 传入密钥别名和密钥操作参数,初始化一个密钥会话并获取会话句柄。其中密钥操作参数中必须包含对应密码算法所必须的参数,包括密码算法、密钥长度、密钥目的、工作模式、填充模式、散列模式、IV、Nonce、AAD等。
- 分段操作数据OH_Huks_UpdateSession: 协商、派生、验签中,必须通过该接口执行算法操作,详见开发步骤。其他情况下,如数据过大(超过100K)或密码算法的要求需要对数据进行分段操作,可通过该接口分段传入数据。
- 结束密钥会话OH_Huks_FinishSession: 操作最后一段数据并结束密钥会话,如过程中发生错误或不需要此次密钥操作数据,必须取消会话OH_Huks_AbortSession。此步骤必选!
加密解密
C++代码示例:
#include "huks/native_huks_api.h"
#include "huks/native_huks_param.h"
#include <string.h>
OH_Huks_Result InitParamSet(
struct OH_Huks_ParamSet **paramSet,
const struct OH_Huks_Param *params,
uint32_t paramCount)
{
OH_Huks_Result ret = OH_Huks_InitParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_AddParams(*paramSet, params, paramCount);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
ret = OH_Huks_BuildParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
return ret;
}
static const uint32_t IV_SIZE = 16;
static uint8_t IV[IV_SIZE] = { 0 }; // this is a test value, for real use the iv should be different every time
static struct OH_Huks_Param g_genEncDecParams[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_AES
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_ENCRYPT|OH_HUKS_KEY_PURPOSE_DECRYPT
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_AES_KEY_SIZE_256
}, {
.tag = OH_HUKS_TAG_PADDING,
.uint32Param = OH_HUKS_PADDING_NONE
}, {
.tag = OH_HUKS_TAG_BLOCK_MODE,
.uint32Param = OH_HUKS_MODE_CBC
}
};
static struct OH_Huks_Param g_encryptParams[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_AES
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_ENCRYPT
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_AES_KEY_SIZE_256
}, {
.tag = OH_HUKS_TAG_PADDING,
.uint32Param = OH_HUKS_PADDING_NONE
}, {
.tag = OH_HUKS_TAG_BLOCK_MODE,
.uint32Param = OH_HUKS_MODE_CBC
}, {
.tag = OH_HUKS_TAG_IV,
.blob = {
.size = IV_SIZE,
.data = (uint8_t *)IV // this is a test value, for real use the iv should be different every time
}
}
};
static struct OH_Huks_Param g_decryptParams[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_AES
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_DECRYPT
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_AES_KEY_SIZE_256
}, {
.tag = OH_HUKS_TAG_PADDING,
.uint32Param = OH_HUKS_PADDING_NONE
}, {
.tag = OH_HUKS_TAG_BLOCK_MODE,
.uint32Param = OH_HUKS_MODE_CBC
}, {
.tag = OH_HUKS_TAG_IV,
.blob = {
.size = IV_SIZE,
.data = (uint8_t *)IV // this is a test value, for real use the iv should be different every time
}
}
};
static const uint32_t AES_COMMON_SIZE = 1024;
OH_Huks_Result HksAesCipherTestEncrypt(
const struct OH_Huks_Blob *keyAlias,
const struct OH_Huks_ParamSet *encryptParamSet, const struct OH_Huks_Blob *inData, struct OH_Huks_Blob *cipherText)
{
uint8_t handleE[sizeof(uint64_t)] = {0};
struct OH_Huks_Blob handleEncrypt = {sizeof(uint64_t), handleE};
OH_Huks_Result ret = OH_Huks_InitSession(keyAlias, encryptParamSet, &handleEncrypt, nullptr);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_FinishSession(&handleEncrypt, encryptParamSet, inData, cipherText);
return ret;
}
OH_Huks_Result HksAesCipherTestDecrypt(
const struct OH_Huks_Blob *keyAlias,
const struct OH_Huks_ParamSet *decryptParamSet, const struct OH_Huks_Blob *cipherText, struct OH_Huks_Blob *plainText,
const struct OH_Huks_Blob *inData)
{
uint8_t handleD[sizeof(uint64_t)] = {0};
struct OH_Huks_Blob handleDecrypt = {sizeof(uint64_t), handleD};
OH_Huks_Result ret = OH_Huks_InitSession(keyAlias, decryptParamSet, &handleDecrypt, nullptr);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_FinishSession(&handleDecrypt, decryptParamSet, cipherText, plainText);
return ret;
}
static napi_value EncDecKey(napi_env env, napi_callback_info info)
{
char tmpKeyAlias[] = "test_enc_dec";
struct OH_Huks_Blob keyAlias = { (uint32_t)strlen(tmpKeyAlias), (uint8_t *)tmpKeyAlias };
struct OH_Huks_ParamSet *genParamSet = nullptr;
struct OH_Huks_ParamSet *encryptParamSet = nullptr;
struct OH_Huks_ParamSet *decryptParamSet = nullptr;
OH_Huks_Result ohResult;
do {
ohResult = InitParamSet(&genParamSet, g_genEncDecParams, sizeof(g_genEncDecParams) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = InitParamSet(&encryptParamSet, g_encryptParams, sizeof(g_encryptParams) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = InitParamSet(&decryptParamSet, g_decryptParams, sizeof(g_decryptParams) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
char tmpInData[] = "AES_ECB_INDATA_1";
struct OH_Huks_Blob inData = { (uint32_t)strlen(tmpInData), (uint8_t *)tmpInData };
/* 1. Generate Key */
ohResult = OH_Huks_GenerateKeyItem(&keyAlias, genParamSet, nullptr);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 2. Encrypt */
uint8_t cipher[AES_COMMON_SIZE] = {0};
struct OH_Huks_Blob cipherText = {AES_COMMON_SIZE, cipher};
ohResult = HksAesCipherTestEncrypt(&keyAlias, encryptParamSet, &inData, &cipherText);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 3. Decrypt */
uint8_t plain[AES_COMMON_SIZE] = {0};
struct OH_Huks_Blob plainText = {AES_COMMON_SIZE, plain};
ohResult = HksAesCipherTestDecrypt(&keyAlias, decryptParamSet, &cipherText, &plainText, &inData);
} while (0);
/* 4. Delete Key */
(void)OH_Huks_DeleteKeyItem(&keyAlias, genParamSet);
OH_Huks_FreeParamSet(&genParamSet);
OH_Huks_FreeParamSet(&encryptParamSet);
OH_Huks_FreeParamSet(&decryptParamSet);
napi_value ret;
napi_create_int32(env, ohResult.errorCode, &ret);
return ret;
}
签名验签
C++代码示例:
#include "huks/native_huks_api.h"
#include "huks/native_huks_param.h"
#include <string.h>
OH_Huks_Result InitParamSet(
struct OH_Huks_ParamSet **paramSet,
const struct OH_Huks_Param *params,
uint32_t paramCount)
{
OH_Huks_Result ret = OH_Huks_InitParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_AddParams(*paramSet, params, paramCount);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
ret = OH_Huks_BuildParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
return ret;
}
static struct OH_Huks_Param g_genSignVerifyParamsTest[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_RSA
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_SIGN|OH_HUKS_KEY_PURPOSE_VERIFY
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_RSA_KEY_SIZE_2048
}, {
.tag = OH_HUKS_TAG_PADDING,
.uint32Param = OH_HUKS_PADDING_PSS
}, {
.tag = OH_HUKS_TAG_DIGEST,
.uint32Param = OH_HUKS_DIGEST_SHA384
},
};
static struct OH_Huks_Param g_signParamsTest[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_RSA
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_SIGN
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_RSA_KEY_SIZE_2048
}, {
.tag = OH_HUKS_TAG_PADDING,
.uint32Param = OH_HUKS_PADDING_PSS
}, {
.tag = OH_HUKS_TAG_DIGEST,
.uint32Param = OH_HUKS_DIGEST_SHA384
}
};
static struct OH_Huks_Param g_verifyParamsTest[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_RSA
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_VERIFY
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_RSA_KEY_SIZE_2048
}, {
.tag = OH_HUKS_TAG_PADDING,
.uint32Param = OH_HUKS_PADDING_PSS
}, {
.tag = OH_HUKS_TAG_DIGEST,
.uint32Param = OH_HUKS_DIGEST_SHA384
}
};
static const uint32_t RSA_COMMON_SIZE = 1024;
static const char *g_dataToSign = "Hks_RSA_Sign_Verify_Test_0000000000000000000000000000000000000000000000000000000"
"00000000000000000000000000000000000000000000000000000000000000000000000000000000"
"0000000000000000000000000000000000000000000000000000000000000000000000000_string";
static napi_value SignVerifyKey(napi_env env, napi_callback_info info)
{
struct OH_Huks_Blob g_keyAlias = {
(uint32_t)strlen("test_signVerify"),
(uint8_t *)"test_signVerify"
};
struct OH_Huks_Blob inData = {
(uint32_t)strlen(g_dataToSign),
(uint8_t *)g_dataToSign
};
struct OH_Huks_ParamSet *genParamSet = nullptr;
struct OH_Huks_ParamSet *signParamSet = nullptr;
struct OH_Huks_ParamSet *verifyParamSet = nullptr;
OH_Huks_Result ohResult;
do {
ohResult = InitParamSet(&genParamSet, g_genSignVerifyParamsTest, sizeof(g_genSignVerifyParamsTest) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = InitParamSet(&signParamSet, g_signParamsTest, sizeof(g_signParamsTest) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = InitParamSet(&verifyParamSet, g_verifyParamsTest, sizeof(g_verifyParamsTest) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 1. Generate Key */
ohResult = OH_Huks_GenerateKeyItem(&g_keyAlias, genParamSet, nullptr);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 2. Sign */
// Init
uint8_t handleS[sizeof(uint64_t)] = {0};
struct OH_Huks_Blob handleSign = { (uint32_t)sizeof(uint64_t), handleS };
ohResult = OH_Huks_InitSession(&g_keyAlias, signParamSet, &handleSign, nullptr);
// Update
uint8_t outDataS[RSA_COMMON_SIZE] = {0};
struct OH_Huks_Blob outDataSign = { RSA_COMMON_SIZE, outDataS };
ohResult = OH_Huks_UpdateSession(&handleSign, signParamSet, &inData, &outDataSign);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
// Finish
struct OH_Huks_Blob finishInData = { 0, NULL };
ohResult = OH_Huks_FinishSession(&handleSign, signParamSet, &finishInData, &outDataSign);
/* 3. Verify */
// Init
uint8_t handleV[sizeof(uint64_t)] = {0};
struct OH_Huks_Blob handleVerify = { (uint32_t)sizeof(uint64_t), handleV };
ohResult = OH_Huks_InitSession(&g_keyAlias, verifyParamSet, &handleVerify, nullptr);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
// Update loop
uint8_t temp[] = "out";
struct OH_Huks_Blob verifyOut = { (uint32_t)sizeof(temp), temp };
ohResult = OH_Huks_UpdateSession(&handleVerify, verifyParamSet, &inData, &verifyOut);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
// Finish
ohResult = OH_Huks_FinishSession(&handleVerify, verifyParamSet, &outDataSign, &verifyOut);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
} while (0);
(void)OH_Huks_DeleteKeyItem(&g_keyAlias, genParamSet);
OH_Huks_FreeParamSet(&genParamSet);
OH_Huks_FreeParamSet(&signParamSet);
OH_Huks_FreeParamSet(&verifyParamSet);
napi_value ret;
napi_create_int32(env, ohResult.errorCode, &ret);
return ret;
}
密钥协商
应用在协商密钥时建议传入HuksKeyStorageType中定义的类型;从API10开始应用只能选择存储(HUKS_STORAGE_ONLY_USED_IN_HUKS),或者选择导出(HUKS_STORAGE_KEY_EXPORT_ALLOWED),若不传入,则默认同时支持存储和导出,存在安全风险,不推荐业务使用。
C++代码示例:
#include "huks/native_huks_api.h"
#include "huks/native_huks_param.h"
#include <string.h>
OH_Huks_Result InitParamSet(
struct OH_Huks_ParamSet **paramSet,
const struct OH_Huks_Param *params,
uint32_t paramCount)
{
OH_Huks_Result ret = OH_Huks_InitParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_AddParams(*paramSet, params, paramCount);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
ret = OH_Huks_BuildParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
return ret;
}
static const uint32_t IV_SIZE = 16;
static uint8_t IV[IV_SIZE] = { 0 }; // this is a test value, for real use the iv should be different every time
static struct OH_Huks_Blob g_keyAliasFinal1001 = {
(uint32_t)strlen("HksECDHAgreeKeyAliasTest001_1_final"),
(uint8_t *)"HksECDHAgreeKeyAliasTest001_1_final"
};
static struct OH_Huks_Param g_genAgreeParams[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_ECC
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_AGREE
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_ECC_KEY_SIZE_256
}, {
.tag = OH_HUKS_TAG_DIGEST,
.uint32Param = OH_HUKS_DIGEST_NONE
}
};
static struct OH_Huks_Param g_agreeParamsInit01[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_ECDH
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_AGREE
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_ECC_KEY_SIZE_256
}
};
static struct OH_Huks_Param g_agreeParamsFinish01[] = {
{
.tag = OH_HUKS_TAG_DERIVED_AGREED_KEY_STORAGE_FLAG,
.uint32Param = OH_HUKS_STORAGE_ONLY_USED_IN_HUKS
}, {
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_AES
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_AES_KEY_SIZE_256
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_AGREE
}, {
.tag = OH_HUKS_TAG_KEY_ALIAS,
.blob = g_keyAliasFinal1001
}, {
.tag = OH_HUKS_TAG_PADDING,
.uint32Param = OH_HUKS_PADDING_NONE
}, {
.tag = OH_HUKS_TAG_BLOCK_MODE,
.uint32Param = OH_HUKS_MODE_CBC
}
};
static struct OH_Huks_Blob g_keyAliasFinal2001 = {
(uint32_t)strlen("HksECDHAgreeKeyAliasTest001_2_final"),
(uint8_t *)"HksECDHAgreeKeyAliasTest001_2_final"
};
static struct OH_Huks_Param g_agreeParamsInit02[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_ECDH
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_AGREE
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_ECC_KEY_SIZE_256
}
};
static struct OH_Huks_Param g_agreeParamsFinish02[] = {
{
.tag = OH_HUKS_TAG_DERIVED_AGREED_KEY_STORAGE_FLAG,
.uint32Param = OH_HUKS_STORAGE_ONLY_USED_IN_HUKS
}, {
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_AES
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_AES_KEY_SIZE_256
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_DERIVE
}, {
.tag = OH_HUKS_TAG_KEY_ALIAS,
.blob = g_keyAliasFinal2001
}, {
.tag = OH_HUKS_TAG_PADDING,
.uint32Param = OH_HUKS_PADDING_NONE
}, {
.tag = OH_HUKS_TAG_BLOCK_MODE,
.uint32Param = OH_HUKS_MODE_CBC
}
};
static const uint32_t ECDH_COMMON_SIZE = 1024;
static struct OH_Huks_Blob g_keyAlias01001 = {
(uint32_t)strlen("HksECDHAgreeKeyAliasTest001_1"),
(uint8_t *)"HksECDHAgreeKeyAliasTest001_1"
};
static struct OH_Huks_Blob g_keyAlias02001 = {
(uint32_t)strlen("HksECDHAgreeKeyAliasTest001_2"),
(uint8_t *)"HksECDHAgreeKeyAliasTest001_2"
};
OH_Huks_Result MallocAndCheckBlobData(
struct OH_Huks_Blob *blob,
const uint32_t blobSize)
{
struct OH_Huks_Result ret;
ret.errorCode = OH_HUKS_SUCCESS;
blob->data = (uint8_t *)malloc(blobSize);
if (blob->data == NULL) {
ret.errorCode = OH_HUKS_ERR_CODE_INTERNAL_ERROR;
}
return ret;
}
OH_Huks_Result HksEcdhAgreeExport(const struct OH_Huks_Blob *keyAlias1, const struct OH_Huks_Blob *keyAlias2,
struct OH_Huks_Blob *publicKey1, struct OH_Huks_Blob *publicKey2, const struct OH_Huks_ParamSet *genParamSet)
{
OH_Huks_Result ret = OH_Huks_ExportPublicKeyItem(keyAlias1, genParamSet, publicKey1);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_ExportPublicKeyItem(keyAlias2, genParamSet, publicKey2);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
return ret;
}
static const char *g_inData = "Hks_ECDH_Agree_Test_000000000000000000000000000000000000000000000000000000000000"
"00000000000000000000000000000000000000000000000000000000000000000000000000000000"
"0000000000000000000000000000000000000000000000000000000000000000000000000_string";
OH_Huks_Result HksEcdhAgreeFinish(const struct OH_Huks_Blob *keyAlias, const struct OH_Huks_Blob *publicKey,
const struct OH_Huks_ParamSet *initParamSet, const struct OH_Huks_ParamSet *finishParamSet, struct OH_Huks_Blob *outData)
{
struct OH_Huks_Blob inData = {
(uint32_t)strlen(g_inData),
(uint8_t *)g_inData
};
uint8_t handleU[sizeof(uint64_t)] = {0};
struct OH_Huks_Blob handle = { sizeof(uint64_t), handleU };
OH_Huks_Result ret = OH_Huks_InitSession(keyAlias, initParamSet, &handle, nullptr);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
uint8_t outDataU[ECDH_COMMON_SIZE] = {0};
struct OH_Huks_Blob outDataUpdate = { ECDH_COMMON_SIZE, outDataU };
ret = OH_Huks_UpdateSession(&handle, initParamSet, publicKey, &outDataUpdate);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_FinishSession(&handle, finishParamSet, &inData, outData);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
return ret;
}
static napi_value AgreeKey(napi_env env, napi_callback_info info)
{
struct OH_Huks_ParamSet *genParamSet = nullptr;
struct OH_Huks_ParamSet *initParamSet01 = nullptr;
struct OH_Huks_ParamSet *finishParamSet01 = nullptr;
struct OH_Huks_ParamSet *initParamSet02 = nullptr;
struct OH_Huks_ParamSet *finishParamSet02 = nullptr;
struct OH_Huks_Blob publicKey01 = { .size = OH_HUKS_ECC_KEY_SIZE_256, .data = nullptr };
struct OH_Huks_Blob publicKey02 = { .size = OH_HUKS_ECC_KEY_SIZE_256, .data = nullptr };
struct OH_Huks_Blob outData01 = { .size = ECDH_COMMON_SIZE, .data = nullptr };
struct OH_Huks_Blob outData02 = { .size = ECDH_COMMON_SIZE, .data = nullptr };
OH_Huks_Result ohResult;
do {
ohResult = InitParamSet(&genParamSet, g_genAgreeParams, sizeof(g_genAgreeParams) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = InitParamSet(&initParamSet01, g_agreeParamsInit01, sizeof(g_agreeParamsInit01) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = InitParamSet(&finishParamSet01, g_agreeParamsFinish01,
sizeof(g_agreeParamsFinish01) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = InitParamSet(&initParamSet02, g_agreeParamsInit02, sizeof(g_agreeParamsInit02) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = InitParamSet(&finishParamSet02, g_agreeParamsFinish02,
sizeof(g_agreeParamsFinish02) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 1. Get Key One */
ohResult = OH_Huks_GenerateKeyItem(&g_keyAlias01001, genParamSet, nullptr);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 2. Get Key Two */
ohResult = OH_Huks_GenerateKeyItem(&g_keyAlias02001, genParamSet, nullptr);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = MallocAndCheckBlobData(&publicKey01, publicKey01.size);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = MallocAndCheckBlobData(&publicKey02, publicKey02.size);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 3. Get public keys of key one and key two */
ohResult = HksEcdhAgreeExport(&g_keyAlias01001, &g_keyAlias02001, &publicKey01, &publicKey02, genParamSet);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = MallocAndCheckBlobData(&outData01, outData01.size);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = MallocAndCheckBlobData(&outData02, outData02.size);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 4. Agree with key one and public key of key two */
ohResult = HksEcdhAgreeFinish(&g_keyAlias01001, &publicKey02, initParamSet01, finishParamSet01, &outData01);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 5. Agree with key two and public key of key one */
ohResult = HksEcdhAgreeFinish(&g_keyAlias02001, &publicKey01, initParamSet02, finishParamSet02, &outData02);
} while (0);
free(publicKey01.data);
free(publicKey02.data);
free(outData01.data);
free(outData02.data);
OH_Huks_DeleteKeyItem(&g_keyAlias01001, genParamSet);
OH_Huks_DeleteKeyItem(&g_keyAlias02001, genParamSet);
OH_Huks_DeleteKeyItem(&g_keyAliasFinal1001, NULL);
OH_Huks_DeleteKeyItem(&g_keyAliasFinal2001, NULL);
OH_Huks_FreeParamSet(&genParamSet);
OH_Huks_FreeParamSet(&initParamSet01);
OH_Huks_FreeParamSet(&finishParamSet01);
OH_Huks_FreeParamSet(&initParamSet02);
OH_Huks_FreeParamSet(&finishParamSet02);
napi_value ret;
napi_create_int32(env, ohResult.errorCode, &ret);
return ret;
}
密钥派生
应用在派生密钥时建议传入OH_Huks_KeyStorageType中定义的类型;从API10开始应用只能选择存储(OH_HUKS_STORAGE_ONLY_USED_IN_HUKS),或者选择导出(OH_HUKS_STORAGE_KEY_EXPORT_ALLOWED),若不传入,则默认同时支持存储和导出,存在安全问题,不推荐业务使用。
C++代码示例:
#include "huks/native_huks_api.h"
#include "huks/native_huks_param.h"
#include <string.h>
OH_Huks_Result InitParamSet(
struct OH_Huks_ParamSet **paramSet,
const struct OH_Huks_Param *params,
uint32_t paramCount)
{
OH_Huks_Result ret = OH_Huks_InitParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_AddParams(*paramSet, params, paramCount);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
ret = OH_Huks_BuildParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
return ret;
}
static const uint32_t DERIVE_KEY_SIZE_32 = 32;
static struct OH_Huks_Blob g_deriveKeyAlias = {
(uint32_t)strlen("test_derive"),
(uint8_t *)"test_derive"
};
static struct OH_Huks_Param g_genDeriveParams[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_AES
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_DERIVE
}, {
.tag = OH_HUKS_TAG_DIGEST,
.uint32Param = OH_HUKS_DIGEST_SHA256
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = OH_HUKS_AES_KEY_SIZE_256
}
};
static struct OH_Huks_Param g_hkdfParams[] = {
{
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_HKDF
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_DERIVE
}, {
.tag = OH_HUKS_TAG_DIGEST,
.uint32Param = OH_HUKS_DIGEST_SHA256
}, {
.tag = OH_HUKS_TAG_DERIVE_KEY_SIZE,
.uint32Param = DERIVE_KEY_SIZE_32
}
};
static struct OH_Huks_Param g_hkdfFinishParams[] = {
{
.tag = OH_HUKS_TAG_DERIVED_AGREED_KEY_STORAGE_FLAG,
.uint32Param = OH_HUKS_STORAGE_ONLY_USED_IN_HUKS
}, {
.tag = OH_HUKS_TAG_KEY_ALIAS,
.blob = g_deriveKeyAlias
}, {
.tag = OH_HUKS_TAG_ALGORITHM,
.uint32Param = OH_HUKS_ALG_HKDF
}, {
.tag = OH_HUKS_TAG_KEY_SIZE,
.uint32Param = DERIVE_KEY_SIZE_32
}, {
.tag = OH_HUKS_TAG_PURPOSE,
.uint32Param = OH_HUKS_KEY_PURPOSE_DERIVE
}, {
.tag = OH_HUKS_TAG_DIGEST,
.uint32Param = OH_HUKS_DIGEST_SHA256
}
};
static const uint32_t COMMON_SIZE = 2048;
static const char *g_deriveInData = "Hks_HKDF_Derive_Test_00000000000000000000000000000000000000000000000000000000000"
"00000000000000000000000000000000000000000000000000000000000000000000000000000000"
"0000000000000000000000000000000000000000000000000000000000000000000000000_string";
static napi_value DeriveKey(napi_env env, napi_callback_info info)
{
struct OH_Huks_Blob genAlias = {
(uint32_t)strlen("test_signVerify"),
(uint8_t *)"test_signVerify"
};
struct OH_Huks_Blob inData = {
(uint32_t)strlen(g_deriveInData),
(uint8_t *)g_deriveInData
};
struct OH_Huks_ParamSet *genParamSet = nullptr;
struct OH_Huks_ParamSet *hkdfParamSet = nullptr;
struct OH_Huks_ParamSet *hkdfFinishParamSet = nullptr;
OH_Huks_Result ohResult;
do {
ohResult = InitParamSet(&genParamSet, g_genDeriveParams, sizeof(g_genDeriveParams) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = InitParamSet(&hkdfParamSet, g_hkdfParams, sizeof(g_hkdfParams) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
// finish paramset
ohResult = InitParamSet(&hkdfFinishParamSet, g_hkdfFinishParams, sizeof(g_hkdfFinishParams) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 1. Generate Key */
ohResult = OH_Huks_GenerateKeyItem(&genAlias, genParamSet, nullptr);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
/* 2. Derive */
// Init
uint8_t handleD[sizeof(uint64_t)] = {0};
struct OH_Huks_Blob handleDerive = { sizeof(uint64_t), handleD };
ohResult = OH_Huks_InitSession(&genAlias, hkdfParamSet, &handleDerive, nullptr);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
// Update
uint8_t tmpOut[COMMON_SIZE] = {0};
struct OH_Huks_Blob outData = { COMMON_SIZE, tmpOut };
ohResult = OH_Huks_UpdateSession(&handleDerive, hkdfParamSet, &inData, &outData);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
// Finish
uint8_t outDataD[COMMON_SIZE] = {0};
struct OH_Huks_Blob outDataDerive = { COMMON_SIZE, outDataD };
ohResult = OH_Huks_FinishSession(&handleDerive, hkdfFinishParamSet, &inData, &outDataDerive);
} while (0);
(void)OH_Huks_DeleteKeyItem(&genAlias, nullptr);
(void)OH_Huks_DeleteKeyItem(&g_deriveKeyAlias, nullptr);
OH_Huks_FreeParamSet(&genParamSet);
OH_Huks_FreeParamSet(&hkdfParamSet);
OH_Huks_FreeParamSet(&hkdfFinishParamSet);
napi_value ret;
napi_create_int32(env, ohResult.errorCode, &ret);
return ret;
}
密钥证明
HUKS为密钥提供合法性证明能力,主要应用于非对称密钥的公钥的证明。基于PKI证书链技术,HUKS可以为存储在HUKS中的非对称密钥对的公钥签发证书,证明其公钥的合法性。业务可以通过OpenHarmony提供的根CA证书,逐级验证HUKS签发的密钥证明证书,来确保证书中的公钥以及对应的私钥,确实来自合法的硬件设备,且存储管理在HUKS中。
开发流程
- 指定密钥别名和需要证明的密钥属性的标签传入HUKS;
- 调用HUKS为应用生成一个依次由根CA证书、设备CA证书、设备证书、密钥证书组成的X.509证书链;
- 将证书链传输至受信任的服务器,并在服务器上解析和验证证书链的有效性和单个证书是否吊销。
C++代码示例:
#include "huks/native_huks_api.h"
#include "huks/native_huks_param.h"
#include <string.h>
OH_Huks_Result InitParamSet(
struct OH_Huks_ParamSet **paramSet,
const struct OH_Huks_Param *params,
uint32_t paramCount)
{
OH_Huks_Result ret = OH_Huks_InitParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
return ret;
}
ret = OH_Huks_AddParams(*paramSet, params, paramCount);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
ret = OH_Huks_BuildParamSet(paramSet);
if (ret.errorCode != OH_HUKS_SUCCESS) {
OH_Huks_FreeParamSet(paramSet);
return ret;
}
return ret;
}
static uint32_t g_size = 4096;
static uint32_t CERT_COUNT = 4;
void FreeCertChain(struct OH_Huks_CertChain **certChain, const uint32_t pos)
{
if (certChain == nullptr||*certChain == nullptr) {
return;
}
if ((*certChain)->certs == nullptr) {
free(*certChain);
*certChain = nullptr;
return;
}
for (uint32_t j = 0; j < pos; j++) {
if ((*certChain)->certs[j].data != nullptr) {
free((*certChain)->certs[j].data);
(*certChain)->certs[j].data = nullptr;
}
}
if ((*certChain)->certs != nullptr) {
free((*certChain)->certs);
(*certChain)->certs = nullptr;
}
if (*certChain != nullptr) {
free(*certChain);
*certChain = nullptr;
}
}
int32_t ConstructDataToCertChain(struct OH_Huks_CertChain **certChain)
{
*certChain = (struct OH_Huks_CertChain *)malloc(sizeof(struct OH_Huks_CertChain));
if (*certChain == nullptr) {
return OH_HUKS_ERR_CODE_ILLEGAL_ARGUMENT;
}
(*certChain)->certsCount = CERT_COUNT;
(*certChain)->certs = (struct OH_Huks_Blob *)malloc(sizeof(struct OH_Huks_Blob) * ((*certChain)->certsCount));
if ((*certChain)->certs == nullptr) {
free(*certChain);
*certChain = nullptr;
}
for (uint32_t i = 0; i < (*certChain)->certsCount; i++) {
(*certChain)->certs[i].size = g_size;
(*certChain)->certs[i].data = (uint8_t *)malloc((*certChain)->certs[i].size);
if ((*certChain)->certs[i].data == nullptr) {
FreeCertChain(certChain, i);
return OH_HUKS_ERR_CODE_ILLEGAL_ARGUMENT;
}
}
return 0;
}
static struct OH_Huks_Param g_genAttestParams[] = {
{ .tag = OH_HUKS_TAG_ALGORITHM, .uint32Param = OH_HUKS_ALG_RSA },
{ .tag = OH_HUKS_TAG_KEY_SIZE, .uint32Param = OH_HUKS_RSA_KEY_SIZE_2048 },
{ .tag = OH_HUKS_TAG_PURPOSE, .uint32Param = OH_HUKS_KEY_PURPOSE_VERIFY },
{ .tag = OH_HUKS_TAG_DIGEST, .uint32Param = OH_HUKS_DIGEST_SHA256 },
{ .tag = OH_HUKS_TAG_PADDING, .uint32Param = OH_HUKS_PADDING_PSS },
{ .tag = OH_HUKS_TAG_BLOCK_MODE, .uint32Param = OH_HUKS_MODE_ECB },
};
#define CHALLENGE_DATA "hi_challenge_data"
static struct OH_Huks_Blob g_challenge = { sizeof(CHALLENGE_DATA), (uint8_t *)CHALLENGE_DATA };
static napi_value AttestKey(napi_env env, napi_callback_info info)
{
struct OH_Huks_Blob genAlias = {
(uint32_t)strlen("test_attest"),
(uint8_t *)"test_attest"
};
static struct OH_Huks_Param g_attestParams[] = {
{ .tag = OH_HUKS_TAG_ATTESTATION_CHALLENGE, .blob = g_challenge },
{ .tag = OH_HUKS_TAG_ATTESTATION_ID_ALIAS, .blob = genAlias },
};
struct OH_Huks_ParamSet *genParamSet = nullptr;
struct OH_Huks_ParamSet *attestParamSet = nullptr;
OH_Huks_Result ohResult;
OH_Huks_CertChain *certChain = NULL;
do {
ohResult = InitParamSet(&genParamSet, g_genAttestParams, sizeof(g_genAttestParams) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = InitParamSet(&attestParamSet, g_attestParams, sizeof(g_attestParams) / sizeof(OH_Huks_Param));
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
ohResult = OH_Huks_GenerateKeyItem(&genAlias, genParamSet, nullptr);
if (ohResult.errorCode != OH_HUKS_SUCCESS) {
break;
}
(void)ConstructDataToCertChain(&certChain);
ohResult = OH_Huks_AttestKeyItem(&genAlias, attestParamSet, certChain);
} while (0);
if (certChain != nullptr) {
FreeCertChain(&certChain, certChain->certsCount);
}
OH_Huks_FreeParamSet(&genParamSet);
OH_Huks_FreeParamSet(&attestParamSet);
(void)OH_Huks_DeleteKeyItem(&genAlias, NULL);
napi_value ret;
napi_create_int32(env, ohResult.errorCode, &ret);
return ret;
}
你可能感兴趣的鸿蒙文章
- 所属分类: 后端技术
- 本文标签:
热门推荐
-
2、 - 优质文章
-
3、 gate.io
-
8、 golang
-
9、 openharmony
-
10、 Vue中input框自动聚焦
